Sky-Watcher SynGuider Standalone Astrophotography Autoguider
The Sky-Watcher SynGuider 2nd generation is a self-contained automatic guiding device that works completely independently - no laptop, no guiding software, no extra cables running to a computer. For astrophotographers who want to keep their setup lean and reliable under the night sky, this compact autoguider delivers precise mount corrections during long exposures without any unnecessary complexity.
Why Autoguiding Matters
Even the finest equatorial mounts are not perfect. Minor periodic errors in the gears, slight polar alignment imperfections, and atmospheric refraction all add up over time - and during multi-minute exposures of deep-sky objects, these tiny drifts translate directly into elongated stars and lost fine detail in nebulae, galaxies, and star clusters. Accurate autoguiding continuously monitors a reference star and sends real-time correction signals to the mount, keeping every star a tight pinpoint throughout the entire exposure.
The SynGuider handles all of this automatically. Once a suitable guide star is selected, the device takes over - detecting any drift and issuing corrections through the standard ST4 port without any human intervention needed.
Standalone Operation - No Computer Required
The biggest advantage of the SynGuider over software-based guiding solutions is its complete independence. There is no need to bring a laptop to the field, install guiding applications, or manage USB connections between camera and computer in the dark. The autoguider connects directly between the guide scope and the mount - power it up, select a star, and it is ready to guide.
This makes the SynGuider an especially practical choice for mobile setups, remote observing locations, or anyone who simply wants to reduce the number of devices in their workflow and focus on imaging rather than troubleshooting software.
LCD Display and Intuitive Controls

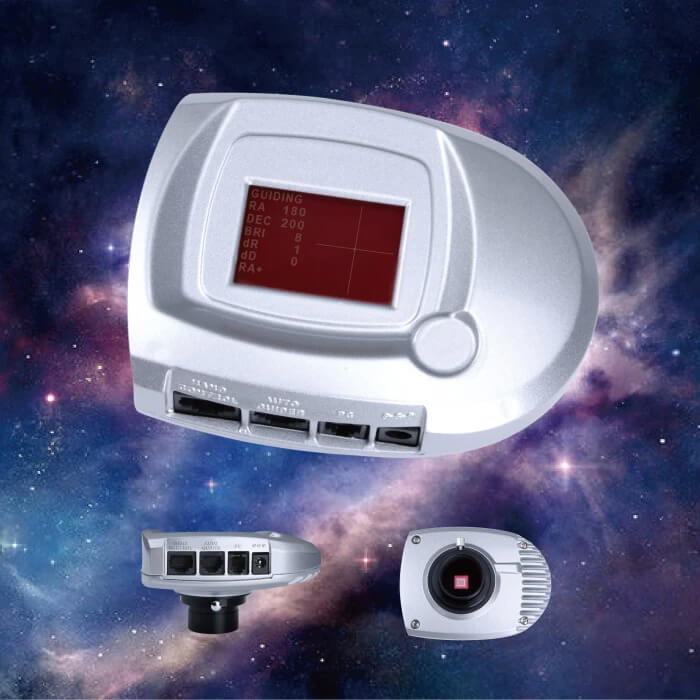

The integrated LCD display shows a real-time image of the guide star, giving the user immediate visual feedback during setup and throughout the guiding session. Calibration and star selection are straightforward, and the overall operation is logical enough for less experienced astrophotographers to get started quickly. The display also makes it easy to verify guiding quality at a glance without needing an external monitor.
Connectivity and Compatibility
The SynGuider is equipped with a standard ST4 guiding port, compatible with virtually all widely available equatorial mounts that support autoguiding. Optical connection is equally flexible - the device can be attached via M42 thread or inserted directly into a 1.25″ focuser, making it compatible with refractors, reflectors, and catadioptric telescopes alike.
Power is supplied via a DC input accepting 4.5-14 V at 150 mA (5 V recommended), or alternatively through a USB Type-B port - a convenient option in the field where USB power banks are commonly available.
Sensor Performance and Limiting Magnitude
At the heart of the SynGuider is a CMOS APTINA MT9V034C12STM sensor with a chip size of 4.51 x 2.88 mm, a resolution of 752 x 480 pixels, and a pixel size of 6.0 x 6.0 µm. Under typical conditions - an 80 mm aperture refractor, 500 ms exposure, and good atmospheric stability - the device is capable of detecting guide stars down to approximately magnitude 8.5. This provides a comfortable range of suitable guide stars across most areas of the sky.
Exposure Times
The SynGuider offers a wide selection of exposure times: 2, 5, 15, 30, 70, 100, 200, 300, 400, 500, 600, 1200, and 2000 ms. Shorter exposures work well under good seeing conditions with bright guide stars, while longer exposures allow the detection of fainter stars and accommodate slower focal ratios. This flexibility makes the device suitable for a broad range of focal lengths and imaging configurations.
Firmware Updates
The SynGuider supports firmware updates via the internet, ensuring long-term compatibility with current and future mounts and allowing the manufacturer to introduce improvements over time. This is a practical feature that extends the useful lifespan of the device considerably.
Technical Specifications
- Sensor: CMOS APTINA MT9V034C12STM
- Chip size: 4.51 mm x 2.88 mm
- Resolution: 752 x 480 pixels
- Pixel size: 6.0 µm x 6.0 µm
- Guider port: ST4 standard
- Optical connection: M42 thread or 1.25″ focuser
- Power supply: DC 4.5-14 V, 150 mA (5 V recommended) or USB Type-B
- Exposure times: 2, 5, 15, 30, 70, 100, 200, 300, 400, 500, 600, 1200, 2000 ms
- Display: LCD with real-time star image
- Firmware: updatable via internet
Who Is the SynGuider For?
The Sky-Watcher SynGuider is a solid choice for astrophotographers at any experience level who want reliable, accurate guiding without the overhead of a full computer-based guiding system. Beginners will appreciate the straightforward setup and the freedom from additional software, while more experienced imagers will value the clean, minimal field setup it enables. If your goal is sharper deep-sky images with less equipment to manage, the SynGuider standalone autoguider is a proven and practical solution.
