What are focusing masks and what are they used for
Focusing masks, also known as Bahtinov masks, are an essential tool for every astrophotographer who wants to achieve perfectly sharp images of stars and other celestial objects. These special masks are placed in front of a telescope objective or camera lens and create characteristic diffraction patterns that facilitate precise focusing. Thanks to them, you can achieve perfect focus even in very low light conditions, when it is difficult to recognize sharpness with the naked eye.
Principle of operation of Bahtinov masks
The Bahtinov mask works on the principle of light diffraction. When light passes through specially designed slits in the mask, a characteristic diffraction pattern is created consisting of three main rays. The middle ray is perpendicular to two side rays that are symmetrically positioned. When the telescope is perfectly focused, all three rays intersect at one point. If the focus is not precise, the middle ray shifts left or right, immediately showing you the direction of needed correction. This system is much more precise than traditional focusing methods and works reliably even when photographing faint objects.
Types of focusing masks available on the market

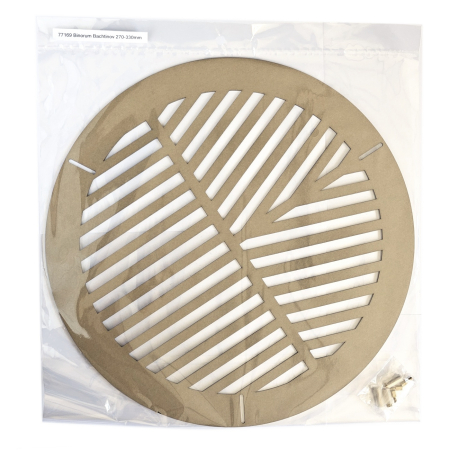

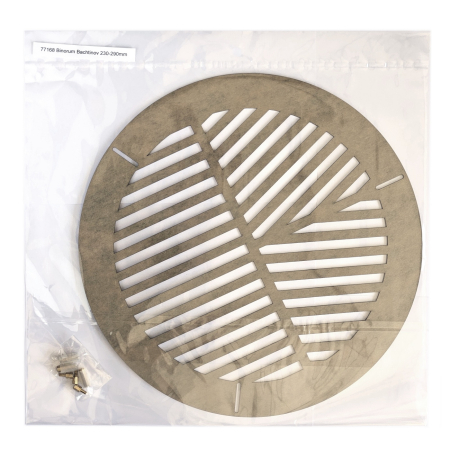

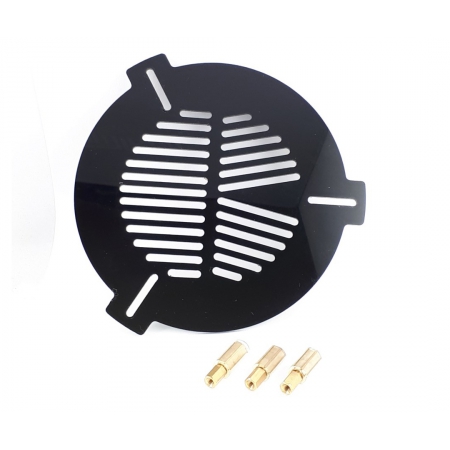

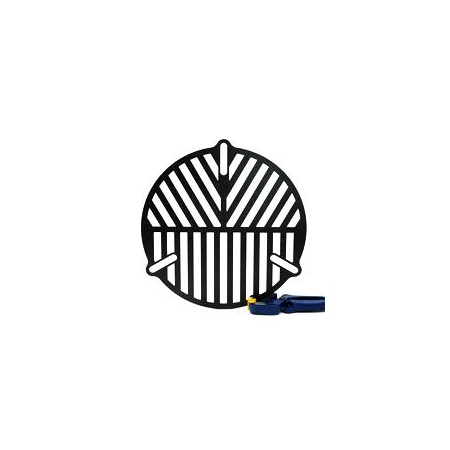

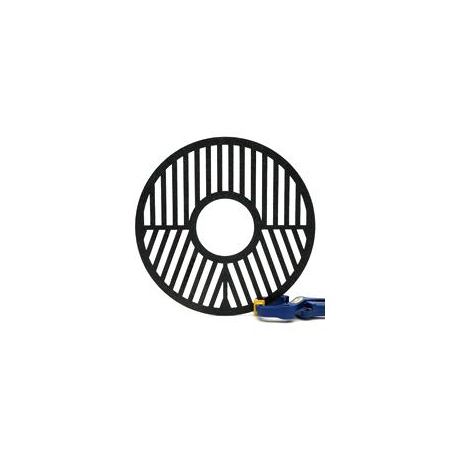

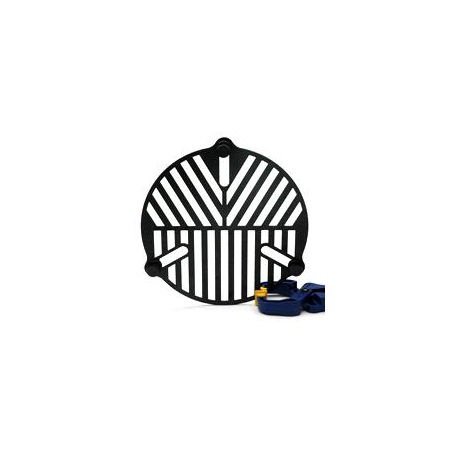

There are several types of focusing masks on the market that differ according to construction and method of use. Classic Bahtinov masks are the most widespread and suitable for most applications in astrophotography. There are also modified versions such as tri-Bahtinov masks that create multiple diffraction patterns simultaneously. Focusing masks are manufactured in various sizes corresponding to the diameters of lenses and telescopes. Some models are universal with adjustable diameter, others are designed specifically for certain types of optics. Modern variants can be made from lightweight materials such as plexiglass or special plastics.
Advantages of using focusing masks in astrophotography
Using focusing masks brings astrophotographers many significant advantages. The main benefit is the ability to achieve extremely precise focusing, which is critical for quality astrophotography. Traditional focusing methods are often imprecise and time-consuming, while with a Bahtinov mask you achieve perfect focus within seconds. Another advantage is the ability to focus even in very low light or on faint stars, where other methods would fail. Bahtinov masks also allow control of optics quality and detection of possible problems with telescope collimation. They are affordably priced and practically do not wear out, so they represent a one-time investment with long-term benefits.
How to properly use a focusing mask
Proper use of a focusing mask requires following several basic steps to achieve optimal results. First, point the telescope at a bright star, ideally of magnitude 2-4, which is located at approximately the same altitude as the object you will be photographing. Slide the mask onto the front part of the lens or telescope and make sure it is properly secured. In the viewfinder or on the camera's LCD display, you will see the characteristic diffraction pattern. Slowly turn the focusing ring until all three rays intersect at one point. After achieving perfect focus, carefully remove the mask and you can start photographing. Remember that after any change in telescope position, it is advisable to check the focus.
Choosing the right size and type of mask
Selecting the right focusing mask depends primarily on the diameter of your lens or telescope. The mask should fit precisely on the front part of the optics without causing vignetting or other optical problems. For refractors and small reflectors, standard Bahtinov masks with diameter corresponding to the lens diameter are sufficient. For larger telescopes or when using coma correction, it may be more advantageous to choose a mask with a larger number of openings. When selecting, also consider the mask material - plastic masks are lightweight and durable, while metal variants may be more precise but heavier. Some masks have magnetic mounting that facilitates handling in the dark.
Tips for advanced users of focusing masks
Advanced astrophotographers can utilize several advanced techniques for maximum use of focusing masks. One useful method is using the mask in combination with autofocus software that analyzes the diffraction pattern and performs fine adjustment. For photographing different areas of the sky, it is useful to create a focus map that records the optimal focus position for different areas of the field of view. When working with fast optical systems (f/4 and faster), it is important to pay extra attention to precision, because focusing error will show more prominently. Some photographers use multiple masks simultaneously to check focus quality across the field of view. On cooler nights, don't forget about temperature compensation, as temperature changes can affect focal length.
Maintenance and storage of focusing masks
Proper maintenance of focusing masks ensures their long lifespan and reliable operation. After each use, clean the mask of dust and any dirt using a soft brush or compressed air. If the mask is dirty, you can carefully wash it with lukewarm water and mild soap, then thoroughly dry it. Store masks in a protective case or box to prevent damage to the delicate structure of the openings. Avoid touching the mask surface with fingers, as grease can affect the quality of the diffraction pattern. Regularly check the condition of the mask and replace it with a new one if the openings are damaged or deformed. A quality mask with proper handling can serve many years without loss of functionality.
