What are astronomical CCD filters and why do you need them?
Astronomical CCD filters are essential equipment for every serious astrophotographer. These filters are specially designed for use with CCD and CMOS cameras, which are widely used today for capturing images of celestial objects. Unlike visual filters, CCD filters are optimized for the spectral sensitivity of modern imaging chips. Their primary purpose is to selectively transmit certain wavelengths of light while suppressing unwanted radiation. Thanks to this, you can achieve significantly sharper, higher-contrast, and more detailed images of star clusters, nebulae, and galaxies. Whether you are a beginner or an experienced observer, a quality CCD filter will make a noticeable difference in your results.
Types of CCD filters for astrophotography
CCD filters for astrophotography are divided into several basic categories according to their function and intended use. The most widespread are broadband LRGB filters, which are used for composing color images from luminance and color channels. For photographing emission nebulae, narrowband filters such as H-alpha, OIII, or SII are ideal, as they transmit only a very narrow band of wavelengths. These filters allow imaging even from cities with heavy light pollution, as they can effectively suppress the orange glow of sodium lamps and other artificial light sources. A special category consists of IR/UV cut filters, which prevent infrared and ultraviolet radiation from reaching the camera sensor. Choosing the right type depends on your camera, your observing location, and the objects you want to photograph.
Broadband LRGB filters
LRGB filters form the foundation of color astrophotography with monochrome cameras. A set consists of a luminance filter L and three color filters - red R, green G, and blue B. The luminance filter transmits a broad spectrum of visible light and is used to capture fine details in the image. The individual color filters then provide color information about the object. The resulting frames are combined in dedicated software to produce a final color photograph with high resolution and natural colors. LRGB imaging is the preferred method for capturing galaxies and star clusters in true color.
Narrowband filters for emission nebulae

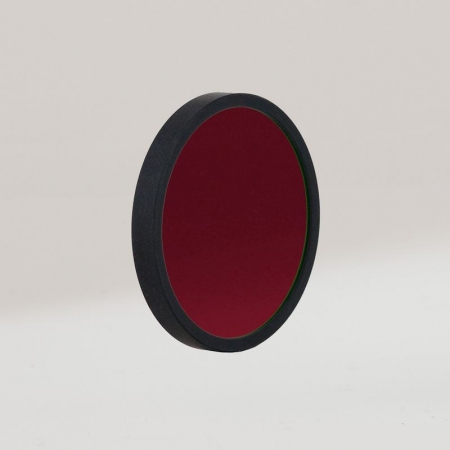

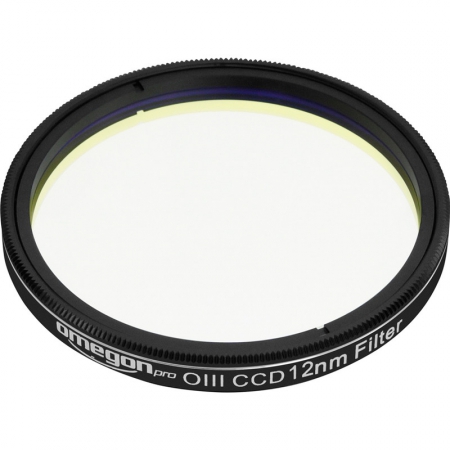

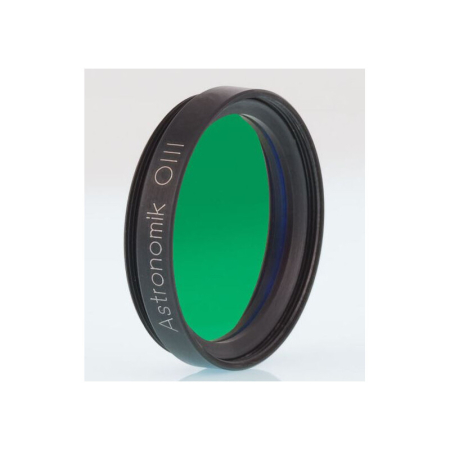

Narrowband filters are the ultimate tool for photographing emission nebulae, supernova remnants, and planetary nebulae. The H-alpha filter transmits light from ionized hydrogen at a wavelength of 656 nm and reveals structures that are otherwise nearly invisible. The OIII filter captures emission from doubly ionized oxygen, while the SII filter captures radiation from ionized sulfur. By combining these three filters, it is possible to create so-called Hubble Palette images with beautifully colorful nebulae. The bandwidth of these filters is typically 3, 5, or 7 nm, with a narrower passband providing better suppression of light pollution. Narrowband filters are indispensable for urban astronomers who want to image deep-sky objects under bright skies.
How to choose the right CCD filter?
Choosing the right CCD filter depends on several factors that should be carefully considered before purchase. First, it is important to know the type of your camera - whether it is a monochrome or a color camera. For monochrome cameras, LRGB sets or narrowband filters are most suitable, while for color cameras, dual or triband filters are most commonly used. Another factor is the location from which you image - from a dark site you can manage with broadband filters, while from a city you will need narrowband filters. Do not forget about the filter diameter, which must match your filter wheel or adapter. Finally, consider the material and quality of the anti-reflection coating, as these directly influence the filter's transmission properties and overall image quality.
Filter diameters and mounting
CCD filters are available in various diameters and formats for different types of cameras and telescopes. The most common sizes are 1.25″, 2″, and 31 mm for threaded mounting into an eyepiece adapter. For larger cameras with bigger sensors, filters with a diameter of 36 mm, 50 mm, or in a 50x50 mm format are used. Filters can be mounted directly into the focuser drawtube, into filter wheels, or into dedicated adapters. Choosing the correct filter diameter will prevent vignetting, which causes the corners of the image to appear darker. Always verify compatibility with your existing equipment before purchasing a new filter.
Filter materials and coating quality
The optical quality of a CCD filter is largely determined by the substrate material and the quality of its coatings. High-end filters use precision-ground optical glass or fused silica substrates that ensure flatness and minimal wavefront error. Multi-layer anti-reflection coatings reduce unwanted reflections and improve light transmission through the filter. Hard coatings are more resistant to scratching and cleaning, which extends the useful lifespan of the filter significantly. Some manufacturers apply coatings to both sides of the glass to maximize transmission within the desired passband. When comparing filters, always check the transmission curve provided by the manufacturer to understand exactly what wavelengths are transmitted and blocked.
Care and maintenance of CCD filters
Proper care of CCD filters is the key to their long service life and the preservation of their optical properties. Always store filters in their supplied cases or in hermetically sealed containers with a desiccant to prevent moisture damage. Clean them only with dedicated optical cleaning fluids and soft microfiber cloths or air blowers designed for optics. Never use abrasive materials or household cleaning products, as these can permanently damage anti-reflection coatings. Avoid touching the glass surface with bare fingers, as grease and perspiration can cause lasting stains that degrade image quality. When installing or removing filters, always work in a clean environment and handle the filter only by the edge of its frame to avoid contamination of the optical surfaces.
