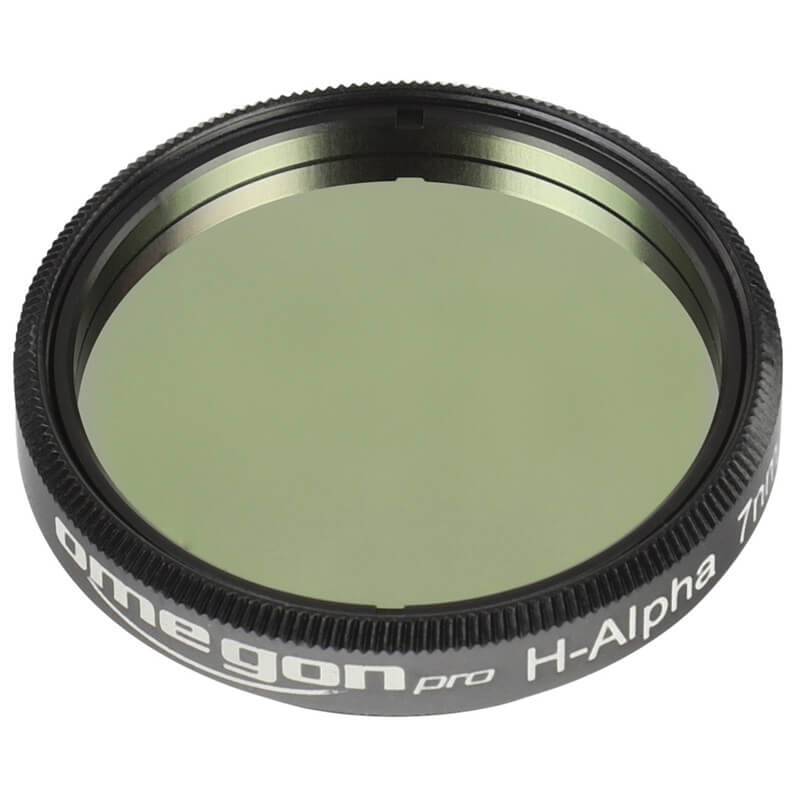

Omegon Pro H-alpha 7nm 1.25″ Filter

Omegon Pro H-alpha 7nm 1.25″ Filter

The Omegon Pro H-alpha 7nm filter is a specialist tool designed for photographing emission nebulae - the regions of space where young stars glow in the characteristic red light of hydrogen. Its extremely narrow 7nm passband produces a dramatic increase in contrast and reveals details that would otherwise be hidden behind the glow of artificial lighting. This filter works equally well for astronomers living under the bright skies of a city and for observers at dark rural sites who want to get the very best from their equipment.

Why Choose a 7nm Passband?

Compared to standard H-alpha filters with a 12nm passband, the 7nm version offers significantly better suppression of sky background noise. The narrower passband allows only light emitted by ionised hydrogen at a wavelength of 656.3nm to pass through. At the same time, it effectively blocks the radiation produced by sodium and mercury vapour street lamps, which make up most of the light pollution in cities. The result is images with far higher contrast and clearly visible nebula structures - including filaments, pillars, and arcs of gas clouds.

Multi-Layer Dielectric Coating

The 7nm H-alpha filter achieves this performance through multi-layer dielectric coating technology. Dozens of very thin layers are applied to the optical glass, and these layers work on the principle of light interference. They create sharp transitions between the passband and the blocking region. This not only blocks unwanted radiation - it also minimises light scatter inside the filter itself, which contributes directly to the sharpness and clarity of the final image.

Compatible Cameras

The Omegon Pro H-alpha 7nm filter is designed for use with monochrome astrophotography cameras. These are the ideal choice for H-alpha imaging because they do not have a Bayer matrix filter in front of the sensor. The filter also works very well with astro-modified DSLR cameras, where the internal IR/UV filter has been removed or replaced with a version that transmits H-alpha wavelengths.

With standard, unmodified DSLR cameras, the filter's usefulness is limited. The factory filter in front of the sensor strongly attenuates H-alpha light, which reduces the benefit of using a narrowband filter. If you are using an unmodified DSLR, consider having it modified before investing in a 7nm narrowband filter.

The filter is made in the standard 1.25″ diameter and screws easily into the standard thread of a focuser or camera adapter.

Best Targets for H-alpha Photography

Popular objects for H-alpha imaging include:

• Eagle Nebula (M16)
• Omega Nebula (M17)
• Rosette Nebula
• Cygnus complex
• Orion Nebula (M42)

All of these objects emit strong H-alpha radiation and are therefore ideal targets for this type of filter - regardless of whether you are photographing from a dark sky site or from the centre of a city.

A Filter That Works in Any Conditions

The Omegon Pro H-alpha 7nm is a narrowband filter for light-polluted skies that can transform even the difficult conditions of an urban rooftop or balcony into a starting point for impressive images. Whether you shoot from a city balcony or a remote observatory, this filter reveals structures and details in emission nebulae that you may never have seen in your earlier images. Investing in a quality narrowband filter produces a dramatic improvement in every astrophotography image you capture.

About the Omegon Pro Range

Omegon is a well-established brand in astronomical optics and accessories, serving astronomers from beginners through to experienced observers and astrophotographers. The Pro range represents the top of the Omegon lineup and includes carefully designed filters, eyepieces, and other optical accessories built to meet the demands of serious users. Omegon Pro filters are manufactured with close attention to passband tolerance accuracy, optical glass quality, and coating durability - so they hold up to regular use in the field and in the observatory.

Technical Specifications
