Binorum Bahtinov Focusing Mask 200-260mm
The Binorum Bahtinov focusing mask 200-260mm is a precision focusing tool designed for larger telescopes, providing astrophotographers with an objective, reliable method to achieve perfect focus. This essential accessory fits telescopes with outer objective diameters from 200mm to 260mm, making it ideal for 8-inch and 10-inch instruments commonly used for serious deep-sky imaging.
How the Bahtinov Mask Works
The Bahtinov mask uses a precisely calculated pattern of angled slots that create characteristic diffraction spikes around bright stars. When the telescope is perfectly focused, the central diffraction spike aligns exactly between two angled spikes, forming a symmetric pattern. Any defocus causes the central spike to shift left or right, providing immediate, unambiguous feedback about focus direction.
This objective visual indicator eliminates the guesswork of traditional focusing methods where you try to make stars "as small as possible." The diffraction pattern is far easier to judge than subtle differences in star size, especially when atmospheric seeing causes stars to shimmer and dance.
Step-by-Step Focusing Process
Step 1: Attach the mask to the front of your telescope, ensuring it covers the full aperture and sits centered on the tube or lens cell.
Step 2: Point your telescope toward a moderately bright star (magnitude 2-4 works best). Avoid extremely bright stars that may saturate your camera sensor.
Step 3: Activate your camera's live view mode and zoom in digitally on the star image to clearly see the Bahtinov diffraction pattern.
Step 4: Observe the central spike line in the Bahtinov pattern. If the image is not in focus, this central line will be offset to one side. Adjust your focuser slowly, watching the central line move until it sits precisely centered between the two angled lines, creating perfect symmetry.
Step 5: You have now achieved optimal focus. Remove the mask from your optics and you can begin exposing your target deep-sky object.
For Serious Astrophotography
Larger telescopes demand precision focusing because their narrower depth of focus makes small focusing errors more critical. With 8-10 inch apertures, even tiny focus shifts degrade image quality noticeably. The Bahtinov mask ensures you achieve the critical focus these larger instruments require to deliver their full resolution potential.
This is particularly important for:
Deep-Sky Imaging: Resolving fine details in galaxies, planetary nebulae, and globular clusters requires perfect focus to achieve the maximum resolution your optics can deliver.
Narrowband Imaging: When using narrowband filters (H-alpha, OIII, SII), focus can shift between filters. The Bahtinov mask enables quick, accurate refocusing when changing filters during your imaging sequence.
Long Focal Length Systems: Schmidt-Cassegrain and Ritchey-Chrétien telescopes in this size range typically have focal lengths of 1500-2500mm, where focusing precision becomes critical for sharp stars across the field.
Compatible Telescope Types
This 200-260mm mask fits telescopes with outer diameters in this range, including:
- 8-inch (200mm) Schmidt-Cassegrain telescopes (SCT)
- 8-inch Ritchey-Chrétien astrographs
- 9.25-inch and 10-inch SCT models
- 8-inch Newtonian reflectors (measure tube outer diameter)
- Large refractors and apochromats with appropriate tube diameters
- Maksutov-Cassegrain telescopes in the 8-10 inch range
Important: Measure your telescope's outer diameter where the mask will sit - the physical diameter of the tube or corrector plate housing, not the aperture. The mask must cover the entire aperture while sitting securely on the outer housing.
Advantages Over Traditional Focusing
Traditional focusing relies on making subjective judgments about when stars appear smallest or sharpest. This is difficult when atmospheric turbulence constantly changes the star image, and nearly impossible to do consistently to the precision required for quality astrophotography.
The Bahtinov mask provides an objective, quantitative indicator - you're simply aligning a diffraction spike pattern, which is dramatically easier and more repeatable than judging subtle differences in star appearance. Even in poor seeing conditions, the diffraction pattern remains visible and usable for achieving precise focus.
Construction Quality

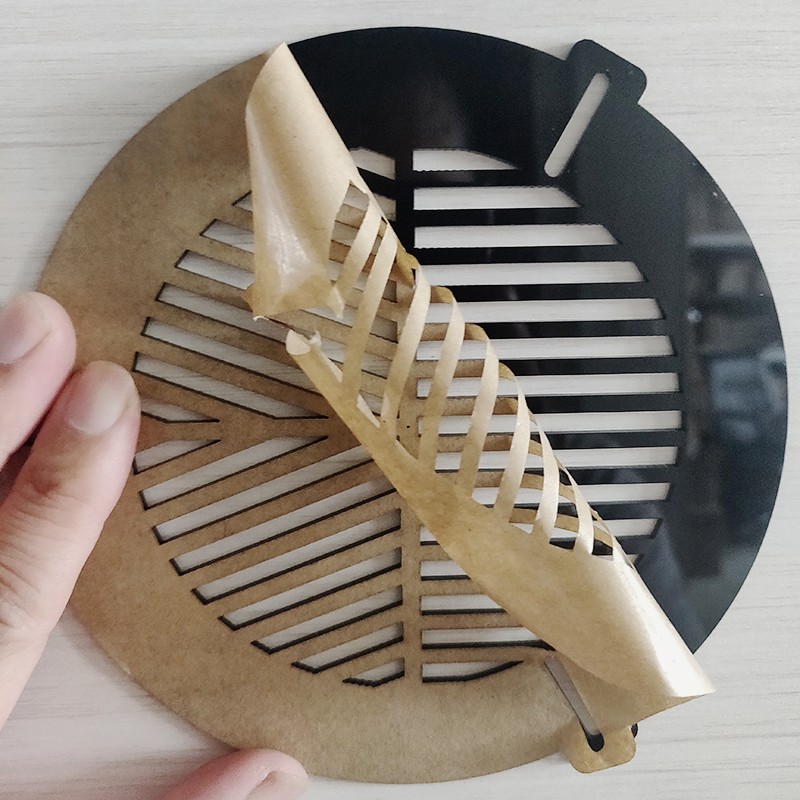

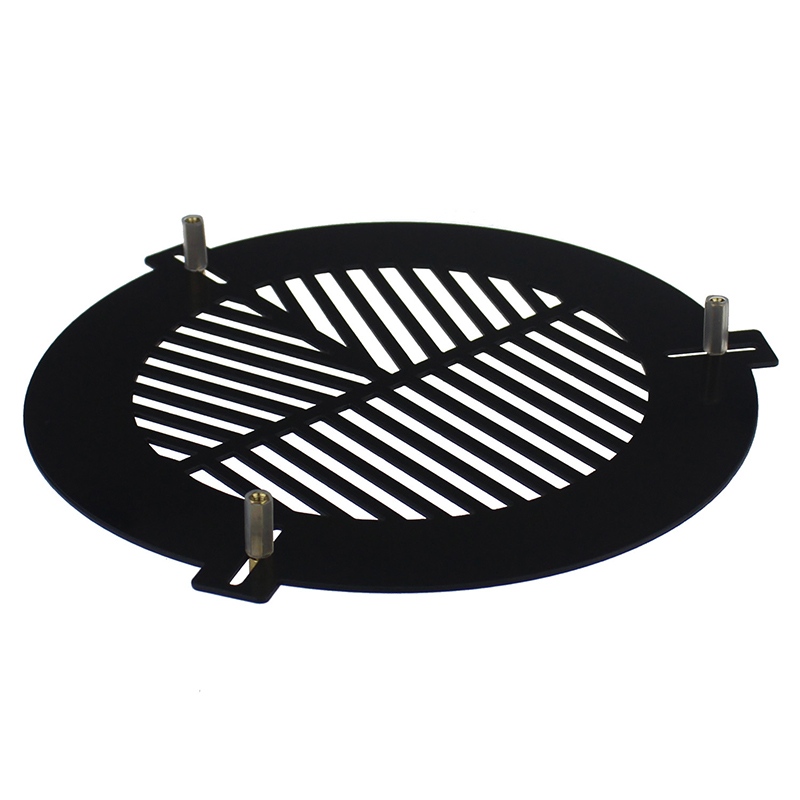

The mask features durable plastic construction with precision-manufactured slot patterns that create clean, well-defined diffraction spikes. The lightweight design won't add significant weight to your telescope, and the material resists environmental effects from temperature changes and humidity that could warp or degrade the focusing pattern.
Pro Tips for Best Results
- Allow your telescope to reach thermal equilibrium before final focusing
- Use live view at maximum digital magnification to see the diffraction spikes clearly
- Choose well-elevated stars where atmospheric turbulence is reduced
- Make small, incremental focus adjustments - large aperture systems have very narrow depth of focus
- Refocus periodically during long imaging sessions as temperature changes can cause focus drift
- For automated imaging, some software can analyze Bahtinov patterns for computer-controlled focusing
Technical Specifications
Compatible Outer Diameter Range: 200-260mm
Typical Telescope Apertures: 8-10 inches (200-254mm)
Material: Precision-molded plastic
Pattern Type: Bahtinov diffraction grating
Weight: Lightweight construction
Application: Precision focusing for astrophotography
Essential for Quality Imaging
For astrophotographers using larger telescopes, the Bahtinov mask is not optional - it's essential. The precision focus it enables directly translates to sharper stars, better resolution of fine details, and images that fully exploit your telescope's optical capabilities. This simple, reliable tool removes the frustration from achieving critical focus, allowing you to spend your precious clear nights capturing the cosmos rather than struggling with focus uncertainties.
