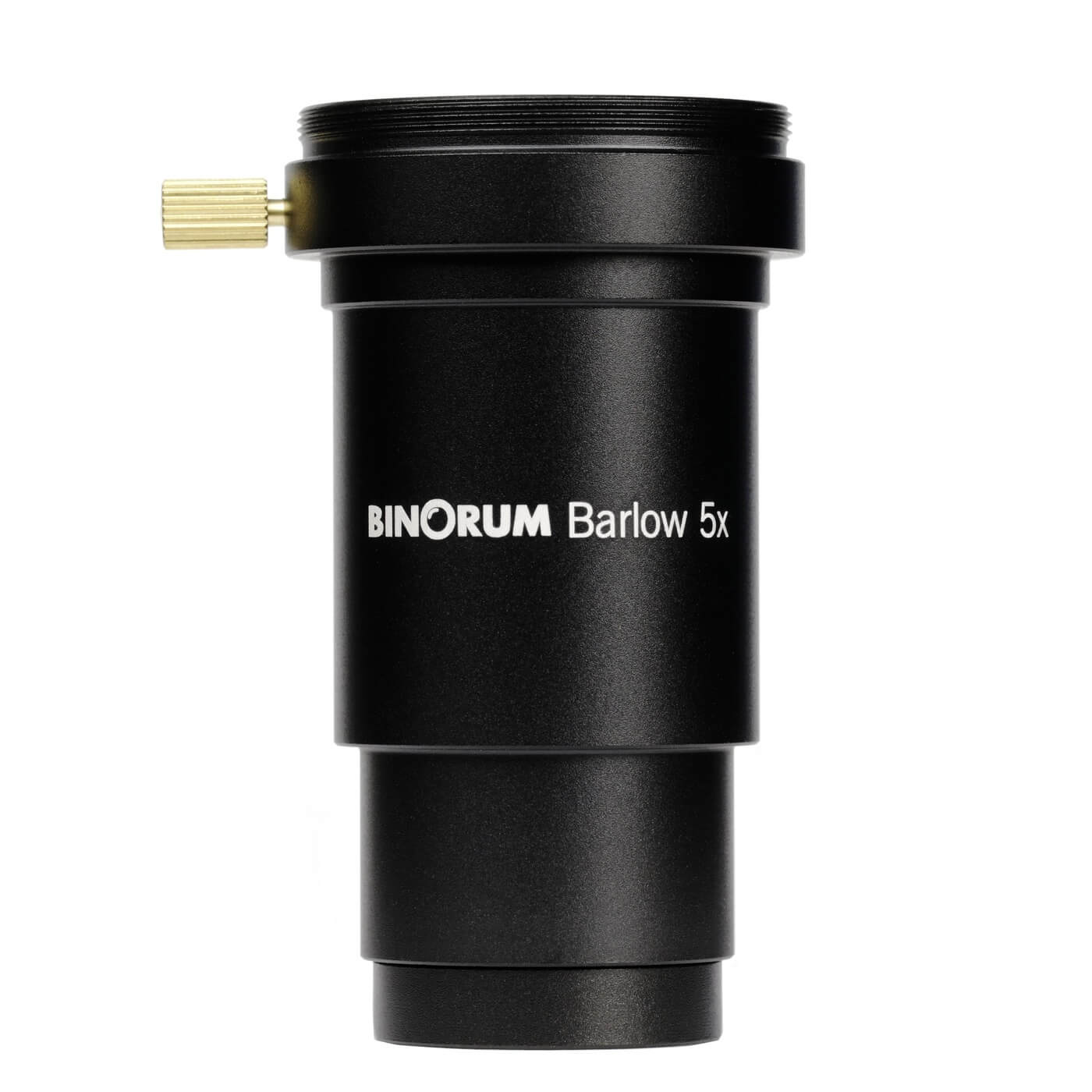

Binorum Optima 5x T2 1.25″ Barlow Lens
Extreme Magnification for Planetary Details
The Binorum Optima 5x Barlow lens is a specialized high-power multiplier designed for demanding planetary observation and imaging. With its 5× magnification factor, this Barlow transforms your eyepiece collection into an arsenal of ultra-high magnification tools - perfect for capturing the finest details on planets, the Moon, and double stars when atmospheric conditions permit.
Achromatic Optical Design
Featuring an achromatic doublet design, the Optima 5x Barlow minimizes chromatic aberration that can plague simple single-element multipliers. The two-element optical construction ensures better color correction and sharpness across the field, maintaining image quality even at extreme magnifications where every optical flaw becomes magnified.
Dual Functionality - Visual and Photographic
What sets the Optima 5x apart is its T2 thread on the eyepiece-side barrel. This feature makes it uniquely versatile:
Visual Observing Mode
Insert any 1.25″ eyepiece into the Barlow barrel and secure it with the side thumbscrew. The complete assembly then slides into your telescope's focuser like a regular eyepiece. Your 10mm eyepiece becomes effectively a 2mm eyepiece, your 6mm becomes 1.2mm - reaching magnifications that would be impractical or impossible with standalone eyepieces.
Imaging Mode
Remove the eyepiece and attach your camera using an appropriate T2 (M42×0.75) adapter ring for your camera brand. The 5x Barlow increases the effective focal length of your telescope by five times, dramatically increasing image scale for planetary and lunar imaging. This is particularly valuable for smaller telescopes where native focal length limits planetary image size.
When to Use 5× Magnification
A 5× Barlow is not for everyday use - it's a specialized tool for specific applications:
- Planetary imaging - Achieve optimal image scale for capturing details on Jupiter, Saturn, Mars
- Lunar closeups - Fill the frame with individual craters and mountain ranges
- Double star separation - Push magnification to resolve tight binary systems
- Excellent seeing conditions - When atmosphere is exceptionally stable, exploit maximum useful magnification
- Large aperture telescopes - Instruments over 200mm aperture can support the extreme magnifications
Practical Magnification Examples
Understanding what 5× multiplication means for your observing:
- 10mm eyepiece + 5x Barlow = 2mm effective focal length
- 6mm eyepiece + 5x Barlow = 1.2mm effective focal length
- In a 1000mm focal length telescope: 10mm eyepiece alone = 100×, with 5x Barlow = 500×
- In a 1500mm focal length telescope: 6mm eyepiece alone = 250×, with 5x Barlow = 1250×
These extreme magnifications require excellent atmospheric seeing and quality optics to deliver useful images. Always check that magnification stays within your telescope's useful range (typically 2× per millimeter of aperture as absolute maximum).
Technical Specifications
- Magnification factor: 5×
- Optical design: Achromatic doublet
- Barrel diameter: 1.25″ (31.7mm)
- Eyepiece socket: 1.25″ with securing thumbscrew
- Camera thread: T2 (M42×0.75mm)
- Compatible eyepieces: All 1.25″ eyepieces
- Compatible cameras: Any DSLR, mirrorless, or astronomy camera with appropriate T2 adapter
- Construction: Metal barrel
Quality Metal Construction
The Optima 5x features robust all-metal construction ensuring optical alignment stability even at extreme magnifications where any flexure or misalignment becomes immediately visible. The precise barrel machining provides secure fit in telescope focusers without wobble, and the eyepiece retention thumbscrew holds eyepieces firmly without marring barrels.
Atmospheric Seeing Requirements
Honesty about extreme magnifications: A 5× Barlow pushes magnification into ranges where atmospheric turbulence becomes the limiting factor more often than optics. You'll achieve best results on nights with exceptional seeing - typically cold, clear nights after a front passes, or from high-altitude observing sites. On average seeing nights, lower magnifications (2× or 3× Barlows) often deliver superior views despite lower power.
For planetary imaging, however, modern stacking software can overcome seeing limitations by combining hundreds or thousands of frames, making the 5× Barlow valuable even under moderate conditions.
Planetary Imaging Advantages
For astrophotographers targeting planets, the 5× Barlow solves a critical problem: image scale. Planets appear tiny even in long focal length telescopes. The 5× multiplier increases planetary disk size on your camera sensor, allowing you to capture more detail and make better use of your camera's resolution.
Example: Jupiter in a 1200mm telescope appears about 40 arcseconds diameter during opposition. Without Barlow, it's a small disk. With 5× Barlow (effective 6000mm focal length), Jupiter fills much more of the frame, capturing details that would otherwise span only a few pixels.
T2 Thread Versatility
The T2 (M42×0.75) thread is the universal standard for astronomical camera adaptation. With the appropriate T-ring for your camera brand (Canon, Nikon, Sony, etc.), you can attach any DSLR or mirrorless camera. For dedicated astronomy cameras with T2 or C-mount threads, connection is even simpler. This makes the Optima 5x a true dual-purpose tool - high-power visual multiplier and imaging focal extender in one package.
Combining with Other Eyepieces
The 5× Barlow effectively gives you an entire set of ultra-short focal length eyepieces without purchasing individual 2mm, 1.5mm, or 1mm eyepieces (which are expensive, difficult to use, and have extremely short eye relief). Instead, you use your comfortable longer focal length eyepieces with their generous eye relief, and let the Barlow provide the magnification.
Limitations and Considerations
Be realistic about 5× Barlow applications:
- Not suitable for deep-sky objects - these require low to medium magnifications
- Requires excellent seeing conditions for visual use
- Extremely high magnifications show atmospheric turbulence prominently
- Works best with high-quality eyepieces - poor eyepieces will show aberrations magnified
- Telescope must have sufficient aperture to support extreme magnifications
- May require refocusing range beyond standard focuser travel on some telescopes
Who Should Consider a 5× Barlow?
- Planetary observers with telescopes over 150mm aperture seeking maximum magnification
- Lunar imagers wanting to capture extreme closeups of craters and features
- Planetary astrophotographers needing increased image scale for small planetary disks
- Double star enthusiasts pushing telescopes to maximum resolving power
- Observers with access to excellent seeing conditions - mountain sites, stable climates
Recommended Eyepiece Combinations
For best results with the Optima 5x Barlow, use quality eyepieces with good eye relief in the 6-12mm range. These provide comfortable viewing positions and good optical performance, which the Barlow then multiplies. Avoid using the 5× Barlow with eyepieces already shorter than 5mm - the resulting magnification will likely exceed atmospheric and optical limits.
Why Choose Binorum Optima
The Binorum Optima 5x T2 Barlow combines specialized high-power multiplication with imaging versatility at an accessible price point. The achromatic optical design ensures reasonable image quality at extreme magnifications, the metal construction provides durability and alignment stability, and the T2 thread adds camera attachment capability that single-purpose Barlows lack. For planetary observers and imagers seeking maximum magnification and image scale, the Optima 5x delivers professional functionality without premium pricing.
