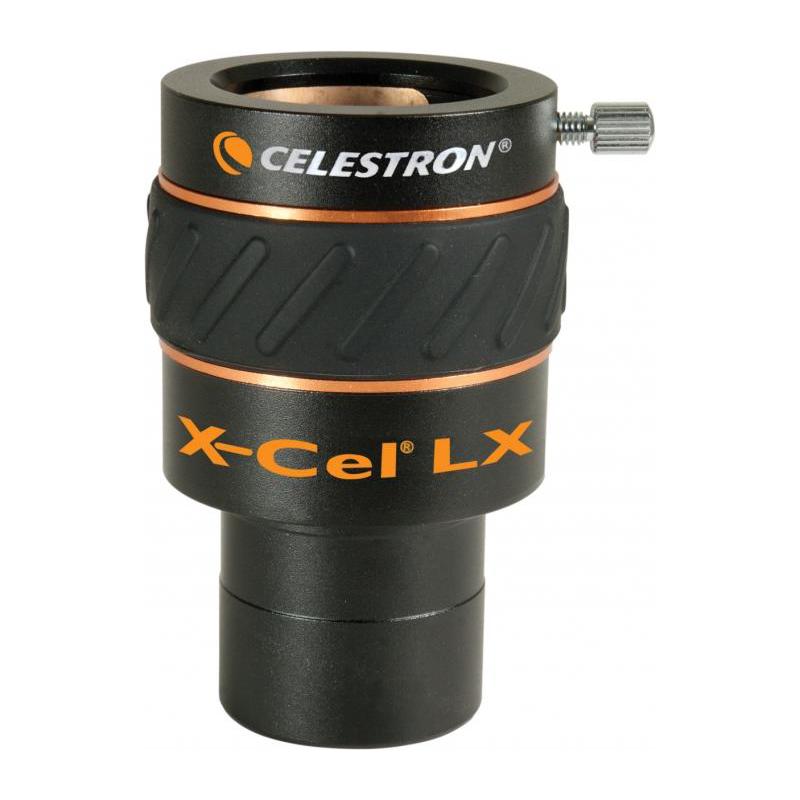

Celestron X-Cel LX 1.25″ 2X Barlow Lens
Professional Magnification Enhancement for Serious Astronomers
The Celestron X-Cel LX 1.25″ 2X Barlow lens represents a premium solution for astronomers seeking to effectively double their telescope's focal length without compromising image quality. This high-quality optical element is designed with emphasis on maximum performance and long-term reliability, making it an ideal choice for both advanced observers and beginning astronomers.
Advanced Optical Design and Construction
At the heart of the Celestron X-Cel LX Barlow lens lies a sophisticated two-element optical construction that utilizes air spacing between individual elements to minimize optical aberrations. This design ensures that light passes through the system with minimal losses while maintaining high contrast and image sharpness. All optical surfaces feature high-quality multi-layer coatings that effectively suppress unwanted reflections and increase light transmission.
The multi-layer coating is applied using state-of-the-art technologies and consists of several ultra-thin layers of specialized materials. Each layer is precisely calibrated for optimal performance across different wavelengths of visible light. The result is dramatically improved contrast, minimized ghost images, and an overall brighter and cleaner view of observed objects.
Premium Metal Construction
The Barlow lens housing is precision-manufactured from high-quality metal, ensuring long-term stability and resistance to mechanical damage. The metal construction also provides optimal thermal stability, which is critical for maintaining precise optical parameters during extended observation sessions. The surface features a matte black finish that minimizes unwanted reflections within the telescope tube.
Practical usability is enhanced by an ergonomically shaped rubber ring positioned on the lens body. This ring not only improves grip during handling but also protects the metal body from scratches and provides better control during installation into eyepieces or telescope focusers. The rubber material remains resilient at low temperatures and maintains flexibility even under cold nighttime conditions.
Versatile Installation Options
The Celestron X-Cel LX offers two primary installation methods, providing users with flexibility depending on their specific telescope configuration and desired magnification. The Barlow lens can be installed directly in front of an eyepiece, where it provides standard 2X magnification, or it can be positioned before the diagonal mirror of a refractor telescope to achieve even higher magnification.
Direct Eyepiece Installation
When installed directly in front of an eyepiece, the lens acts as a classic 2X multiplier that effectively doubles the telescope's focal length. This transforms a 25mm eyepiece into the equivalent of a 12.5mm eyepiece, while a 10mm eyepiece becomes equivalent to a 5mm eyepiece. This configuration is ideal for observing lunar craters, planetary details, and double stars.
Pre-Diagonal Installation
Alternative installation before the diagonal mirror provides even higher magnification, which can reach up to 4X depending on the specific system configuration. This installation method is particularly useful for detailed study of planetary surfaces and lunar features, where maximum possible magnification is required while maintaining acceptable image quality.
Universal Compatibility
With its 1.25″ (31.7mm) diameter, the Celestron X-Cel LX is compatible with all standard focusers and eyepieces of this size. This universal compatibility ensures that the lens can be used with a wide range of telescopes from various manufacturers and types, from refractors through reflectors to catadioptric systems.
Practical Advantages and Performance Benefits
Using a Barlow lens offers numerous practical advantages over purchasing additional eyepieces with shorter focal lengths. Primarily, it allows you to double the number of available magnifications without the need to invest in new eyepieces. Additionally, it preserves the original characteristics of used eyepieces, including their field of view and exit pupil, only with corresponding magnification increase.
A quality Barlow lens often provides better image quality than inexpensive eyepieces with very short focal lengths, which may suffer from more pronounced optical aberrations. The X-Cel LX, thanks to its advanced construction and quality coatings, ensures that even at double magnification, the image remains sharp, high-contrast, and faithfully reproduces the colors of observed objects.
Technical Specifications
- Magnification factor: 2X
- Barrel diameter: 1.25″ (31.7mm)
- Optical design: Two-element air-spaced construction
- Coatings: Multi-layer anti-reflection coating on all surfaces
- Housing material: Precision-machined metal with matte black finish
- Grip enhancement: Ergonomic rubber ring
- Installation options: Direct eyepiece or pre-diagonal mounting
- Compatibility: Universal 1.25″ standard
- Weight: Approximately 180g
- Thread compatibility: Standard T-threads for additional accessories
Ideal Applications
- Lunar surface observation and crater studies
- Planetary observation including Jupiter's moons and Saturn's rings
- Double star separation and analysis
- Deep-sky object observation requiring higher magnification
- Astrophotography applications requiring increased focal length
- Educational astronomy programs and public outreach events
Professional Quality for Demanding Applications
The Celestron X-Cel LX 2X Barlow lens represents excellent value for serious astronomers who demand professional-grade optical performance. Its precision engineering, superior coatings, and robust construction make it suitable for both casual observation and demanding research applications. The lens maintains the optical integrity of your telescope system while providing the flexibility to explore higher magnifications across your entire eyepiece collection.
Whether you're studying the intricate details of lunar geology, tracking planetary atmospheric phenomena, or splitting challenging double stars, the X-Cel LX delivers the optical excellence required for serious astronomical observation. Its universal compatibility and dual installation options make it an essential accessory for any well-equipped observatory.
