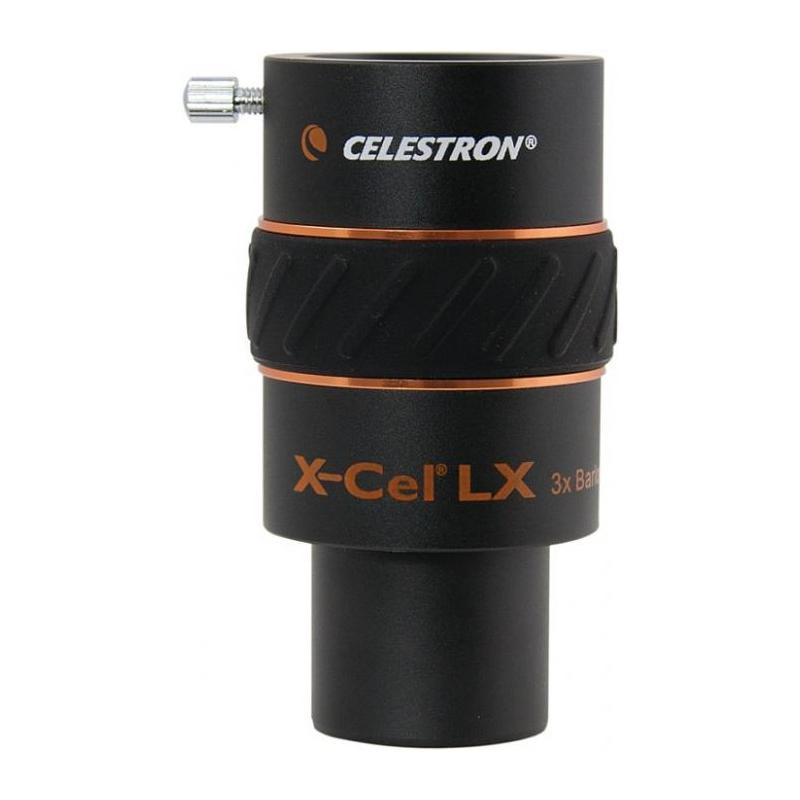

Celestron X-Cel LX 1.25″ 3x ED Barlow Lens
Overview
The Celestron X-Cel LX 3x Barlow lens represents an advanced optical instrument designed specifically for demanding astronomers. This premium lens is the successor to the successful Celestron Ultima model and offers significant improvements in image quality and mechanical construction. Thanks to the use of ED (Extra-low Dispersion) glass, it achieves minimal chromatic aberrations and provides sharp, high-contrast images across the entire field of view.
Advanced Optical Design
The lens is constructed as a three-element high-quality objective with advanced optical correction. All optical elements feature multi-layer anti-reflection coatings that minimize light loss and eliminate unwanted reflections. Air gaps between individual lenses are precisely calculated for optimal light transmission and minimization of optical defects. The ED glass used in construction ensures excellent color correction and sharpness to the edge of the field of view.
Key Optical Features:
- Triple-element ED glass construction
- Multi-layer anti-reflection coating on all surfaces
- Precision-calculated air gaps
- Minimized chromatic aberration
- Sharp images across the entire field
Premium Mechanical Construction
The mechanical design of the lens reflects Celestron's high quality standards. The metal body ensures long-term stability and resistance to mechanical stress. A comfortable rubber ring allows safe grip and manipulation of the lens, while the compression ring for eyepiece attachment guarantees secure and safe connection without risk of damaging the optics.
Construction Features:
- Durable metal housing
- Rubber grip ring for secure handling
- Compression ring eyepiece attachment
- Standard 1.25″ barrel diameter
- Precision mechanical tolerances
Versatile Magnification Options
The Barlow lens offers two basic usage options depending on the desired magnification. For 3x magnification, the lens is installed directly between the telescope and eyepiece, effectively tripling the telescope's focal length. This configuration is ideal for observing planetary details, double stars, or lunar surface features where greater magnification is needed while maintaining sufficient brightness.
Alternative usage allows achieving 6x magnification by installing the lens between the telescope and diagonal mirror. This configuration is suitable for very detailed observations with sufficient object brightness and stable atmospheric conditions. The flexibility in usage makes this Barlow lens a universal tool for various types of astronomical observation.
Universal Compatibility
The standard 1.25″ diameter ensures compatibility with most modern astronomical telescopes and accessories. The lens is optimized for use with various types of eyepieces, from short focal lengths for planetary observation to longer ones for wide-field applications. Image quality remains consistent across the entire spectrum of use.
Advantages of Using Barlow Lenses
Using a Barlow lens provides several key advantages for astronomical observation. Primarily, it allows effective magnification increase without the need to purchase additional eyepieces with very short focal lengths, which are often more expensive and may have smaller fields of view. A quality Barlow lens like the X-Cel LX 3x maintains or even improves the optical parameters of the entire system.
Key Benefits:
- Cost-effective magnification increase
- Maintains optical quality
- Flexible magnification adjustment
- Compatible with existing eyepiece collection
- Excellent for planetary and lunar observation
Optimal Usage and Performance
Another significant advantage is the ability to achieve optimal magnification for specific observing conditions. Atmospheric turbulence often limits maximum usable magnification, and the Barlow lens allows flexible adaptation to these conditions. For advanced astronomers, it also provides the possibility of fine-tuning the optical system for specific applications such as astrophotography or double star measurements.
Usage Recommendations
To achieve the best results with the X-Cel LX 3x Barlow lens, it's important to ensure proper telescope collimation and use quality eyepieces. The lens functions as an optical multiplier that amplifies both the positives and any deficiencies in the optical system. Therefore, it's advisable to combine it with quality eyepieces and a well-adjusted telescope.
For planetary observation, it's recommended to start with lower magnification and gradually increase according to atmospheric conditions. The Barlow lens allows smooth magnification increase by changing configuration without the need to swap eyepieces, which is practical especially in rapidly changing conditions.
Technical Specifications
- Magnification: 3x (or 6x when used with diagonal)
- Barrel diameter: 1.25″
- Optical design: 3-element ED glass construction
- Coating: Multi-layer anti-reflection coating
- Housing: Metal construction with rubber grip
- Compatibility: Standard 1.25″ telescope focusers and eyepieces
- Weight: Approximately 200g
Applications
- Planetary observation and imaging
- Lunar surface detail study
- Double star observations
- High-magnification deep-sky viewing
- Astrophotography magnification enhancement
- Solar system object tracking
The Celestron X-Cel LX 3x ED Barlow lens represents an excellent investment for any serious astronomer looking to enhance their observing capabilities. Its combination of premium ED glass optics, robust mechanical construction, and versatile usage options makes it an indispensable accessory for both visual observation and astrophotography applications.
