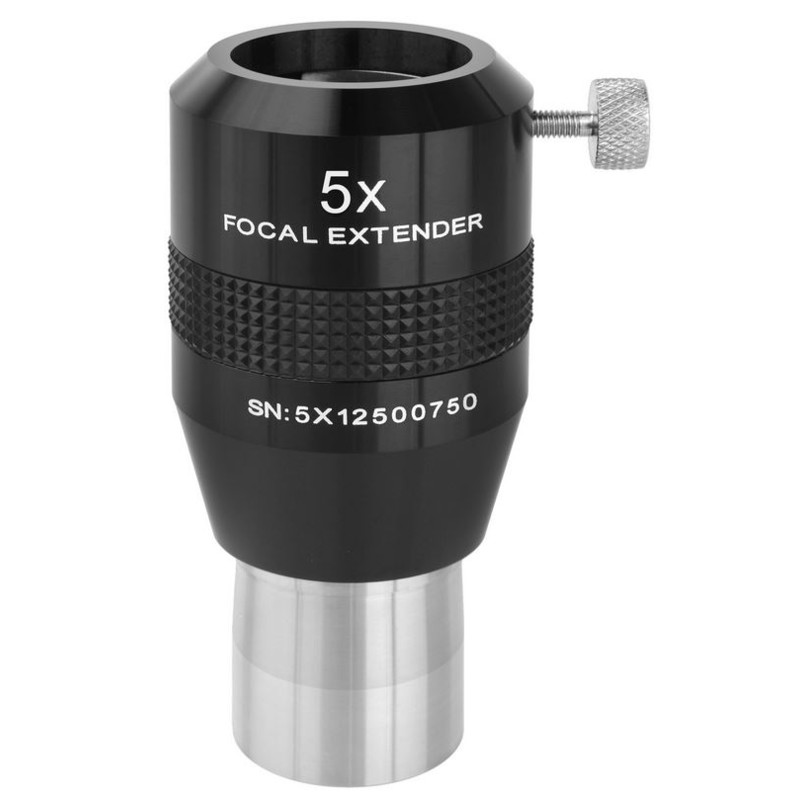

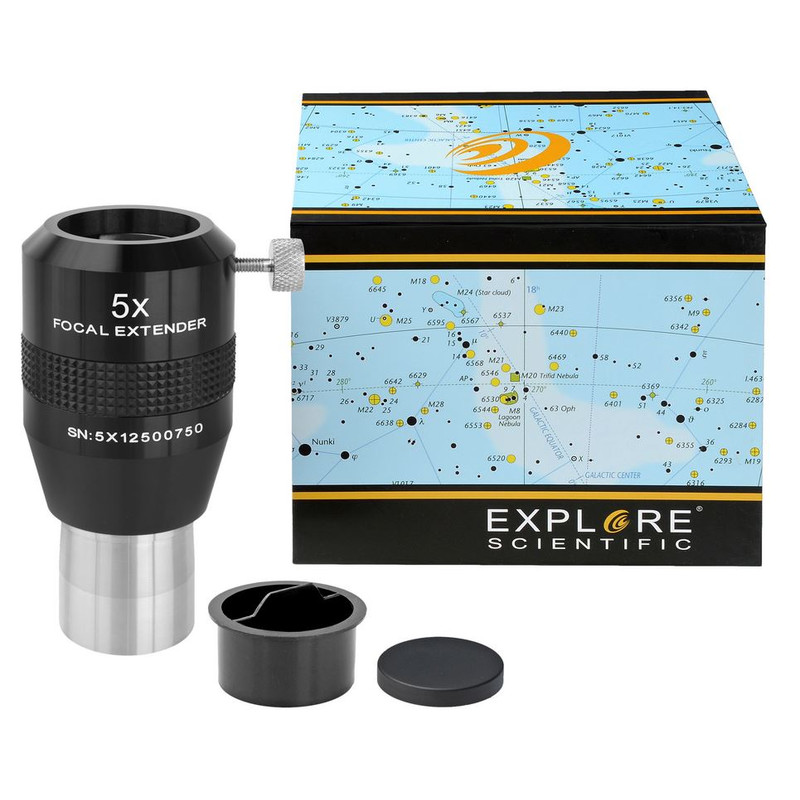

Explore Scientific 5x Focal Extender 1.25″ Barlow Lens
The Explore Scientific 5x Focal Extender is a premium high-magnification Barlow lens designed for serious planetary observers and astrophotographers who need exceptional image quality at extreme magnifications. This sophisticated optical accessory multiplies your telescope's effective focal length by five times, allowing you to achieve significantly higher magnifications with your existing eyepiece collection.
How a 5x Barlow Works
A Barlow lens is a negative (diverging) lens placed between the telescope's focuser and the eyepiece. It increases the effective focal length of the optical system, which proportionally increases magnification. With a 5x Barlow, your telescope's focal length is multiplied by five.
For example, if you have a telescope with 1000mm focal length and use a 10mm eyepiece, you normally get 100x magnification (1000mm ÷ 10mm = 100x). Insert the 5x Barlow, and the same 10mm eyepiece now delivers 500x magnification (5000mm ÷ 10mm = 500x). This allows you to reach high magnifications while using longer focal length eyepieces with more comfortable eye relief and wider apparent fields of view.
Advanced Telecentric Four-Element Design
Unlike simple two-element Barlows, the Explore Scientific 5x Focal Extender employs a sophisticated telecentric four-element optical design. This advanced configuration is specifically engineered to maintain sharp focus across the entire field of view, eliminating the edge softness and coma that plague simpler high-power Barlows.
The telecentric design ensures that light rays exit the Barlow parallel to the optical axis, which is particularly important for astrophotography. This design characteristic prevents vignetting and maintains even illumination across imaging sensors, making the 5x Extender equally suitable for visual observation and planetary imaging.
Premium FMC Coatings
All optical surfaces feature Fully Multi-Coated (FMC) anti-reflection coatings that maximize light transmission and minimize internal reflections. These coatings are essential in a multi-element Barlow where eight air-to-glass surfaces could otherwise cause significant light loss and reduced contrast. The FMC coatings ensure you see bright, contrasty images even at the extreme magnifications this Barlow enables.
Applications and Usage
Planetary Observation
The 5x Barlow is ideal for high-resolution planetary work on nights of excellent seeing. When atmospheric conditions are steady, this Barlow allows you to push magnification to reveal fine details on Jupiter's cloud belts, Saturn's ring divisions, and Martian surface features. The ability to use longer focal length eyepieces means more comfortable viewing with better eye relief compared to using ultra-short focal length eyepieces to achieve similar magnifications.
Lunar Detail
For observing intricate lunar features - crater floors, mountain peaks, rilles, and dome structures - the 5x magnification brings the Moon's surface dramatically closer while maintaining edge-to-edge sharpness across the field.
Planetary Astrophotography
The telecentric design makes this Barlow particularly well-suited for planetary imaging with webcams or planetary cameras. The increased focal length provides larger image scale on the sensor, capturing more detail per pixel. The even illumination and sharp edges ensure that the entire sensor area delivers usable data for image stacking and processing.
Double Stars
Close double star observation benefits from the high magnifications this Barlow provides, allowing you to resolve tight pairs and detect subtle color differences between components.
Practical Considerations
A 5x Barlow is a specialized tool that works best under specific conditions:
- Excellent seeing conditions - High magnification magnifies atmospheric turbulence, so this Barlow delivers its best performance on nights of steady air
- Adequate aperture - Generally works best with telescopes of 6 inches (150mm) aperture or larger
- Bright targets - The 5x magnification spreads light over a larger area; best results on bright objects like planets and the Moon
- Quality telescope optics - High magnification reveals any optical imperfections in your telescope
Technical Specifications
- Magnification factor: 5x
- Optical design: Telecentric 4-element
- Coatings: FMC (Fully Multi-Coated) on all surfaces
- Barrel diameter: 1.25″ (31.7mm)
- Overall length: 100mm
- Housing diameter: 48mm
- Weight: 280g
- Applications: Visual observation and astrophotography
Build Quality
The Focal Extender features solid mechanical construction with precision-threaded barrel that fits securely in standard 1.25″ focusers and diagonals. The anodized aluminum housing provides durability and protects the optical elements. At 280 grams, it's substantial but not excessively heavy for most focusers.
Who Should Consider This Barlow?
The Explore Scientific 5x Focal Extender is designed for experienced observers and imagers who:
- Regularly observe under excellent seeing conditions
- Own telescopes with 6-inch or larger apertures
- Engage in serious planetary observation or imaging
- Want to maximize their eyepiece collection's versatility
- Need high-quality optics for demanding high-magnification work
For casual observers or those with smaller telescopes, a 2x or 3x Barlow may be more practical for everyday use. The 5x Extender is a specialized tool that excels in specific applications where extreme magnification and optical quality are paramount.
