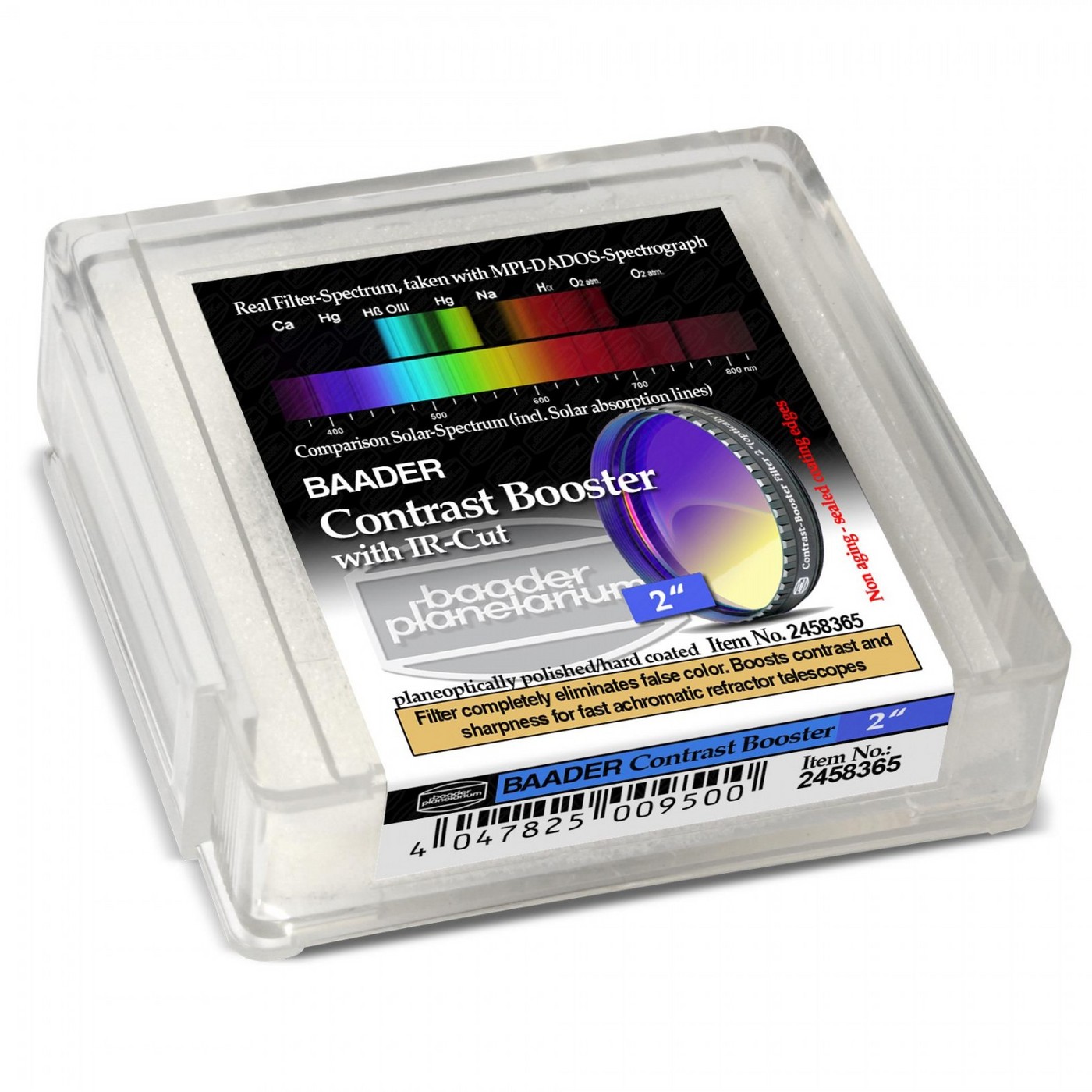

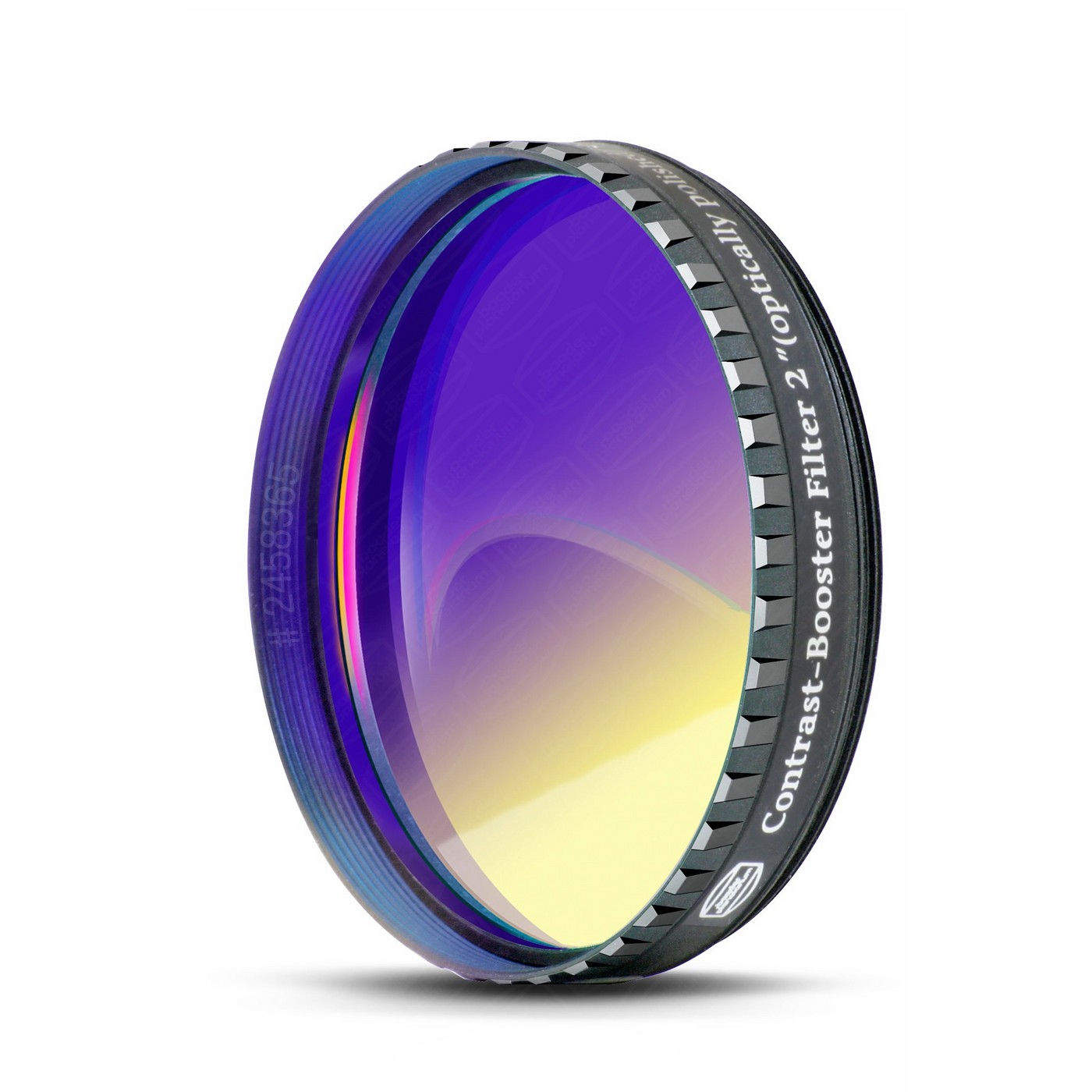

Baader Planetarium 2″ Contrast Booster Filter
The Baader Planetarium Contrast Booster is a specialized optical filter designed to do two things at once: significantly increase contrast during planetary observation and suppress the residual chromatic aberration that is inherent to achromatic refractors. If you own an achromatic telescope and have noticed that bright objects such as the Moon, Jupiter, or Venus are surrounded by a distracting purple or blue fringe, this filter directly addresses that problem.
Chromatic Aberration in Achromatic Telescopes
Achromatic refractors use a two-element lens design that brings two wavelengths of light to a common focus, but cannot fully correct the entire visible spectrum. The result is a residual color fringe - typically violet or blue-purple - that appears around high-contrast objects and reduces the overall sharpness and contrast of the image. This effect becomes more noticeable at longer focal ratios and with brighter targets.
The Baader Contrast Booster effectively eliminates this residual false color by blocking the wavelengths responsible for the fringe. The improvement is immediate and substantial - planetary disks appear sharper and better defined, and the distracting color halo disappears almost entirely. In terms of chromatic aberration suppression, the Contrast Booster is one of the most effective filters available for this purpose.
A Note on Color Rendition
It is worth noting that because the filter blocks specific wavelength ranges to suppress false color, it does not preserve natural color balance. Planets and other observed objects will appear with an altered color tone compared to an unfiltered view. For observers whose primary goal is maximum sharpness and contrast rather than color accuracy - for example when mapping surface detail on Mars or resolving atmospheric bands on Jupiter - this trade-off is well worth making. Those who require true-color views may prefer a milder fringe-suppression filter, but for pure contrast and detail, the Contrast Booster delivers outstanding results.
Practical Performance on Key Targets
On Jupiter, the filter brings out fine structure in the equatorial belts and improves the visibility of festoons, ovals, and other atmospheric detail. The Great Red Spot becomes more distinct against the surrounding cloud bands. On Saturn, the Cassini Division and ring structure appear with greater definition, and the contrast between the planet's disk and the ring system improves noticeably. On the Moon, the high-contrast terminator region reveals crisp crater walls and mountain shadows without the blurring caused by chromatic fringing.
Technical Specifications
- Filter size: 2″ (fits standard 2″ eyepiece barrels)
- Type: contrast booster - chromatic aberration suppression filter
- Primary application: planets, Moon, achromatic refractors
- Color rendition: altered - not color-neutral
- Housing: precision-threaded metal cell
- Compatible telescopes: all telescope types, most effective with achromatic refractors
The Baader Contrast Booster threads directly into any standard 2″ eyepiece barrel and requires no additional adapters. It is compatible with all telescope designs, though its benefits are most pronounced when used with achromatic refractors where chromatic aberration would otherwise limit image quality.
