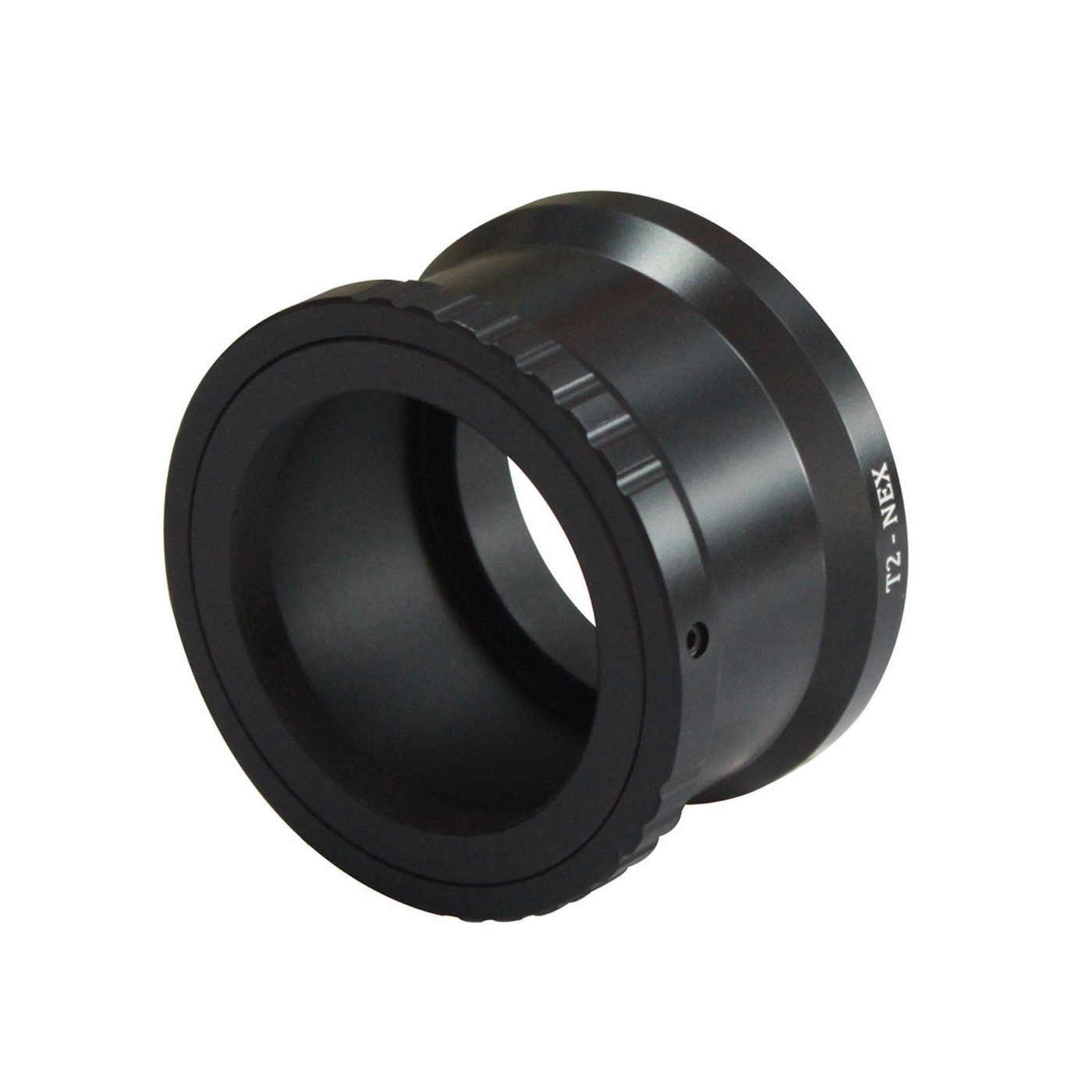

Binorum SuperStrong T-Ring Sony Alpha NEX / E-mount Camera Adapter
The Binorum SuperStrong T-Ring for Sony Alpha/NEX E-mount is a precision camera adapter that connects Sony mirrorless cameras with E-mount bayonet to telescopes and other optical instruments via the standard T2 threading (M42×0.75mm). This essential accessory enables prime focus astrophotography, allowing you to capture stunning images of the Moon, planets, galaxies, and nebulae using your Sony camera body.
How It Works
The T-ring attaches directly to your Sony camera body via the E-mount bayonet, replacing the camera lens. The opposite end features standard T2 threading that connects to telescope adapters, Barlow lenses, or other T2-threaded accessories. This configuration turns your telescope into a powerful telephoto lens, with the telescope's focal length determining your effective focal length for imaging.
For example, a 1000mm focal length telescope becomes equivalent to a 1000mm f/5 or f/10 lens (depending on the telescope's aperture), providing the magnification needed for detailed lunar and planetary imaging or wide-field deep-sky astrophotography.
Prime Focus Astrophotography
Prime focus imaging - where the camera sensor sits at the telescope's focal point without an eyepiece - offers several advantages for astrophotography. You capture the full light-gathering power of your telescope, maximize image sharpness by minimizing optical elements, and achieve optimal image scale for your chosen targets. The large APS-C sensors in Sony E-mount cameras provide excellent sensitivity and low noise, ideal for capturing faint deep-sky objects.
SuperStrong Construction Quality
The SuperStrong designation reflects Binorum's commitment to robust construction. This T-ring features precision-machined aluminum housing with exact tolerances to ensure proper sensor positioning and secure attachment. The bayonet mount precisely matches Sony's E-mount specifications, providing a firm, wobble-free connection that maintains optical alignment during long exposures.
Unlike plastic alternatives that can flex or crack, the metal construction ensures long-term reliability and dimensional stability. The threading is precisely cut to mate smoothly with T2 adapters while maintaining secure attachment that won't loosen during imaging sessions.
Compatible Camera Models
This T-ring works with all Sony cameras featuring the Alpha/NEX E-mount bayonet, including:
Alpha Series (APS-C):
α3000, α5000, α5100, α5500, α6000, α6100, α6300, α6400, α6500, α6600
NEX Series:
NEX-3, NEX-C3, NEX-3A, NEX-3D, NEX-3DW, NEX-3K, NEX-3KS, NEX-F3, NEX-3N
NEX-5, NEX-5A, NEX-5C, NEX-5D, NEX-5DB, NEX-5HB, NEX-5K, NEX-5KS, NEX-5N, NEX-5R, NEX-5T
NEX-6, NEX-7
Alpha Series (Full-Frame):
α7, α7 II, α7 III, α7 IV, α7C, α7C II
α7R, α7R II, α7R III, α7R IV, α7R V
α7S, α7S II, α7S III
α9, α9 II, α9 III
Cinema/Video:
α QX1, FX3, FX6, FX30
This list includes representative models; the adapter works with any Sony camera using the E-mount system.
What You Need for Complete Setup
To connect your Sony camera to a telescope, you need:
1. This T-ring (attaches to camera body)
2. A T2 camera adapter specific to your telescope type (sold separately):
- For 1.25″ focusers: 1.25″/T2 adapter
- For 2″ focusers: 2″/T2 adapter
- For Schmidt-Cassegrain telescopes: SCT T-adapter
3. Your Sony E-mount camera body
4. Telescope with appropriate focuser
Some imaging scenarios may also benefit from a variable T2 extension tube to achieve precise focus, especially with refractors or when using filter wheels.
Technical Specifications
Camera Mount: Sony Alpha/NEX E-mount bayonet
Telescope Connection: T2 threading (M42×0.75mm)
Construction Material: Precision-machined aluminum
Finish: Anodized surface for durability
Flange Distance: Maintains correct Sony E-mount flange focal distance
Weight: Lightweight design minimizes load on focuser
Series: Binorum SuperStrong
Astrophotography Applications
Lunar Imaging: Capture high-resolution images of lunar craters, mountains, and maria. Sony's fast sensor readout minimizes rolling shutter effects in lunar imaging.
Planetary Photography: Record detailed images of Jupiter's cloud bands, Saturn's rings, and Mars' surface features. Combine with Barlow lenses for increased magnification.
Deep-Sky Astrophotography: Image galaxies, nebulae, and star clusters. Sony's excellent high-ISO performance and low noise make these cameras particularly effective for deep-sky work.
Solar Imaging: With appropriate solar filters, photograph sunspots and solar features safely.
Why Choose Binorum
Binorum manufactures astronomical accessories with emphasis on practical reliability and precision engineering. The SuperStrong series represents their commitment to robust construction that withstands regular field use. Each T-ring undergoes quality control to ensure proper fit and optical alignment. The precision machining guarantees that your camera sensor sits at exactly the correct distance from the telescope focal plane, ensuring sharp focus across the imaging field. With Binorum, you receive dependable equipment that allows you to concentrate on capturing the cosmos rather than fighting equipment problems.
