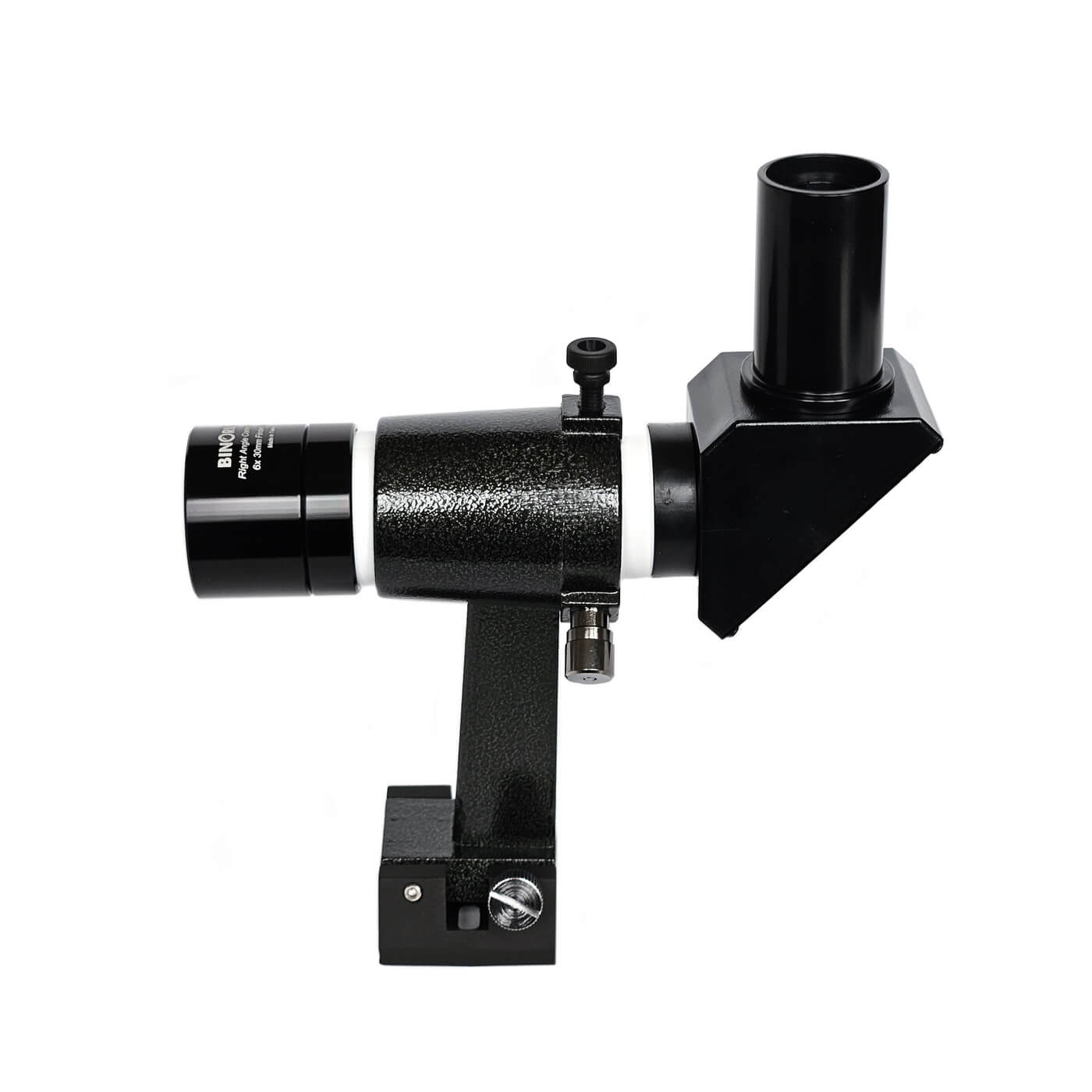

Binorum ClearView 6x30 90° Right-Angle Finder Scope with Erect Image
Compact Comfort for Effortless Sky Navigation
The Binorum ClearView 6x30 brings the advantages of comfortable right-angle viewing to smaller telescopes and portable setups. With its compact 30mm objective and lightweight 300g construction, this 90° angled finder delivers the same ergonomic benefits as larger finders while remaining perfectly suited for compact refractors, tabletop telescopes, and portable observing rigs. Say goodbye to uncomfortable neck positions when viewing objects high in the sky.
Erect Image for Intuitive Object Location
Unlike traditional finders that show inverted or mirror-reversed images, the ClearView 6x30 provides a correctly oriented image both vertically and horizontally - matching exactly what you see on star charts and planetarium apps. When you move the telescope left, the image moves left. Up means genuinely up. This natural orientation makes star-hopping intuitive and speeds up object location, particularly valuable for beginners learning celestial navigation.
Optimized 6× Magnification for Wide-Field Finding
The 6× magnification strikes an ideal balance for compact finder scopes - providing sufficient magnification to confirm faint objects while maintaining a wide enough field of view for easy scanning and object acquisition. The 30mm objective gathers adequate light for viewing star patterns and locating targets, while keeping the overall size and weight minimal for portable setups. The non-illuminated crosshair reticle provides precise centering without requiring batteries.
Complete Mounting Kit Included
Everything needed for installation comes in the package:
- Adjustable bracket with centering screws for precise alignment with your telescope's optical axis

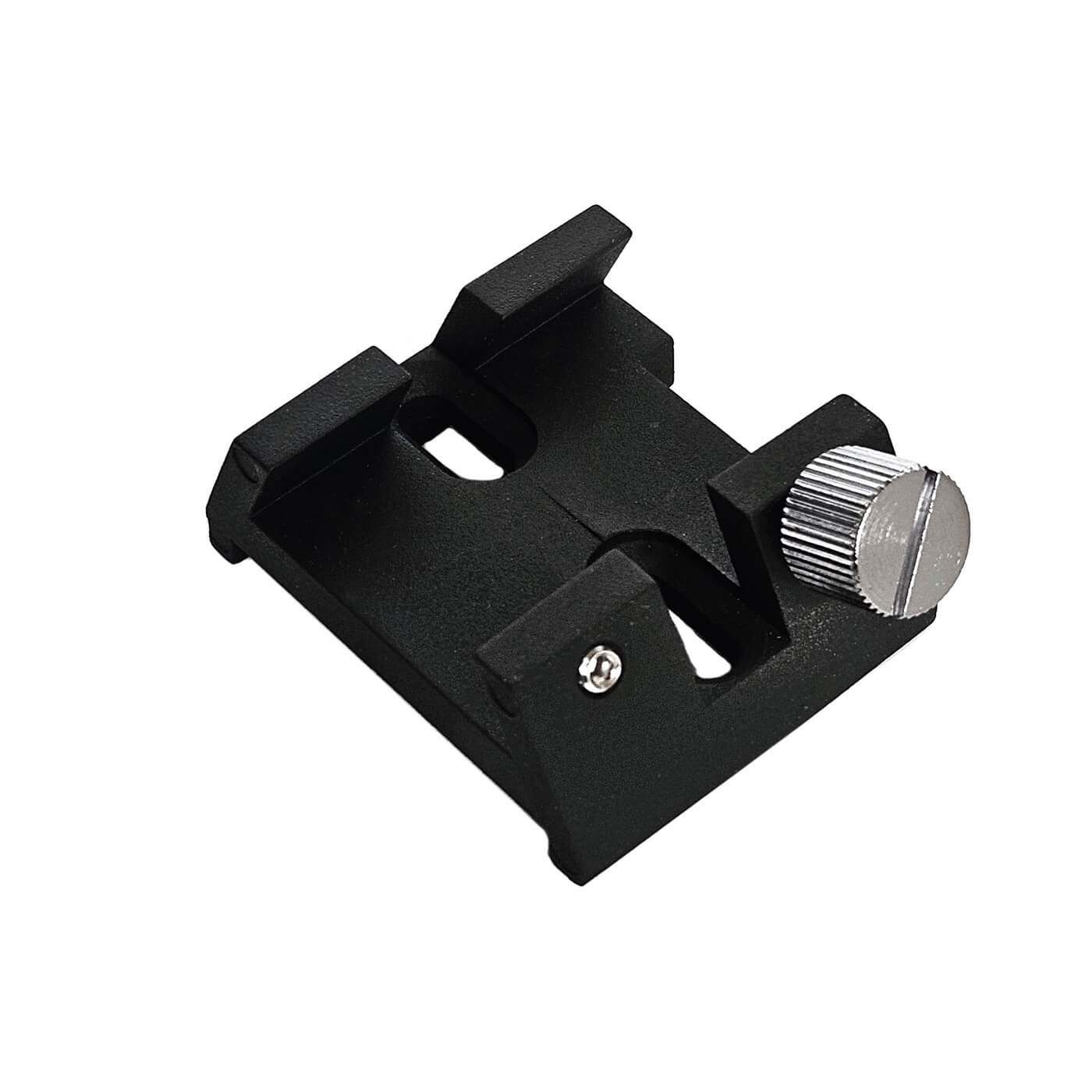

- Universal finder Vixen-style dovetail base ensuring instant compatibility with Sky-Watcher, GSO, and other telescopes using standard finder shoe rails
- Quick-release shoe for convenient mounting and removal
Technical Specifications
- Magnification: 6×
- Objective diameter: 30mm
- Design: 90° right-angle refracted eyepiece
- Image orientation: Erect (correctly oriented vertically and horizontally)
- Reticle: Non-illuminated crosshair
- Mounting type: finder Vixen dovetail base (compatible with Sky-Watcher, GSO, and others)
- Dovetail dimensions: Width 30mm (upper section 22mm), height 9mm, length 40mm
- Stop width: 12mm
- Dew shield outer diameter: 36mm
- Weight: 300g (lightweight and portable)
Lightweight Design for Portable Telescopes
At just 300 grams, the ClearView 6x30 adds minimal weight to your telescope setup - ideal for compact instruments, portable observing rigs, and travel telescopes where every gram matters. The lightweight construction doesn't compromise stability; the finder remains securely mounted and maintains alignment even during transport and setup.
Universal finder Vixen Dovetail Compatibility
The standard finder Vixen-style dovetail base provides instant compatibility with popular astronomical telescopes:
- Sky-Watcher refractors and reflectors
- GSO telescopes
- Compact Maksutov-Cassegrain instruments
- Tabletop Dobsonians with finder shoe rails
- Any telescope using the Vixen finder standard
No custom adapters or modifications required - simply slide the dovetail into your telescope's finder shoe, secure the thumbscrew, and align.
Why Choose a Right-Angle Finder?
- Ergonomic zenith viewing - comfortable head position when observing objects overhead
- Natural posture - reduced neck and back strain during extended sessions
- Accessible for all heights - multiple observers can easily find comfortable viewing positions
- Erect image orientation - intuitive navigation matching star charts
- Compact 6× magnification - wide field for easy object acquisition
Ideal Applications
The ClearView 6x30 excels in numerous observing scenarios:
- Compact refractor telescopes (60-90mm aperture range)
- Portable observing setups where weight matters
- Tabletop telescopes requiring ergonomic finder viewing
- Travel astronomy - lightweight for air travel and backpacking
- Beginner telescopes - erect image simplifies learning
- Star party instruments - comfortable for multiple users
Comparing 6x30 vs. Larger Finders
While 8×50 and larger finders gather more light and provide higher magnification, the 6x30 offers distinct advantages for certain applications. The lighter weight suits compact telescopes where a heavy finder might affect balance. The lower magnification provides a wider true field of view, making initial object location easier. And the smaller size is less obtrusive on portable instruments while still delivering effective finding capability for most observing programs.
Easy Alignment and Adjustment
The included bracket features precision centering screws allowing fine adjustment of the finder's aim. Initial alignment typically involves centering a distant daytime object or bright star in both the main telescope and finder, then locking the finder in position. The robust mounting maintains alignment through normal use, transport, and temperature changes.
Compact 36mm Dew Shield
The 36mm outer diameter dew shield is perfectly proportioned for the 30mm objective, providing effective protection against dew formation during humid observing conditions while maintaining the finder's compact profile. The shield also helps block stray light from streetlights and other ambient sources that could reduce contrast.
Investment in Observing Efficiency
A quality finder dramatically improves the observing experience, especially when upgrading from basic red dot sights or straight-through finders. The right-angle design with erect image eliminates the two main frustrations of basic finders - uncomfortable viewing positions and confusing image orientation. You'll spend less time hunting for objects and more time actually observing them.
Maintenance and Care
The ClearView 6x30 requires minimal maintenance. Protect the objective and eyepiece from dust when not in use with simple lens caps (typically included or available separately). If optics require cleaning, use appropriate lens cleaning methods - gentle air blowing for dust, optical cleaning solution for fingerprints or smudges. The mechanical components are robust and require no special care beyond normal handling.
Why Choose Binorum ClearView
Binorum ClearView finders combine practical optical design with user-focused features at accessible prices. The 6x30 model delivers the essential benefits of right-angle viewing and erect image orientation in a compact, lightweight package suited to portable and compact telescopes. The standard finder Vixen dovetail ensures universal compatibility, the included adjustable bracket provides precise alignment capability, and the 90° angled eyepiece transforms object location from a neck-straining chore into a comfortable experience. For astronomers seeking an ergonomic upgrade for compact telescopes, the ClearView 6x30 represents excellent value - professional finder functionality without the weight and bulk of larger models.
