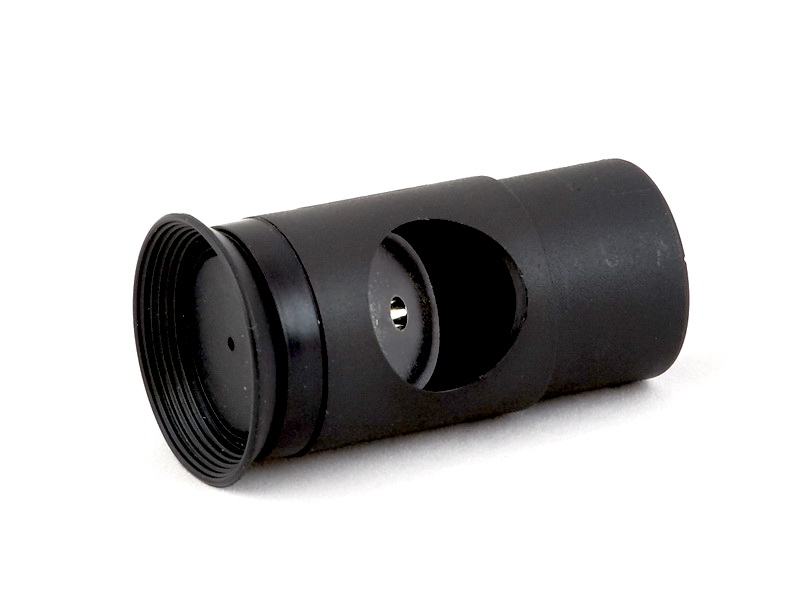

Binorum Short Collimation Eyepiece 1.25″
Professional Telescope Alignment Made Simple
Mirror telescopes can deliver exceptional images of stars and planets - provided they are properly collimated. This process isn't complex: it takes just a few minutes spent with a collimation tool to achieve outstanding image quality. The main disadvantage of reflector telescopes is that they require regular collimation checks. However, this step can be performed easily and quickly with a little practice.
Three-Step Collimation Process
Collimation can be accomplished in three essential steps:
- Ensure that the secondary mirror center falls directly under the optical axis of the focuser
- Verify that the view through the eyepiece shows the optical axis falling exactly into the center of the primary mirror
- Confirm that the primary mirror reflects light directly into the center of the eyepiece
Precision Crosshair Design
The collimation eyepiece is a specialized device featuring a crosshair reticle on one side. Simply insert the eyepiece into the focuser and align the optical elements using the targeting crosshairs as your reference. The longer crosshair design is specifically optimized for reflecting telescopes, while shorter versions can be utilized for refracting telescopes. During nighttime use, the device can be illuminated from the side - in this case, the illuminated disk should appear as a bright circular reference in both the secondary and primary mirrors.
Universal 1.25″ Barrel Compatibility
This professional-grade collimation tool features the standard 1.25″ barrel diameter, ensuring compatibility with virtually all modern telescope focusers and diagonal systems. The precision-machined barrel provides secure fitting without play or wobble, which is crucial for accurate alignment procedures.
Essential Tool for Multiple Telescope Types
Newtonian Reflectors
Newtonian telescopes benefit most significantly from regular collimation. The Binorum Short collimation eyepiece allows you to quickly assess and adjust both the secondary mirror spider assembly and primary mirror alignment. The crosshair pattern provides clear visual reference points for achieving perfect optical alignment.
Schmidt-Cassegrain and Maksutov Telescopes
Compound telescopes like Schmidt-Cassegrain and Maksutov designs also require periodic collimation, particularly after transportation or temperature changes. This collimation eyepiece enables precise adjustment of the primary mirror cell for optimal performance.
Refractor Telescope Applications
While refractors typically maintain collimation better than reflectors, they can occasionally require adjustment, especially after impacts or extreme temperature variations. This tool provides the precision needed for fine-tuning optical alignment in refracting systems.
Advanced Features and Benefits
Illumination Capability
The eyepiece can be illuminated for nighttime collimation sessions, eliminating the need for external light sources that might disturb your dark adaptation. The internal illumination system provides just enough light to clearly see the crosshair pattern and mirror reflections without compromising your night vision.
Durable Construction
Built to withstand regular use in various weather conditions, this collimation tool features robust materials and precision engineering. The crosshair assembly is protected within the eyepiece housing, preventing damage from dust, moisture, or accidental contact.
Professional Results for Amateur Astronomers
Proper collimation is arguably the most important factor in achieving sharp, high-contrast images through any telescope. Even expensive, high-quality optics will perform poorly if misaligned. This professional collimation eyepiece puts telescope maintenance within reach of every amateur astronomer, regardless of experience level.
Time-Saving Efficiency
What once required complex procedures and guesswork can now be completed in minutes. The clear crosshair pattern eliminates ambiguity, allowing you to make precise adjustments quickly and confidently. This efficiency means more time can be spent observing and less time struggling with equipment setup.
Improved Image Quality
Regular use of this collimation tool will result in noticeably sharper star images, better planetary detail, and improved contrast across all celestial objects. The investment in proper collimation equipment pays dividends in enhanced observing experiences.
Technical Specifications
- Barrel diameter: 1.25″ (31.7mm)
- Crosshair design optimized for reflector telescopes
- Compatible with all standard focusers and star diagonals
- Precision-machined aluminum construction
- Internal illumination capability for night use
- Compact, lightweight design for easy storage
