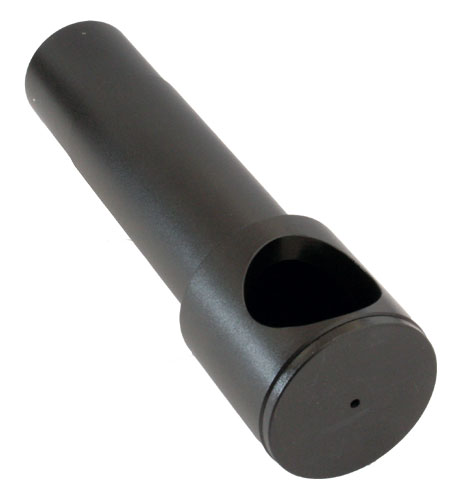

Sky-Watcher 1.25″ Collimation Eyepiece
The Sky-Watcher collimation eyepiece is an indispensable tool for owners of reflecting telescopes, enabling easy and quick verification of optical alignment in daylight conditions. This simple but effective device allows you to collimate your telescope in just a few minutes - essential for achieving the high precision required for astrophotography and optimal visual performance.
Why Collimation Matters
Collimation - the precise alignment of all optical elements in your telescope - directly affects image quality. Even slight misalignment degrades contrast, sharpness, and resolution. Stars appear as elongated shapes instead of pinpoints, planetary details blur, and astrophotography suffers from asymmetric star images and reduced resolution. Regular collimation ensures your telescope performs to its optical potential.
Newtonian reflectors require frequent collimation because their mirror alignment can shift during transport or thermal changes. This collimation eyepiece provides a straightforward method to check and adjust alignment without expensive laser collimators or waiting for nighttime star testing.
Collimating Reflecting Telescopes (Newtonians)
For Newtonian reflectors, the collimation eyepiece reveals the alignment of the primary mirror, secondary mirror, and focuser. Insert the collimator into the focuser (removing any diagonal), and you'll see the reflection pattern of your optical system. Properly collimated, the secondary mirror reflection appears centered, the primary mirror reflection is concentric, and the spider vanes form a symmetric pattern around the center spot.
Adjust the primary mirror collimation screws while observing through the eyepiece until all reflections are perfectly centered and concentric. The collimator's crosshair or center marking provides a precise reference point for alignment. This visual feedback makes the collimation process intuitive and accurate.
Collimating Refracting Telescopes
While refractors rarely need collimation, this eyepiece can verify objective lens alignment. Remove the objective lens cap, remove any star diagonal from the focuser, and insert the collimator directly into the drawtube. Use normal daylight or shine a flashlight at 45° angle onto the reflective foil to direct light into the tube.
Look through the small aperture in the eyepiece. You'll see one or more fine rings (usually overlapping) near the center - each ring represents reflection from an optical element in the objective. The objective is properly collimated when all fine rings merge into a single centered circle. Adjust the objective lens using the collimation screws on the objective cell until all rings align concentrically. A well-collimated objective produces better images with improved sharpness and contrast.
Advantages Over Laser Collimators
Unlike laser collimators that require batteries and can lose calibration, this optical collimation eyepiece is simple, reliable, and never needs calibration itself. It works in daylight, eliminating the need to set up at night just to check collimation. The direct visual method provides immediate feedback during adjustment, making the process faster and more intuitive for many users.
Essential for Astrophotography
Astrophotographers demand precise collimation because even minor misalignment produces asymmetric stars - elongated in one direction across the field. These distortions become obvious in long exposures and cannot be corrected in post-processing. The collimation eyepiece allows you to achieve the precision needed for round, pinpoint stars across your imaging sensor.
Technical Specifications
Barrel Diameter: 1.25″ (31.75mm)
Type: Optical sight tube collimator
Compatible Telescopes: Newtonian reflectors, refractors with 1.25″ focusers
Illumination: Daylight or external light source
Construction: Metal barrel with viewing aperture and alignment reference
Usage Recommendations
Check collimation before important observing sessions, after transporting your telescope, or whenever image quality seems degraded. For Dobsonian and Newtonian reflectors, monthly collimation checks help maintain optimal performance. Keep this collimator in your accessory case as a permanent part of your telescope maintenance toolkit.
This affordable, reliable tool ensures your telescope always performs at its best, revealing the sharpest planetary details, finest deep-sky structure, and most precise astrophotography results your optics can deliver.
