Bresser Biolux NV 20x-1280x with HD Camera Biological Microscope
The Bresser Biolux NV 20x-1280x is a versatile biological microscope designed specifically for beginners who want to explore the microscopic world with the added capability of digital imaging. Combining traditional optical observation with modern digital documentation, this microscope allows you to view specimens through the eyepiece or display them on a computer screen, capture images, and record videos - all from a single integrated system.
Barlow Zoom System - Extended Magnification Range
One of the standout features of the Biolux NV is its innovative Barlow zoom system built directly into the eyepiece tubes. This clever design allows you to instantly double the magnification of any eyepiece simply by rotating the zoom mechanism - no need to change eyepieces or fiddle with additional lenses.
Combined with three objective lenses (4x, 10x, 40x) mounted on a rotating turret and two interchangeable wide-field eyepieces (WF10x and WF16x), the Barlow system provides an impressive magnification range from 20x to 1280x. This covers virtually all common biological microscopy needs - from scanning slides at low power to examining fine cellular details at high magnification.
The practical advantage is significant. At lower magnifications, you can scan across a slide to locate interesting features and get oriented. At medium magnifications (100x-400x), most biological specimens show excellent detail. At the highest magnifications (640x-1280x), cellular structures, bacteria, and the finest details become visible. Having this entire range available without buying additional accessories is a genuine convenience.
Dual LED Illumination System
The Bresser Biolux NV features both transmitted (bottom) and incident (top) LED illumination - a combination rarely found in beginner microscopes. This dual system dramatically expands the range of specimens you can observe effectively.
Transmitted Light for Transparent Specimens
The bottom LED illuminates specimens from below, with light passing through the sample - the standard technique for observing thin, transparent biological preparations. Plant cells, blood smears, pond microorganisms, thin tissue sections, and similar specimens all work well with transmitted light. A rotating filter disc beneath the stage allows you to adjust light quality and contrast for optimal viewing of different specimen types.
Incident Light for Opaque Objects
The top LED illuminates specimens from above, allowing observation of opaque, three-dimensional objects that cannot be observed with transmitted light alone. Leaves, seeds, small insects, textile fibers, crystals, mineral samples, coins, and countless other objects can be examined in reflected light. The incident illuminator is designed for objects up to 4 mm in height, providing sufficient working clearance for most common specimens.
This dual illumination capability means you're not limited to prepared slides on glass - you can examine nearly anything small enough to fit on the stage. For a beginner, this flexibility is invaluable.
Integrated HD Camera and Digital Imaging
The included HD camera (1280 x 720 pixels) mounts directly in the eyepiece tube, turning the microscope into a complete digital imaging system. The camera connects to your computer via USB 2.0 and works with the supplied software for Windows 10 and 11.
With the camera connected, you can:
- View live microscope images on your computer screen - helpful when showing specimens to others or for extended observation sessions that would tire your eyes at the eyepiece
- Capture still images in JPG format - document your findings, build a reference collection, or create educational materials
- Record videos in AVI format - capture moving microorganisms, demonstrate techniques, or create time-lapse sequences
- Measure and annotate specimens using the software tools
- Share your discoveries with friends, family, or online communities
The software is compatible with Windows 10 and 11, running on Intel i3, i5, i7, or i9 processors (2nd generation or later) or AMD FX and Ryzen processors. Installation requires either an optical drive (CD/DVD) or internet connection for downloading the software. Minimum system requirements include 1 GB RAM, 2 GHz processor, and a USB 2.0 port.
Mechanical Stage for Precise Control
The microscope features a simple XY mechanical stage that allows precise, controlled movement of slides in both horizontal and vertical directions using dedicated control knobs. This is particularly valuable at higher magnifications, where even a slight touch can move a slide too far. With the mechanical stage, you can smoothly scan across a specimen, relocate to specific areas with precision, and maintain your position while adjusting focus or making observations.
Battery Operation for Maximum Flexibility
The Biolux NV operates on three AA batteries (not included), eliminating the need for power outlets or trailing cables. This battery operation provides genuine portability - you can use the microscope anywhere in your home, take it to school, bring it outdoors for field observations, or set up at a friend's house. The LED illumination is highly efficient, providing long operating time from a single set of batteries.
Complete Accessory Set

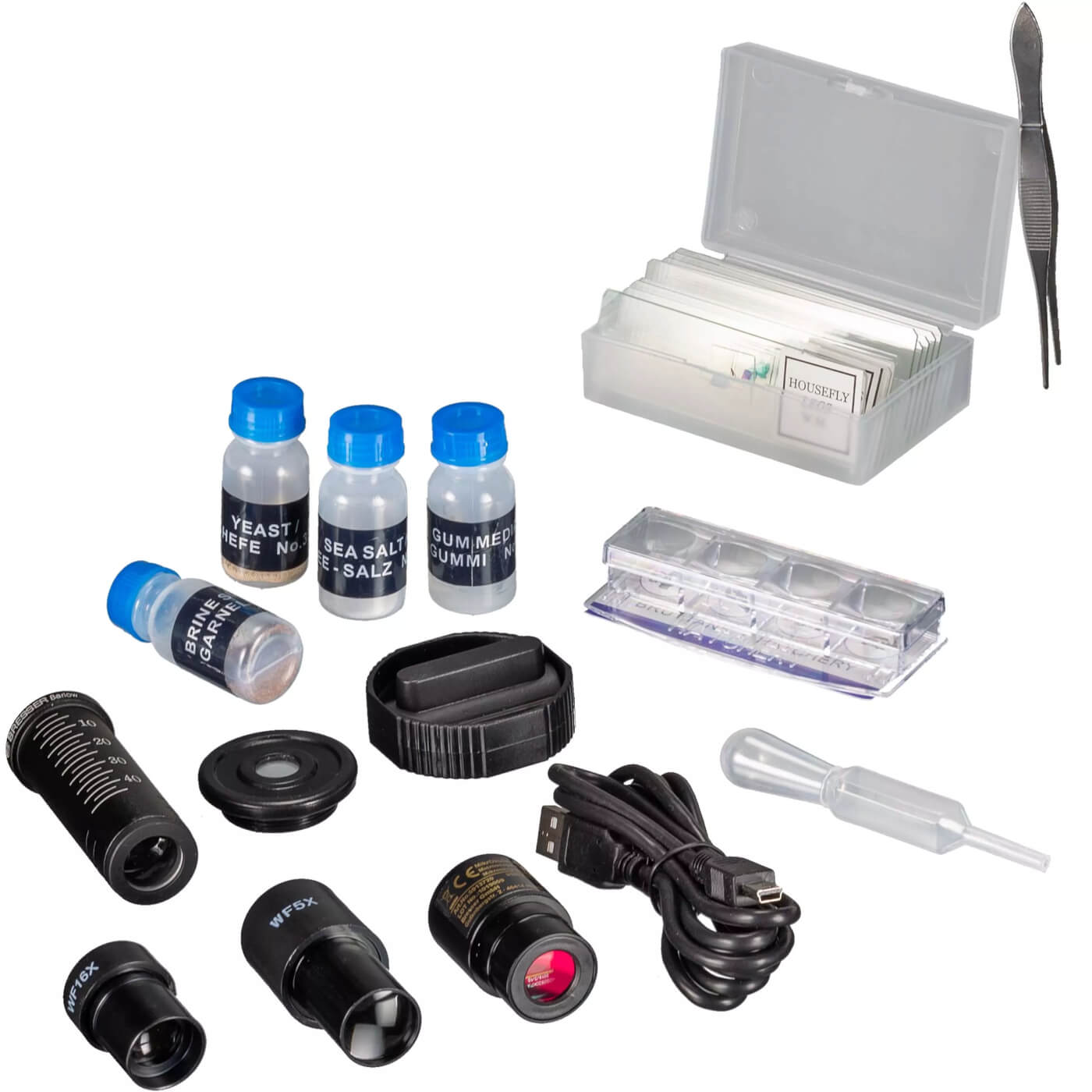

The Bresser Biolux NV arrives as a comprehensive ready-to-use package with everything needed to begin observing immediately:
- Two wide-field eyepieces: WF10x and WF16x
- Three achromatic objectives: 4x, 10x, 40x (mounted on rotating turret)
- Integrated Barlow zoom system in eyepiece tubes
- HD digital camera (1280 x 720 pixels) with USB cable
- Software for Windows (on CD or downloadable)
- Five prepared microscope slides - ready for immediate observation
- Five blank slides and cover slips - for creating your own preparations
- Dust cover - protects the microscope when not in use

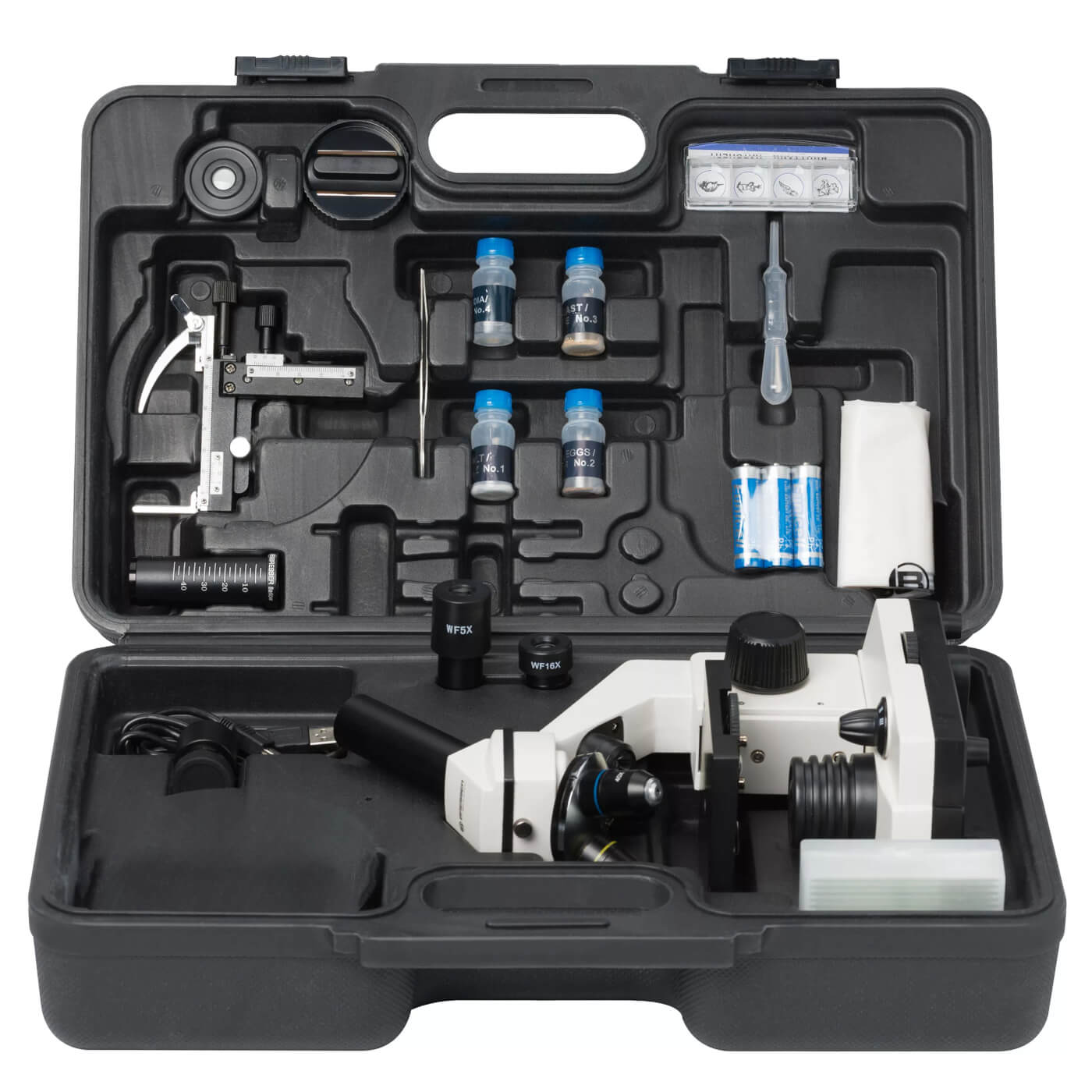

- Plastic carrying case - for storage and transport
Technical Specifications
- Optical design: biological microscope, monocular viewing head
- Magnification range: 20x - 1280x
- Eyepieces: WF10x, WF16x (20 mm barrel diameter)
- Objectives: 4x, 10x, 40x achromatic
- Barlow zoom: integrated 2x Barlow in eyepiece tubes
- Stage: simple XY mechanical stage
- Focus: coarse adjustment
- Illumination: dual LED (transmitted and incident light)
- Incident light capacity: objects up to 4 mm height
- Filter disc: rotating color filter disc included
- Digital camera: 1280 x 720 pixels (HD)
- Camera interface: USB 2.0
- Image format: JPG
- Video format: AVI
- Power supply: 3x AA batteries (not included)
- Body material: metal and plastic
- Case: plastic carrying case included
- Color: beige
- Dimensions: 150 x 105 x 280 mm (L x W x H)
- Weight (including accessories): 1100 g
Software Requirements
- Operating system: Windows 10 or Windows 11
- Processor: Intel i3, i5, i7, or i9 (2nd generation or later), or AMD FX/Ryzen
- RAM: 1 GB minimum
- Processor speed: 2 GHz minimum
- Interface: USB 2.0 port
- Installation: CD/DVD drive or internet connection for software download
Fields of Application
The Bresser Biolux NV is well suited for a wide range of biological and scientific observations:
- Biology - plant and animal cells, tissues, microorganisms
- Botany - leaf structure, pollen, seeds, fungi, algae
- Education - school projects, homeschooling, science demonstrations
- Entomology - insect anatomy, small arthropods, insect eggs
- Philately - examination of stamp printing techniques and paper quality
- General microscopy - textile fibers, food structure, crystals, household items
Who Is This Microscope For?
The Bresser Biolux NV is designed for beginners who want a capable, feature-rich microscope without the complexity and cost of professional laboratory instruments. It's an excellent choice for:
- Students and young scientists starting their microscopy journey
- Homeschooling families looking for hands-on science education tools
- Amateur naturalists and biology enthusiasts
- Teachers needing a demonstration microscope with digital projection capability
- Anyone curious about the microscopic world who wants both traditional and digital observation options
The combination of wide magnification range, dual illumination, mechanical stage, and integrated digital camera makes this microscope significantly more capable than basic student models, yet it remains straightforward enough for first-time users to master quickly. The complete accessory package means you can start observing immediately without purchasing additional components.
