Guide Cameras - The Key to Perfectly Sharp Astrophotography
Guide cameras (also called autoguiding cameras) are specialized astronomical cameras designed for automatic tracking and correction of mount movement during long exposures in astrophotography. While your main imaging camera captures your target object, the guide camera continuously monitors the position of a selected star and sends subtle correction commands to the mount to compensate for any deviations from perfect tracking. The result is perfectly round stars instead of elongated trails - the difference between average and truly outstanding astrophotography.
Why Do You Need a Guide Camera?
Even the best astronomical mounts are not perfect. Periodic error in gears, flexure in mechanical parts, atmospheric refraction, irregularities in Earth's rotation, and vibrations - all of these cause tracked objects to slowly "drift" from position during long exposures. For exposures longer than 30-60 seconds, these small imperfections manifest as elongated stars that ruin the entire image.
A guide camera solves this problem in real time. It monitors one selected star at a rate of several frames per second, and as soon as it detects even the slightest deviation, it immediately sends a correction pulse to the mount via ST-4 port or USB connection. Thanks to this, you can confidently capture exposures 5, 10, or even 15 minutes long with perfectly round stars from center to edge of the field.
How Does a Guide Camera Work?
An autoguiding system consists of three basic components:

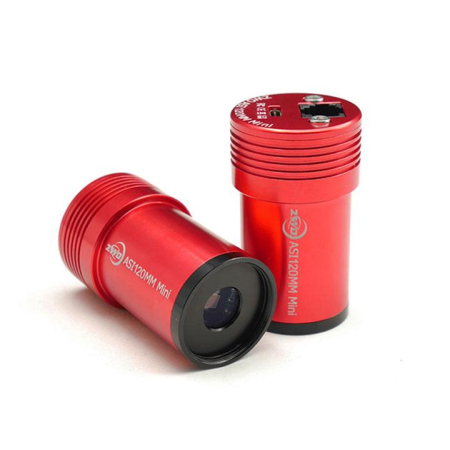

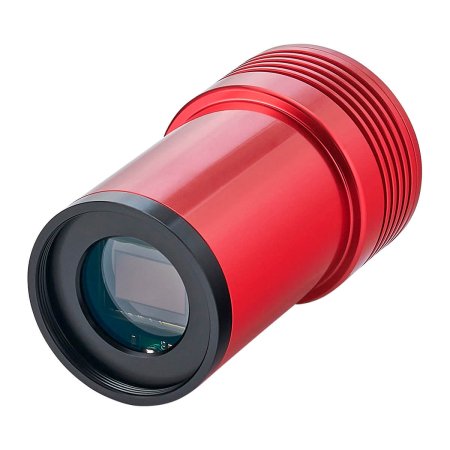

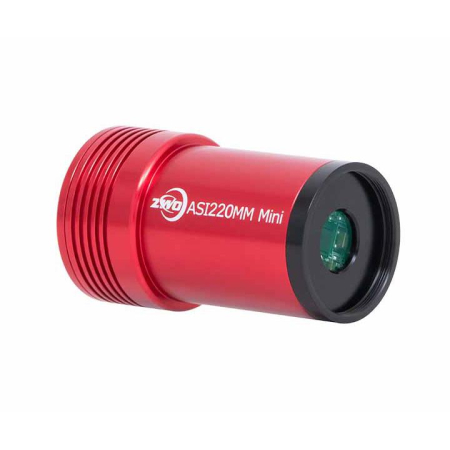

1. Guide Camera

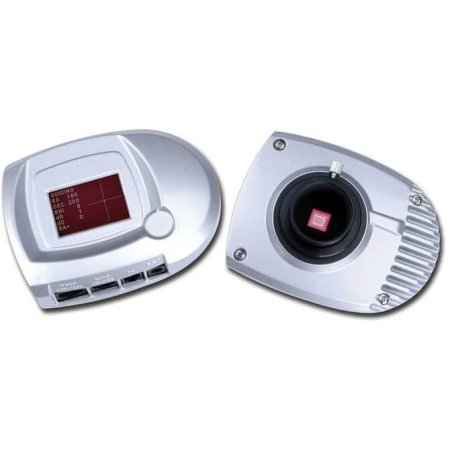

A small, highly sensitive camera with fast frame rates connected to a guide scope (small guiding telescope) or an off-axis guider (device that diverts part of the light from the main telescope). The camera continuously images the field and identifies a suitable star for tracking.
2. Guiding Software
Software such as PHD2 Guiding (free), MaxIm DL, or Sequence Generator Pro analyzes the position of the tracked star on each frame and calculates how much and in which direction the star has moved from its ideal position. Based on these calculations, it generates correction commands.
3. Connection to Mount
Correction commands are sent to the mount either via a dedicated ST-4 cable (four-wire cable connected to the mount's autoguider port), or via USB and ASCOM drivers. The mount then executes microscopic corrections in the RA (right ascension) and Dec (declination) axes.
Key Parameters of Guide Cameras
Pixel Size
Guide cameras typically have small pixels of 3-4 µm, significantly smaller than main imaging cameras (which often have 5-6 µm). Small pixels provide higher resolution, allowing more precise detection of star movement. With small pixels, software can detect star shifts of a fraction of a pixel and react immediately, while larger pixels would require greater movement for reliable detection.
Sensor Sensitivity

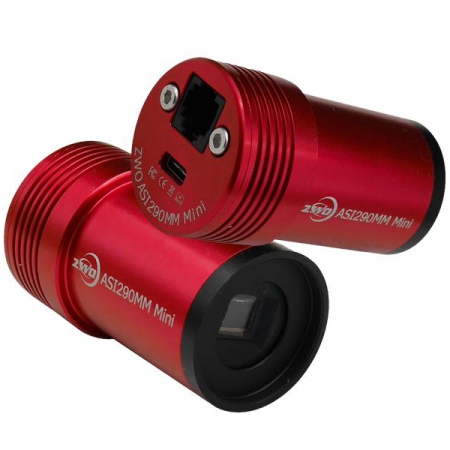

Modern guide cameras use highly sensitive monochrome CMOS or CCD sensors without Bayer matrices. The absence of color filters means every pixel captures all incoming light, dramatically increasing sensitivity. This is crucial because guide cameras must reliably track stars even with short exposures (typically 1-3 seconds).
Frame Rate
Effective guiding requires fast imaging - typically several frames per second to tens of frames per second. The faster the camera images, the faster software can detect and correct deviations, leading to more precise tracking. Modern CMOS cameras have an advantage over older CCD models in this regard.
QE (Quantum Efficiency)
Quantum efficiency indicates what percentage of incident photons is actually converted to electrical signal. Top guide cameras achieve QE of 60-80%, meaning they can reliably track even fainter stars. This is especially important when using long focal lengths or imaging areas of sky with few bright stars.
Read Noise
Low read noise (typically under 2 e- in modern CMOS cameras) means that even weak signals from stars are clearly visible above background noise. This again expands the selection of stars suitable for guiding and allows use of shorter guide exposures.
Connection Types

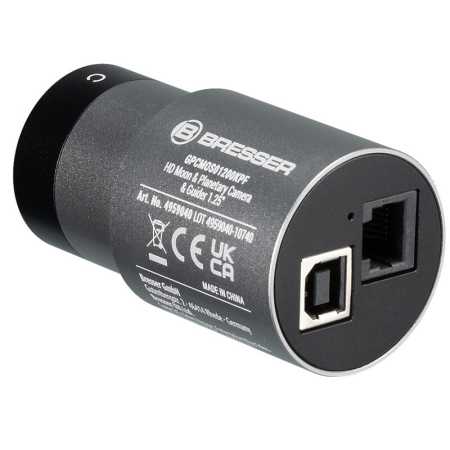

ST-4 Port
Classic connection using a four-wire cable (similar to RJ-11/12 telephone cable). Each wire controls one correction direction: RA+, RA-, Dec+, Dec-. This is the most reliable and simplest connection method, works independently of the computer, and is not affected by USB latency or ASCOM driver issues. Nearly all guide cameras have an ST-4 port as standard.
USB Guiding
More modern approach where correction commands go from the computer via USB to the mount through ASCOM drivers. The advantage is that you don't need an ST-4 cable and have better control over guiding parameters. The disadvantage can be slight latency and dependence on proper USB communication.
Guide Scope vs. Off-Axis Guider
Guide Scope

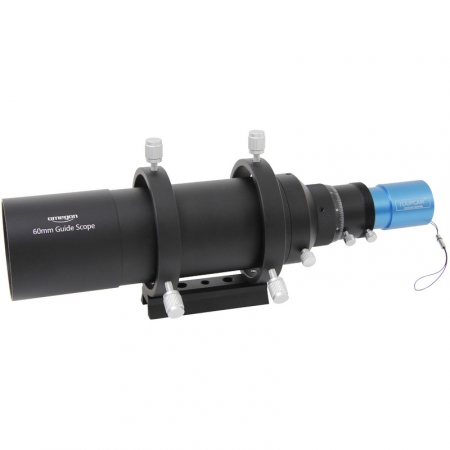

A small telescope (typically 50-80 mm diameter, 200-400 mm focal length) mounted parallel to the main telescope using guide scope rings. The guide camera is attached to this telescope.
Advantages:
- Easy installation and setup
- Large field of view makes finding a suitable guide star easier
- Independent of main telescope - you can change cameras and accessories without affecting guiding
- Affordable solution
Disadvantages:
- Differential flexure - guide scope and main telescope can bend slightly independently, causing inaccuracies
- Requires additional accessories (guide rings, mounting rail)
- Increases weight and dimensions of setup
Off-Axis Guider (OAG)
A device installed between the main telescope and imaging camera. Contains a small prism mirror that diverts part of the light from the field outside the axis of the main telescope to the guide camera.
Advantages:
- No differential flexure - you guide directly from the main telescope
- More compact setup, lower weight
- Ideal for long focal lengths
Disadvantages:
- Small field for guiding - can be difficult to find suitable star
- More complex setup and focusing
- Adds backfocus - can be problematic with some telescopes
- More expensive than guide scope
How to Choose the Right Guide Camera?
For Beginners
If you're just starting with astrophotography and want to try autoguiding, choose an affordable camera with small pixels (3-4 µm) and ST-4 port. Models with monochrome CMOS chips provide good price/performance ratio. Use it with a simple guide scope of 50-60 mm diameter.
For Advanced Users
If you use longer focal lengths (above 1000 mm) or require maximum precision, invest in a camera with excellent sensitivity, low noise, and high QE. Consider using an off-axis guider to eliminate differential flexure. Cameras with small pixels (3 µm and less) provide the highest precision.
For Mobile Astronomers
If you frequently travel to dark sites, choose a compact and lightweight camera that adds minimal weight and dimensions to your setup. USB power (not external 12V supply) is an advantage for mobile use.
Guiding Software
The most popular software for autoguiding is PHD2 Guiding (Push Here Dummy) - completely free, open-source, and compatible with the vast majority of guide cameras. PHD2 offers:
- Automatic detection and selection of suitable stars
- Advanced guiding algorithms (PID control, backlash compensation)
- Detailed guiding performance graphs for problem diagnosis
- Dithering - micro-movements between exposures to eliminate hot pixels
- Support for dozens of different cameras and mounts
Other options include MetaGuide, MaxIm DL (paid), or integrated guiding modules in software like Sequence Generator Pro or N.I.N.A.
Tips for Successful Guiding
Proper Mount Balance
Perfectly balanced mount is the foundation of successful guiding. If the mount is unbalanced, the guide camera must constantly compensate for gravity, leading to direction switching of corrections and unstable guiding.
Careful Focusing
The guide camera must be precisely focused. Out-of-focus stars have indistinct edges and software cannot accurately determine their center, leading to guiding errors.
Choosing the Right Star
Select a moderately bright star - not too bright (saturated pixels), but not too faint (noise overwhelms signal). Ideally a star that produces signal at 50-70% of maximum in the camera histogram.
Optimizing Guide Exposure
Shorter exposures (1-2 seconds) allow faster reactions but require brighter stars. Longer exposures (3-4 seconds) work with fainter stars but react more slowly. Find the optimal compromise for your setup.
Calibration
Software must first "learn" how the mount responds to correction commands. During calibration, software sends test commands and monitors how the star moves. Proper calibration is crucial for accurate guiding.
Common Problems and Solutions
"Guide Star Disappeared"
Can be caused by clouds, dew on optics, or too faint a star. Use dew heaters on guide scope and select a brighter star.
"Large Dec Axis Deviations"
Often caused by unbalanced mount or insufficiently tightened clamps. Check balance and ensure all screws are adequately tightened.
"Guiding Oscillates"
Too aggressive guiding parameters. Reduce aggressiveness in PHD2 or increase minimum move duration.
