Projection Astrophotography Adapters
Projection astrophotography is a method of photographing celestial objects through a telescope eyepiece. Unlike the standard method where a camera attaches directly without an eyepiece, in projection photography light first passes through an eyepiece that magnifies the image, and only then is captured by a camera or smartphone.
This method is ideal for photographing planets and the Moon because it provides much greater magnification. This allows you to capture details of Jupiter's bands, Saturn's rings, Mars' polar caps, or lunar craters.
Three Methods of Projection Photography
1. Smartphone Photography Through Eyepiece
The simplest and most accessible method! You only need:
- Telescope with eyepiece
- Smartphone adapter (universal phone holder)
- Your mobile phone
The adapter attaches to the eyepiece and holds your phone in the ideal position. Simply open your phone's camera and you're ready! This method is also called afocal photography.
Advantages: Very simple, affordable, works with any phone.
Disadvantages: Less stable, limited quality of phone lens.
2. Camera Photography Without Lens
For more advanced astrophotographers. You need:
- Telescope with eyepiece
- Projection adapter with T2 thread
- T-ring for your camera (Canon, Nikon, Sony, etc.)
- DSLR or mirrorless camera (without lens)
The eyepiece remains in the telescope, the projection adapter connects to the eyepiece and holds the camera (without lens) at a certain distance behind it. The greater this distance, the higher the magnification.
Advantages: High magnification, larger camera sensor = better quality.
Disadvantages: Requires special adapters, more complex installation.
3. Afocal Photography - Camera With Lens Through Eyepiece
Similar to smartphone method, but using a regular camera with lens. Set the lens to infinity and hold it to the eyepiece.
Advantages: No need to remove lens, quick.
Disadvantages: Unstable without adapter, may show dark edges (vignetting).
What Can You Photograph?
Projection method is excellent for:
- Moon - craters, mountains, lunar seas in detail
- Jupiter - atmospheric bands, Great Red Spot, moons
- Saturn - rings, bands, moon Titan
- Mars - polar caps, dark regions
- Venus - phases
Projection method is not suitable for faint objects like galaxies, nebulae, or star clusters.
Which Adapter Do You Need?
For Smartphones

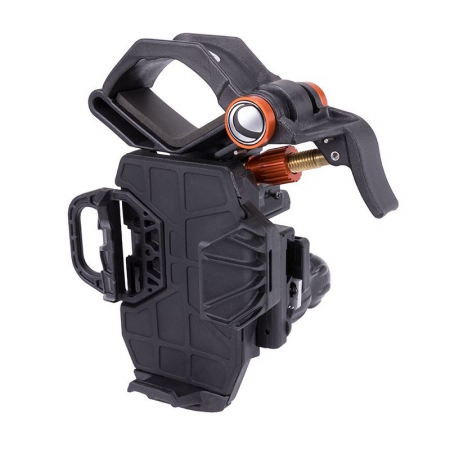

Universal smartphone adapter. Works with most phones and eyepieces 27-45mm diameter.
For Camera Without Lens
You need two parts:

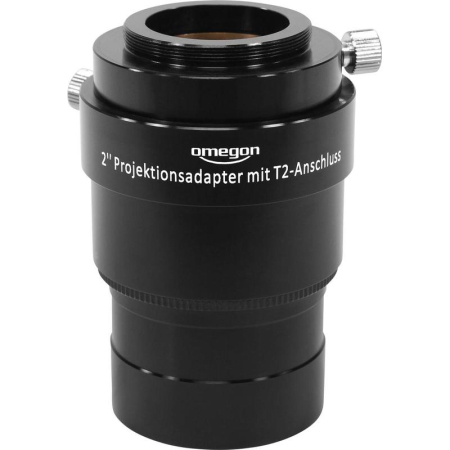

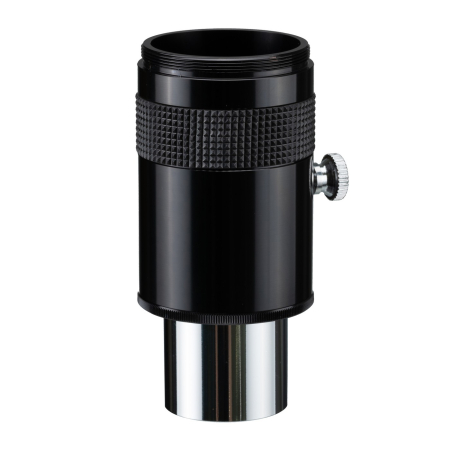

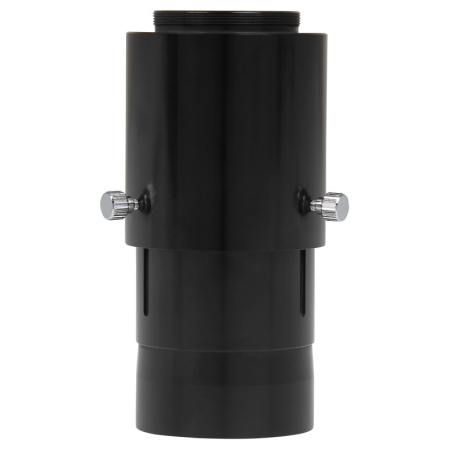

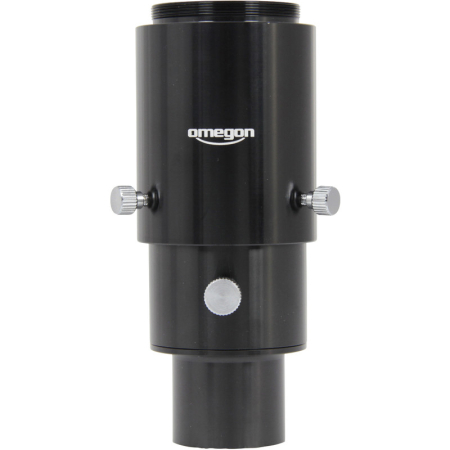

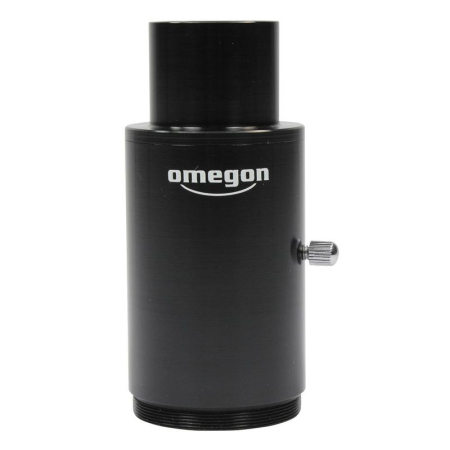

- Projection adapter - attaches to telescope eyepiece
- T-ring - specific to your camera brand: Canon, Nikon, Sony, etc.
Tips for Successful Photos
For Smartphones
- Use app with manual controls
- Turn off flash
- Focus carefully
- Better yet, record video and select sharpest frames
- Stabilize telescope - vibrations are your enemy
For Cameras
- Use manual mode (M)
- Turn off image stabilization
- For Moon: short shutter (1/125s), low ISO (100-400)
- For planets: longer shutter (1/30s), higher ISO (800-1600)
- Use remote release or timer
- Even better: record video and process with special software
Video Method - Secret to Sharp Planet Photos
Experienced astrophotographers don't use single photos but record short videos (1-3 minutes). Why?
Earth's atmosphere constantly "shimmers" - sometimes the image is sharp, sometimes blurry. When you record video, you get thousands of frames. Special software (e.g., free AutoStakkert or RegiStax) selects the sharpest ones and combines them. The result is much better than a single photo!
Advantages and Disadvantages
Advantages:
- Very high magnification - ideal for planets
- Can use smartphone (simplest option)
- See what you're photographing
- Cheaper than specialized planetary cameras
Disadvantages:
- Adds weight to telescope
- More demanding precise focusing
- Not suitable for faint objects
- Narrow field of view
How to Start?
Complete beginner with smartphone:
- Buy universal smartphone adapter
- Attach it to your favorite eyepiece
- Point at the Moon
- Insert phone into adapter and photograph!
Advanced with camera:
- Determine your camera's mount (Canon EF, Nikon F, etc.)
- Buy T-ring for your camera
- Buy projection adapter compatible with your telescope
- Connect everything together and start experimenting
Frequently Asked Questions
Do I need to buy a special eyepiece?
No, it works with regular eyepieces. For best results use eyepieces with shorter focal lengths (10-15mm).
Does it work with my telescope?
Projection photography works with any telescope - refractor, Newtonian, Schmidt-Cassegrain.
Do I need an expensive camera?
No! Start with a smartphone. Even a basic phone can take nice Moon photos.
Why are my photos blurry?
Common causes: poor focus, vibrations, bad weather (atmospheric turbulence), or planet/Moon movement during exposure. Try the video method!
Start projection astrophotography today and capture the beauty of planets and the Moon!
