Binorum Dielectric Advanced 99% Twist-Lock 1.25″ Star Diagonal
The Binorum Dielectric Advanced 99% Twist-Lock star diagonal represents a premium optical accessory combining superior reflectivity with an innovative eyepiece retention system. This precision diagonal delivers maximum light transmission while protecting your valuable eyepieces and camera noses from damage through its gentle, secure compression-ring clamping mechanism.
Revolutionary Twist-Lock Eyepiece Retention

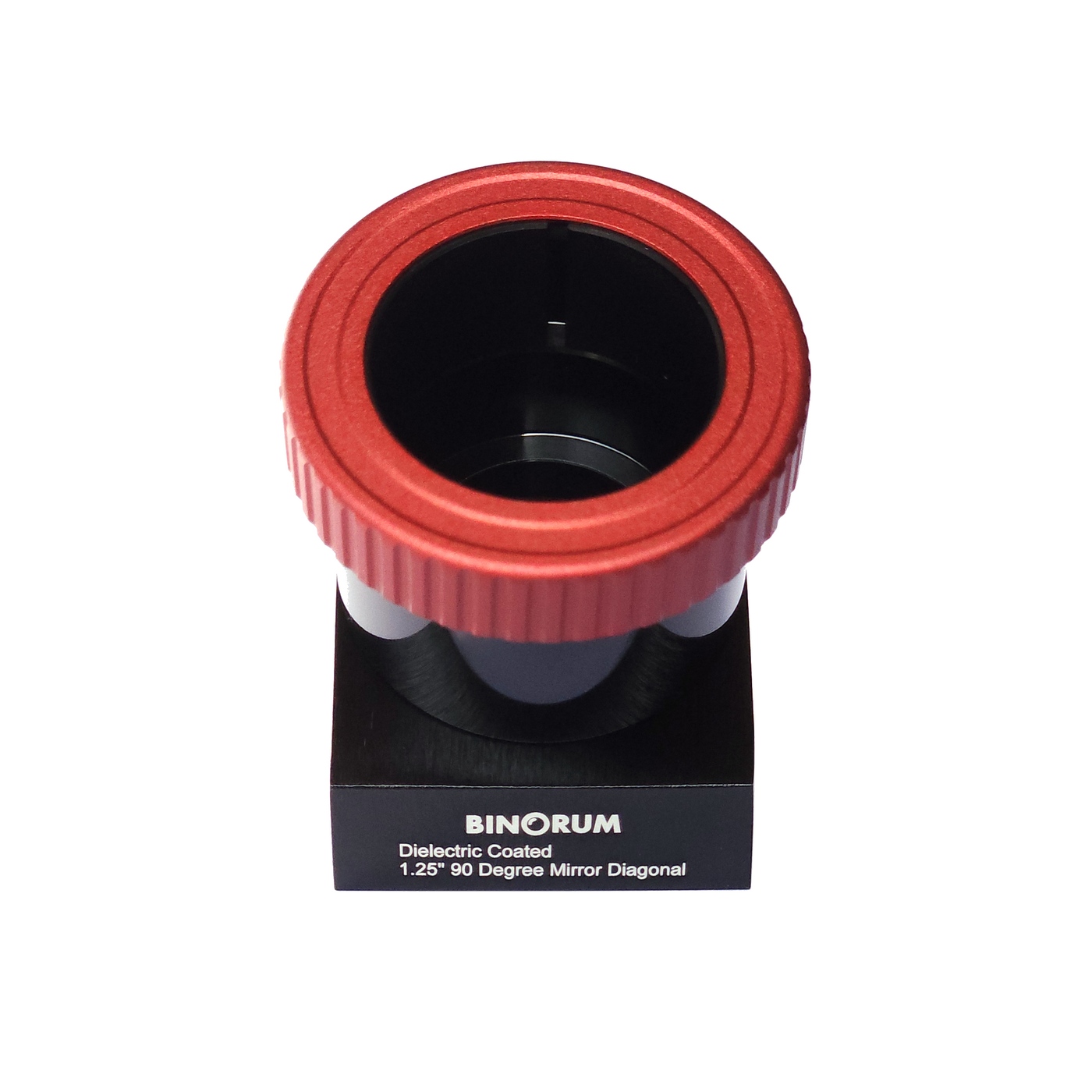

Unlike conventional star diagonals that rely on set screws to secure eyepieces, the Binorum Dielectric Advanced features a sophisticated twist-lock mechanism that secures 1.25″ eyepieces and accessories by simply rotating the red anodized aluminum ring clockwise. This innovative system provides several critical advantages over traditional designs.
The compression ring applies uniform inward pressure around the entire circumference of the eyepiece barrel, precisely centering the eyepiece or camera nose in the telescope's optical axis. This even pressure distribution eliminates the common problems associated with set screw diagonals: scratched eyepiece barrels, dented tubes, marred anodizing, and optical misalignment caused by the eyepiece being pushed off-axis by a single-point screw.
The knurled aluminum locking ring provides excellent grip even when wearing gloves during cold-weather observing sessions. The mechanism operates smoothly and reliably, with no risk of losing small set screws in the dark - a frustrating experience familiar to many astronomers. The twist-lock system also allows for quick eyepiece changes without fumbling for Allen wrenches or screwdrivers, streamlining your observing workflow.
Exceptional 99% Dielectric Mirror Coating
At the heart of this diagonal lies a mirror featuring advanced dielectric coating with reflectivity exceeding 99%. This represents a significant performance advantage over standard enhanced aluminum mirrors, which typically reflect only 88-94% of incident light. The additional 5-11% light transmission directly translates to brighter images, improved contrast, and enhanced visibility of faint details.
Dielectric coatings work through the principle of constructive and destructive interference in multiple thin-film layers. Unlike metallic coatings that absorb a portion of incident light, dielectric mirrors achieve their high reflectivity through optical interference, making them inherently more efficient. The coating maintains consistent high reflectivity across the visible spectrum, ensuring accurate color rendition without the slight warm cast sometimes introduced by aluminum mirrors.
This diagonal is designed for use with refractor telescopes and catadioptric systems (Schmidt-Cassegrain, Maksutov-Cassegrain), where it provides maximum light throughput for both visual observation and astrophotography. It cannot be used with Newtonian/Dobsonian reflector telescopes due to insufficient back-focus - these instruments require different focuser positioning that star diagonals cannot accommodate.
Superior Mechanical Construction

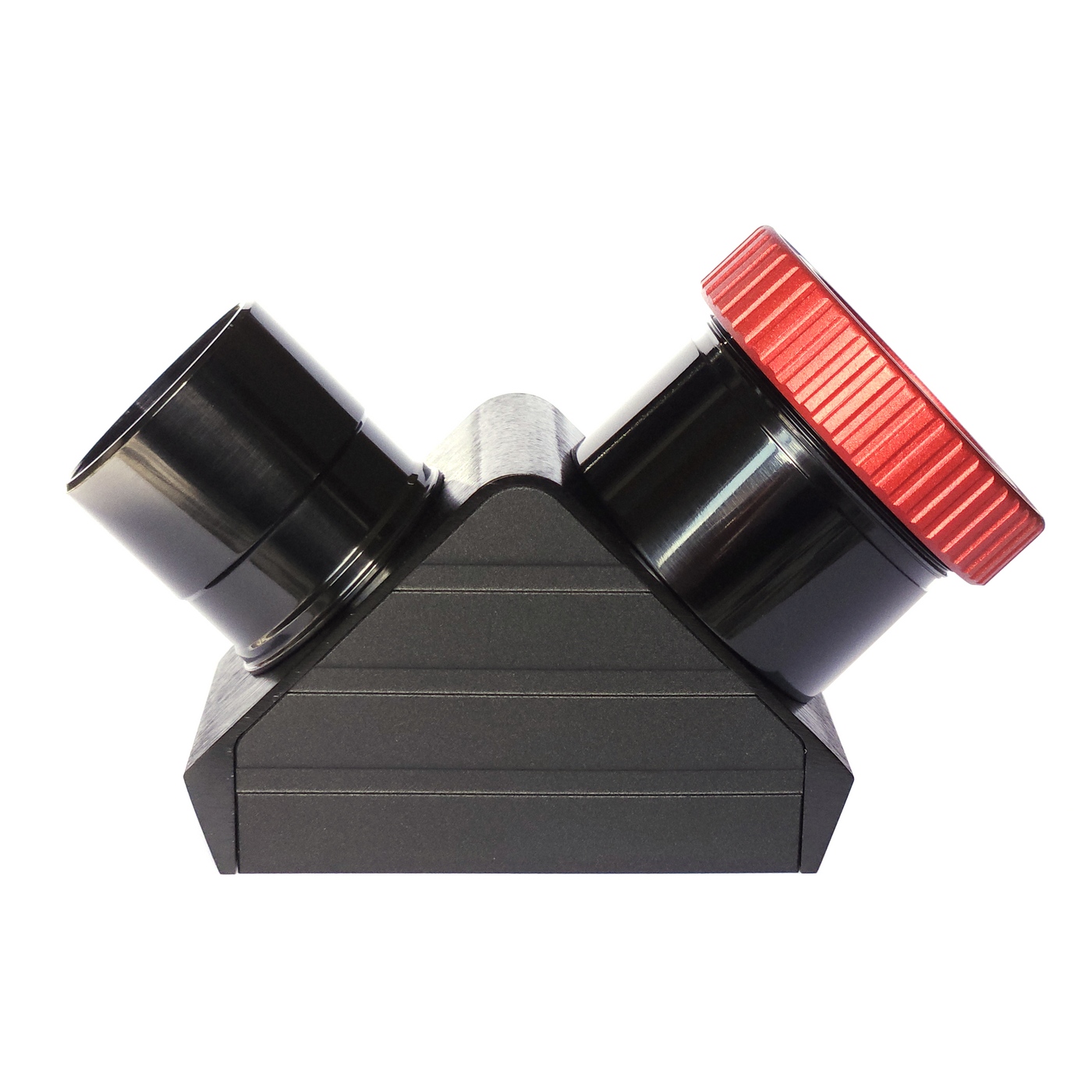

The diagonal body is machined from solid anodized aluminum, providing both durability and thermal stability. The anodized finish resists corrosion and wear while maintaining an attractive appearance through years of field use. Internal baffles strategically positioned within the light path eliminate stray reflections and light scatter, ensuring optimal image contrast. These carefully engineered baffles prevent light from reaching the eyepiece through unwanted optical paths that would otherwise degrade contrast and introduce ghosting.
The precision-machined housing maintains tight optical tolerances, keeping the mirror element perfectly aligned at the critical 90-degree angle. This alignment accuracy ensures that your eyepiece optical axis precisely matches your telescope's optical axis, critical for achieving sharp images across the entire field of view.
Long-Term Durability and Performance
Dielectric mirror coatings offer exceptional long-term stability compared to enhanced aluminum mirrors. The multi-layer dielectric stack resists oxidation, humidity, and environmental degradation far better than metallic coatings, which can gradually lose reflectivity over time as the aluminum oxidizes. Your Binorum Dielectric Advanced diagonal will maintain its 99%+ reflectivity for decades with minimal care, whereas enhanced aluminum mirrors may show measurable degradation after several years of use.
This durability makes the dielectric diagonal particularly valuable for astrophotography, where consistent light transmission across imaging sessions ensures repeatable results and simplifies image calibration and processing.
Practical Features and Accessories
The diagonal includes two protective dust caps - one for the telescope-side connection and one for the eyepiece barrel - safeguarding the optical surfaces when not in use. The 1.25″ eyepiece barrel features M28.5x0.6 threading for standard 1.25″ astronomical filters, allowing you to use light pollution filters, color filters, or other threaded accessories without additional adapters.
At 220 grams, the diagonal adds minimal weight to your optical train while providing robust construction. The compact form factor ensures it won't create balance issues even on smaller refractors or maksutovs.
Optimal Applications
This premium diagonal excels in demanding observing situations where maximum light transmission matters most. Planetary observers benefit from the enhanced contrast and light throughput when studying subtle atmospheric features on Jupiter, Saturn, or Mars. Lunar observers appreciate the crisp, bright views of delicate crater details and ray systems. For deep-sky observation, the extra light gathered by the 99% reflectivity helps reveal fainter stars in globular clusters and subtle nebula structures.
Astrophotographers using DSLR or dedicated astronomy cameras will value the consistent high reflectivity and precise optical alignment, which ensure sharp images with minimal light loss - critical when capturing faint deep-sky objects through narrowband filters or during short winter nights.
Why Choose Binorum
Binorum delivers precision-engineered astronomical accessories that combine innovative mechanical design with premium optical components. The Dielectric Advanced diagonal exemplifies this commitment, offering professional-grade performance through its 99% dielectric mirror, protective compression-ring eyepiece retention, and robust all-metal construction. Each diagonal undergoes rigorous quality control to ensure consistent optical performance and mechanical reliability, providing astronomers with equipment they can depend on for years of productive observing and imaging.
