Star Diagonals and Prisms for Astronomical Telescopes
Star diagonals and prisms are essential accessories for comfortable observation with refractors and catadioptric telescopes (Schmidt-Cassegrain, Maksutov-Cassegrain). This simple optical device changes the light path direction by 90°, enabling observation in a natural, ergonomic position instead of uncomfortable bending under the telescope.
Why You Need a Star Diagonal or Prism
Imagine observing an object high in the sky with a refractor or Schmidt-Cassegrain without a star diagonal. You would have to bend into a very uncomfortable position to look straight up into the eyepiece. After a few minutes, your neck and back would ache. A star diagonal solves this problem by reflecting light 90°, so you look comfortably to the side or down, even when the telescope points directly toward the zenith.
For refracting telescopes and catadioptric systems, a star diagonal is almost essential for any observation above 45° elevation. Only with Newtonian reflectors are star diagonals not used, because their focuser is positioned on the side of the tube and already provides a comfortable viewing angle.
Mirrors versus Prisms - Basic Differences
There are two main types of star diagonals - mirrors and prisms. Each has specific advantages:

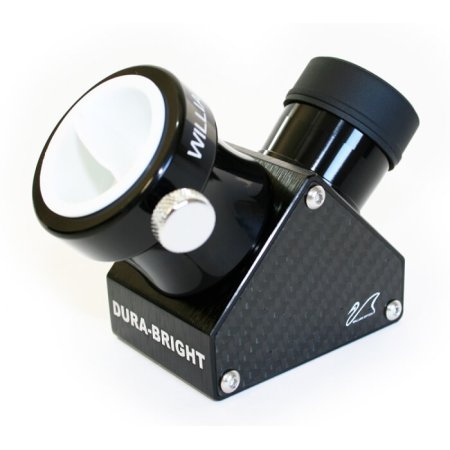

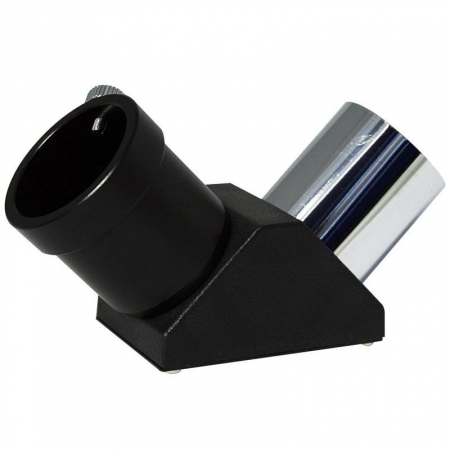

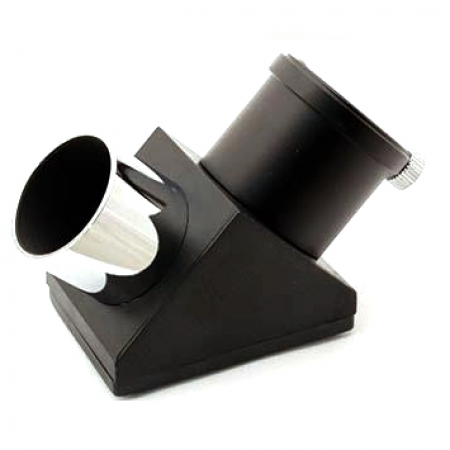

Star Diagonal Mirrors
Mirrors use a reflective surface coated with metallic or dielectric coating. Most common are mirrors with enhanced aluminum coating (88-94% reflectivity) and premium dielectric mirrors with reflectivity exceeding 99%. Modern dielectric mirrors provide the highest light transmission of all star diagonal types and are the ideal choice for astrophotography and visual observation where every percentage of light matters.
Mirrors create a mirror-reversed image - left and right sides are swapped. This is not a problem when observing celestial objects, but makes them less suitable for terrestrial observation.

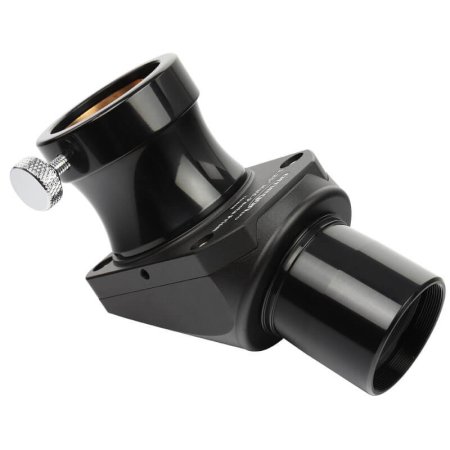

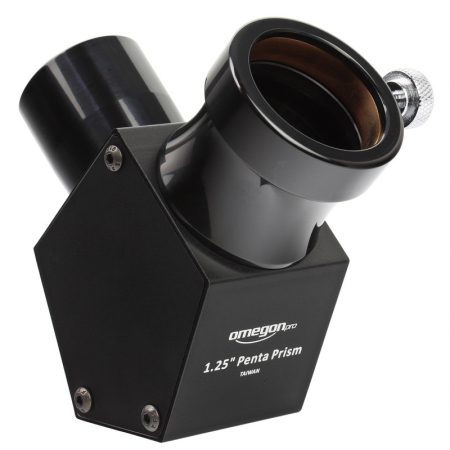

Prisms

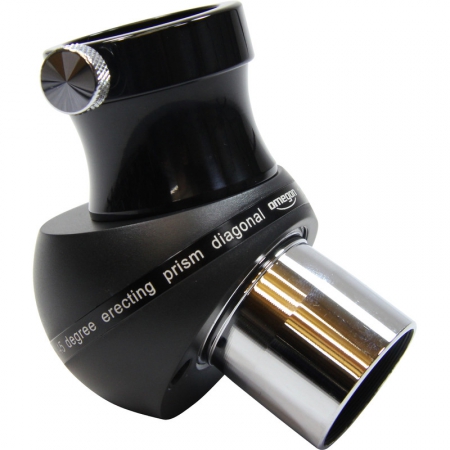

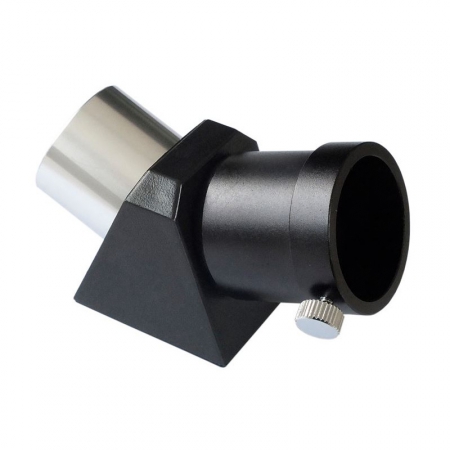

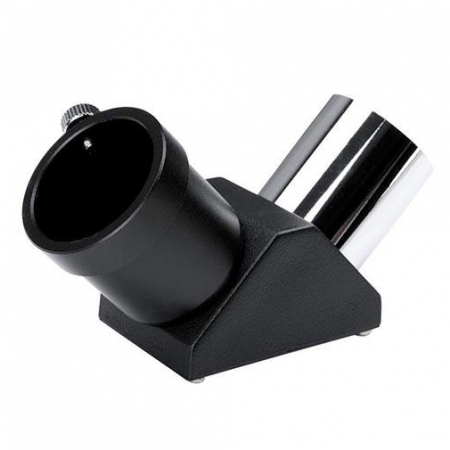

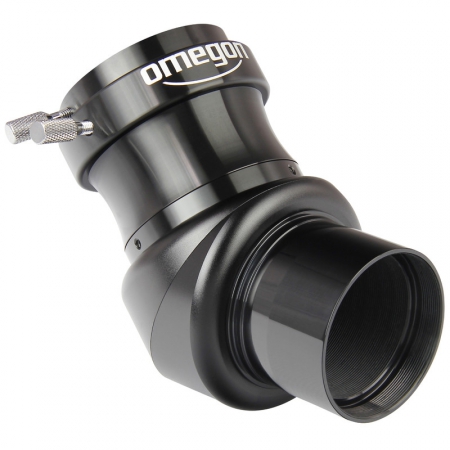

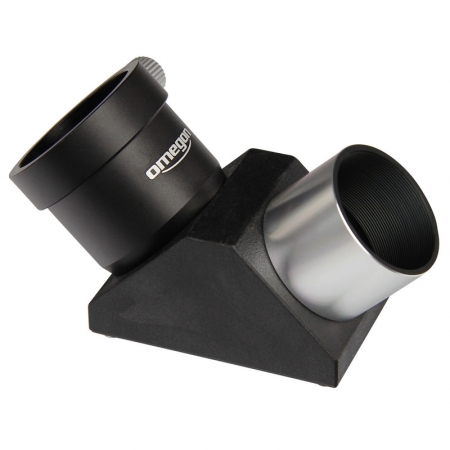

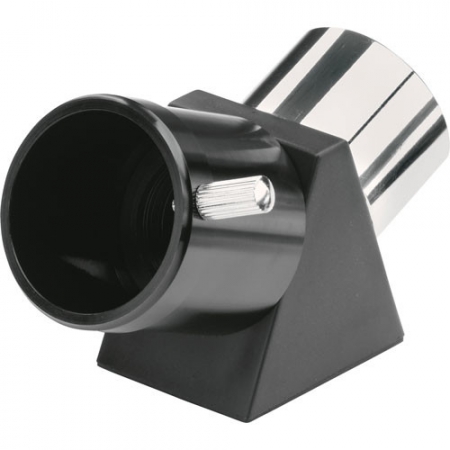

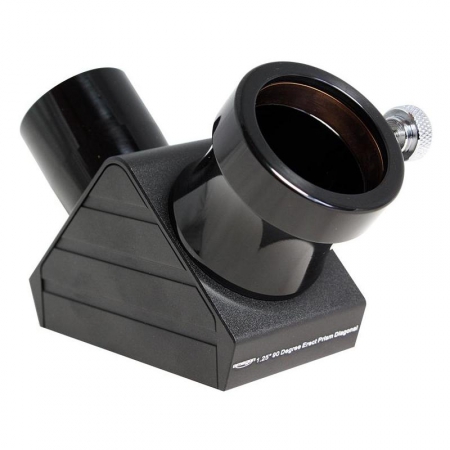

Prisms use refraction and internal reflection in a glass prism to deflect the light path. Standard star prisms create a mirror-reversed image just like mirrors. However, special Amici prisms provide a completely correctly oriented image - both laterally and vertically - which is ideal for terrestrial observation of nature, birds, or landscapes using an astronomical telescope.
Prisms generally have slightly lower light transmission than dielectric mirrors (typically 90-95%), but for most visual observation this difference is negligible.
Sizes and Standards - 1.25″ vs 2″
Star diagonals and prisms are manufactured in two basic diameters:
1.25″ (31.75mm): Most common size suitable for most astronomical telescopes. Compatible with 1.25″ eyepieces and accessories. Ideal for compact refractors, smaller Schmidt-Cassegrain telescopes, and generally for medium-sized fields of view.
2″ (50.8mm): Larger diameter allows wider fields of view with 2″ eyepieces and minimizes vignetting with wide fields. Recommended for larger refractors, telescopes used for observing deep-sky objects with wide fields, and for astrophotography with larger sensors.

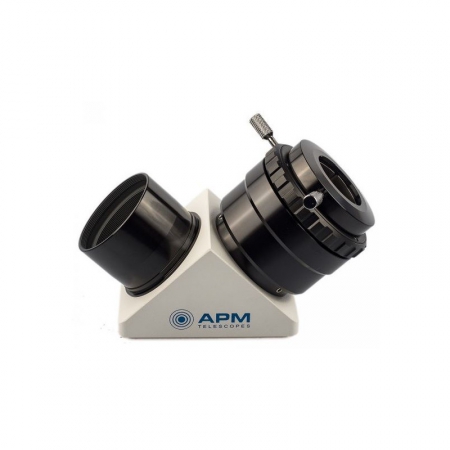

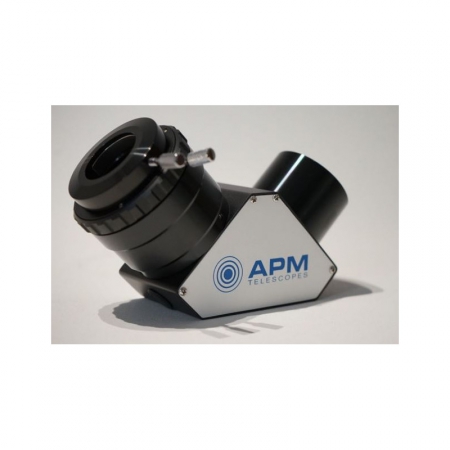

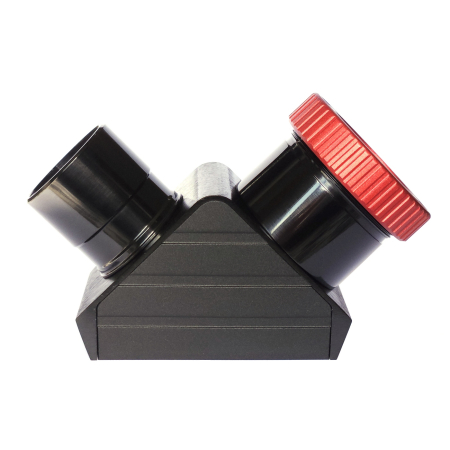

Modern Innovations - Twist-Lock Systems
Traditional star diagonals use one or two set screws to secure eyepieces. However, these screws can scratch eyepiece barrels, cause eyepiece decentering, or get lost in the dark during observation.
Modern twist-lock systems (compression clamping) solve these problems elegantly. Instead of screws, they use a rotating ring that evenly compresses the eyepiece from all sides. This provides several advantages:
- No scratching of eyepiece barrel or camera nose
- Precise centering of eyepiece in optical axis
- Quick eyepiece changes without searching for screwdrivers
- No small screws that could fall out in the dark
- Even pressure ensures more stable attachment

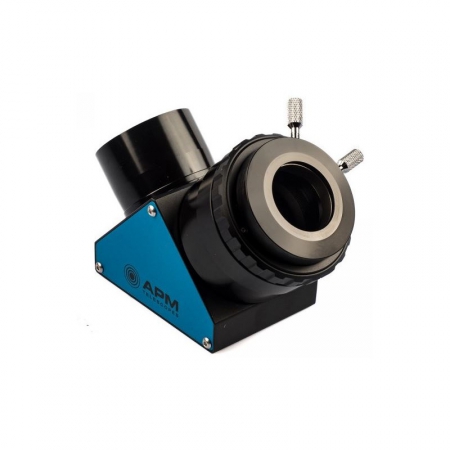

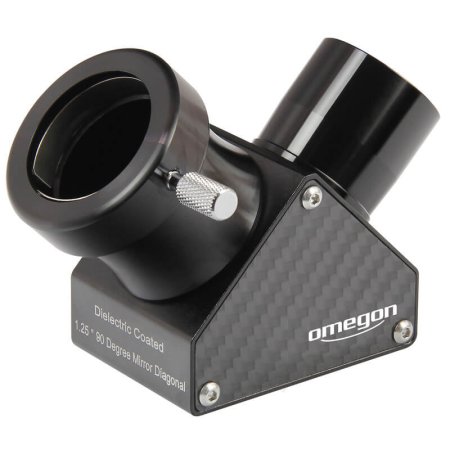

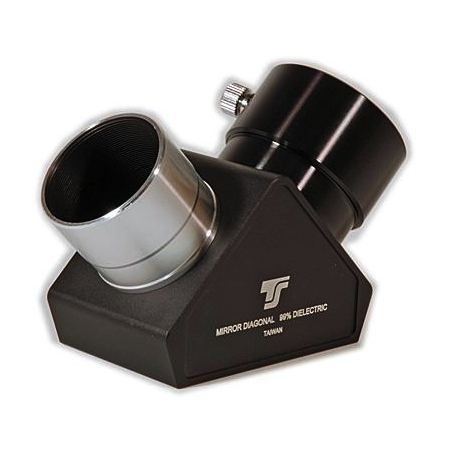

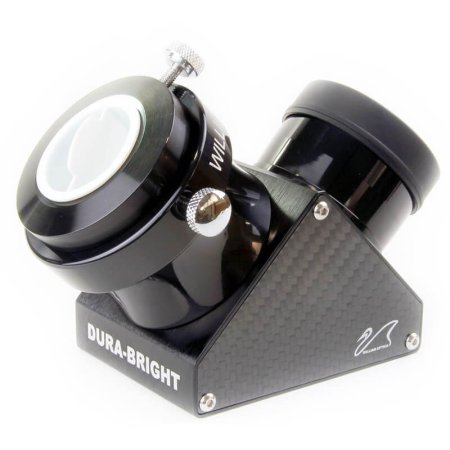

Dielectric Mirrors - Premium Choice
For demanding observers and astrophotographers, dielectric mirrors with 99% and higher reflectivity represent the optimal choice. Unlike classic metal mirrors, they use multi-layer dielectric coatings that achieve reflectivity through optical interference, not metal absorption.
Advantages of dielectric mirrors:
- Reflectivity exceeding 99% - more light means brighter image
- Long-term stability - dielectric coatings don't oxidize like aluminum
- Neutral color rendition without warm cast of metal mirrors
- Ideal for astrophotography where every photon counts
- Excellent for observing faint deep-sky objects
Filter Threads and Compatibility
Quality star diagonals have filter threading (typically M28.5×0.6 for 1.25″ or M48×0.75 for 2″) that allows threading astronomical filters directly into the eyepiece barrel. This is very practical because you can use filters without threading them onto each individual eyepiece.
How to Choose the Right Star Diagonal or Prism
For visual astronomy observation: Mirror with enhanced aluminum coating or dielectric mirror depending on budget. 1.25″ size for compact telescopes, 2″ for larger instruments or wide fields of view.
For astrophotography: 99% dielectric mirror for maximum light transmission. Twist-lock system eliminates risk of decentering during long exposures.
For terrestrial observation: Amici prism with completely correctly oriented image. Ideal if you want to use the telescope for nature observation during the day as well.
For larger telescopes (over 150mm): 2″ diagonal will ensure full field of view without vignetting even with wide eyepieces.
For beginners: Standard 1.25″ mirror with enhanced aluminum offers excellent price-to-performance ratio for first steps in astronomy.
Maintenance and Care
Star diagonals and prisms require minimal maintenance. Protect optical surfaces from dust using provided caps when not using the instrument. If cleaning is necessary, use only special optical cleaning products and soft cloths. Never touch optical surfaces with fingers.
Dielectric coatings are more resistant to oxidation than aluminum, but still require gentle handling. Properly maintained star diagonals will serve you for decades without performance degradation.
Investment in Comfort and Quality
A star diagonal or prism may seem like a small accessory, but its impact on observing comfort is enormous. A quality diagonal with the right size and optical properties transforms your observing experience from exhausting bending into pleasant and relaxing exploration of the universe. For astrophotographers, additionally, a dielectric mirror represents a significant difference in light transmission that directly translates into the quality of resulting images.
