Zoom Eyepieces - One Eyepiece for Every Situation
Every astronomer sooner or later faces the same question: which eyepieces to take on an observing trip? A 25 mm Plössl for wide-field views, a 10 mm for medium magnification, a 6 mm for planets - and on top of that a tripod, a telescope, maybe a filter... The bag gets heavier and the comfort disappears. This is precisely the situation that zoom eyepieces were designed to solve: a single eyepiece with a continuously variable focal length replaces three, four, or even more fixed eyepieces. Turn the ring and the magnification changes - no eyepiece swap, no loss of focus, no interruption to your observing session.
How Does a Zoom Eyepiece Work?
The principle behind a zoom eyepiece is a movable optical system in which changing the position of one or more lens groups alters the resulting focal length. This mechanism is similar in design to variable focal length camera lenses - which is where the name "zoom" originates. Most models express the adjustment range as a pair of numbers: for example, 8-24 mm means the focal length is continuously adjustable from 8 to 24 mm, which in most telescopes corresponds to approximately a three-fold range of magnification. A telescope in which a 24 mm eyepiece gives 50x magnification will deliver 150x with the same eyepiece set to 8 mm.
The apparent field of view also changes as the focal length is adjusted - at the minimum focal length (maximum magnification) the field of view is narrowest, and at the maximum focal length (lowest magnification) it is widest. This is a natural consequence of the optical design. In better-quality models the change in field of view is kept as small as possible, and the image remains sharp and contrasty throughout the full adjustment range.
The Practical Advantages of a Zoom Eyepiece
The most obvious advantage is observing comfort. Instead of swapping eyepieces - during which the telescope must be refocused and the object often drifts out of the field of view - you simply turn the adjustment ring smoothly. This is particularly valuable when tracking moving objects such as passing aircraft or the motion of the Moon, and during night-time observing sessions when changing eyepieces means losing your night vision and fumbling in the dark.
For astronomy beginners, a zoom eyepiece is the ideal first purchase. There is no need to decide which fixed eyepieces to buy or in what order. With a single zoom eyepiece you can freely experiment with different magnifications, find the optimum for a given object and telescope, and only later supplement your collection with fixed eyepieces at specific favourite magnifications.
For travellers and mobile observers, the advantage is even more pronounced. Instead of three eyepieces in a case, you carry just one - and yet you retain the full range of magnification for different types of objects. A telescope combined with a single zoom eyepiece is a minimalist setup that fits into a small backpack and is ready to use almost instantly.
Zoom eyepieces are also a popular choice for Moon and planetary observers. Planetary observation depends heavily on the current state of the atmosphere - throughout a single night the "seeing" (atmospheric stability) changes constantly. A zoom eyepiece allows you to react immediately: as soon as the image blurs due to turbulence, simply reduce the magnification; during moments of exceptional atmospheric calm, increase it again to capture the maximum detail.
Disadvantages and How to Deal With Them
In fairness, zoom eyepieces do have their limitations. The optical construction with moving lens groups is more complex than in fixed eyepieces, which manifests in two main areas. First, the apparent field of view in most zoom eyepieces at maximum magnification is narrower than in dedicated planetary eyepieces of the same focal length. Second, in lower-quality models the image at the edges of the field may be less sharp than at the centre when at full magnification.
Both of these drawbacks are, however, strongly dependent on the price and quality of the specific model. Premium zoom eyepieces - such as the Baader Hyperion, Omegon Premium, or TeleVue Nagler Zoom - are optically very sophisticated and match or even surpass fixed eyepieces in performance. The difference between a cheap and an expensive zoom eyepiece is more pronounced than between fixed eyepieces of the same price categories, which is why investing in quality pays off particularly well with zoom eyepieces.
Overview of Available Zoom Eyepieces and How They Differ
Our range covers zoom eyepieces across several price and performance tiers, so every astronomer will find a suitable option.

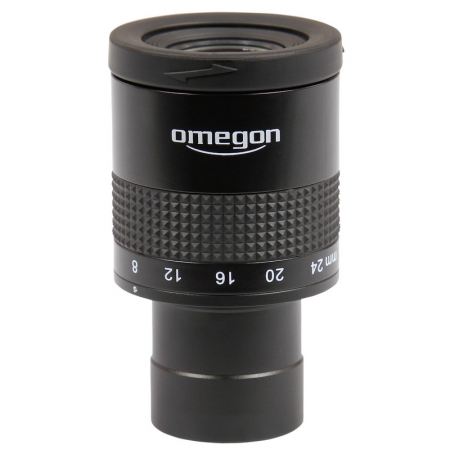

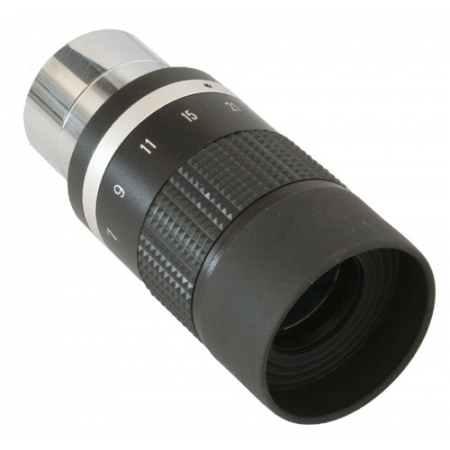

Entry-level models up to around €80 - such as the Sky-Watcher Zoom 7-21 mm or the Omegon Magnum 8-24 mm - are reliable companions for everyday observing use. They offer a three-fold magnification range and acceptable image quality that will be appreciated especially by beginners or astronomers who use a zoom eyepiece as a supplement to their existing set of fixed eyepieces. Their apparent field of view typically falls between 40° and 55° depending on the setting.

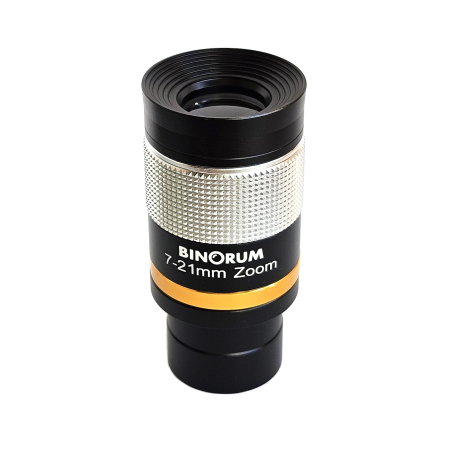

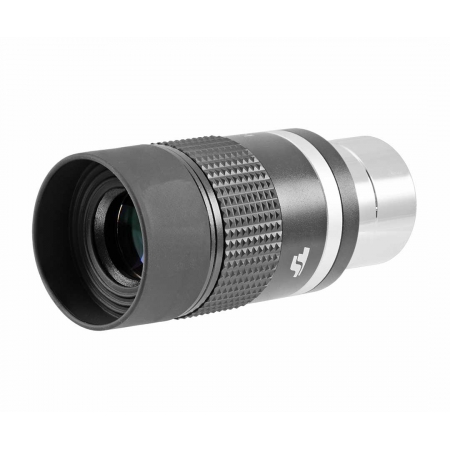

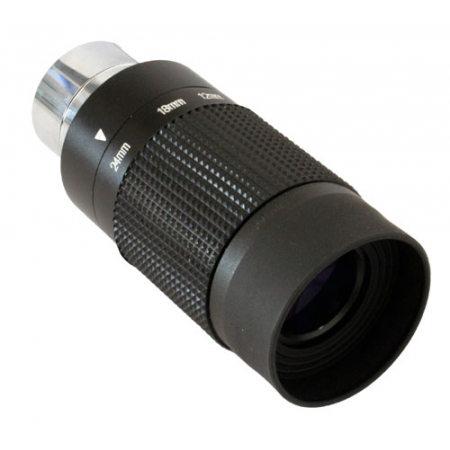

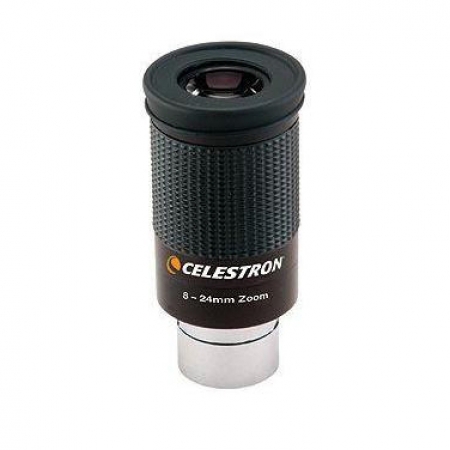

The mid-range - including the Binorum Optima Zoom 7-21 mm with its 58° field, the Sky-Watcher Zoom 8-24 mm, the Celestron 8-24 mm, and the TS Optics 7-21 mm - offers better optical construction, higher-quality anti-reflection coatings, and a somewhat wider field of view, in a price range from around €60 to €120. In this category performance approaches that of fixed eyepieces closely enough that many astronomers use these as their primary eyepieces for both wide-field and medium magnification observing.

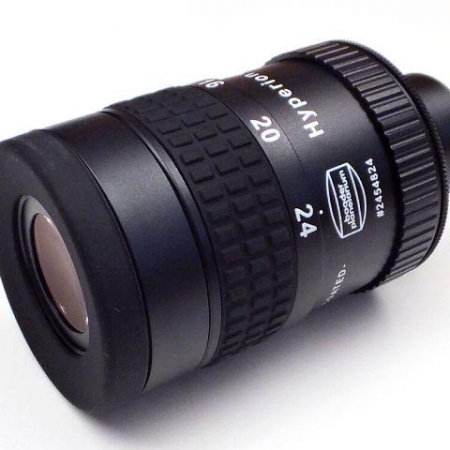

The premium category includes models whose performance is comparable to the finest fixed eyepieces. The Baader Planetarium Hyperion IV Click Zoom 8-24 mm (around €330) is unique in that it allows precise magnification setting via click-stop positions - the observer always knows exactly which magnification is set and can reliably return to specific values. The field of view of this eyepiece is exceptionally generous: 70° at 24 mm and 50° at 8 mm. Thanks to compatibility with both 2" and 1.25" focusers, it works with any telescope.

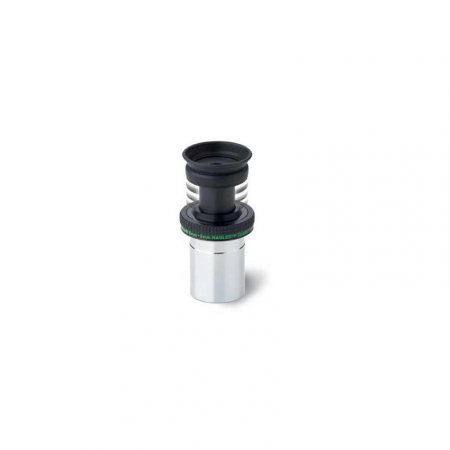

At the absolute pinnacle stands the TeleVue Nagler Zoom 3-6 mm (around €570) - a specialised zoom eyepiece for planetary observation with an extraordinarily short focal length range. Combined with any telescope, it delivers the extreme high magnifications needed for detailed work on planets, the Moon, or double stars, with the image quality that the legendary Nagler range is known for. This is an instrument for experienced observers who refuse to compromise and are prepared to pay accordingly for that level of performance.

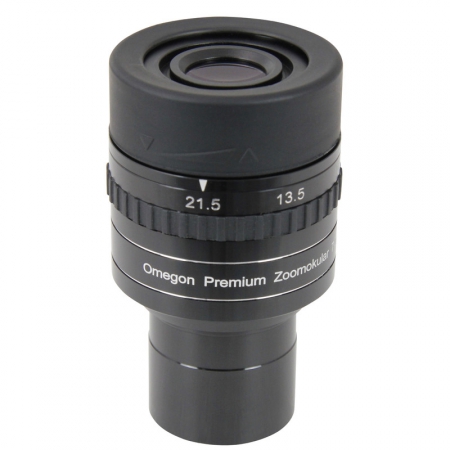

Deserving special mention is also the Omegon Premium 7.5-22.5 mm (around €310) with an apparent field of view ranging from 42° to 66° - an eyepiece whose field of view widens significantly at lower magnifications while remaining acceptably large at higher magnifications. The result is a very practical range for both wide-field and medium-magnification observing, with above-average optical quality.
Zoom Eyepiece and Barlow Lens - an Excellent Combination
The magnification range of a zoom eyepiece can be extended very practically by combining it with a Barlow lens. A 2x Barlow lens placed before a zoom eyepiece doubles all available magnifications - a 8-24 mm zoom combined with a 2x Barlow effectively becomes an eyepiece with a 4-12 mm range. The result, without purchasing any additional eyepiece, is a complete range from wide-field sweeping (24 mm without Barlow) through to high magnifications suitable for planets (4 mm with 2x Barlow) - achieved with just two optical accessories.
This combination is particularly popular among astronomers who want a complete setup with a minimum number of accessories while retaining full flexibility in magnification selection.
How to Choose the Right Zoom Eyepiece
When selecting a zoom eyepiece, we recommend considering three main criteria. The first is the focal length range - 7-21 mm models cover medium to high magnifications, while 8-24 mm models offer a slightly wider view at maximum focal length. Models with a shorter range, such as the TeleVue 3-6 mm, are specialised for high-magnification work.
The second criterion is the apparent field of view. The wider, the more comfortable the observing experience - but also the more demanding and typically more expensive the optical construction. With zoom eyepieces it is worth paying particular attention to the field of view at maximum magnification, as this is the position where it is narrowest and where differences between models are most pronounced.
The third factor is the quality of anti-reflection coatings and the precision of the mechanical construction. In zoom eyepieces, where light passes through a greater number of optical surfaces than in simple fixed eyepieces, high-quality multi-layer coatings are essential for maintaining contrast and suppressing stray reflections. The quality of the adjustment ring mechanism then determines whether operation will be smooth and precise, or rough and unreliable.
If you are unsure which model will suit your telescope best, we are happy to advise - simply let us know the type and specifications of your telescope and the way you most enjoy observing.
