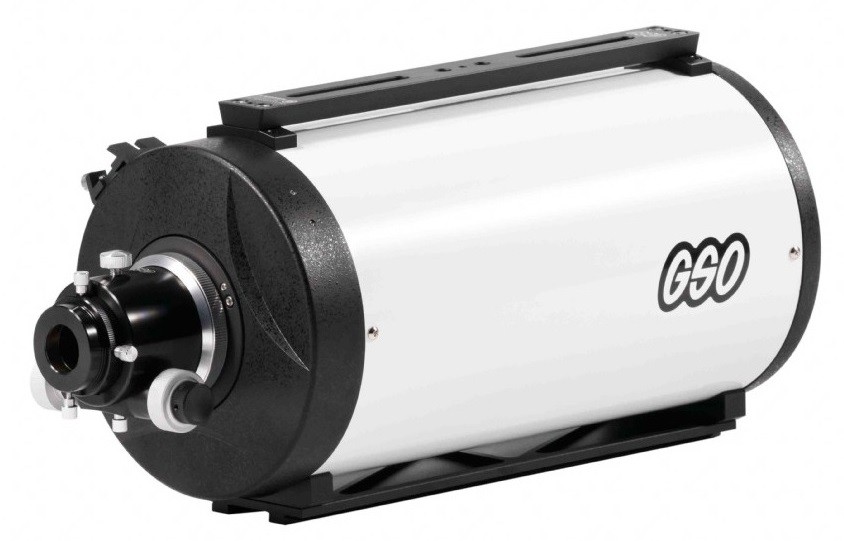

Ritchey-Chrétien High-Performance Reflecting Telescope GSO 203/1624 1:10 OTA

Open catalog

Binorum.eu → Telescopes → Ritchey-Chrétien

❮ ❯
Ritchey-Chrétien Reflecting Telescope GSO 203/1624 1:10 OTA - Only tube with accessories, without mounting, without tripod

Article No.: GSORC8M
Manufactured by: GSO
Shipping weight: 11 kg

Our price: 1297.95 €

Only 2 available - order soon!

We have the goods in stock at our store and we can send them immediately.

These are goods that we do not have in stock and which are not currently in stock even with the supplier. Usually in this case we do not even know the date of stocking at the supplier, so the goods may be unavailable for a longer period of time.

Recommended accessories (all in stock):
	ZWO ASI183MM Monochrome Astronomy CMOS Camera	ZWO ASI183MM Monochrome Astronomy CMOS Camera The ZWO ASI183MM is a high-resolution monochrome CMOS astronomy camera built around the Sony Exmor R BSI IMX183 sensor. With approximately 20 megapixels spread across a 1-inch sensor diagonal of 15.9 mm, the ASI183MM ranks among the largest CMOS astro cameras in its category. The combination of exceptional pixel count, a tiny 2.4 µm pixel size and Sony's back-illuminated sensor architecture places this camera in a class of its own for astrophotographers who demand the highest possible resolution and light sensitivity. Exceptional sensitivity thanks to back-illuminated sensor technology The Sony IMX183 uses BSI (Back...	1071.30 €
ZWO ASI183MM Monochrome Astronomy CMOS Camera The ZWO ASI183MM is a high-resolution monochrome CMOS astronomy camera built around the Sony Exmor R BSI IMX183 sensor. With approximately 20 megapixels spread across a 1-inch sensor diagonal of 15.9 mm, the ASI183MM ranks among the largest CMOS astro cameras in its category. The combination of exceptional pixel count, a tiny 2.4 µm pixel size and Sony's back-illuminated sensor architecture places this camera in a class of its own for astrophotographers who demand the highest possible resolution and light sensitivity. Exceptional sensitivity thanks to back-illuminated sensor technology The Sony IMX183 uses BSI (Back...

Ritchey-Chrétien Reflecting Telescope GSO 203/1624 1:10 OTA

This Ritchey-Chrétien telescope is a high-performance reflecting telescope designed to deliver exceptionally sharp and contrast-rich images of the night sky. Thanks to its advanced optical design, it is an excellent choice not only for astrophotography but also for visually observing deep-sky objects.

The telescope uses two precisely shaped hyperbolic mirrors that work together to minimize common optical imperfections. As a result, you get a wide, flat field of view with pinpoint stars across the entire image — without the need for additional optical correctors.

Why choose a Ritchey-Chrétien telescope?

✔ Hyperbolic mirrors for extremely sharp images and a wide field of view
✔ Optical design that corrects spherical and coma aberrations
✔ No chromatic aberration, unlike Schmidt-Cassegrain or Maksutov-Cassegrain systems
✔ Quartz mirrors with very low thermal expansion for stable focus
✔ High-reflectivity dielectric coatings for bright, high-contrast views
✔ Open tube design allows fast cooling and quicker setup

With a primary mirror diameter of 203 mm and a focal length of 1624 mm (f/8), this telescope offers an excellent balance between image detail and ease of use. The dual-speed Crayford focuser (1:10) allows precise and smooth focusing, which is especially helpful when using cameras.

Thanks to its professional-grade optics and robust mechanical construction, this telescope is ideal for users who want to explore galaxies, nebulae, and star clusters with confidence — whether visually or through imaging.

Technical specifications

Optical design: Ritchey-Chrétien reflecting telescope
Primary mirror diameter: 203 mm
Focal length: 1624 mm
Focal ratio: f/8
Tube weight: 8.2 kg
Focuser: 2″ Monorail, dual-speed (1:10)
Eyepiece connection: 2″ and 1.25″
Thread: M90x1
Mounting rails included: Vixen + Losmandy

This telescope for astrophotography and visual observing is a reliable, long-term investment for anyone looking to experience the universe with exceptional clarity and precision.

Specifications

Type of telescope: Newton reflectors

Optical scheme: Ritchey-Chretien

Focal length: 1624 mm

Aperture: 203 mm (8″)

Aperture ratio: 8

Resolving capacity: "

Limit value: 13.3 magnitude

Light gathering capacity: 841x

Max. useful magnification: 406x

Connection type: 2″

Mounting: No mount

Recommended for: Advanced, Experienced

Application area: Astrophotography, Deep Sky observation, Planets observation

Package contents of "Ritchey-Chrétien Reflecting Telescope GSO 203/1624 1:10 OTA":
✅ Ritchey-Chrétien 8″ OTA telescope

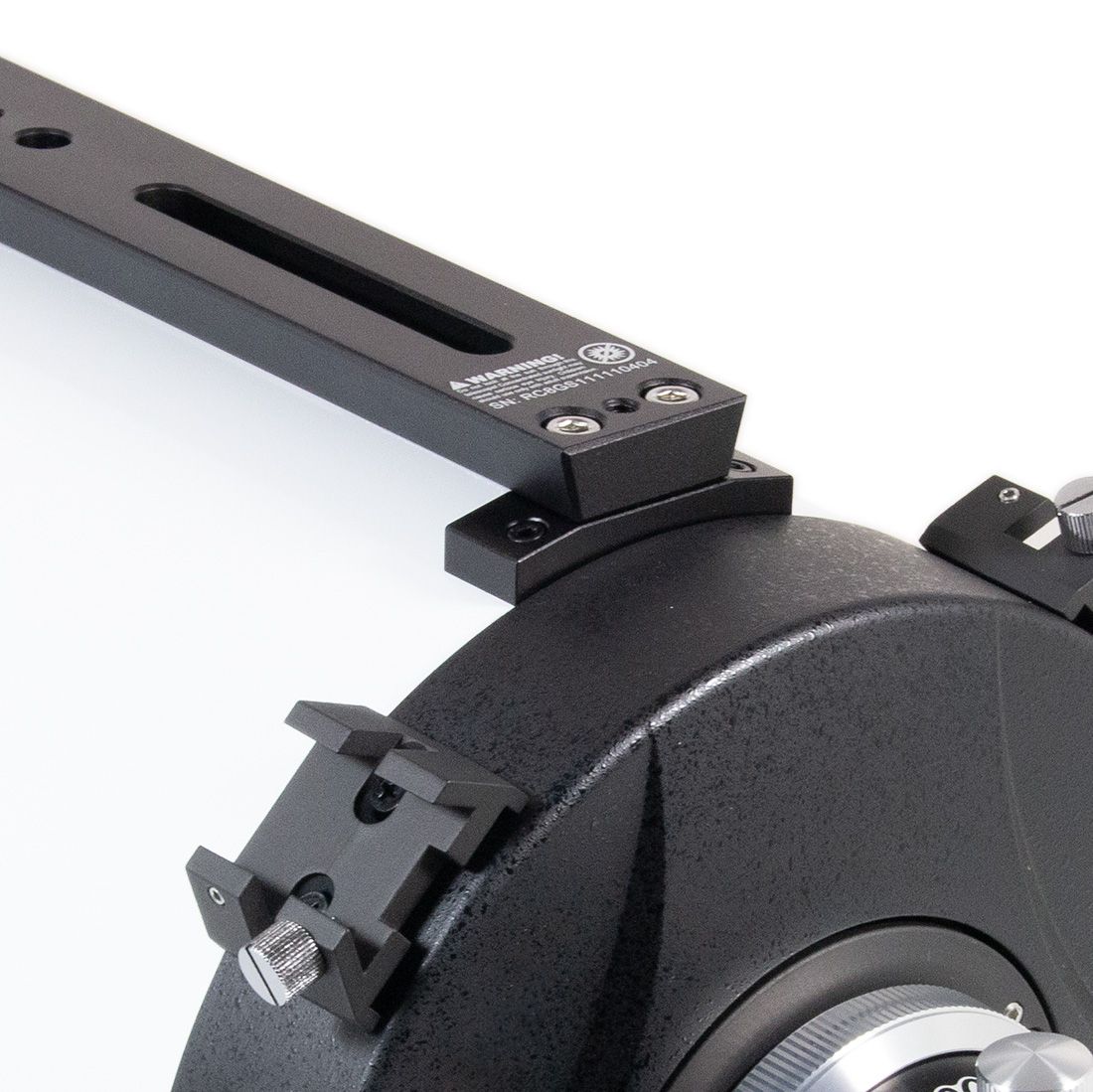

✅ Vixen dovetail bar

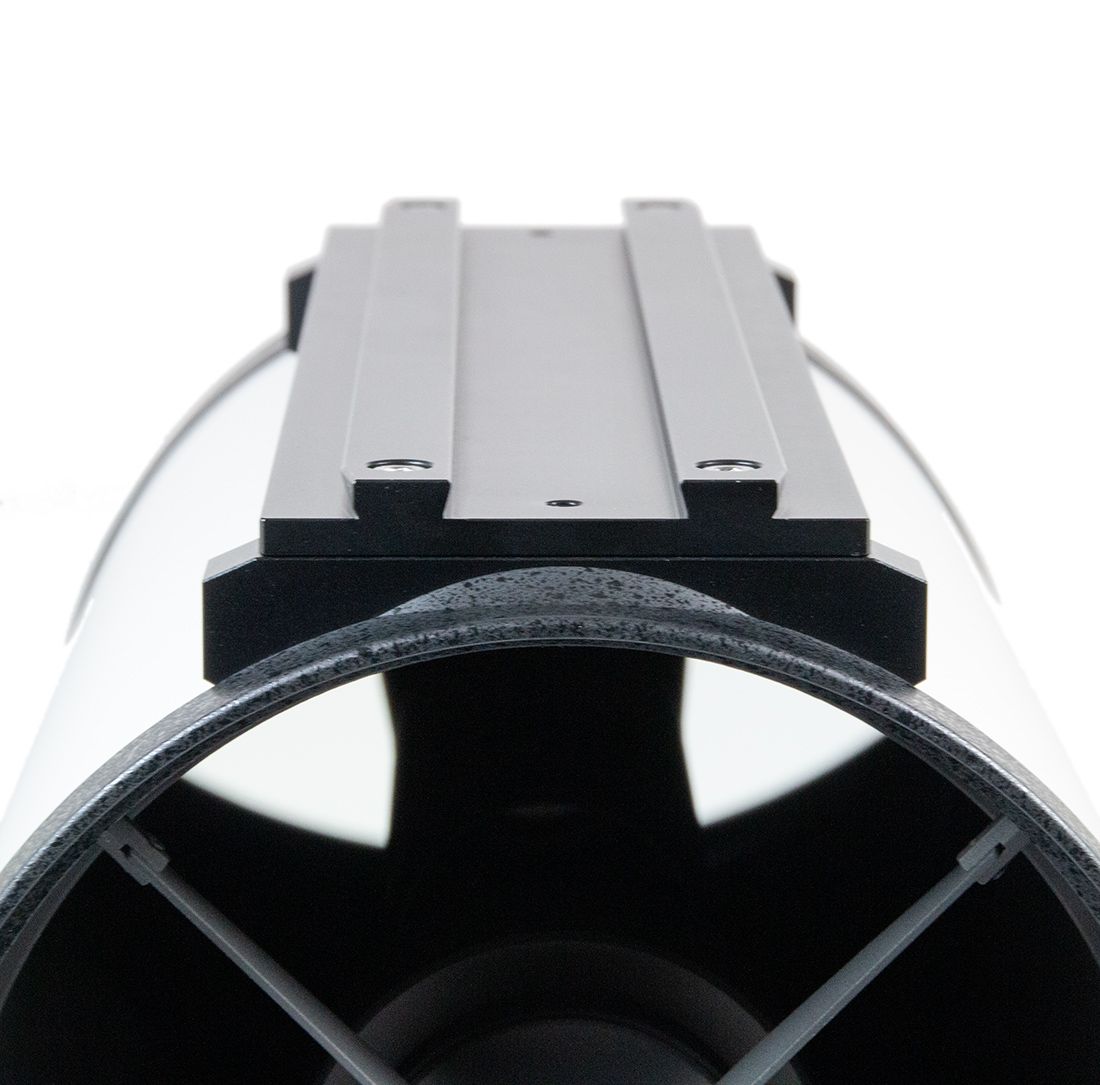

✅ Losmandy dovetail bar (3″)
✅ 2″/1.25″ reducer (adapter)

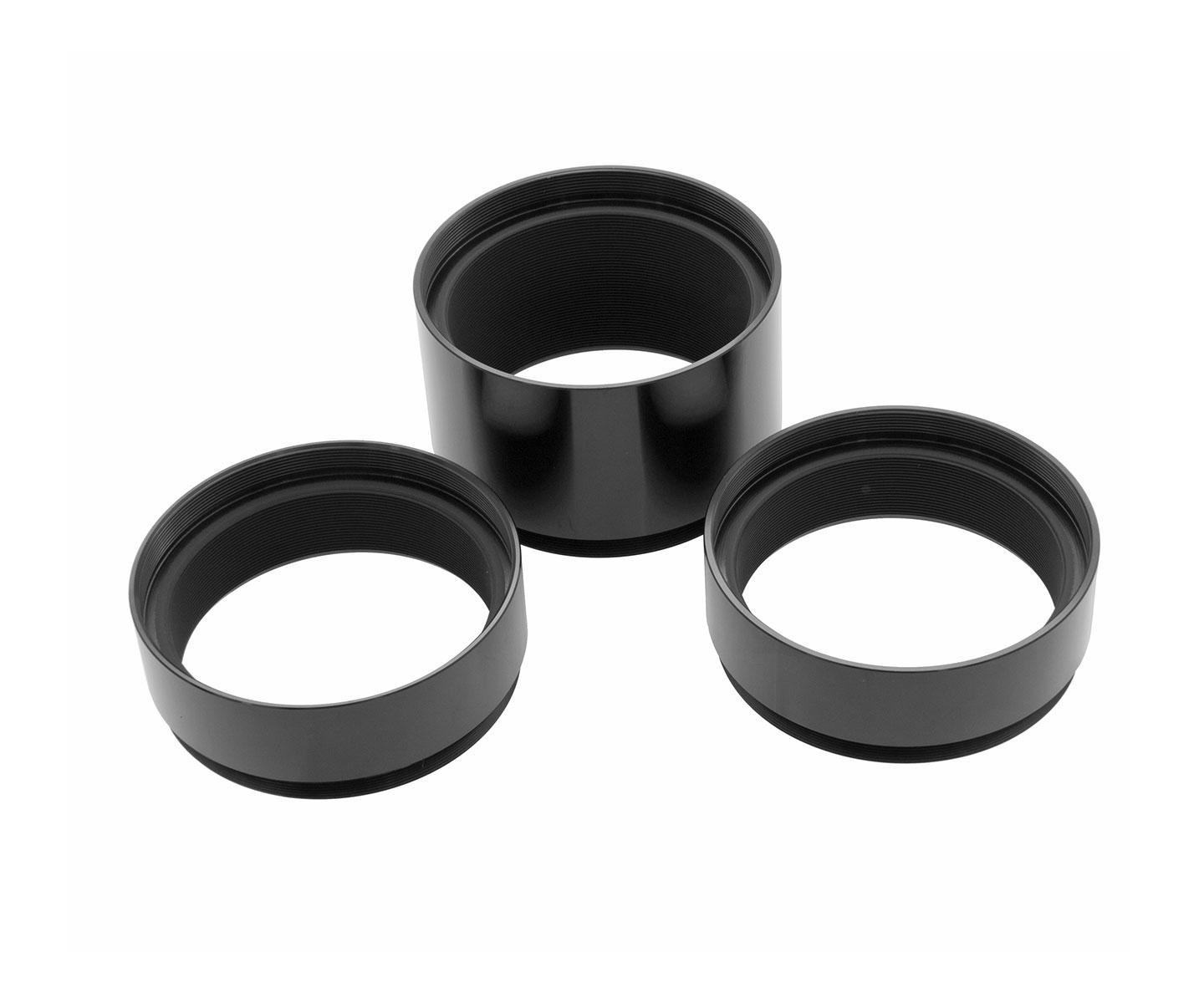

✅ M90x1 extension tube 50 mm
✅ M90x1 extension tube 25 mm (2 pcs)

Typical magnifications

The recommended magnification is highlighted in yellow.
D = telescope aperture in millimeters

Maximum useful (2D):
406x
(with a 4 mm eyepiece)

Maximum Useful Magnification (2D)
The highest magnification that a telescope can realistically use. Above this value, the image becomes dim, blurry, and shows no additional detail due to optical and atmospheric limits.

Resolving (1.4D):
271x
(with a 6 mm eyepiece)

TIP: Binorum Plössl 6mm 52° 1.25″ Planetary Eyepiece

39.75 €

Resolving Magnification (1.4D)
The magnification at which the telescope reaches its maximum resolving power. Fine details become visible, but increasing magnification further does not improve sharpness.

High (1D):
203x
(with a 8 mm eyepiece)

High Magnification (1D)
A strong magnification suitable for detailed observations of the Moon, planets, and close double stars under good atmospheric conditions.

Optimal (0.7D):
148x
(with a 11 mm eyepiece)

Optimal Magnification (0.7D)
The best overall magnification for most observations. It provides a good balance between image brightness, contrast, and detail, and is often the most comfortable to use.

Medium (D/2):
102x
(with a 16 mm eyepiece)

Medium Magnification (D/2)
A versatile magnification range suitable for many deep-sky objects, such as star clusters and galaxies, as well as general lunar observing.

Low (D/3):
68x
(with a 24 mm eyepiece)

Low Magnification (D/3)
A wide-field magnification used for scanning the sky, observing large nebulae, and locating objects before switching to higher power.

Minimum (D/6):
34x
(with a 48 mm eyepiece)

Minimum Magnification (D/6)
The lowest practical magnification of a telescope. It provides the widest possible field of view and is mainly used for star fields, Milky Way observations, and object finding.
