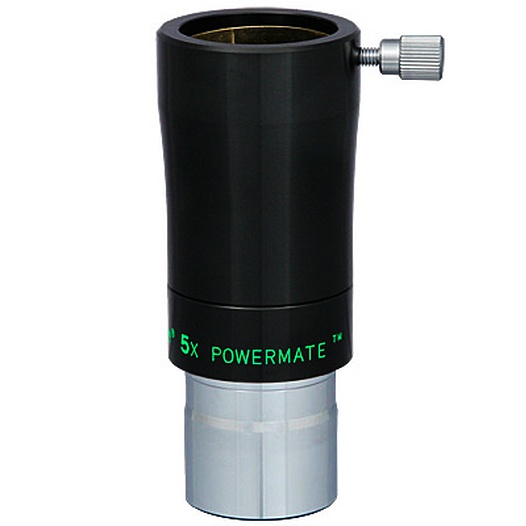

TeleVue 5x Powermate Barlow lens 1.25″
If you are looking for a way to significantly increase your telescope's effective focal length without any compromise in image quality, you have just come across one of the best solutions available on the market. The TeleVue Powermate 5x Barlow lens for 1.25″ focusers represents the absolute pinnacle of its category - a tool trusted by experienced visual observers and professional astrophotographers focused on planetary imaging alike. TeleVue is a brand that needs no lengthy introduction: decades of developing premium astronomical optics speak for themselves.
Beyond the classic Barlow - a 4-element optical system
A classic Barlow lens is a two-element diverging system that extends the effective focal length of a telescope. TeleVue, however, took the Powermate series considerably further. Instead of two elements, a four-element optical system is employed, specifically designed to eliminate the optical aberrations typical of conventional Barlow lenses. The result is virtually complete suppression of spherical aberration, chromatic aberration, and coma - even at high magnification factors.
One of the most important technical differences compared to ordinary Barlow lenses is the fact that the Powermate does not introduce divergence into the output beam that would complicate use in combination with the telescope's own optics or other accessories. The Powermate functions as a tele-negative lens system with minimal effect on the eye pupil - in other words, it preserves the correct exit pupil of the eyepiece even when magnification changes. This is particularly valuable when using an eyepiece with a precisely defined exit pupil for visual observing, or when imaging with a camera whose sensor is sensitive to accurate beam alignment.
No vignetting - uniform illumination across the full field
A particularly important characteristic is the complete absence of vignetting. When shooting planets with a camera or webcam placed directly behind the Powermate, you will obtain uniformly illuminated field of view from the center all the way to the edges. In practice this is critical with small-chip planetary cameras, where any vignetting leads to uneven brightness and complications during image processing.
5x magnification factor - ideal for planetary imaging
The 5x factor is very significant. For example, a telescope with a focal length of 1000 mm combined with the Powermate 5x becomes a system with an effective focal length of 5000 mm. This corresponds to a magnification ratio that is optimal for imaging planets such as Jupiter, Saturn, Mars, or Venus with commonly available planetary cameras (ZWO ASI, Player One, and others).
Using a camera with a pixel size of 2.9 micrometers and an effective focal length of 5000 mm, you achieve a sampling rate of approximately 0.12-0.15 arcseconds per pixel - a value matching the resolving capabilities of medium-sized amateur telescopes (150-250 mm aperture) under good seeing conditions.
For visual observing, the 5x multiplication works well in combination with medium-focal-length eyepieces. For example, a 10 mm eyepiece with the Powermate 5x delivers the effective magnification of a 2 mm eyepiece, but with the full image quality of a premium TeleVue eyepiece. This allows you to reach high magnifications without needing extremely short focal length eyepieces, which tend to be sensitive to precise eye placement and overall telescope quality.
Robust aluminium body and practical design details
The Powermate body is machined from aluminium, and the weight of 182 g reflects a robust yet compact construction. The finish is precise and the threads are smooth. Included is a ring clamp that allows secure mounting in the 1.25″ focuser without risk of slipping or rotating - a detail appreciated by anyone who has experienced an unwanted shift in focus during an imaging sequence. Multi-layer anti-reflection coatings on all optical surfaces minimize light loss and suppress internal reflections that would otherwise reduce image contrast.
Wide compatibility
The telescope-side barrel is a standard 1.25″, making the Powermate compatible with the vast majority of refractors, reflectors, and catadioptric telescopes equipped with a standard 1.25″ focuser. Eyepieces or cameras with a 1.25″ barrel can be inserted directly into the output end of the Powermate - everything is designed for maximum versatility and compatibility with other accessories.
Why choose Powermate over cheaper alternatives?
There are many cheaper Barlow lenses on the market offering 3x, 5x, or even higher magnification factors. The key difference lies in the optical design and manufacturing tolerances. Inexpensive Barlow lenses with a simple or two-element optical system at high magnification factors also amplify their own optical flaws - spherical aberration, chromatic aberration, and uneven sharpness across the field become visible and degrade the final image. Thanks to its four-element system with multi-layer coatings, the TeleVue Powermate virtually eliminates these flaws, delivering a sharp, high-contrast image free of spurious color fringing.
Applications - planetary imaging and visual observing
For astrophotography, the Powermate is the obvious choice whenever every detail matters:
- Jupiter's cloud belts and Great Red Spot
- The Cassini Division in Saturn's rings
- Surface details on Mars
- Solar granulation when imaging through a solar filter
For visual use, you will appreciate the Powermate when observing planets and the Moon, where it allows you to extract the maximum from your eyepiece without resorting to extremely short focal lengths.
About TeleVue
TeleVue is an American company with over forty years of tradition in developing premium astronomical optics. Founder Al Nagler is an astronomer, optical designer, and holder of numerous patents in the field of eyepieces and telescopes. Every TeleVue product is created with an emphasis on optical excellence, mechanical precision, and long service life.
The Powermate 5x for 1.25″ is an investment that will pay off in the form of sharp, high-contrast images and unforgettable visual experiences at the telescope.
Technical specifications
| Parameter |
Value |
| Magnification factor |
5x |
| Barrel diameter (telescope side) |
1.25″ |
| Eyepiece/camera connection |
1.25″ |
| Number of optical elements |
4 |
| Optical coatings |
Multi-layer anti-reflection |
| Body material |
Aluminium |
| Weight |
182 g |
| Mounting |
Ring clamp |
| Manufacturer |
TeleVue (USA) |
Summary - who is the Powermate 5x for?
If you image planets, the Moon, or the Sun and want to get the absolute maximum out of your telescope and camera, there are very few choices on the market that can match the Powermate. The combination of a four-element optical system, multi-layer coatings, robust aluminium construction, ring clamp, and the proven TeleVue brand makes this product the clear best choice for demanding astronomers - whether you observe visually or collect frames for further processing in AutoStakkert, RegiStax, or other planetary imaging software.
