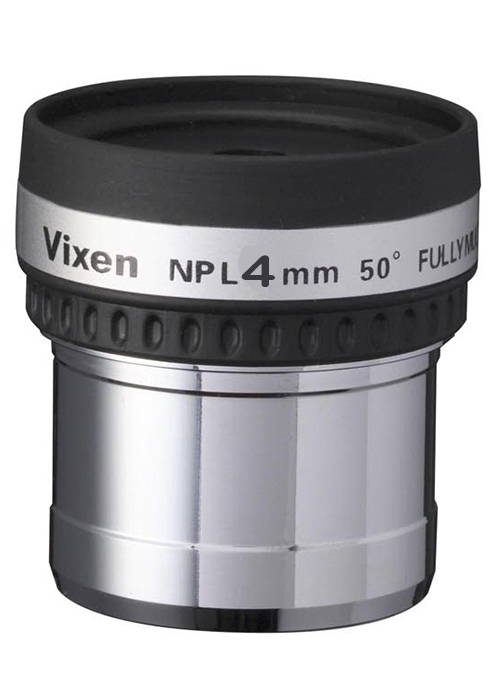

Vixen NPL Plössl 4mm eyepiece 50° 1.25″

Vixen NPL Plössl 4mm eyepiece 50° 1.25″

If you are looking for an eyepiece that offers a genuinely balanced ratio of price, build quality and optical performance, the Vixen NPL series deserves a close look. This 4mm member of the Plössl family suits both experienced amateur astronomers and those who are just starting out and refuse to compromise on optical quality. Compact dimensions, low weight and a well-thought-out optical design make it a versatile companion for a wide range of observing situations.

Optical design and coatings

The Vixen NPL 4mm Plössl eyepiece uses the classic four-element optical arrangement that astronomers have long favoured for its effective compromise between aberration correction, light transmission and comfortable eye relief. All four optical elements carry Fully Multi-Coated (FMC) anti-reflection coatings, which deliver noticeably higher light throughput than single-coated or uncoated alternatives. In practice this translates into a bright, sharply rendered image with excellent contrast - exactly what you need when observing planets or double stars at high magnification.

The 50° apparent field of view is consistent with the Plössl class standard and allows comfortable tracking of objects even at high powers. It is not a wide-angle design in the style of modern 82° eyepieces, but for planetary work and precise observation of objects at medium-to-long focal lengths it is a fully adequate and well-proven solution. Edge correction is good and the image remains sharp across the field.

Magnification and compatibility

The 4mm focal length places this eyepiece firmly in the high-magnification range. Paired with a telescope of 1000mm focal length you will reach 250×; with a typical 8″ f/6 instrument the figure rises to around 300×. These are values at which the eyepiece is truly in its element - detailed lunar observation, planetary discs, Saturn's rings and splitting tight double stars. The standard 1.25″ barrel fits the vast majority of modern telescopes, both refractors and reflectors.

A practical and often overlooked advantage is the standard 1.25″ filter thread machined directly into the base of the barrel. There is no need for adapters when adding a planetary filter, Moon filter or polarising filter to reduce brightness - simply screw it in and observe.

Ideal for binoviewers

The low weight and compact dimensions of the Vixen NPL series are key parameters for use with binocular viewers. Binoviewers are sensitive to eyepiece weight and balance, and lightweight compact Plössls are an ideal match for such a system. Observing with both eyes simultaneously provides a noticeably more comfortable and less fatiguing experience, especially during longer planetary or lunar sessions. If you already own a binoviewer or are planning to acquire one, the NPL series is a very sensible choice for equipping it.

Why choose Vixen NPL?

The NPL series from Japanese manufacturer Vixen is popular for a straightforward reason - it delivers solid Japanese optical quality at a price that stays within reasonable limits. FMC coatings on all optical surfaces, precise mechanical finishing of the barrel, and the proven Plössl optical scheme together form an eyepiece you can rely on. It does not offer an extremely wide field or exotic correction, but it is a tool that will do its job reliably and without unnecessary compromise. For astronomers who want to cover a range of focal lengths without investing in premium eyepieces, a complete NPL set represents one of the most sensible choices available.

The Vixen NPL Plössl 4mm is an eyepiece for those who want to see planets in detail - without overpaying, without compromising on image quality, and with the confidence of holding a product from a proven Japanese optical manufacturer with decades of experience in the astronomy industry.

Technical specifications

What can you observe with the Vixen NPL 4mm?

• Planetary details - cloud belts on Jupiter, the Cassini Division in Saturn's rings, polar caps on Mars
• Lunar surface - craters, mountain ranges, rilles and fine surface texture
• Tight double stars - splitting close pairs at the telescope's resolution limit
• Bright globular clusters - resolution of individual stars towards the edges
• Planetary nebulae - compact objects that benefit from high magnification

Example magnifications by telescope
