Astronomik H-beta 1.25″ filter

Astronomik H-beta 1.25″ filter

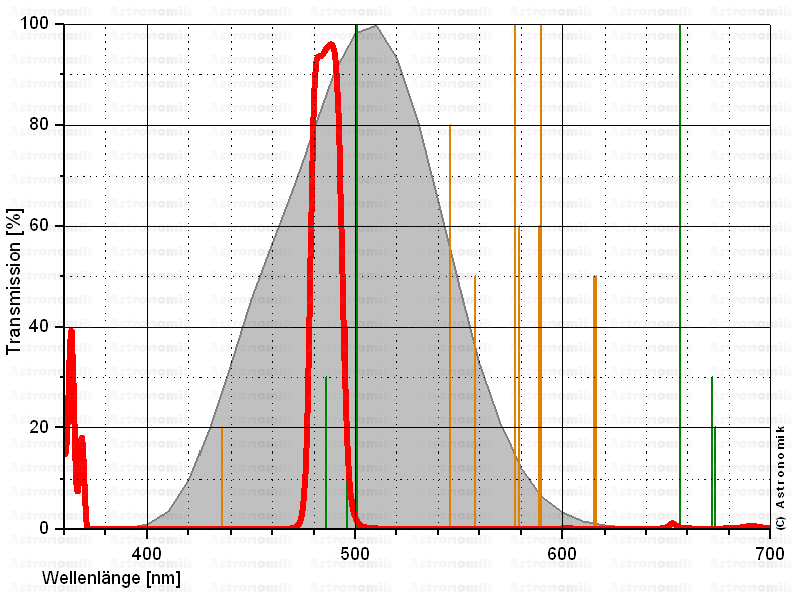

The Astronomik H-beta filter is a specialized narrowband filter designed for both visual observation and astrophotography. It is particularly valued by owners of telescopes with large apertures. Its key advantage is the ability to transmit nearly 100% of radiation in the H-beta band (486.1 nm) while reliably blocking all interfering wavelengths - whether from urban light pollution, sodium vapor lamps, or moonlight. The result is a dramatically increased contrast that makes even the most elusive objects visible to the eye or camera.

What can you observe with the H-beta filter?

The Astronomik H-beta filter opens access to objects that are practically unobservable without it. The most well-known example is the Horsehead Nebula (Barnard 33) in Orion - a dark nebula set against the emission nebula IC 434. With this filter and a telescope of 250-300 mm (10-12″) aperture, this iconic structure becomes genuinely observable even visually. Other typical targets include the California Nebula (NGC 1499) and the Heart Nebula (IC 1805) - objects whose emission is dominated by the H-beta band. Without this filter, the human eye would be practically unable to detect these low-contrast objects against a dark sky.

Recommended optical parameters

The optimal focal ratio for using this filter is in the range of f/4.5 to f/6, with a usable range extending from f/3.5 to f/15. At very fast focal ratios (f/3 and faster), slight transmission losses and color shifts may appear at the edges of the field of view - this is a physically inherent property of narrowband filters and is not specific to Astronomik. The filter is designed for telescopes with an aperture of 200 mm (8″) or more, as smaller instruments simply cannot gather enough light for meaningful observation of emission objects in such a narrow passband.

Astrophotography

For astrophotography, the filter delivers excellent results with both unmodified and modified DSLR cameras - in both cases it receives a "very good" rating for objects suitable for the H-beta band. When used with a CCD camera, it is recommended to add an infrared blocking filter for optimal results. This filter is not intended for planetary photography or webcam use - its strength lies exclusively in the area of deep sky and emission nebulae.

Build quality and optical properties

The optical quality of Astronomik filters is long recognized in the field. The filter glass is optically polished, so its use does not reduce the resolving power or contrast of your telescope - this is a fundamental difference from cheaper alternatives. The filter is fully resistant to high air humidity, does not age, and its surface is protected against scratching.

Thanks to parfocal design, switching between different Astronomik filters requires no refocusing, which is especially appreciated during comparative observation or imaging sessions. The filter is supplied in a high-quality rigid protective case.

Key specifications

Who is this filter for?

If you are looking for a filter that will genuinely take your emission nebula observation to the next level and allow you to see objects you have only read about until now, the Astronomik H-beta 1.25″ is the right choice for experienced observers equipped with a sufficiently large telescope. It is not a universal filter for all occasions - it is a precision tool that rewards those who use it under appropriate conditions with results that no other filter can match in its domain.

Recommended targets

• Horsehead Nebula - Barnard 33 / IC 434 (Orion)
• California Nebula - NGC 1499 (Perseus)
• Heart Nebula - IC 1805 (Cassiopeia)
• Other emission nebulae with dominant H-beta emission
