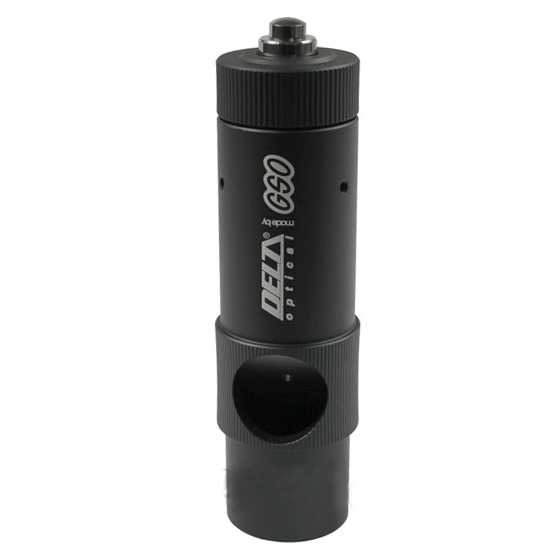

DO-GSO 1.25″ laser collimator
Precision alignment tool for Newton telescopes
The DO-GSO laser collimator represents a high-quality and practical instrument designed for fast and precise Newton telescope alignment. This universal device is an indispensable tool for every astronomer who wants to achieve optimal performance from their telescope and obtain the sharpest possible images when observing celestial objects.
Collimation, or optical system alignment, is a key factor affecting observation quality. An improperly aligned telescope produces blurry images, reduced sharpness, and overall poor observation results. With the DO-GSO laser collimator, you can perform this critical operation quickly and with high precision, saving you time and ensuring optimal performance of your instrument.
Advanced target screen design
The collimator is equipped with a target screen that allows tracking of the return beam path, ensuring precise alignment execution. The laser beam reflects back onto the angled surface with target markings, significantly improving the visibility of the alignment effect and simplifying the entire process. This thoughtful design allows even less experienced users to achieve professional results during collimation.
The instrument features a standard 1.25″ barrel diameter, ensuring compatibility with most Newton telescopes available on the market. Compact dimensions and low weight make this collimator an ideal companion for field observations, where quick telescope alignment at the observation site is necessary.
Simple and efficient operation
Using the laser collimator greatly simplifies the process of Newton telescope collimation. Simply insert the collimator into the telescope's focuser and turn on the laser. The beam reflects from the primary mirror back to the secondary mirror and then back into the collimator. If the telescope is properly aligned, the laser dot will return precisely to the target on the collimator's screen.
When adjustment is needed, simply adjust the screws on the secondary mirror so that the laser dot reaches the correct position on the target. This process is much faster and more intuitive than traditional collimation methods using stars or other optical aids. The entire alignment process can be completed within minutes.
Key advantages and benefits
The main advantage of the laser collimator is its speed and simplicity of use. Unlike traditional collimation methods that require star observation or complex optical systems, the laser collimator provides immediate feedback about the telescope's alignment status. This is particularly valuable during field observations, where quick adjustment after instrument transport may be necessary.
Another significant advantage is the ability to perform collimation in daylight or illuminated environments, which is not possible with methods based on star observation. The collimator also eliminates subjective image quality assessment, which can be problematic for beginning astronomers, and provides objective and precise results.
Technical specifications
| Barrel diameter |
1.25″ (31.7mm) |
| Laser type |
Red laser diode |
| Power source |
Batteries (included) |
| Compatibility |
Newton reflector telescopes |
| Weight |
Lightweight portable design |
| Construction |
Precision machined aluminum |
Maintenance and care
The DO-GSO laser collimator requires minimal maintenance, but proper care will extend its lifespan and ensure reliable function. It is recommended to protect the instrument from mechanical damage during transport and storage. Optical surfaces should be kept clean using special cleaning products designed for optics.
When not in use for extended periods, it is advisable to remove batteries from the device to prevent leakage and damage to electronics. The collimator should be stored in a dry environment at room temperature, ideally in its original packaging or protective case.
What's included
- DO-GSO 1.25″ laser collimator
- Batteries
- Protective case
- User manual
Perfect for all skill levels
The DO-GSO 1.25″ laser collimator represents an excellent investment for every Newton telescope owner who values observation quality and efficient use of time. Thanks to its reliability, ease of use, and precision, it has become a popular tool among astronomers of all experience levels.
Whether you're a beginner learning the fundamentals of telescope maintenance or an experienced observer requiring quick field adjustments, this laser collimator delivers consistent, professional results. The intuitive operation and immediate visual feedback make collimation accessible to everyone, eliminating the guesswork traditionally associated with telescope alignment.
