DeltaOptical 2 MPx DLT USB 2.0 Microscope Camera
Professional Digital Microscopy Solution

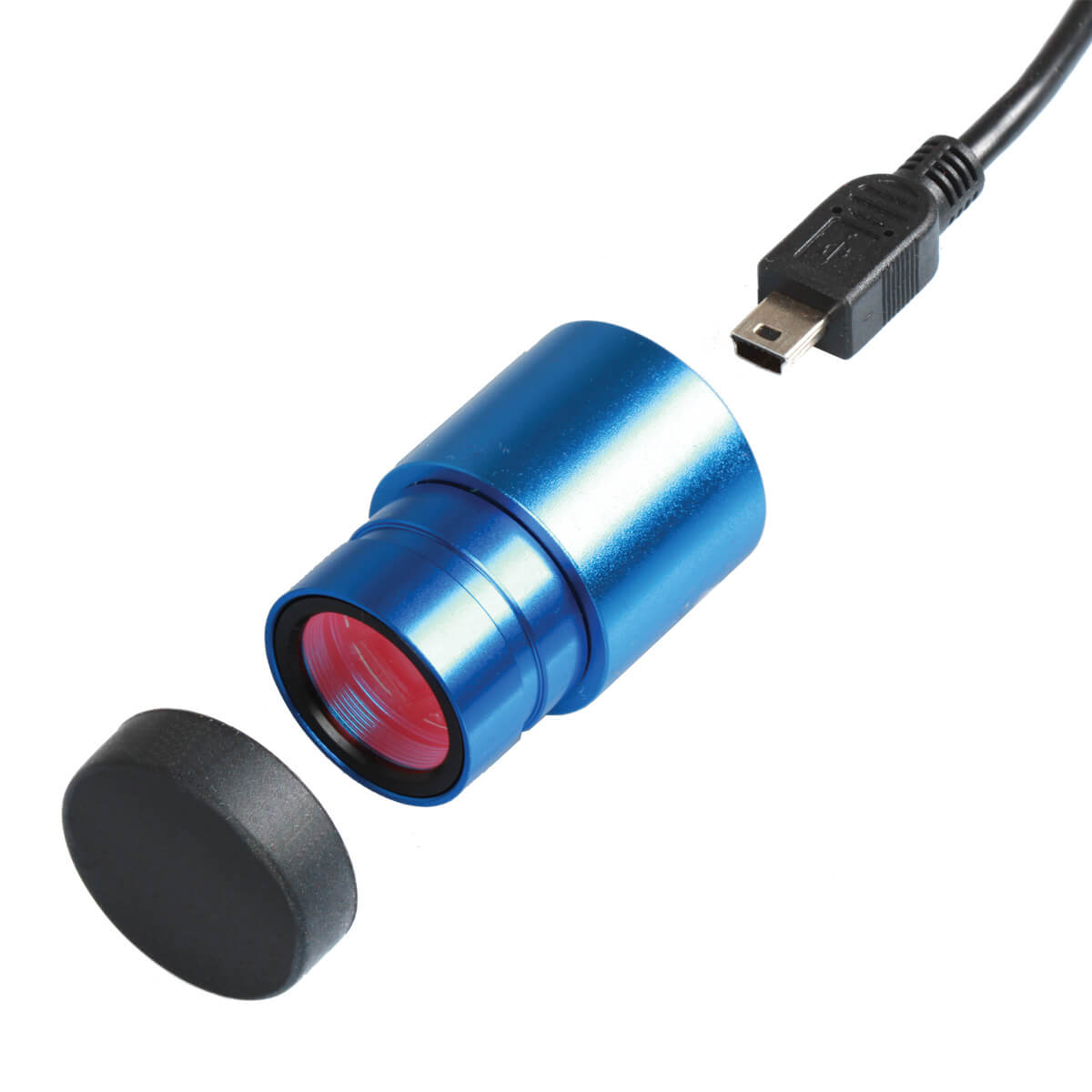

The **DeltaOptical digital microscope camera** represents a fundamental yet highly functional solution for all who require quality digitization of microscopic observations. This CMOS color camera offers 2 MPx resolution (1920×1080 pixels), corresponding to FullHD standard and ensuring sharp, detailed images of your specimens. The 2.9 μm pixel size combined with a spectral range of 380-650 nm guarantees faithful color reproduction and excellent sensitivity under various lighting conditions.
Easy Connectivity and Universal Compatibility

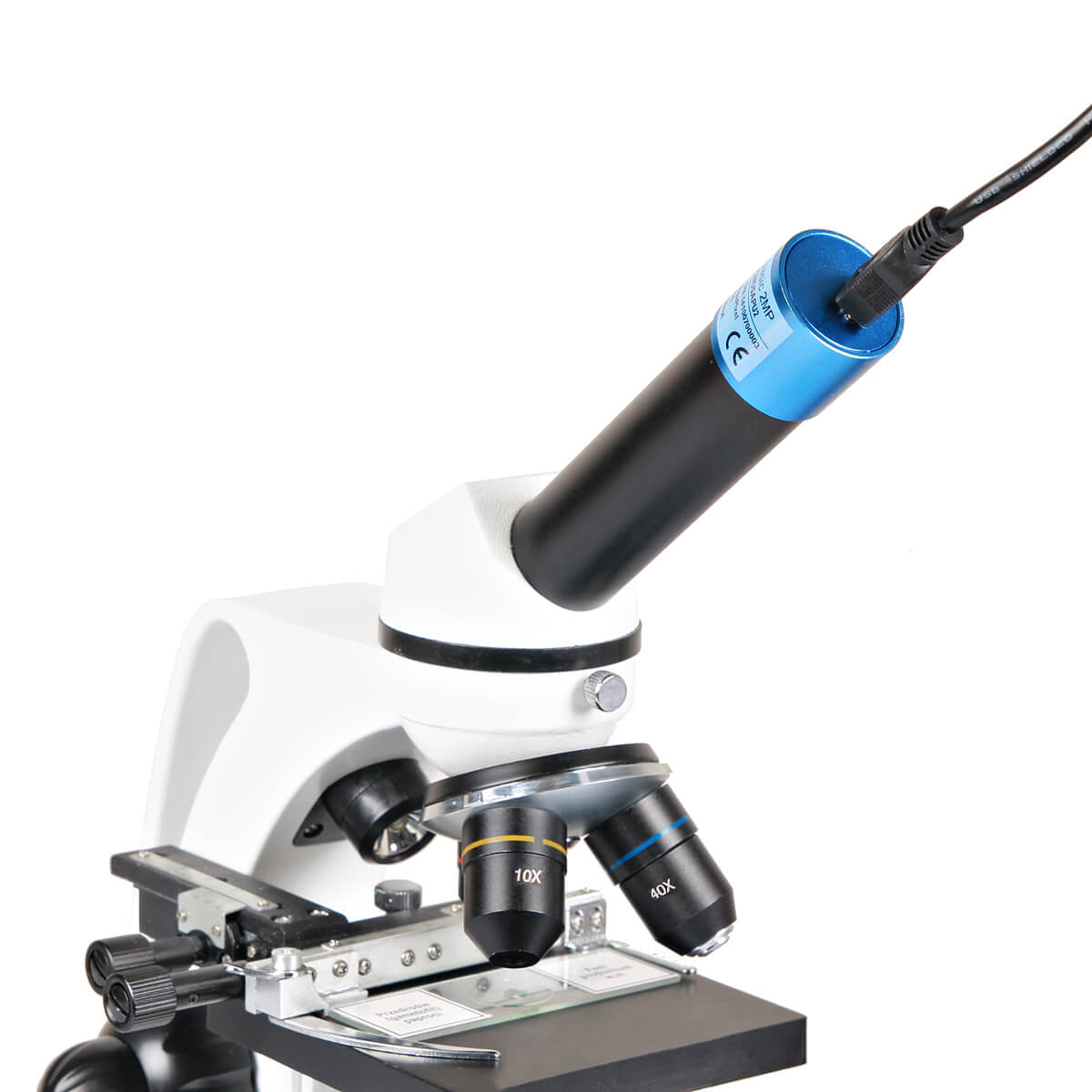

The camera features a practical USB 2.0 mini connector that allows easy connection to computers without requiring additional power adapters. The standard 23.2 mm mounting diameter is supplemented with reduction rings for 30.0 and 30.5 mm diameters, ensuring compatibility with a wide range of microscopes from various manufacturers. Output formats include the most commonly used video formats AVI, WMV, MP4, and image formats JPG, PNG, TIF.
Advanced DLTCamViewer Software

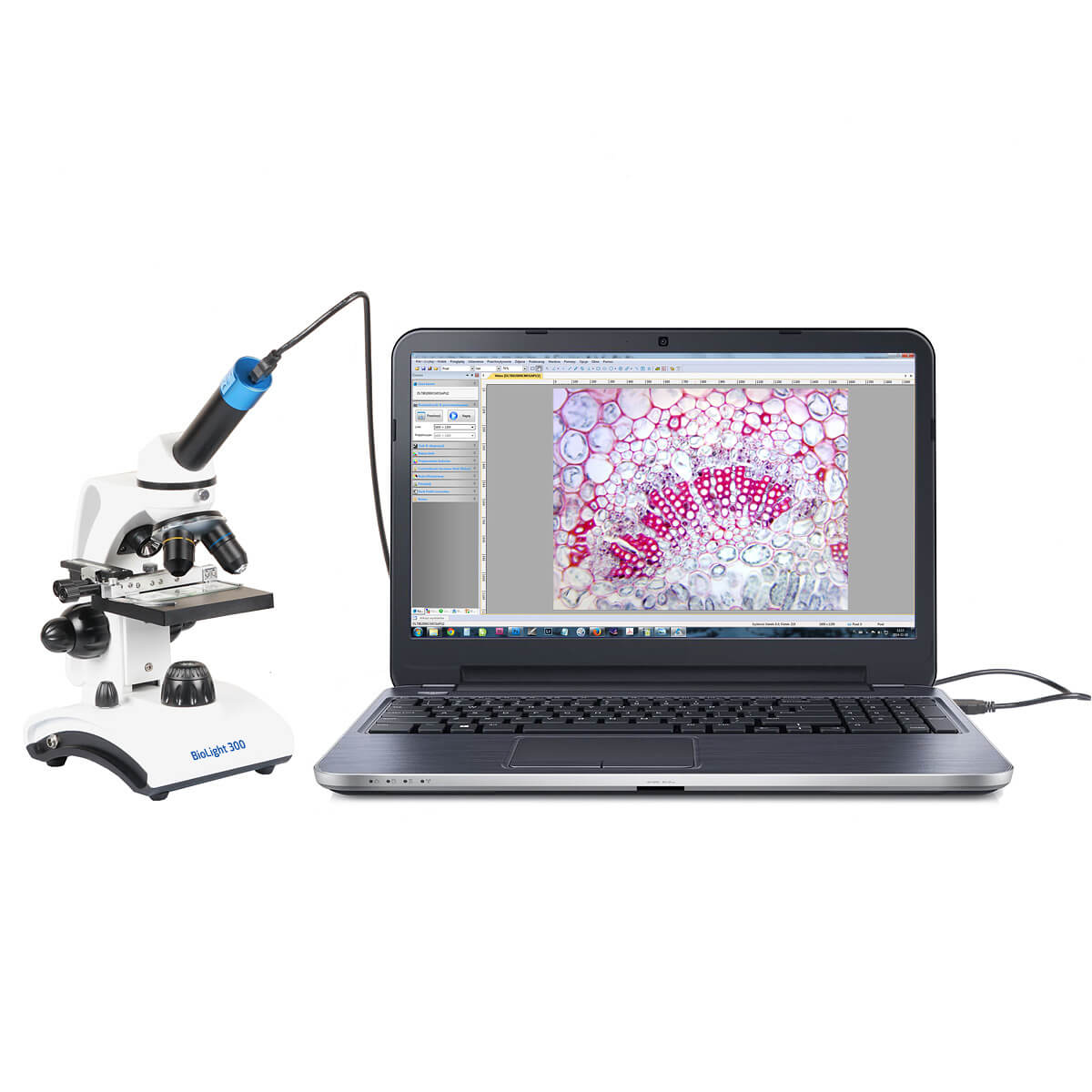

The camera includes professional DeltaOptical DLTCamViewer software that works on all common Windows versions (W7-W10) and offers extensive capabilities for working with microscopic images. The software is available in English and provides an intuitive user interface with live image preview in various resolutions. Image freeze, scaling, window fitting, and full-screen preview functions facilitate detailed specimen analysis.
Image Quality Control
The program enables both automatic and manual exposure time settings and white balance adjustment according to color temperature, ensuring optimal image quality under various lighting conditions. Manual color control includes hue, saturation, brightness, contrast, and gamma correction settings. The software supports both color and black-and-white modes, including negative display for special applications.
Precision Measurement and Analysis Tools
The software contains advanced tools for **geometric measurements and image analysis**. Length calibration against standards enables precise measurements on microscopic images. Available functions include measuring angles, distances, parallels, perpendicular lines, rectangles, ellipses, circles, arcs, and polygons. Automatic calculation of object area and perimeter significantly accelerates analytical work.
Data Export and Documentation
Results of all measurements can be exported in text form to tables or saved directly on images. Text annotations, grids, and rulers together with reference scales provide overview of currently used magnification. The software supports layer creation and management, enabling more complex analytical operations and data organization.
Advanced Imaging Features
Among the most sophisticated features is the stacking of microscopic images recorded along the Z-axis into extended depth of focus images (EDF function), which is invaluable when working with three-dimensional objects. The "stitching" function allows combining multiple microscopic images into extensive 2D panoramas, useful for documenting larger specimens.
Image Processing and Analysis
The software offers image processing using various filters and advanced segmentation functions for highlighting specific structures. Automatic object counting in images significantly accelerates quantitative analyses, especially in biological and materials sciences. The program supports automatic saving mode for individual images in a wide range of formats including BMP, JPG, PNG, TIF, PCX, TGA, JP2, and others.
Technical Specifications
- Resolution: 2 MPx (1920×1080 pixels)
- Sensor: CMOS color
- Pixel size: 2.9 μm
- Spectral range: 380-650 nm
- Connection: USB 2.0 mini connector
- Mounting diameter: 23.2 mm (with reduction rings for 30.0 and 30.5 mm)
- Video formats: AVI, WMV, MP4
- Image formats: JPG, PNG, TIF, BMP, PCX, TGA, JP2
- Compatible with: Windows 7-10
