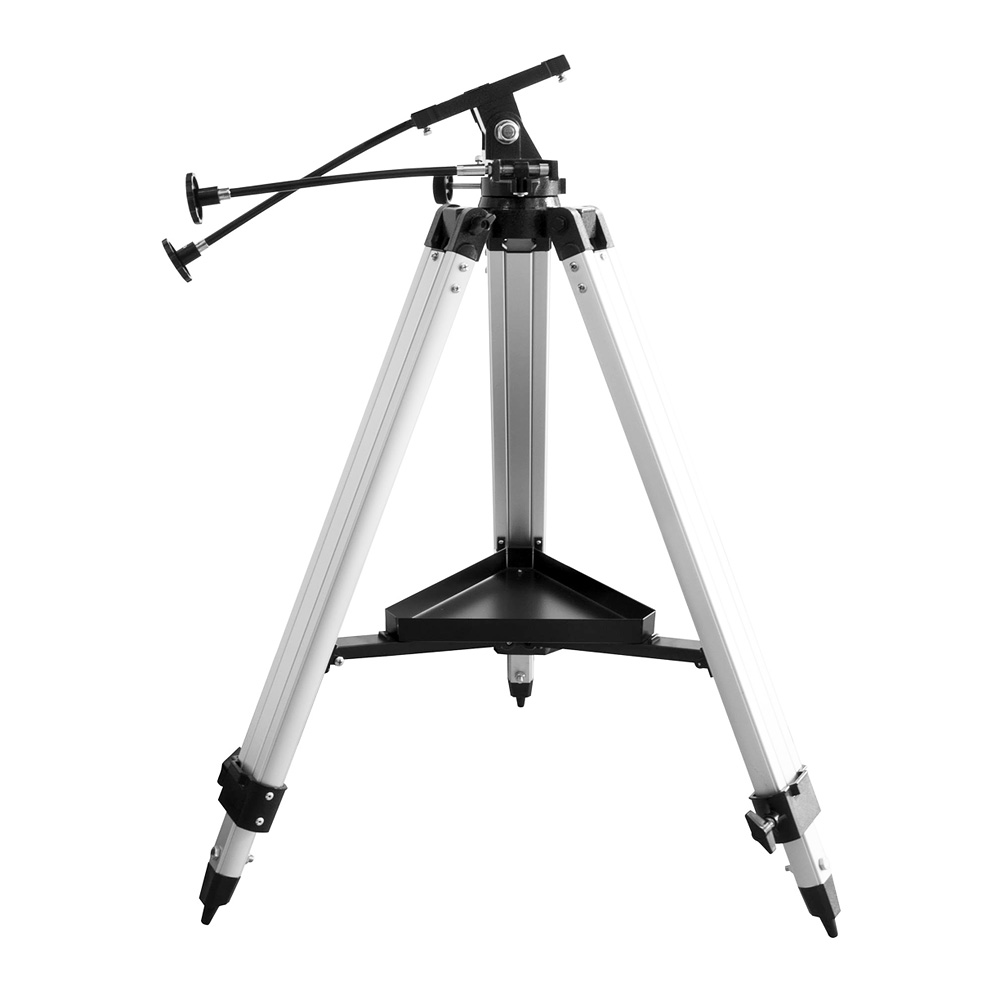

Sky-Watcher AZ3 alt-azimuth mount
Are you looking for a mount that can handle both relaxed nature observation and your first steps in the world of astronomy? The Sky-Watcher AZ3 alt-azimuth mount is exactly what you need. Thanks to its sturdy construction, intuitive operation, and wide compatibility with various telescope types, it will be appreciated by beginners and more experienced observers alike - anyone who values practicality in the field.
Wide compatibility and solid load capacity
The AZ3 mount is designed to cover the broadest possible range of uses. It is recommended for refractors with an objective diameter of up to 120 mm and for reflectors (mirror telescopes) up to 150 mm in diameter. This makes it a solidly dimensioned mount capable of supporting medium-sized instruments without unnecessary vibration or instability.
The mount head is equipped with two pairs of fixing points:
- Two rings for telescope tube rings with a spacing of 145 mm
- Two bolt holes with a spacing of 75 mm
This ensures compatibility with a wide range of accessories and tube rings from various manufacturers.
Adjustable tripod height for comfortable use anywhere
The tripod height is fully adjustable in the range from 84 to 134 cm, making it comfortable both when seated and when standing. When folded, the mount measures 90 cm and weighs just 3.2 kg - making transport to the field truly effortless.
| Parameter |
Value |
| Recommended for refractors (max. aperture) |
120 mm |
| Recommended for reflectors (max. aperture) |
150 mm |
| Tube ring spacing |
145 mm |
| Bolt hole spacing |
75 mm |
| Tripod height range |
84 - 134 cm |
| Folded length |
90 cm |
| Weight |
3.2 kg |
Precise slow-motion controls in both axes
One of the greatest advantages of the AZ3 is its fine slow-motion control system in both azimuth and altitude (elevation). While simpler alt-azimuth mounts typically offer only coarse, direct movement, the AZ3 provides azimuth locking and smooth micrometric movements in both axes simultaneously.
For visual astronomers, this means that when tracking slowly moving objects - whether the Moon, planets, or distant terrestrial targets - the telescope position can be corrected precisely and without any jarring of the image. This significantly improves observing comfort at higher magnifications.
Versatile use - astronomy and nature observation
The Sky-Watcher AZ3 is a truly universal mount. It is equally at home in:
- Astronomical observation - the Moon, planets, double stars, open star clusters
- Terrestrial use with monocular or binocular telescopes - birdwatching, landscape viewing, sporting events
The combination of light weight, adjustable height, and precise control makes it an ideal companion for anyone who wants a reliable and portable support for their telescope.
Excellent value for money
Overall, the AZ3 represents an outstanding price-to-performance ratio in the segment of manual alt-azimuth mounts. If you are looking for a solid foundation for your first or second telescope and do not want to invest in more complex equatorial systems, this mount offers everything you need - stability, flexibility, and ease of use wherever you go outdoors.
