Omegon Newton adjusting laser collimator 1.25″ (inspection window)

Article No.: 4577
Manufactured by: Omegon
Shipping weight: 0.2 kg

Our price: 69.85 €

Only 5 left - stock running low!

We have the goods in stock at our store and we can send them immediately.

We do not have the goods physically with us, but it is available from a remote supplier. In this case, we order them immediately and therefore it may take several weeks before we are able to send them to you.

Recommended accessories (all in stock):
	Astronomy Eye Patch for Telescope Observing	Astronomy Eye Patch for Telescope Observing Yes, you will look like a pirate. But we are fairly confident that after your first night using this eye patch, you will not leave home without it. It is one of the simplest and yet most effective accessories an amateur astronomer can own - a small addition to your kit that makes every observing session noticeably more comfortable while protecting both your eyes and your facial muscles from unnecessary strain. Why Does Squinting Cause Fatigue? When looking through a telescope eyepiece, most observers instinctively close or squint the eye that is not being...	12.15 €
Astronomy Eye Patch for Telescope Observing Yes, you will look like a pirate. But we are fairly confident that after your first night using this eye patch, you will not leave home without it. It is one of the simplest and yet most effective accessories an amateur astronomer can own - a small addition to your kit that makes every observing session noticeably more comfortable while protecting both your eyes and your facial muscles from unnecessary strain. Why Does Squinting Cause Fatigue? When looking through a telescope eyepiece, most observers instinctively close or squint the eye that is not being...
	Sky-Watcher Red LED Flashlight with Variable Dimming	Sky-Watcher Red LED Flashlight with Variable Dimming The Sky-Watcher red LED flashlight features 2 LED diodes with continuously variable brightness control, essential for preserving your night-adapted vision during astronomical observation. Red light doesn't trigger the same pupil constriction as white light, allowing your eyes to maintain their dark adaptation - critical for observing faint deep-sky objects. The smooth dimming control lets you adjust brightness precisely for different tasks: brighter for reading star charts or adjusting equipment, dimmer for simply moving around your observing site. Powered by a 9V battery (included), this compact flashlight is an indispensable accessory for any astronomer's...	18.95 €
Sky-Watcher Red LED Flashlight with Variable Dimming The Sky-Watcher red LED flashlight features 2 LED diodes with continuously variable brightness control, essential for preserving your night-adapted vision during astronomical observation. Red light doesn't trigger the same pupil constriction as white light, allowing your eyes to maintain their dark adaptation - critical for observing faint deep-sky objects. The smooth dimming control lets you adjust brightness precisely for different tasks: brighter for reading star charts or adjusting equipment, dimmer for simply moving around your observing site. Powered by a 9V battery (included), this compact flashlight is an indispensable accessory for any astronomer's...

This product is available in the following variants:
Omegon Deluxe 1.25″ collimation eyepiece	38.95 €
Omegon 1.25″ long collimation eyepiece	61.60 €
Omegon Newton adjusting laser collimator 1.25″ (inspection window)	69.85 €

Omegon Newton adjusting laser collimator 1.25″ (inspection window)

The Omegon Newton adjusting laser collimator is an essential tool for every Newton reflector telescope owner. This precision instrument enables quick and accurate alignment of your telescope's optical system, which is crucial for achieving optimal performance and sharp observations. Thanks to its compact design and simple operation, it has become a popular choice among astronomers worldwide.

Key features and universal compatibility

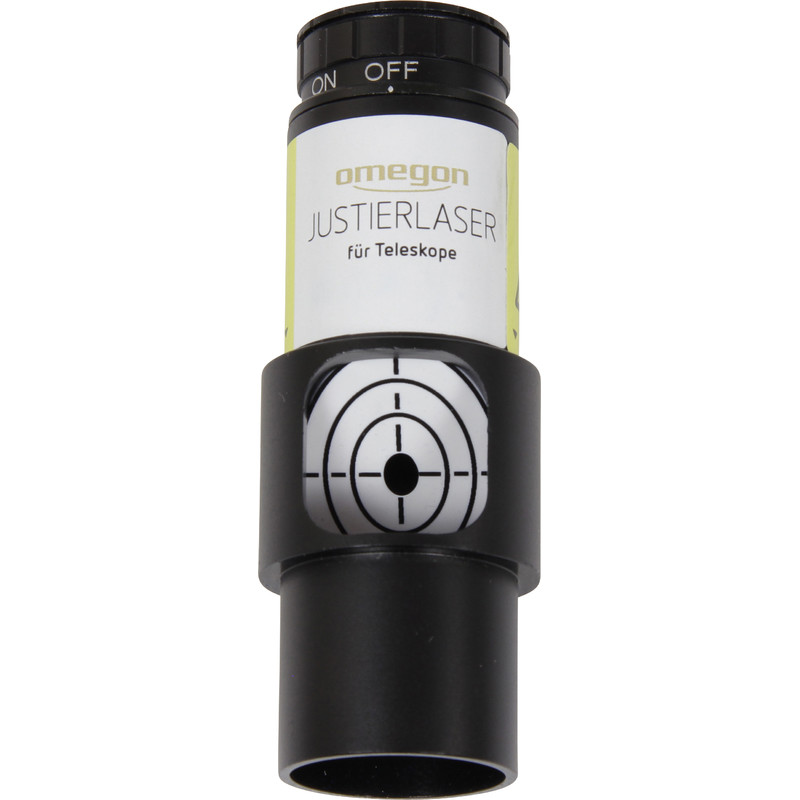

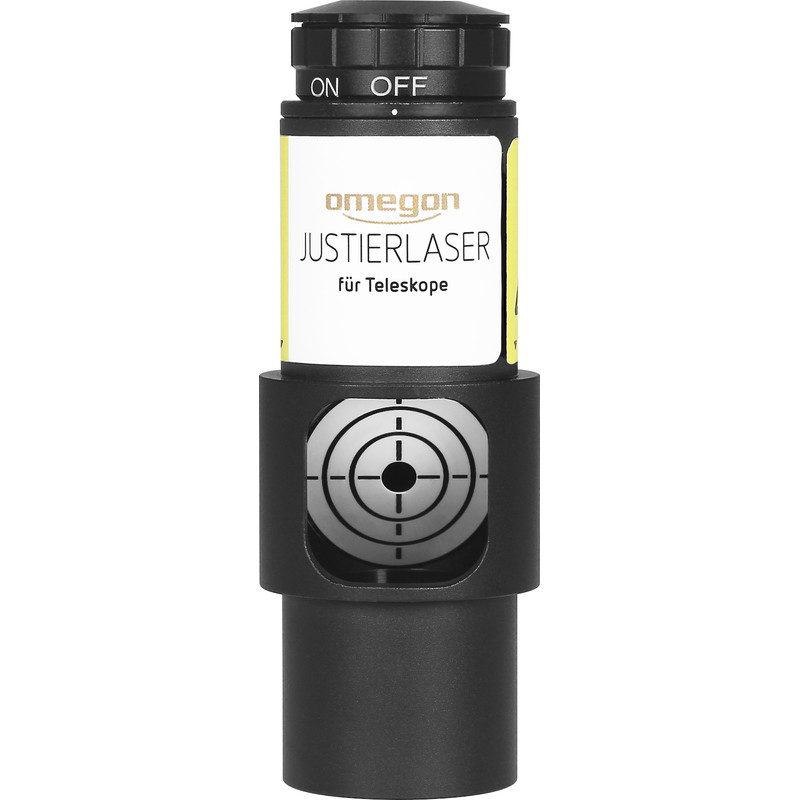

The main advantage of this collimator is its universal construction, which is compatible with all types of Newtonian telescopes equipped with 1.25″ eyepiece adapters. The laser beam with a wavelength of 650nm creates a clearly visible red trace that allows you to easily identify any inaccuracies in optical alignment. Thanks to the built-in inspection window, you can monitor the collimation process in real-time without the need to move the instrument.

Understanding telescope collimation

Collimation is the process of adjusting the optical elements of a telescope into ideal mutual positions. In Newtonian reflectors, this process is particularly important because any inaccuracy in the primary or secondary mirror settings can significantly affect image quality. The Omegon Newton adjusting laser collimator simplifies this process to several straightforward steps. After inserting it into the eyepiece, you activate the laser, which creates a beam passing through the entire optical system of the telescope.

How laser collimation works

The laser beam hits the primary mirror, reflects back through the secondary mirror, and finally strikes the angled surface of the collimator with its target. If all mirrors are properly aligned, the laser trace appears exactly in the center of the target. Any deviation from the center indicates the need to adjust the appropriate screws on the mirror holders. This visual feedback system makes the collimation process intuitive even for beginning astronomers.

Construction and durability

The collimator construction is made from high-quality aluminum alloy, ensuring long-term stability and resistance to regular use. Compact dimensions allow easy storage in telescope accessories, while the ergonomic design ensures comfortable operation even during extended use. The laser module is designed for thousands of hours of operation with minimal maintenance requirements.

Specification	Value
Fitting size	1.25″ (31.7mm)

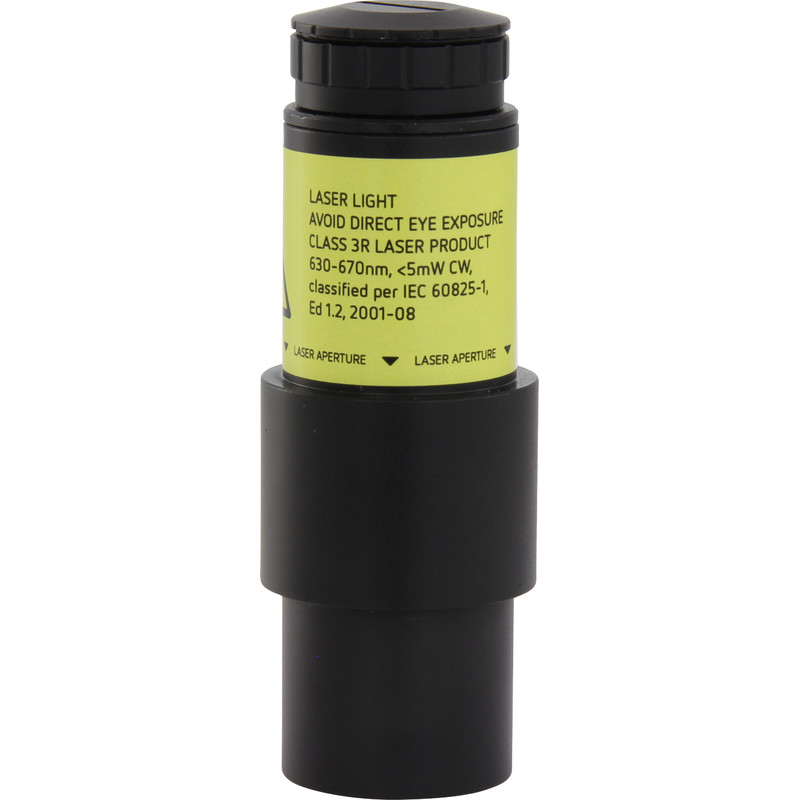

Laser wavelength	650nm (red)
Construction material	Aluminum alloy
Special feature	Inspection window
Power source	Batteries (included)

Advantages over traditional collimation methods

Traditional collimation methods, such as using a Cheshire eyepiece or bulb collimator, often require complicated procedures and good lighting. The laser collimator, on the other hand, allows collimation even in twilight or complete darkness, which is particularly advantageous during field observations. Additionally, it provides immediate visual feedback that significantly reduces the time needed for telescope alignment.

Precision and repeatability

Another significant advantage is collimation accuracy. While manual methods often depend on the observer's subjective assessment, the laser collimator provides objective and repeatable results. This is particularly important for astronomers who regularly transport their telescope or use mounts that may affect optical alignment.

Perfect tool for all skill levels

The Omegon Newton adjusting laser collimator with inspection window represents an optimal combination of precision, ease of use, and affordability. Thanks to its universal compatibility with the 1.25″ standard, it suits a wide range of telescopes from beginner models to advanced instruments. Investment in a quality collimator quickly pays off in the form of significantly better observation quality and shorter time needed to prepare the telescope before each observing session.
