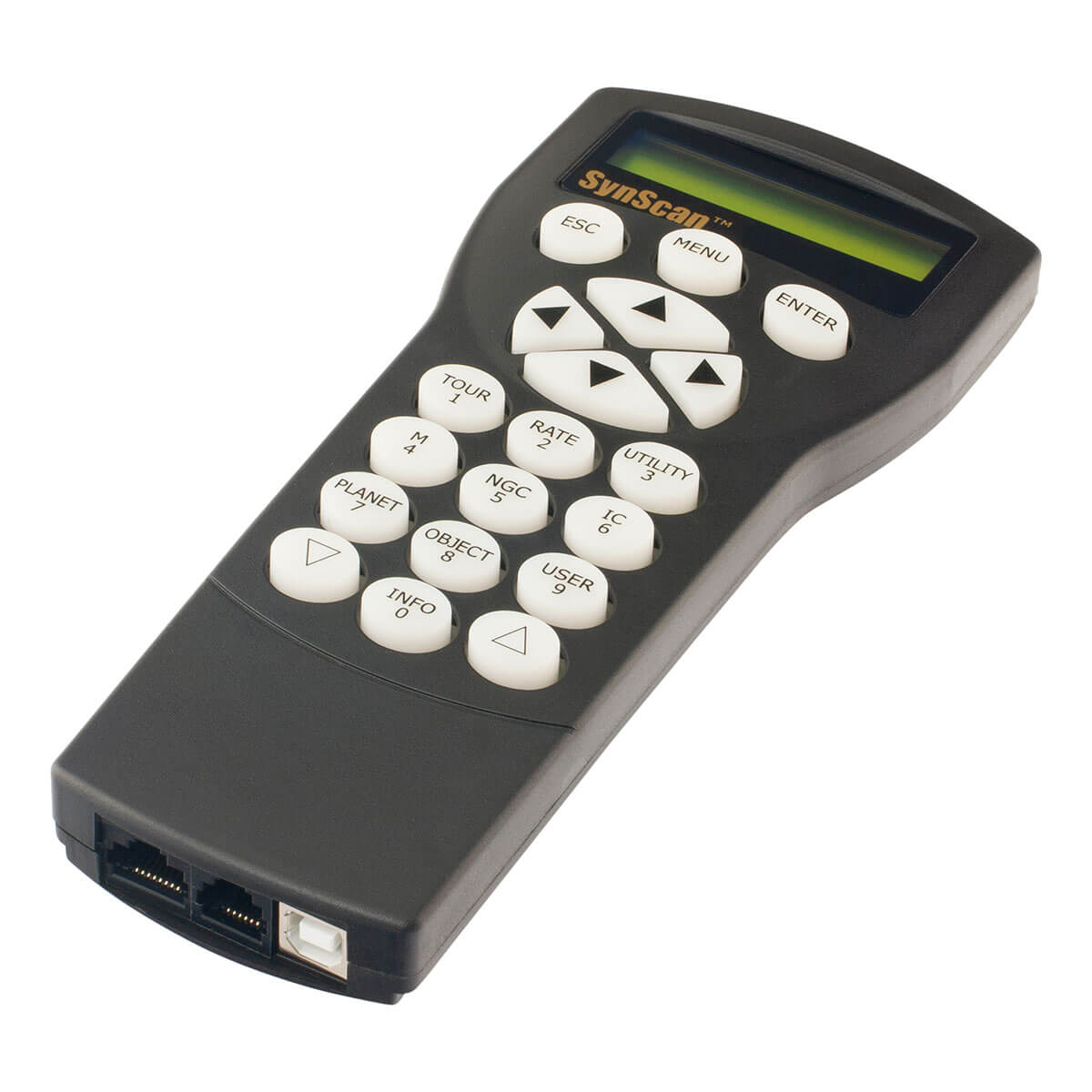

Sky-Watcher SynScan V5 - standalone GoTo hand controller for EQ-6 and HEQ-5 mounts
Looking for a reliable and modern hand controller that will turn your equatorial or alt-azimuth mount into a fully featured GoTo system? The Sky-Watcher SynScan V5 is the latest generation of this popular controller, appreciated by beginners and experienced astrophotographers alike. It offers an extensive object database, intuitive operation and a range of practical features that make every observing session a real pleasure.
Wide mount compatibility
SynScan V5 is a universal controller designed for the entire Sky-Watcher mount family. It supports both equatorial and alt-azimuth types, specifically:
- Dobson 8″-16″
- EQ3-2, EQ-5, EQ-35
- HEQ-5, EQ-6, EQ-6R, EQ-8
- AZ-EQ5, AZ-EQ6
- Virtuoso, Discovery, GTi, AZ All View
If you upgrade to a more powerful mount in the future, you will not need to replace the controller - SynScan V5 will serve you just as well.
Key features of the fifth generation
Built-in USB port and multilingual interface
A key innovation of the fifth generation is the built-in USB port, which allows direct connection to a computer without an external adapter. The controller software runs on version 6.XX.XX. Firmware can be updated at any time to the latest version - Sky-Watcher continuously releases improvements, fixes and new features, so your controller will never become outdated.
Object synchronization for improved pointing accuracy
One of the most practical features is object synchronization. If a located object appears at the edge of the field of view, simply center it manually in the eyepiece and press sync - the controller remembers this correction and the accuracy of subsequent pointing improves significantly. For astrophotography and visual observation of faint objects, this is an invaluable tool.
Database of over 42,000 objects
The SynScan V5 database contains more than 42,000 objects, including the Messier, NGC, IC, SAO and Caldwell catalogues, double stars, variable stars, named stars and all planets of the solar system. Pointing accuracy reaches up to 5 arcminutes. Tracking rates cover sidereal, solar and lunar motion. The PEC system supports both SPEC and PPEC periodic error correction - an important detail for those who photograph with longer exposures.
Polaris position indicator for precise polar alignment
A very practical new feature is the display of the exact position of Polaris every time the controller is switched on. The position is shown in a clock face format, which makes accurate polar alignment of the mount significantly easier without any additional equipment. A small feature that saves time and frustration, especially during field sessions.
Connectivity and display
The controller is equipped with an interface for the optional SynScan GPS module, which automatically loads geographic coordinates, time and time zone - eliminating the need to enter this data manually before each session. Connection to a computer is available via USB or RS-232C (9600 bps, no parity, 8 data bits, 1 start bit, 1 stop bit), ensuring full compatibility with popular planetarium programs and autoguiding software.
The LCD display with 18 characters on 2 lines is backlit and easy to read in the dark. The multi-function port provides an output current of 100 mA for powering external accessories.
Additional functions
- Current temperature display
- Power consumption monitoring
- Remote mount positioning - even when the telescope is temporarily not in use, all settings are retained, which is practical when switching between different observing targets during a single night
Technical specifications
| Parameter |
Value |
| Compatible mount types |
Equatorial and alt-azimuth Sky-Watcher mounts |
| Object database |
42,000+ objects (Messier, NGC, IC, SAO, Caldwell, named stars, planets) |
| Pointing accuracy |
Up to 5 arcminutes |
| Tracking rates |
Sidereal, solar, lunar |
| Periodic error correction |
SPEC and PPEC |
| Display |
LCD, 18 characters x 2 lines, backlit |
| PC connection |
USB, RS-232C (9600 bps, no parity, 8 data bits, 1 start bit, 1 stop bit) |
| Multi-function port output |
100 mA |
| Firmware version |
6.XX.XX (updatable) |
| Optional accessory |
SynScan GPS module |
Why choose SynScan V5?
SynScan V5 is currently the best choice for Sky-Watcher mount owners who want full control over their GoTo system - whether for visual observing, astrophotography or working with planetarium software on a computer. The combination of an extensive object database, modern USB interface, regular firmware updates and smart object synchronization makes it a tool that will genuinely improve every observing night. An investment in a quality hand controller pays off every time you head out under the stars.
