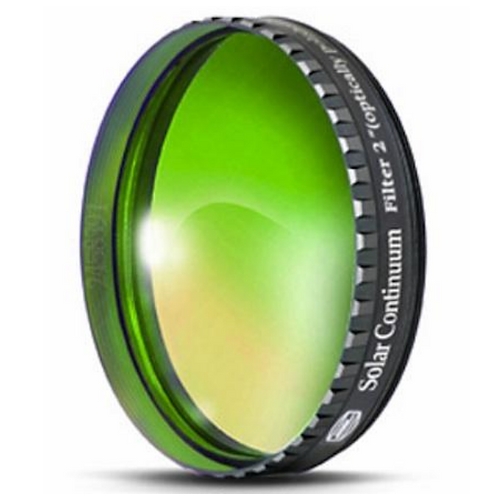

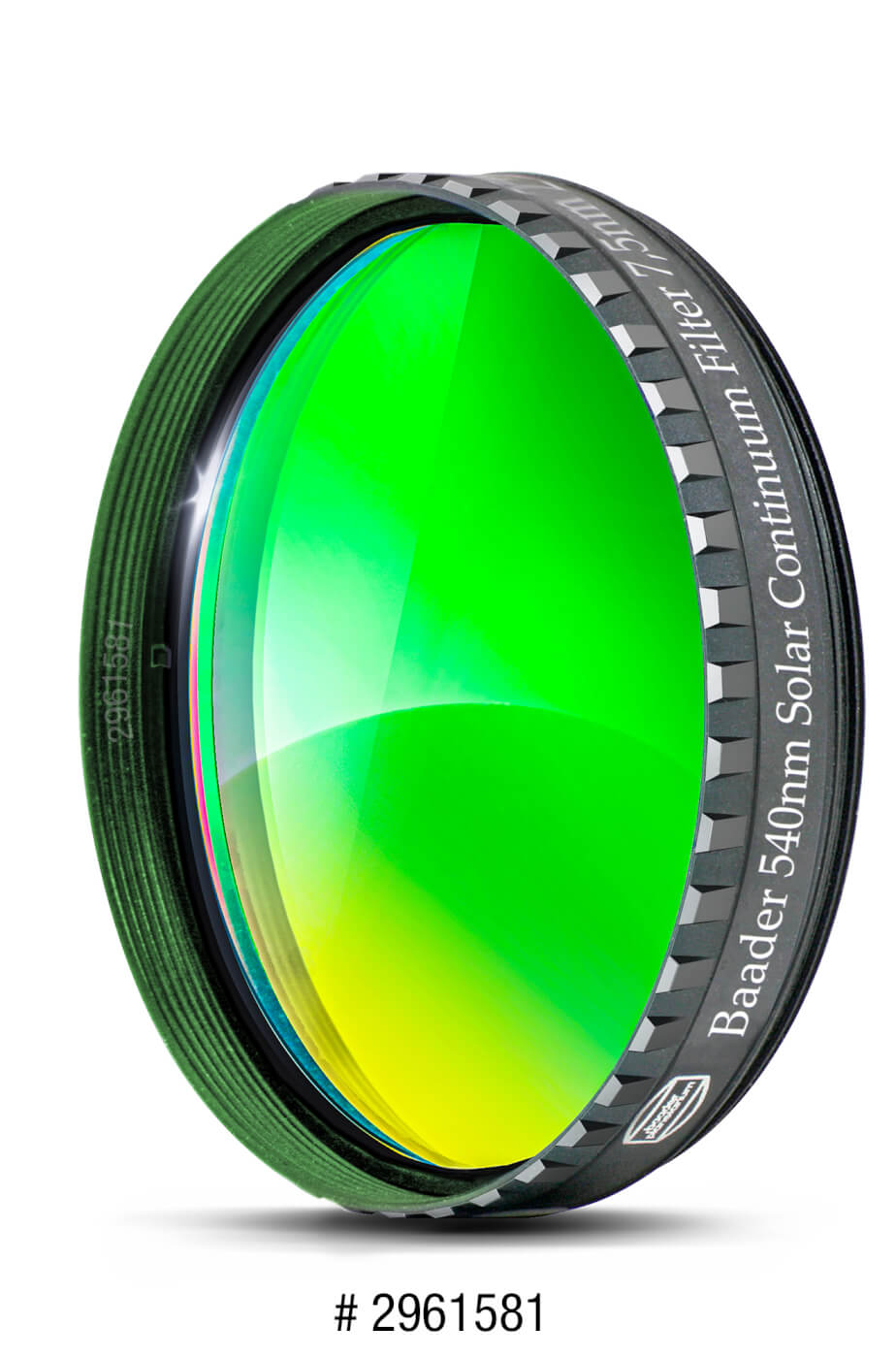

Baader Planetarium Solar Continuum 7.5 nm 2″ Solar Filter
The **narrowband Solar Continuum 7.5 nm filter** from Baader Planetarium represents a cutting-edge solution for both visual and photographic observation of the Sun's photosphere. This specialized filter features a central wavelength of 540nm with 2″ threaded mounting, delivering exceptional contrast and sharpness for solar observations. The filter operates as a monochromator that suppresses atmospheric turbulence effects and provides significantly sharper images than standard white light filters.
Technical Design and Optical Performance

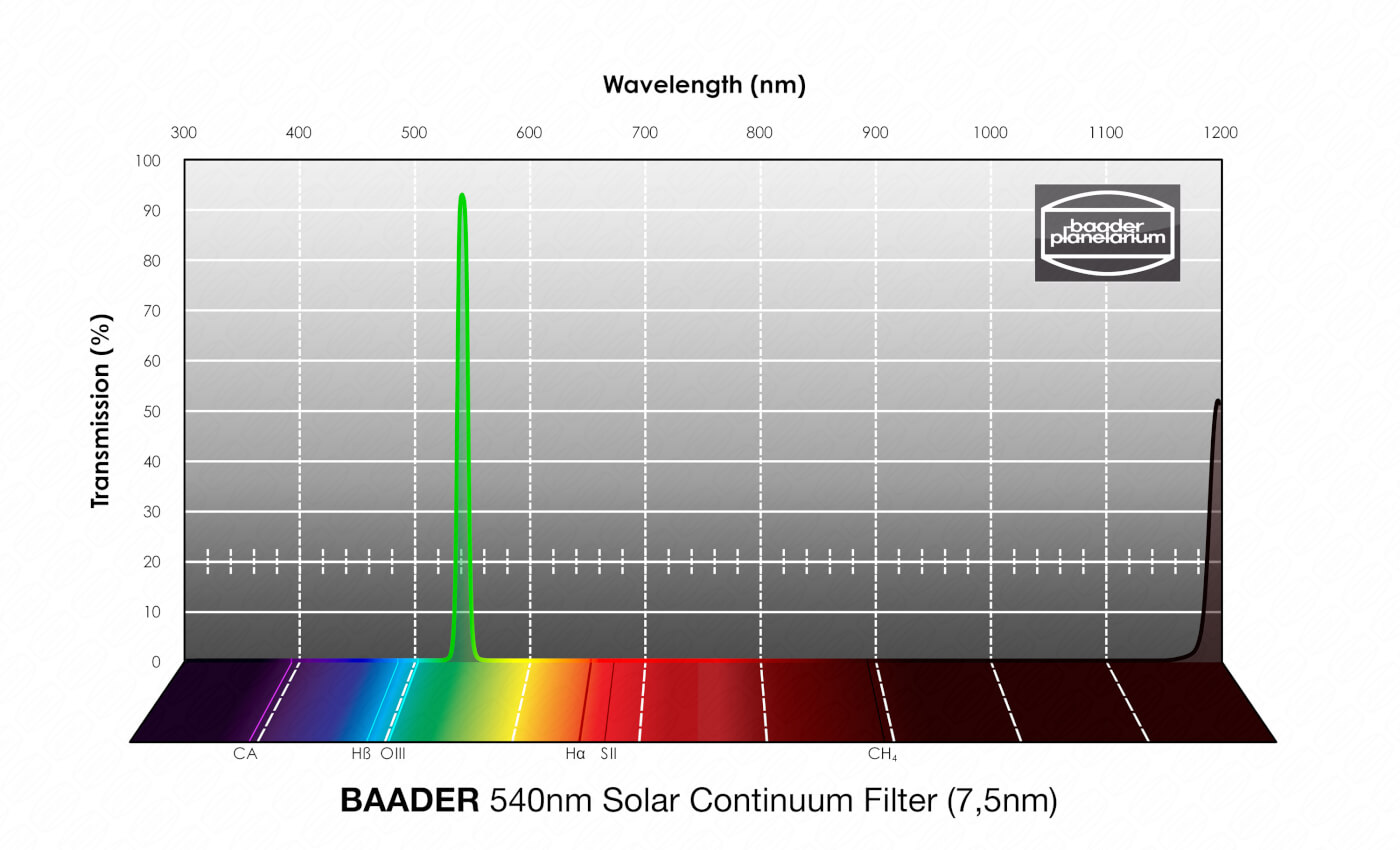

The filter is structurally optimized for the spectral region around 540nm, where the human eye has maximum sensitivity and where lens optical systems achieve optimal sharpness and contrast. With its narrow transmission bandwidth of just 7.5nm, it blocks everything except the spectral area where lens optics perform most sharply. The effect is most pronounced with achromatic telescopes, but significant improvement is visible even with apochromatic telescopes, catadioptric systems, and pure reflector designs due to air turbulence reduction.
Photography Applications
For **photographic applications**, the filter is ideal especially with monochromatic cameras, where it provides dramatic image quality improvement. Even with color cameras, it brings significant enhancement, although efficiency is lower because only green pixels are utilized. When working with color cameras, you still benefit from improved telescope sharpness optimized for green wavelengths and reduced air turbulence effects, but cannot fully exploit the superior image quality compared to monochromatic cameras.
Enhanced Performance vs Previous Models
Compared to the previous 10nm bandwidth model, this filter features a narrower 7.5nm bandwidth, further increasing contrast. It replaces both the previous Baader 10nm Solar Continuum filter and stacked 1¼″ filters. The quality of this single 7.5nm filter is so exceptional that stacking is no longer necessary - the contrast of one filter makes additional layering redundant.
Safety Requirements and Usage
Important Warning: The **Solar Continuum filter** must be used for purely visual solar observation ONLY with additional filtration (such as Baader Herschel prism or AstroSolar Safety film). The filter alone does not provide sufficient protection for safe solar observation and must be combined with additional safety elements.
Key Features
- Ultra-narrow 7.5nm bandwidth for maximum contrast
- Central wavelength: 540nm (optimal for human eye sensitivity)
- 2″ threaded mounting for versatile telescope compatibility
- Monochromatic design reduces atmospheric turbulence effects
- Ideal for both visual observation and astrophotography
- Premium German engineering and construction
- Eliminates need for filter stacking
