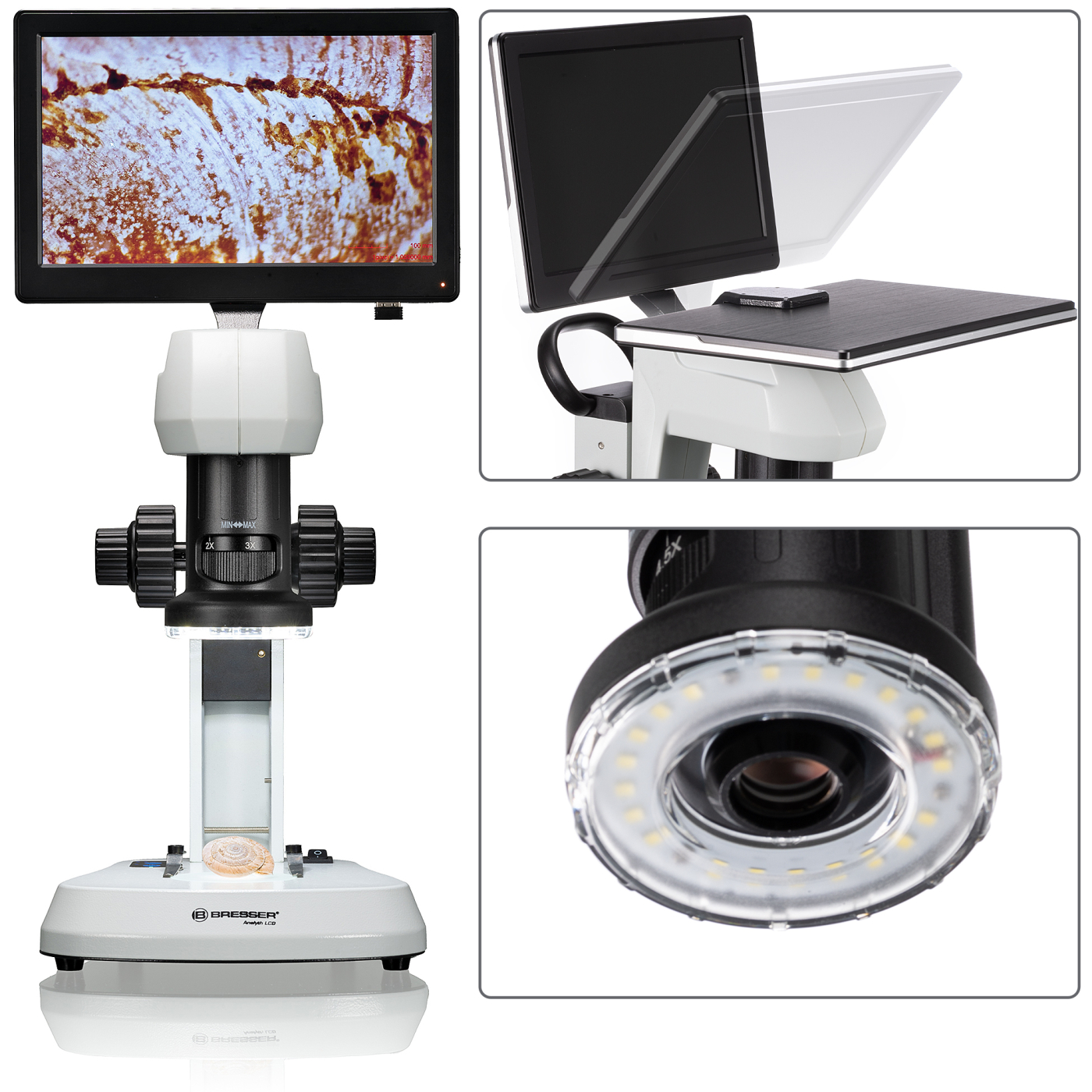

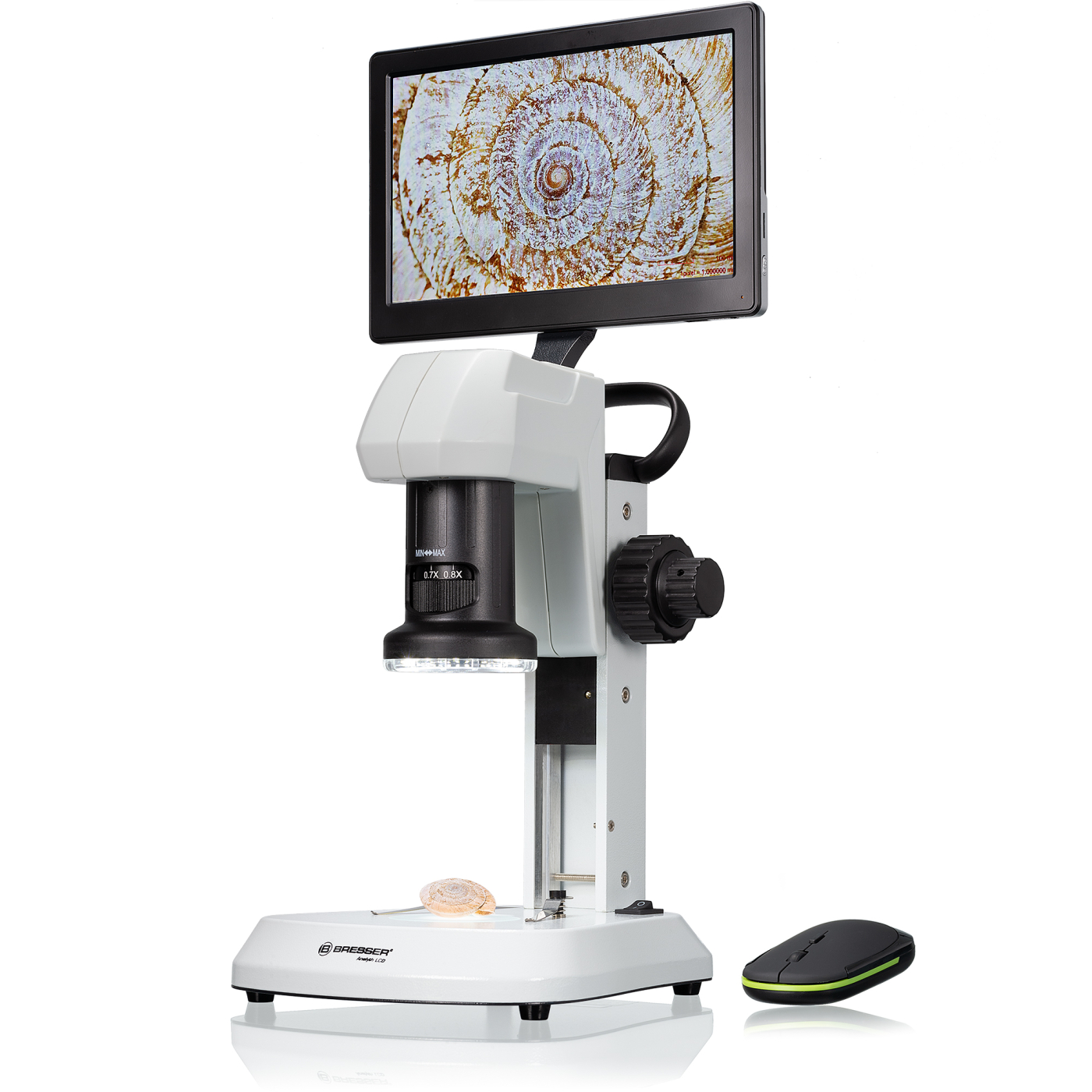

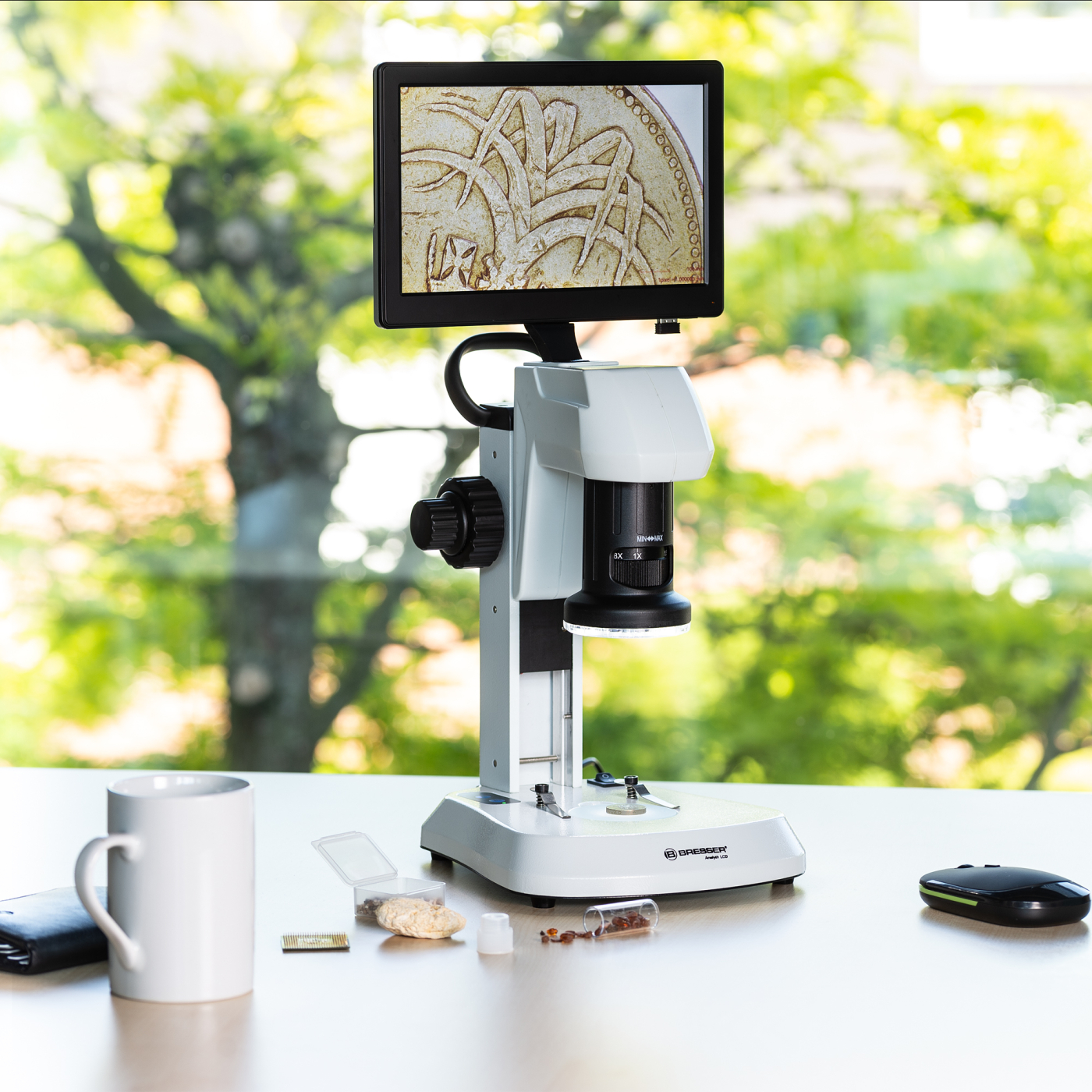

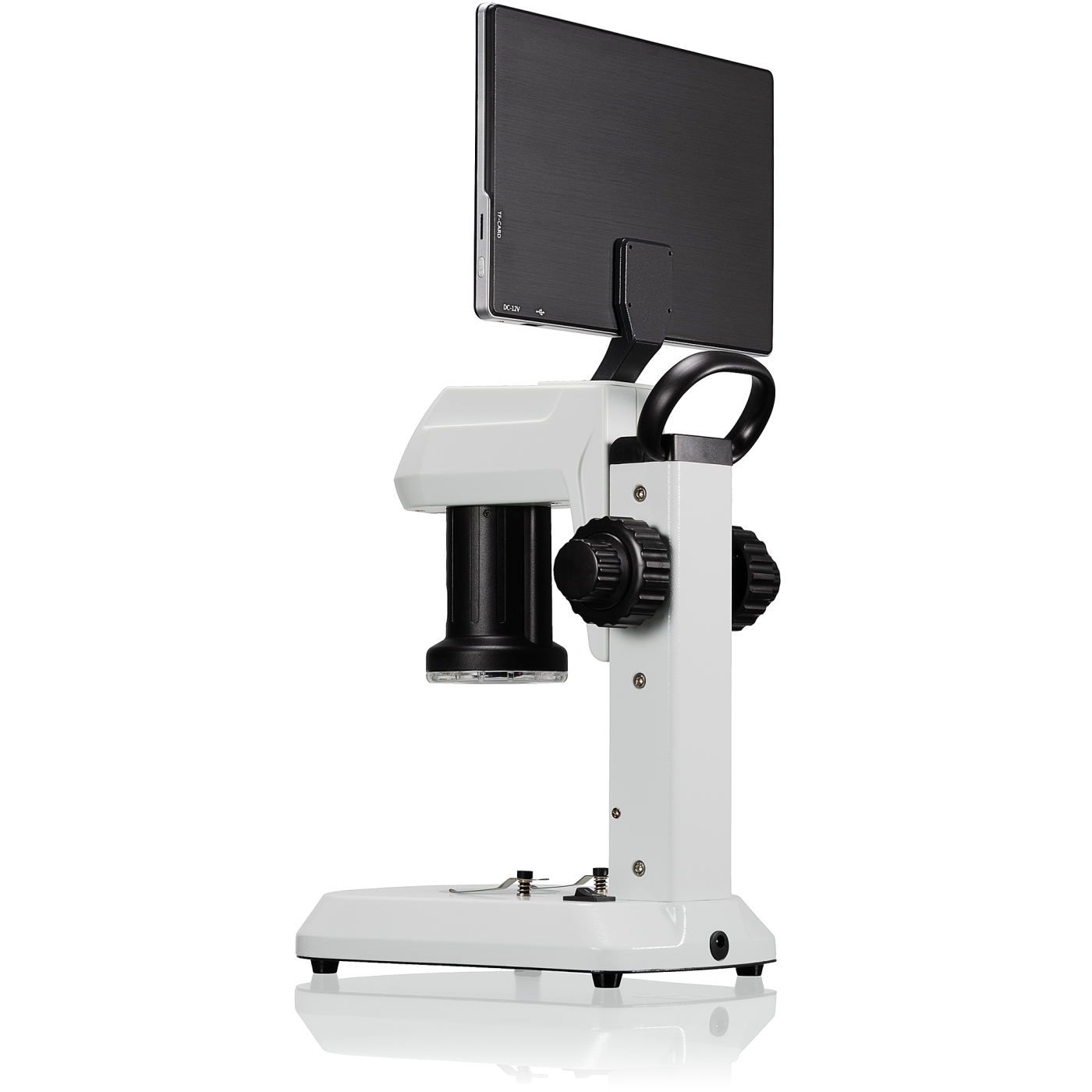

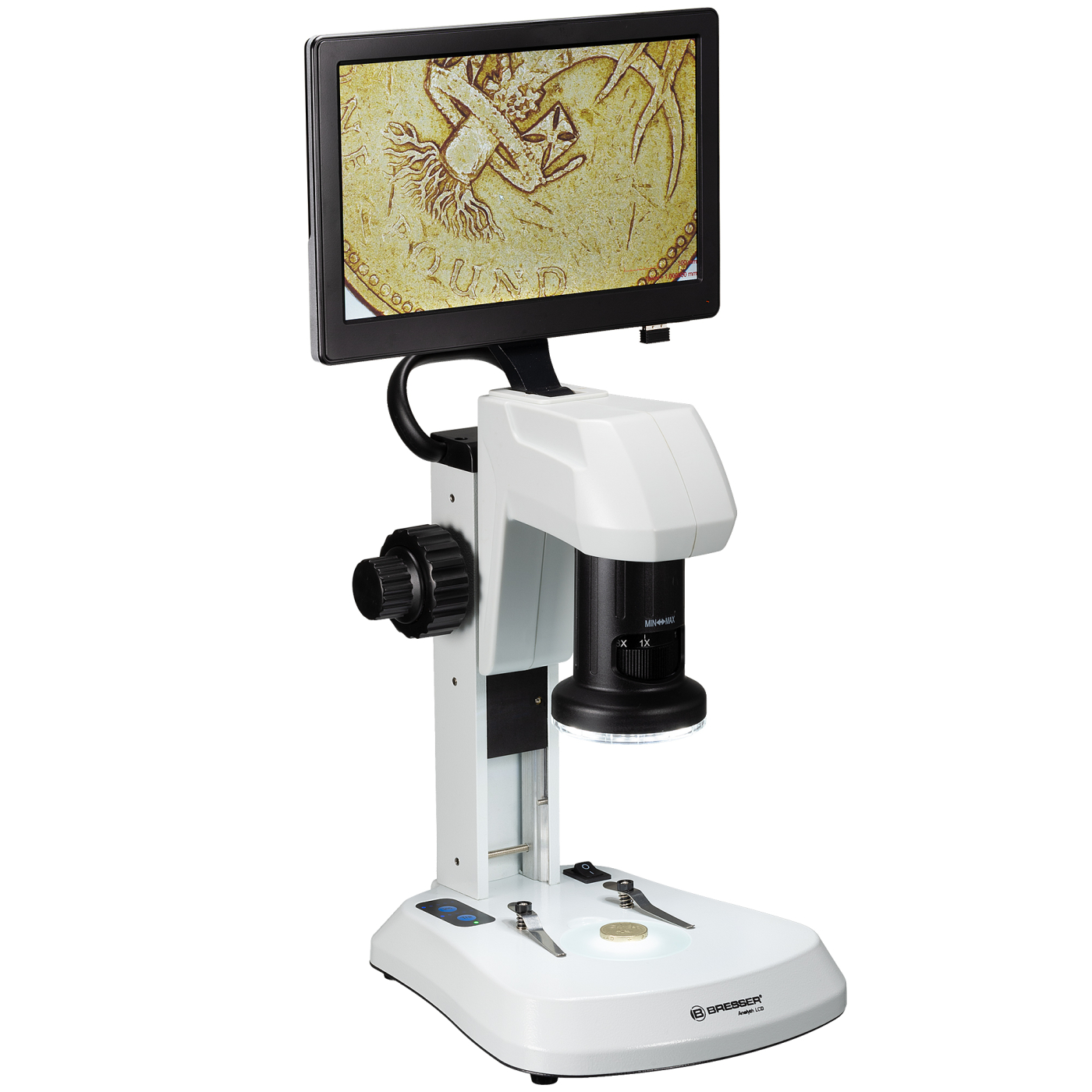

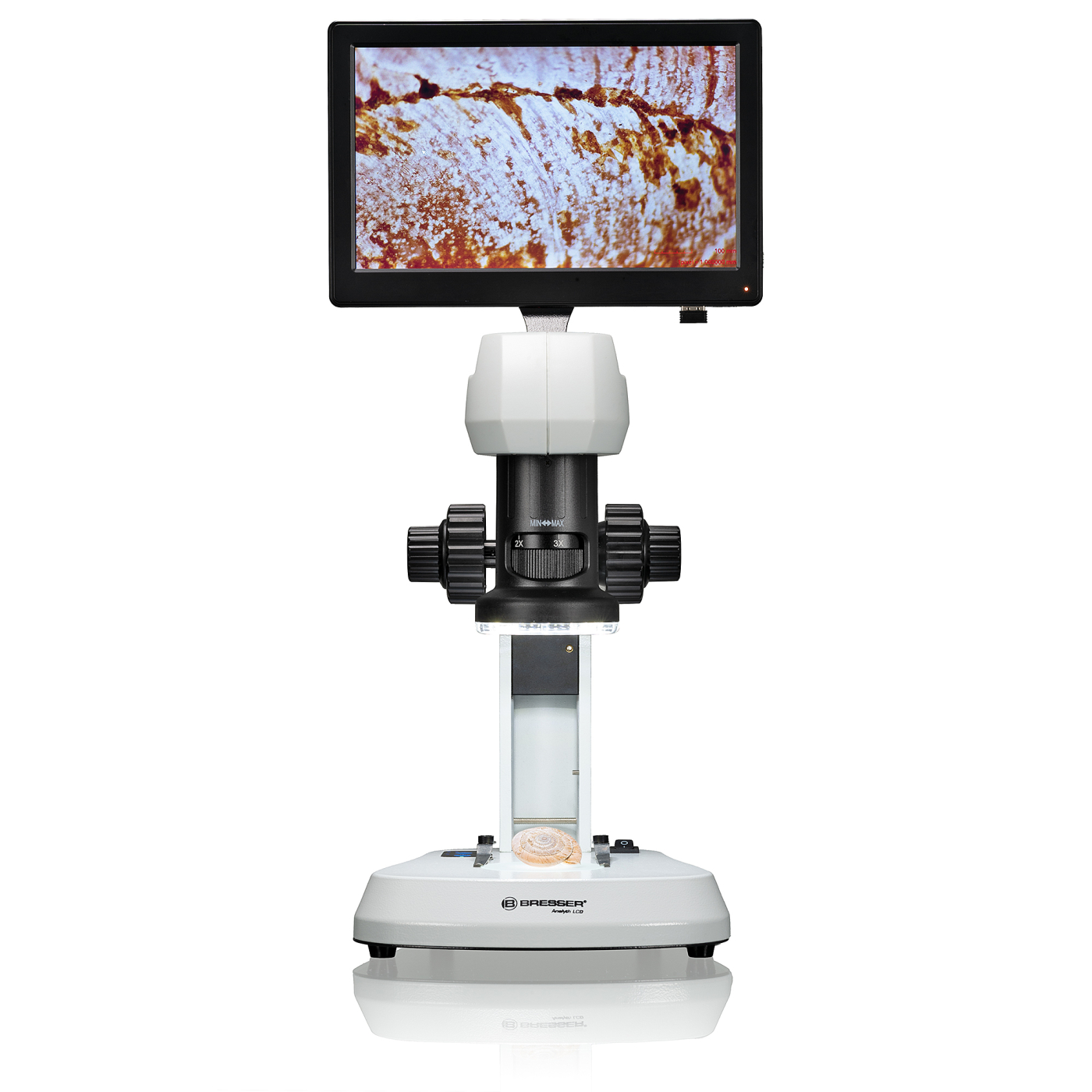

Bresser Analyth LCD 0.7x-4.5x Digital Microscope
The Bresser Analyth LCD Digital Microscope represents a modern solution for observation in both reflected and transmitted light. This advanced digital microscope features sophisticated zoom optics that enable smooth magnification from 0.7x to 4.5x, ensuring quick and optimal adjustment for quality control of fine structures and small objects. Thanks to its versatility, it is ideal for use in workshops, laboratories, educational institutions, and hobby applications.
Built-in LCD Display for Convenient Operation
The main advantage of this microscope is the integrated LCD display with a 22.5 cm diagonal, which provides comfortable specimen observation without the need for computer connection. This workshop microscope offers simple and user-friendly operation, making it particularly suitable for everyday use. Dimensional measurements, surface quality control, component and material examination, or biological specimen observation become easy and efficient tasks with this instrument.
Advanced Dual Lighting System
The microscope is equipped with a dual lighting system that ensures perfect conditions for various types of observation. Ring lighting with 21 LED diodes provides uniform and shadow-free illumination of the object when observing in reflected light. For observing transparent objects, integrated transmitted lighting is available. Both lighting options can be adjusted independently in five brightness levels, ensuring optimal specimen illumination under any conditions.
Precise Focusing and Magnification Range
At high magnifications, the combination of coarse and fine focusing ensures precise image sharpening. The focusing system allows observation of objects up to 17 mm in height at a working distance of approximately 97 mm. The field of view ranges from 17.5 x 10.0 mm at minimum magnification to 4.7 x 2.5 mm at maximum magnification, while on the integrated display it achieves magnification from approximately 8.2x to approximately 52.7x.
High-Quality Sony Image Sensor
The microscope features an advanced Sony IMX335 image sensor with a 1/2.8″ size, enabling 5-megapixel resolution. The 2.0 μm pixel size ensures high image quality with display resolution of 1024 x 600 px. This digital microscope allows easy capture of photos and videos, which can be stored on an SD card with capacity up to 32 GB. Image control can be performed using a USB mouse through a clear on-screen menu.
Robust Construction and Technical Specifications
The microscope construction combines aluminum and quality plastics, ensuring robustness while weighing only 2.78 kg. Dimensions of 300 x 270 x 225 mm make this instrument a compact solution for any workplace. The microscope is supplied with two interchangeable specimen plates and is covered by a five-year extended warranty, highlighting the high quality of this Bresser brand product.

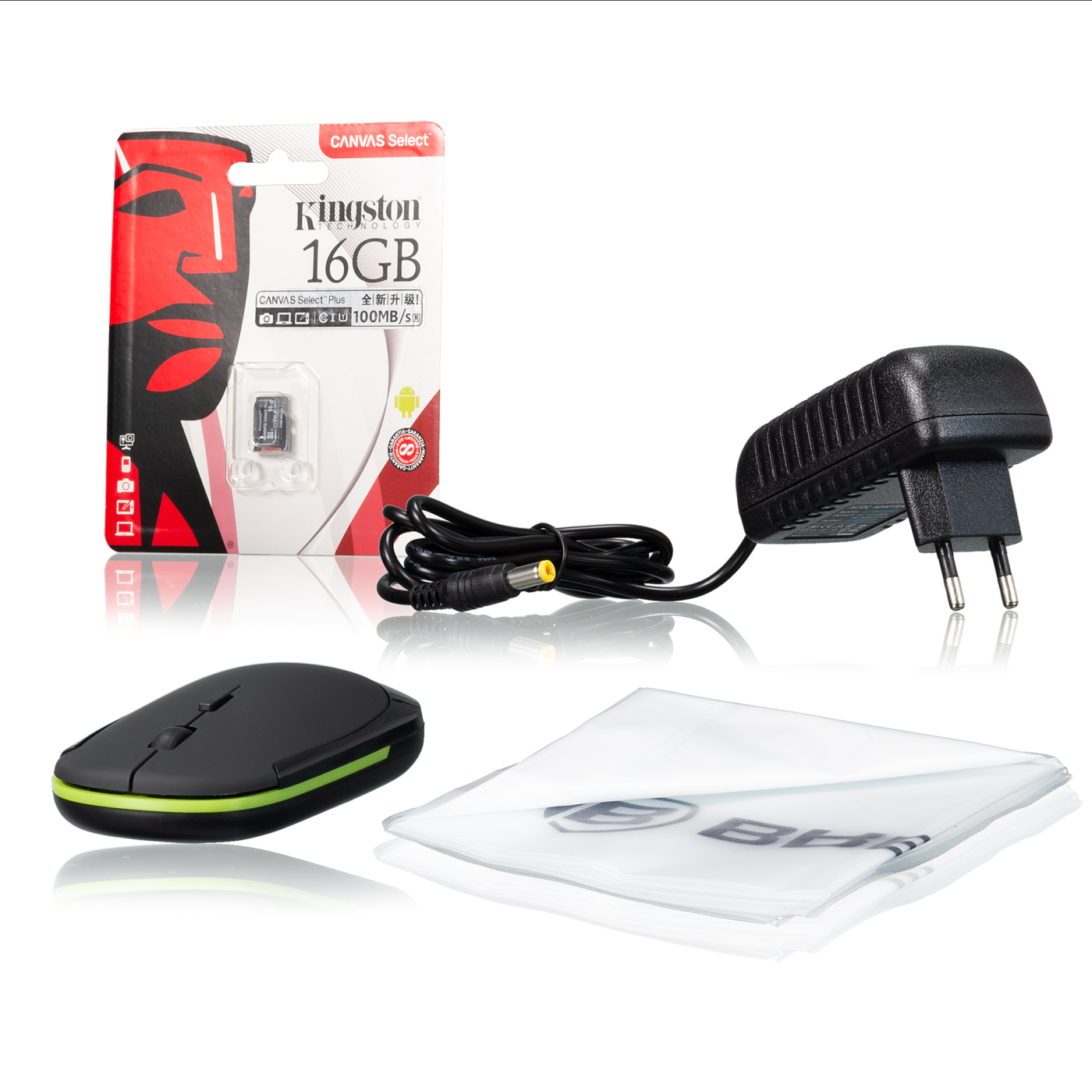

Complete Package Contents
- Bresser Analyth LCD microscope body
- Built-in 22.5 cm LCD display
- Sony IMX335 image sensor
- Dual LED lighting system (21 LEDs ring light + transmitted light)
- Two interchangeable specimen plates
- USB mouse for control
- SD card slot (supports up to 32 GB)
- Five-year extended warranty
Applications and Uses
The Bresser Analyth LCD microscope is perfect for:
- Quality control in manufacturing and workshops
- Laboratory research and analysis
- Educational demonstrations and teaching
- Electronic component inspection
- Material surface analysis
- Biological specimen observation
- Hobby microscopy and collecting
- Jewelry and gemstone examination
About Bresser Brand
Bresser is a renowned German brand with more than 60 years of tradition in manufacturing optical instruments. The company specializes in producing high-quality microscopes, telescopes, and other optical equipment for scientific, educational, and hobby purposes. Bresser products are designed with emphasis on reliability, precision, and user-friendliness, making them an ideal choice for both beginners and advanced users. The Bresser brand has gained customer trust worldwide through innovative solutions, quality materials, and exceptional price-to-performance ratio. Every product undergoes strict quality control and is supported by comprehensive service and technical support, ensuring long-lasting satisfaction and professional results for all users.
