Bresser Researcher LCD 40x-600x Digital Microscope
The Bresser Researcher LCD Digital Microscope represents a revolutionary pioneer in digital microscopy, effortlessly bringing the fascinating microworld directly to your screen. This advanced instrument combines the proven optical quality of the Researcher series with cutting-edge digital technologies, opening completely new possibilities for microscopy in schools, research, and hobby applications. The optical system and mechanical components are based on the established Researcher Bino and Researcher Trino models, ensuring reliability and performance proven through long-term use in professional environments.
Professional Optical System and Magnification Range
The microscope is equipped with four high-quality DIN objectives, a precise Abbe condenser, coaxial fine focusing, and a practical cross table, making it an ideal tool not only for microscopy hobbyists but also for educational and specialized work applications. The highest magnification achievable when using the 60x objective corresponds to 600x magnification of traditional microscopes, which is sufficient for observing small microorganisms including microscopic algae, flagellates, and bacteria. The system is also compatible with additional objectives including 20x and 100x oil immersion lenses that can be added as needed.
Advanced 16MP Digital Imaging Technology

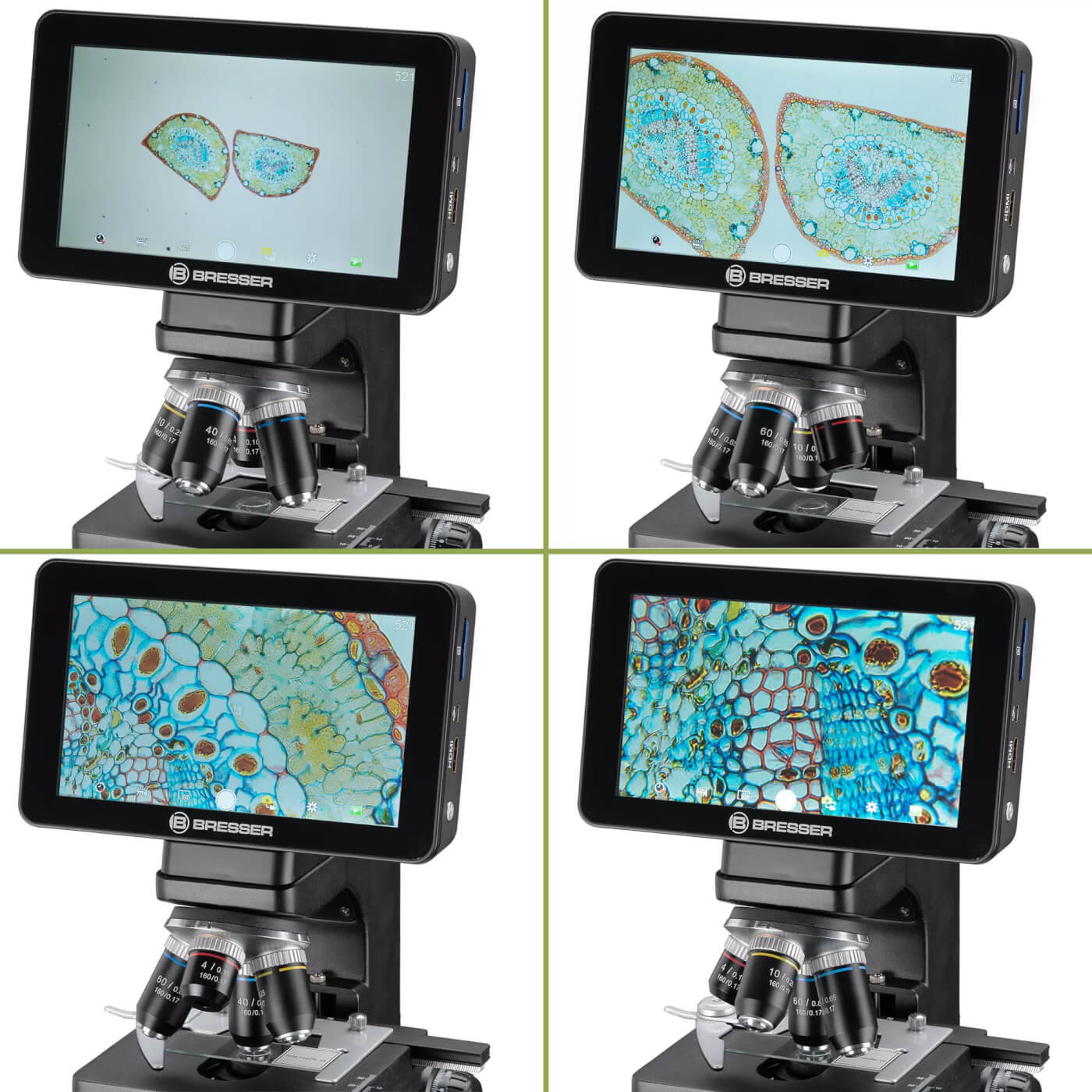

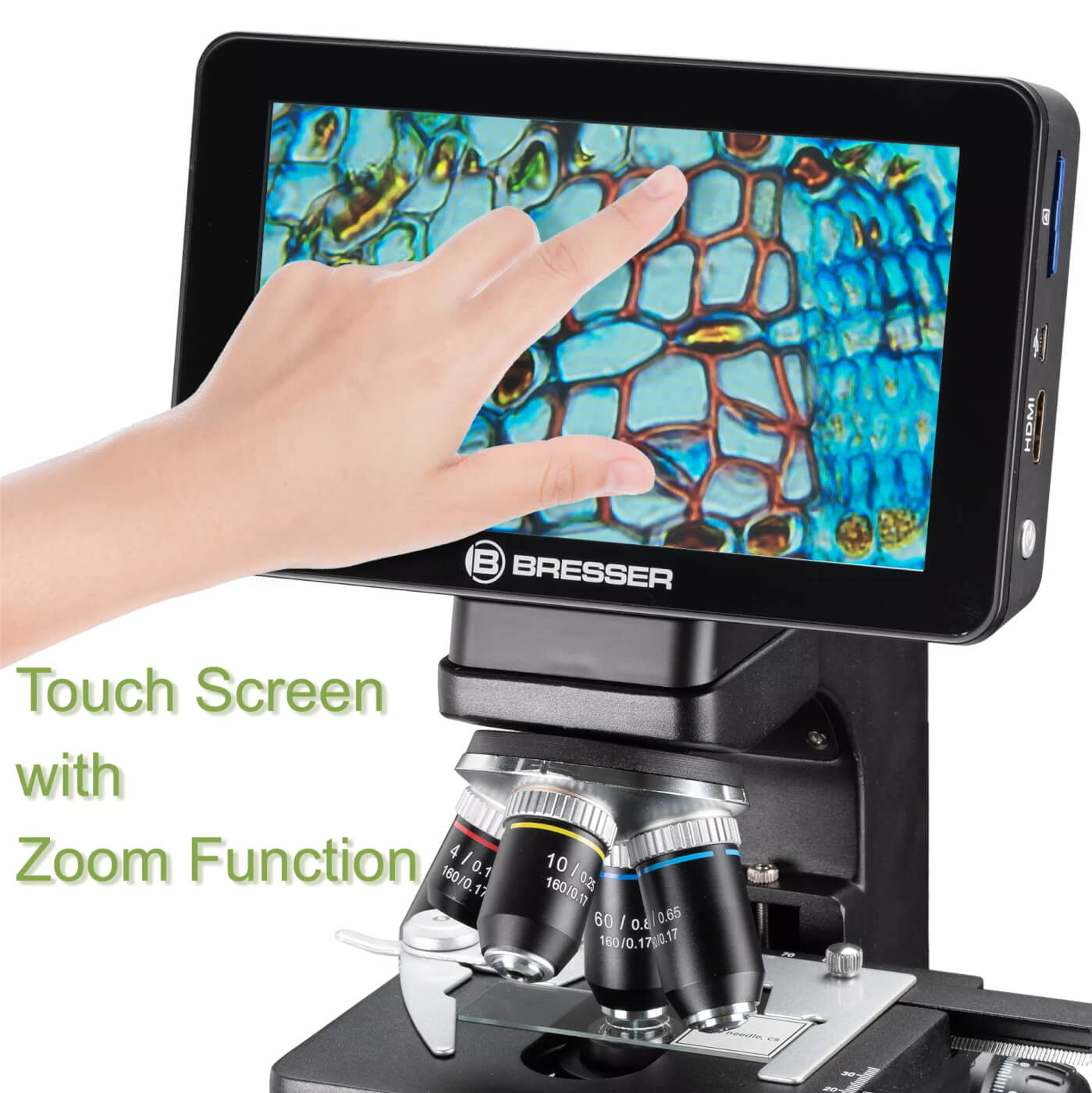

At the heart of the microscope is an integrated Sony IMX206 sensor with 16MP resolution, which provides exceptionally sharp and contrasty images with natural colors on the built-in LCD screen with 1024x600 pixel resolution. Modern touch control allows intuitive setting changes and easy capturing of photos and video recordings directly in real-time. The high 16MP resolution ensures detailed capture of microscopic structures, while Full HD video enables documentation of dynamic processes and microorganism behavior.
Versatile Recording and Display Options
All captured materials can be stored directly on an SD card with capacity up to 32GB (not included in delivery), providing sufficient space for extensive documentation projects. The HDMI output represents another significant advantage, as it allows connection to large monitors, televisions, projectors, or interactive whiteboards. This feature is invaluable during presentations, lectures, or teaching when you need to share observations with a larger group of people simultaneously.
Technical Specifications
- Magnification range: 40x-600x
- Four achromatic DIN objectives: 4x, 10x, 40x, 60x
- Sony IMX206 sensor with 16MP resolution
- LCD screen: 1024x600 pixels with touch control
- Video recording: Full HD quality
- Storage: SD card up to 32GB (not included)
- HDMI output for external displays
- Abbe condenser with adjustable iris diaphragm
- Cross table with single-hand operation
- Coaxial fine focusing
- Dimensions: 205×190×390mm
- Weight: 3270g
Precision Mechanics and Build Quality
The microscope uses four achromatic DIN objectives with standard RMS thread and 45mm parfocal length, ensuring easy switching between different magnifications without the need for refocusing. Objectives with 4x, 10x, 40x, and 60x magnification cover a wide spectrum of applications, with 40x and 60x objectives equipped with specimen protection for safe work with valuable samples. The Abbe condenser with adjustable iris diaphragm is fully height-adjustable, allowing optimization of illumination for different types of specimens and observation techniques.
The cross table with single-hand operation provides precise positioning of samples in both axes, while coaxial fine focusing ensures smooth and accurate focusing. The overall construction from quality aluminum guarantees long-term stability and durability of the instrument even during intensive use. Compact dimensions of 205×190×390mm and weight of 3270g make the microscope a practical companion for various applications.
Applications and Use Cases
- Educational microscopy in schools and universities
- Professional research and laboratory work
- Hobby microscopy and nature observation
- Medical and biological specimen analysis
- Quality control in manufacturing
- Documentation and archival of microscopic findings
- Live demonstrations and presentations
About Bresser - German Optical Excellence
Bresser represents German tradition in optical instruments with more than 50 years of history in innovation and quality. The brand is globally recognized for its reliability and precision in microscopy, telescopes, and other optical technology. Bresser microscopes are designed with emphasis on combining advanced technologies with practical usability, making them an ideal choice for both educational institutions and demanding hobby astronomers and researchers. The Researcher series represents the pinnacle of the company's know-how in digital microscopy, where German precision meets cutting-edge technologies to create instruments of the highest quality.
