Delta Optical Smart 5MP PRO digital microscope 20-300x
Looking for a digital microscope that is precise, practical, and easy to use? The Delta Optical Smart 5MP PRO is an intuitive tool designed to serve both professionals and enthusiasts across a wide range of fields. Thanks to its 5-megapixel CMOS sensor and 20x to 300x magnification, it covers everything from classroom and home workshop use to veterinary clinics, dermatology practices, and industrial quality control.
Optical system and illumination
At the heart of the microscope is a high-quality optical system in which the lens assembly moves relative to the sensor, complemented by an infrared filter and premium-grade optical glass. The equivalent focal length is 15.8 mm with a 13° field of view, and the focusing range spans 10-150 mm. This allows comfortable observation of relatively large objects - insects, plant fragments, postage stamps, or coins - as well as small biological specimens or fine details on larger surfaces.
Illumination is provided by 8 super-bright white LEDs with continuously adjustable brightness, controlled via a knob directly on the USB cable, making observation in poor lighting conditions effortless.
Flexible use - stand or handheld

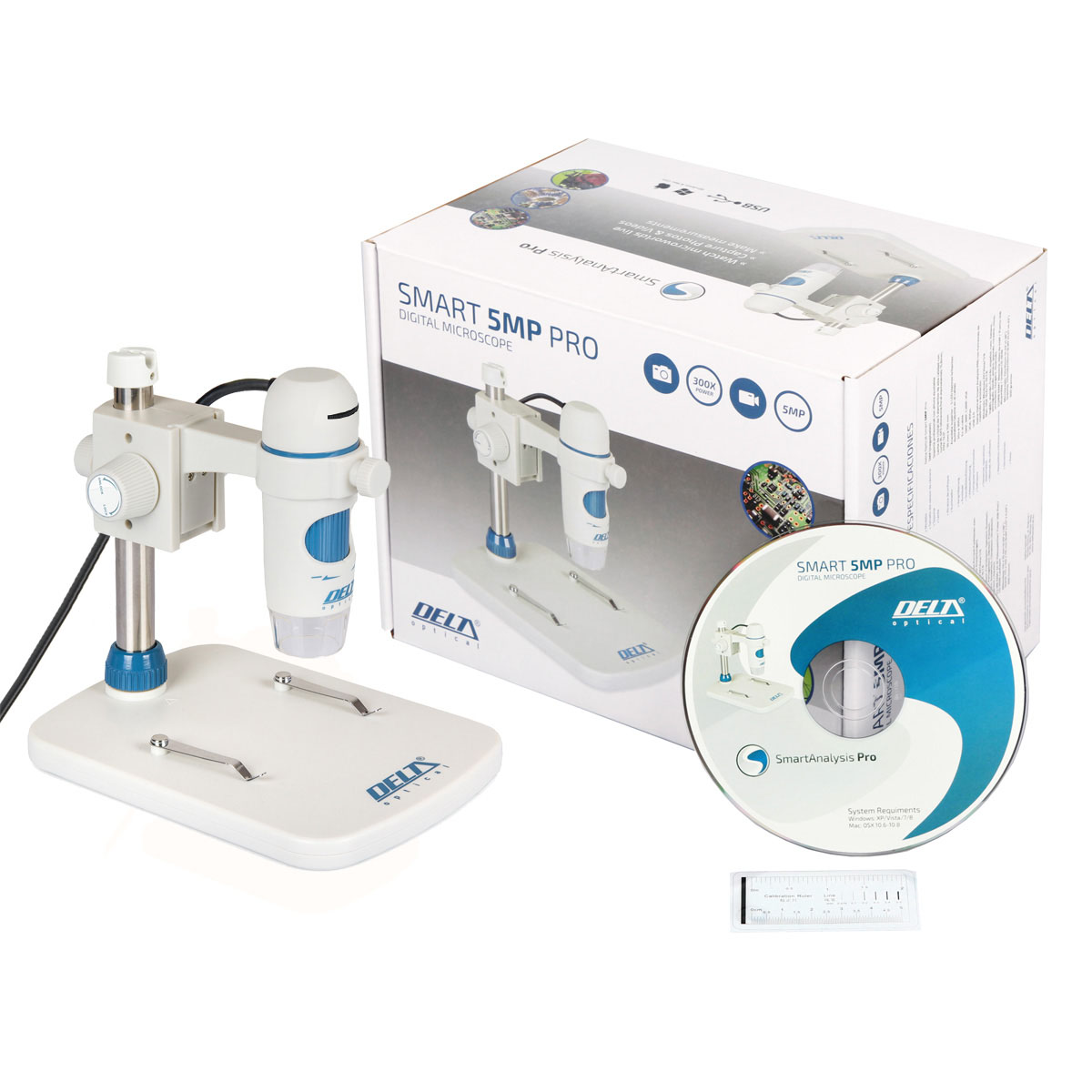

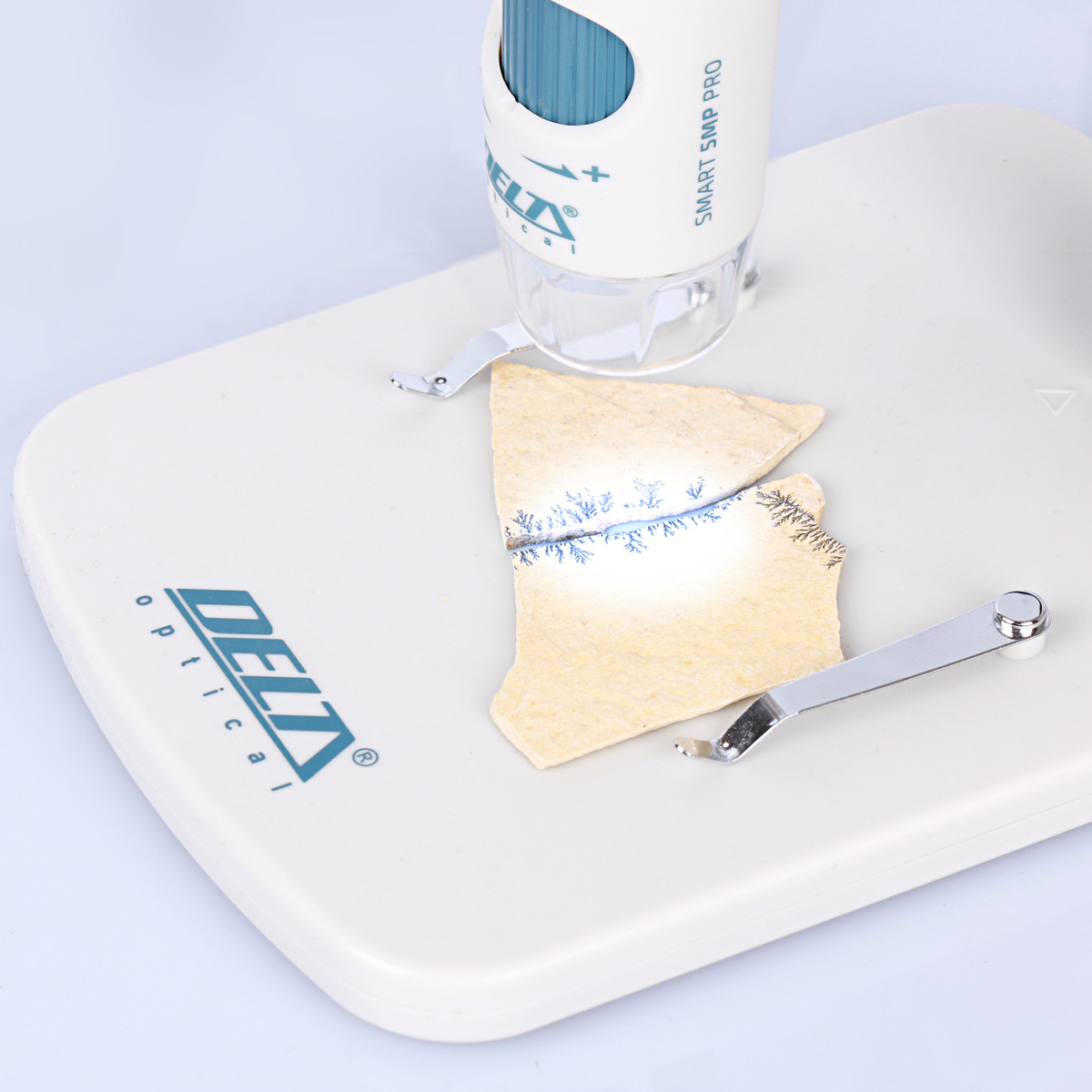

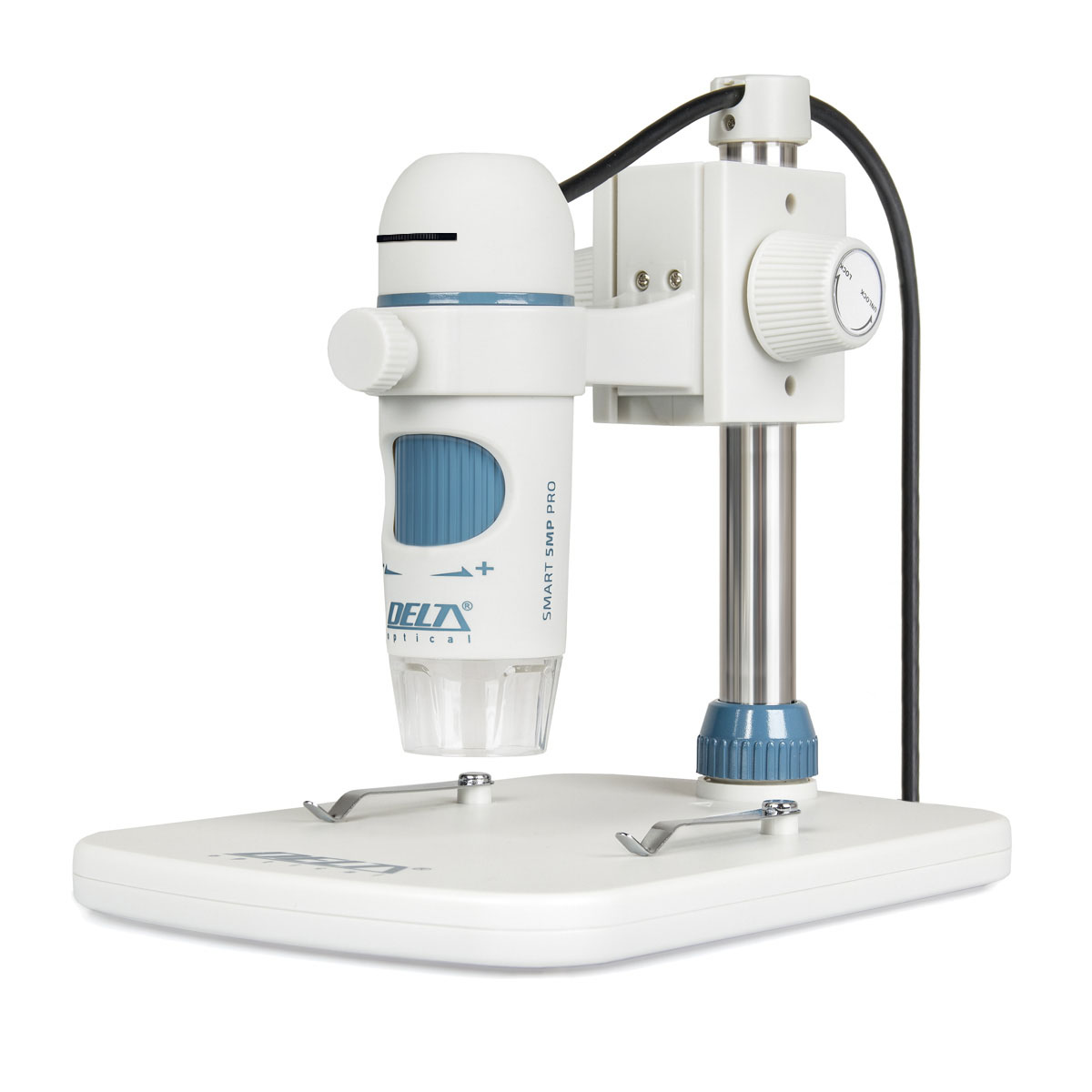

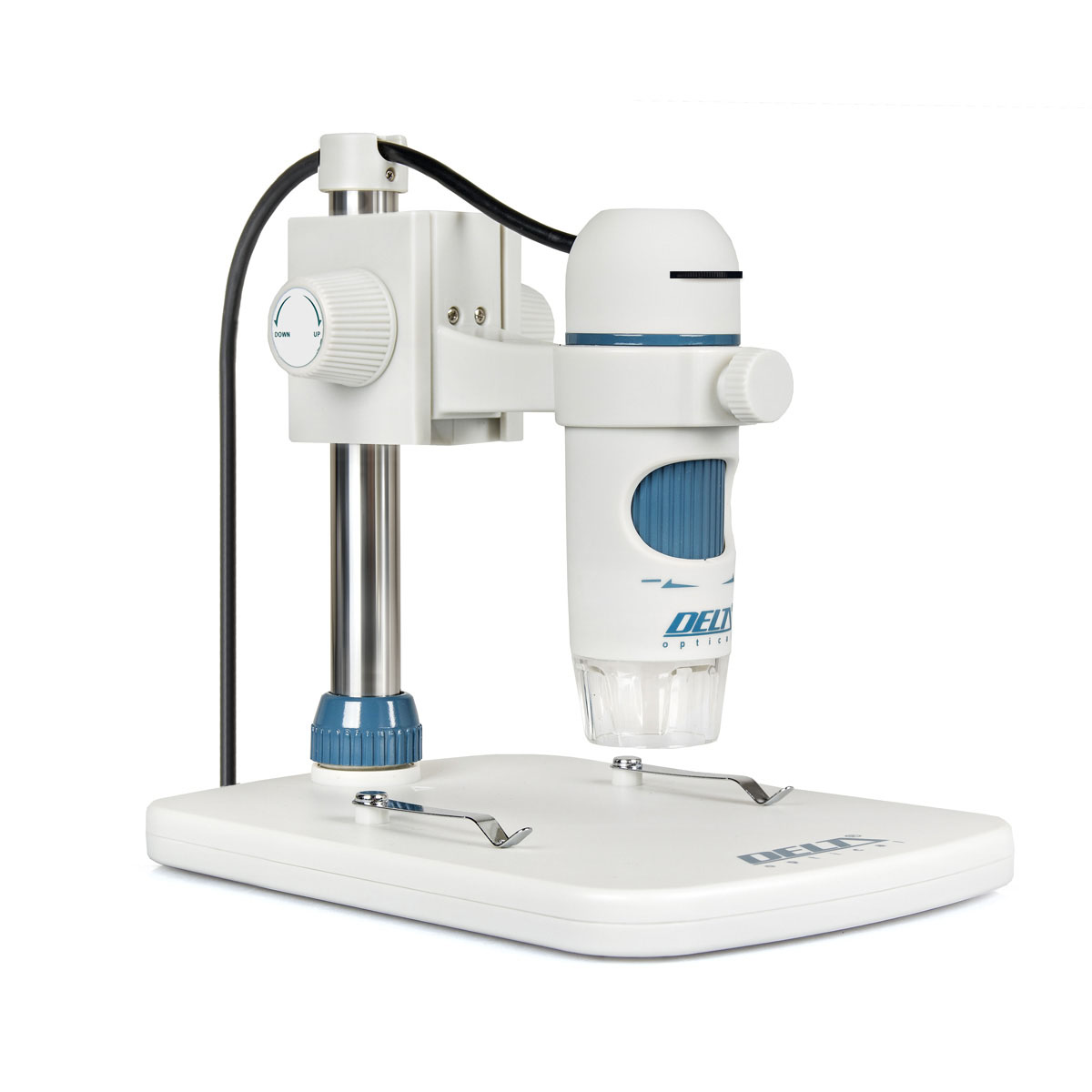

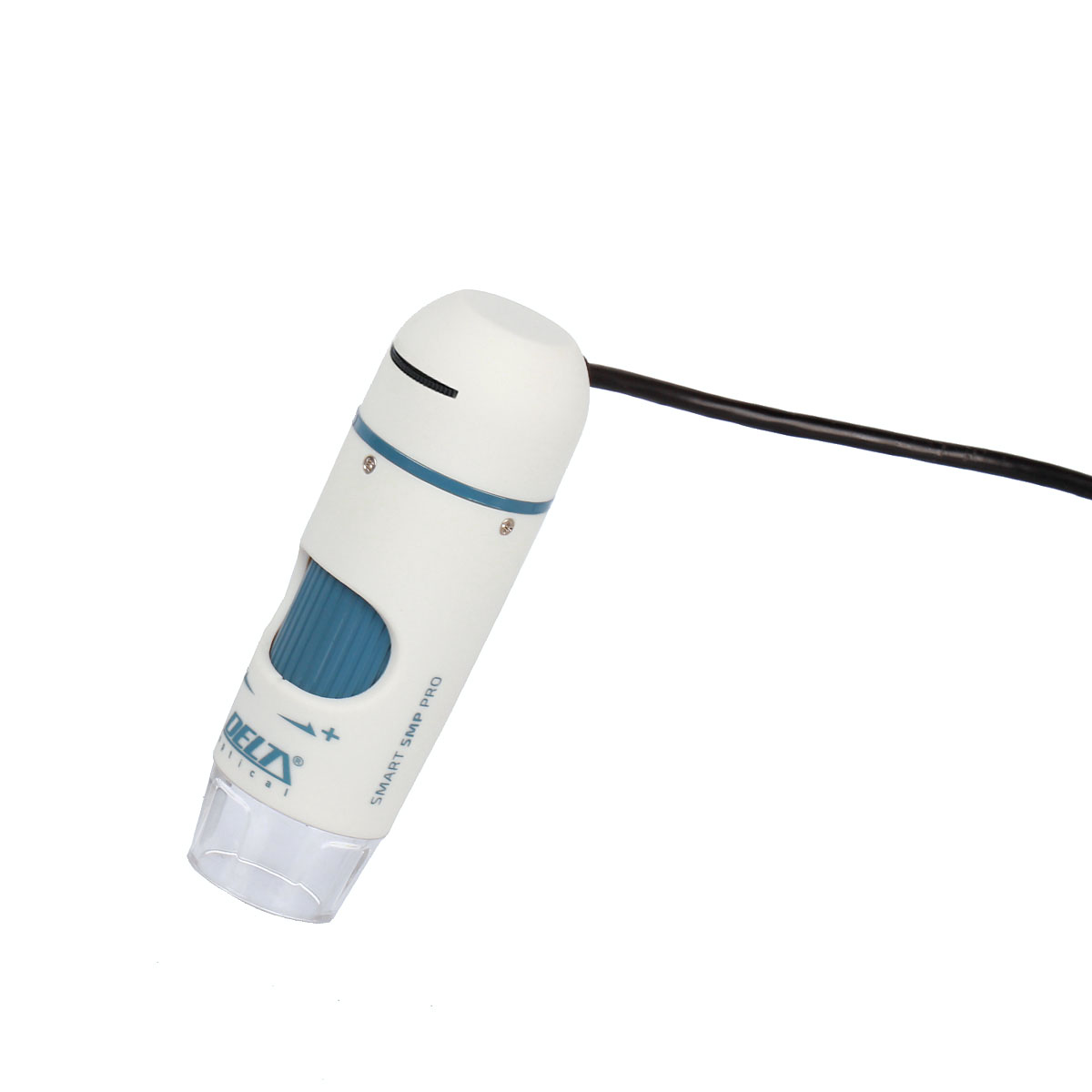

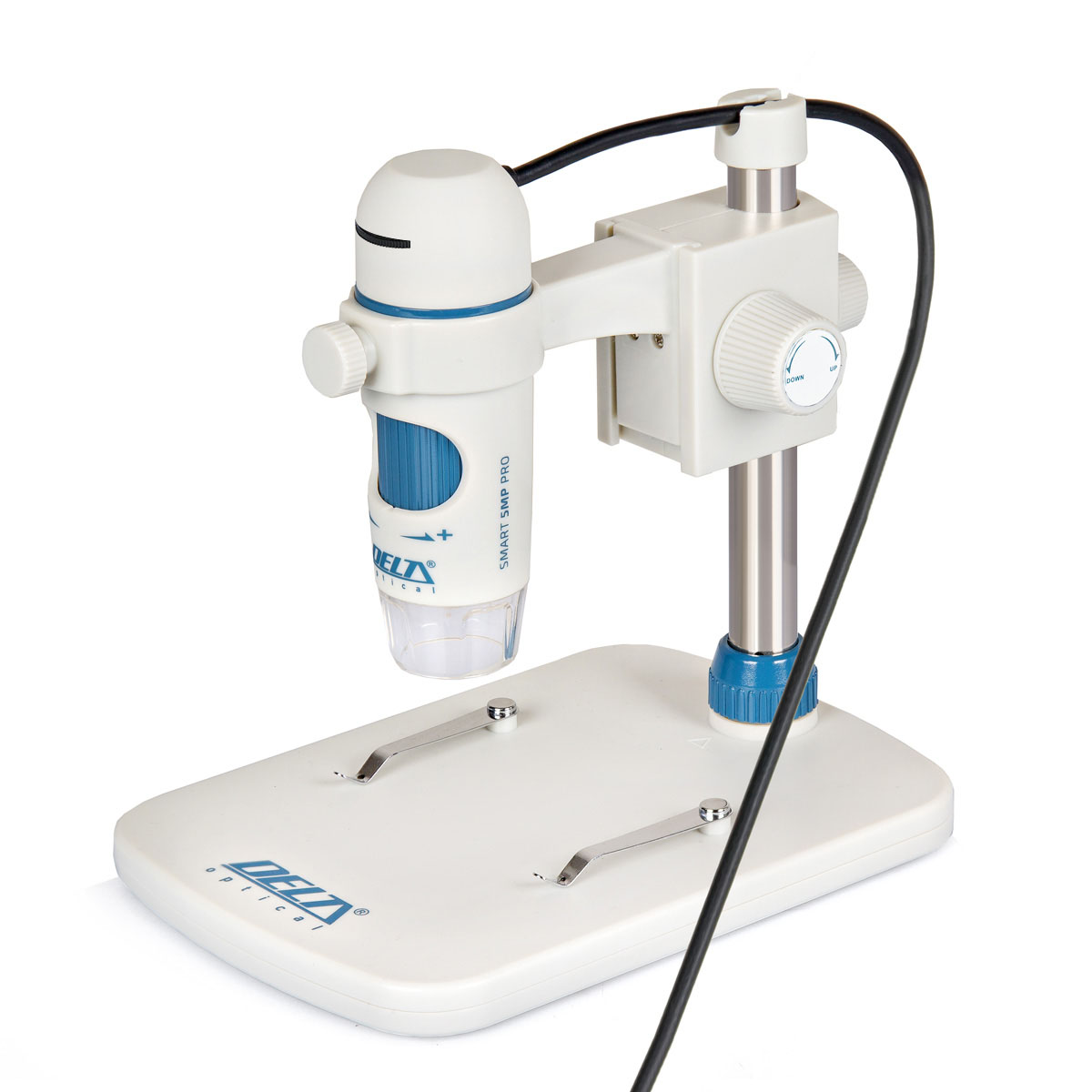

The microscope comes with a sturdy stand featuring adjustable height and a macro focusing knob, which eliminates vibration at high magnifications and makes precise measurements significantly easier. At the same time, the device can be held like a pen and applied to any surface or object that would be impossible to observe under a conventional stand microscope - for example, a machine component, a painting, or a fabric. Mobility is ensured by a 1.4 m USB cable.
No batteries or accumulators are required - simply connect the microscope to a computer via USB 2.0 and it is instantly ready to use.
Image and video quality
The 5-megapixel sensor (2582 x 1944 px) allows you to capture still images in resolutions from VGA (640 x 480) up to the full 5 MP, saving them in JPG, BMP, PNG, or TIF formats. Video and live preview run at 1280 x 960 px with a maximum frame rate of 30 fps, saved in AVI format. A 24-bit RGB colour depth ensures accurate colour reproduction, while automatic white balance eliminates the need for manual colour calibration. Shutter speed is adjustable from 1 second to 1/1000 of a second, and images can be triggered via a button on the cable or directly from the software.
Software - Delta Optical Smart Analysis PRO
Included in the package is Delta Optical Smart Analysis PRO software, compatible with all versions of Windows and Mac OS X 10.6-10.8. In addition to basic photo and video capture, it offers advanced analytical functions appreciated by technically skilled users. Automatic date and time stamping in the recording is a practical tool for professional documentation.
Measurement and annotation functions
| Function type |
Description |
| Length measurement |
Measure distances directly on the captured image |
| Area measurement |
Calculate the area of selected regions |
| Angle measurement |
Measure angles between lines or edges |
| Circle and arc tools |
Draw and measure circular shapes |
| Annotations |
Add text labels and markers to images |
| Date and time stamp |
Automatic insertion into image and video records |
Who is this microscope for?
The range of applications for this microscope is truly broad:
- Education - teachers can project directly through a computer or interactive whiteboard; students can prepare biology or physics presentations
- Veterinary medicine - analysis of skin, hair, and follicles; explaining diagnoses to pet owners directly on screen
- Dermatology and cosmetology - a reliable diagnostic tool for skin examination
- Gardening and agronomy - inspection of plant fragments affected by pests
- Entomology and zoology - close-up study of insects and spiders
- Heritage conservation and restoration - monitoring the condition of painting surfaces, sculptures, or textiles

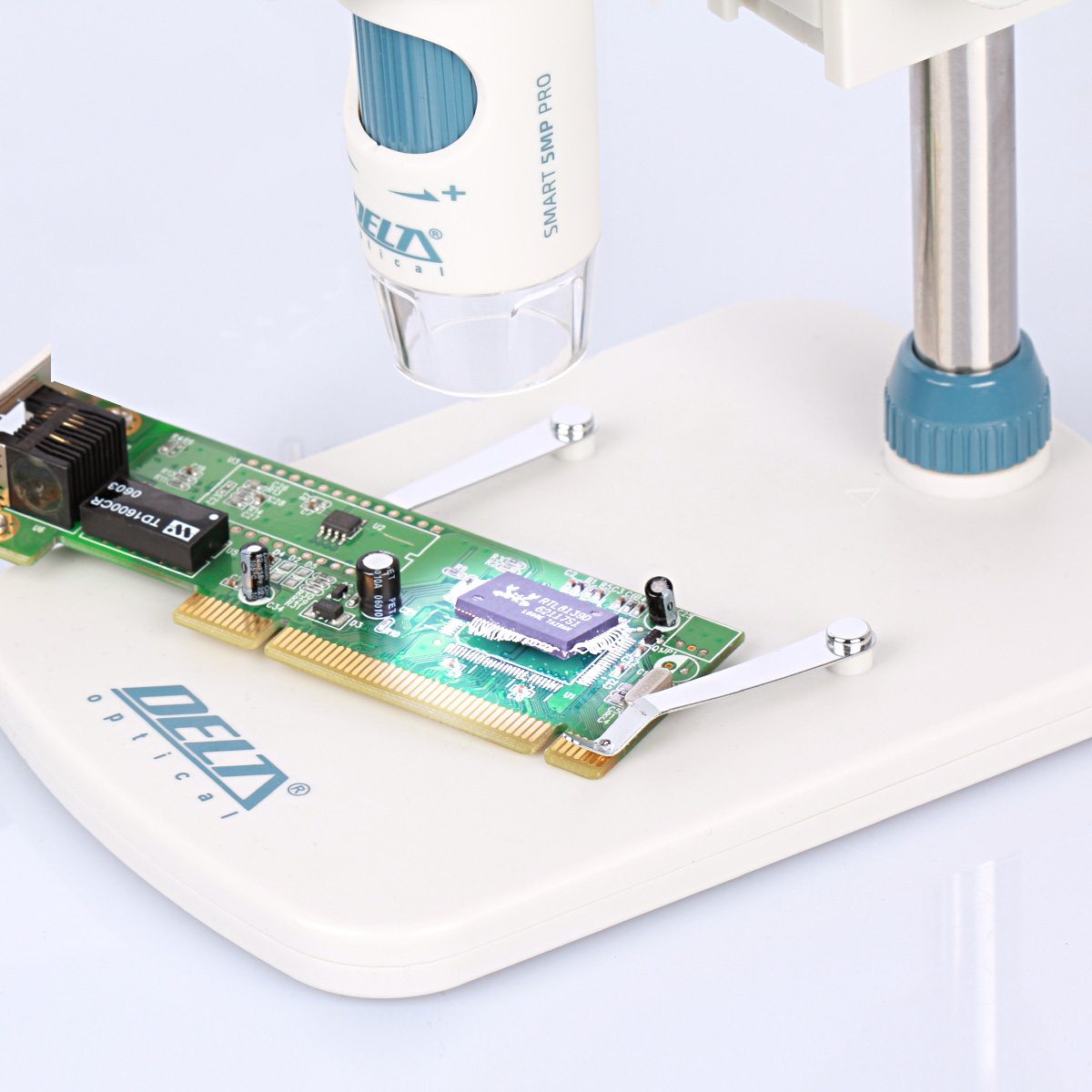

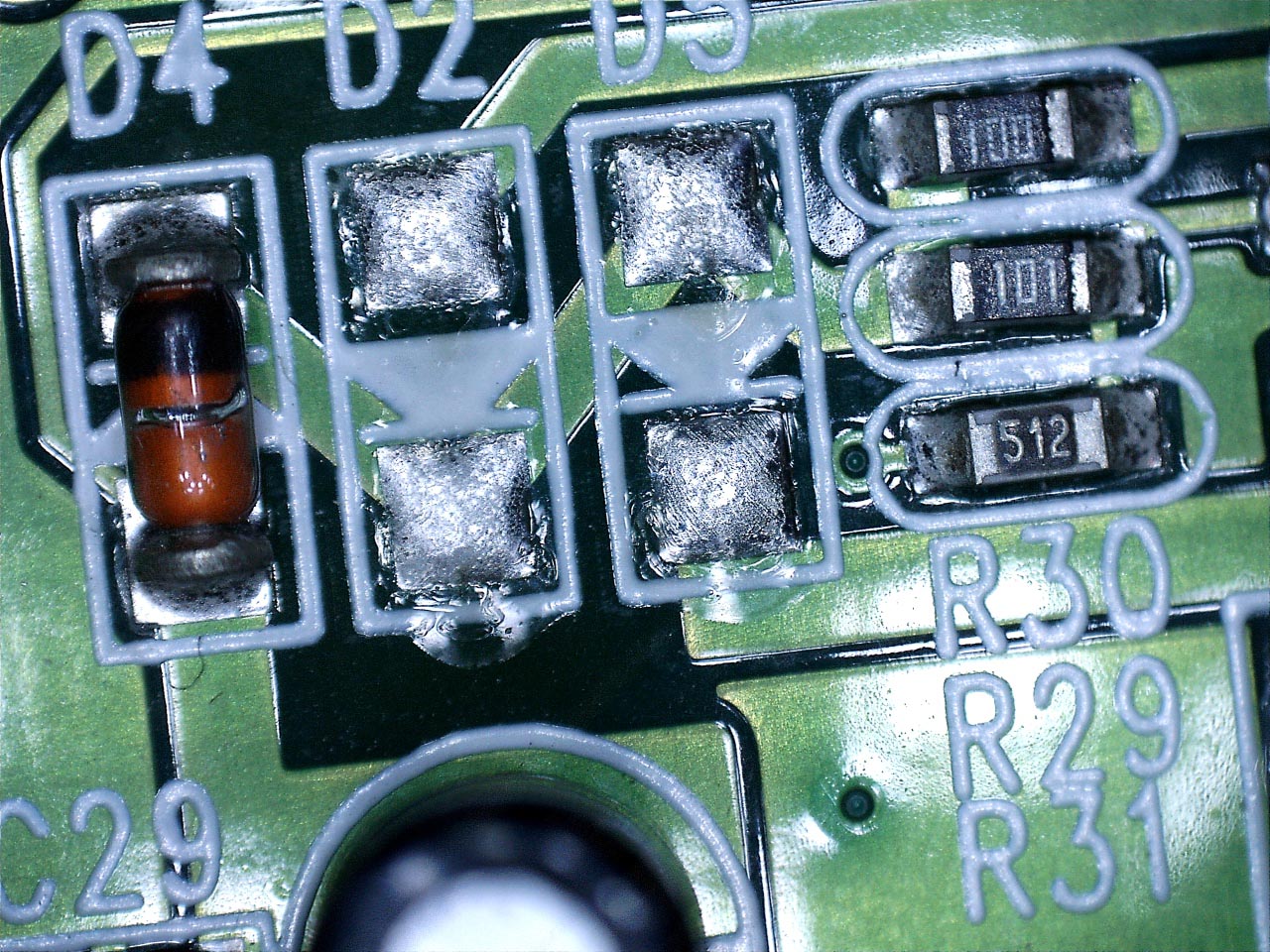

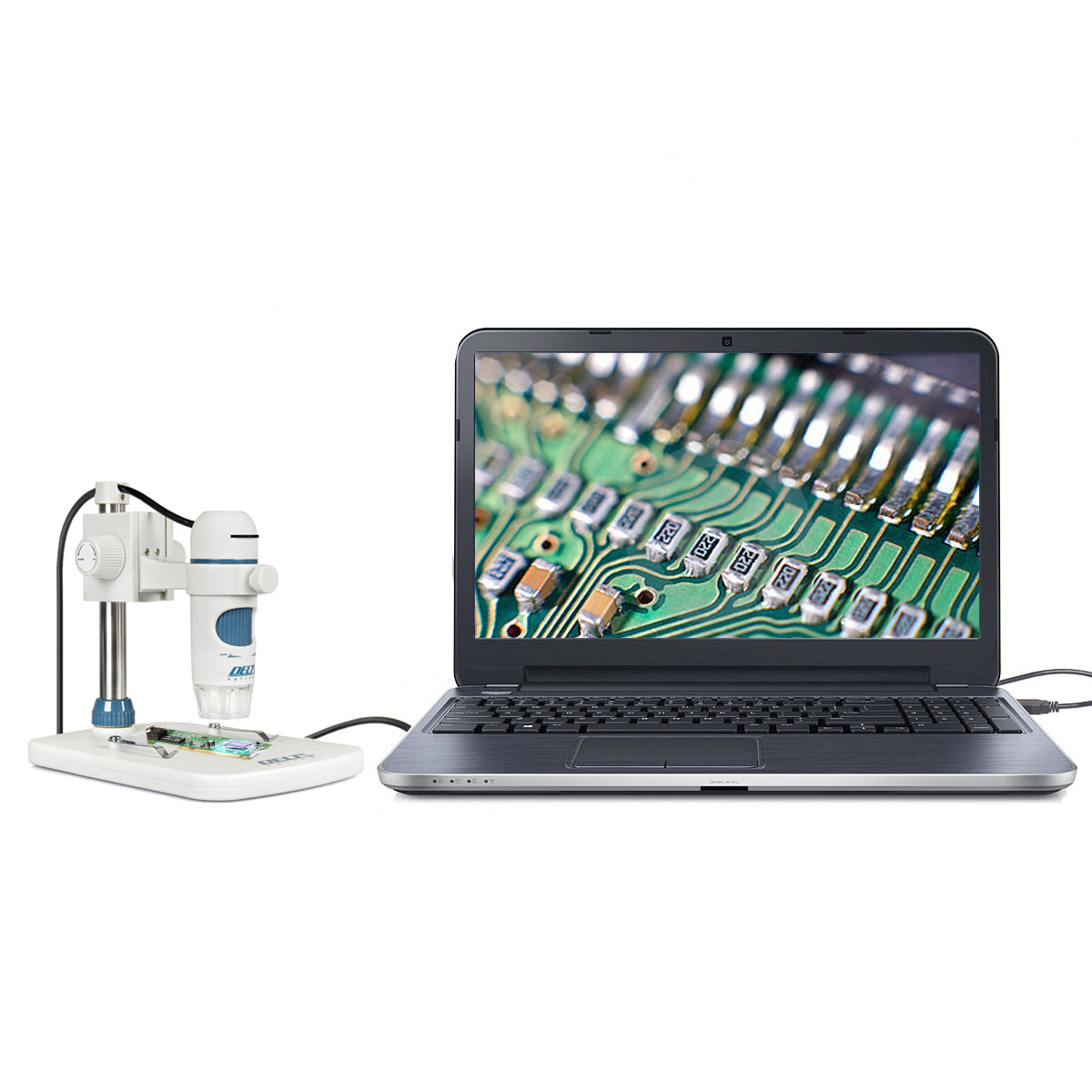

- Industry - the Delta Optical Smart 5MP PRO is exceptionally useful for quality control of solder joints, analysis of precision components, and inspection of work surfaces
About the brand
Delta Optical is an established Polish optical brand with a long tradition in microscopy, binoculars, and astronomical equipment. Its products are designed with a focus on the real needs of users - whether students, researchers, or industrial technicians. The Smart 5MP PRO is a prime example: it combines professional optics, practical construction, and powerful analytical software at a price accessible even to smaller teams and educational institutions. Customers particularly appreciate its reliability, comprehensive software package, and ease of use without complex setup.
Technical specifications
| Parameter |
Value |
| Sensor |
5MP CMOS |
| Resolution (still image) |
Up to 2582 x 1944 px (5 MP); from VGA 640 x 480 |
| Video resolution |
1280 x 960 px, max. 30 fps, AVI format |
| Image formats |
JPG, BMP, PNG, TIF |
| Colour depth |
24-bit RGB |
| Magnification |
20x - 300x |
| Equivalent focal length |
15.8 mm |
| Field of view |
13° |
| Focusing range |
10-150 mm |
| Shutter speed |
1 s - 1/1000 s |
| White balance |
Automatic |
| Illumination |
8 super-bright white LEDs, adjustable brightness |
| Connection |
USB 2.0 |
| Cable length |
1.4 m |
| Power supply |
Via USB - no batteries required |
| Compatible operating systems |
Windows (all versions), Mac OS X 10.6-10.8 |
| Included software |
Delta Optical Smart Analysis PRO |
