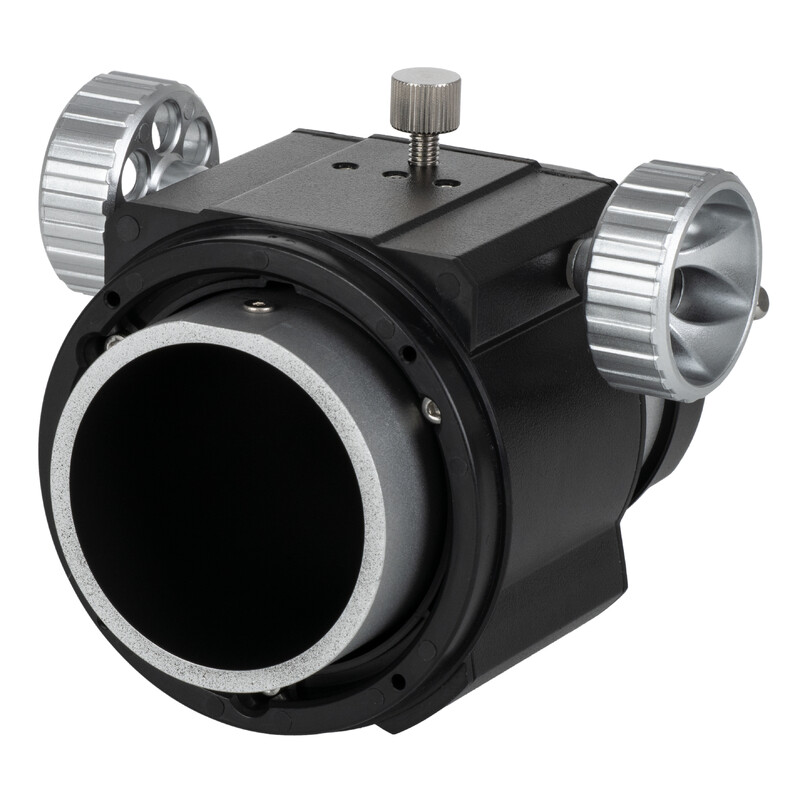

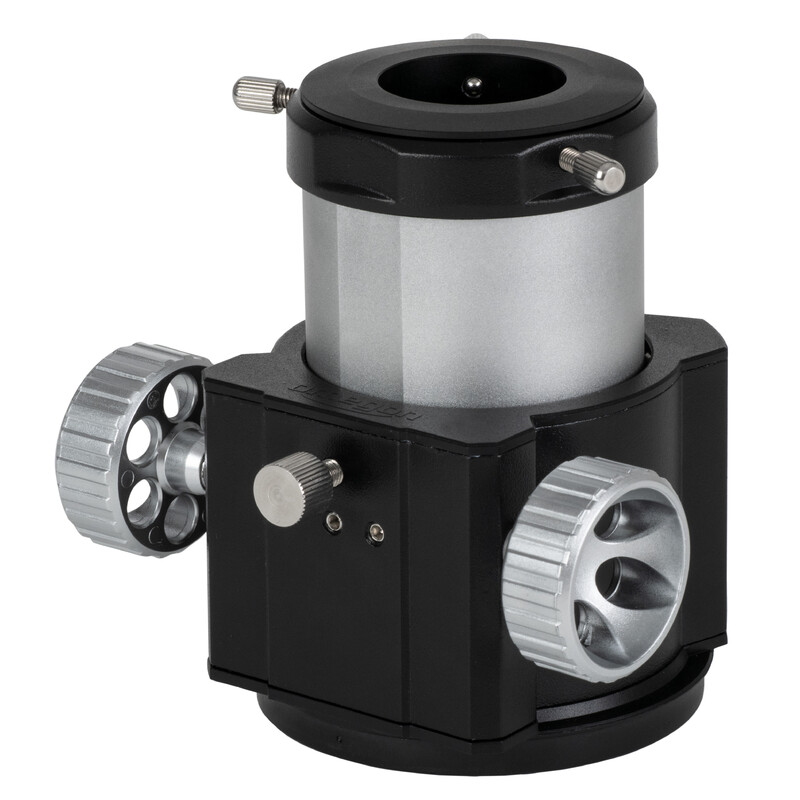

Omegon Alpha Crayford 2″ focuser for Newtonian telescopes
Sharp focus is the foundation of every enjoyable observing session and astrophotography run. If your telescope still uses an older rack-and-pinion focuser, you know how frustrating slipping and imprecise focusing can be - especially at high magnification or when shooting photos. The Omegon Alpha Crayford 2″ offers an elegant solution: a smooth, precise and affordable Crayford focuser for Newtonian telescopes that easily upgrades your existing instrument.
Why choose a Crayford focuser?
The Crayford mechanism is popular among astronomers for good reason. Unlike a classic rack-and-pinion, it works on the principle of friction between rollers and the drawtube, resulting in absolutely smooth movement with no backlash or sticking. You will especially appreciate this when fine-tuning planetary details or focusing on stars near the resolution limit of your instrument.
The Omegon Alpha additionally features ball bearings, which ensure an even smoother operation and a long service life of the mechanism.

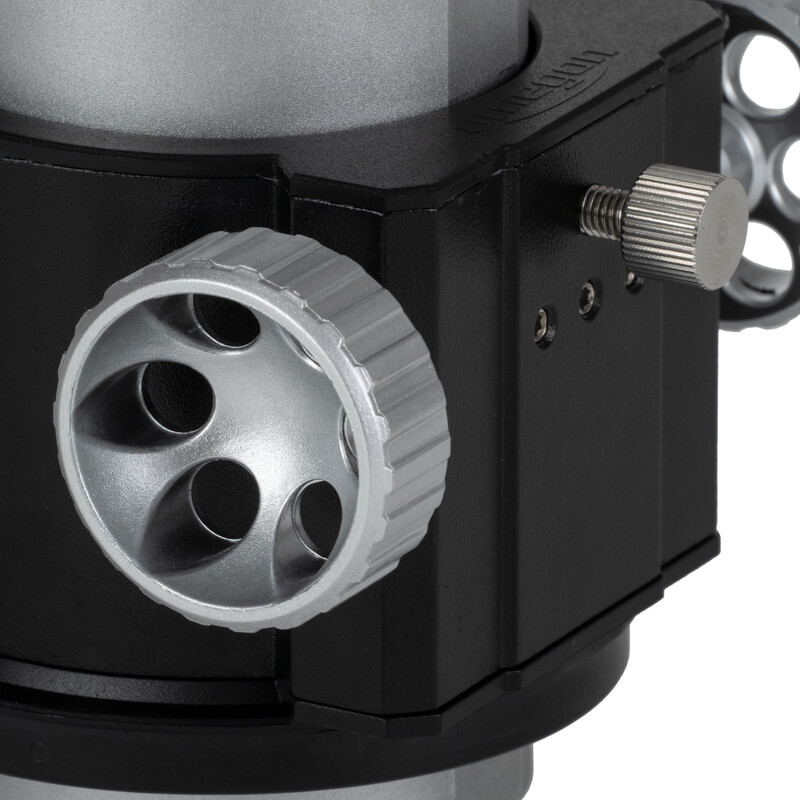

Adjustable friction and secure lock
A practical advantage of this focuser is the ability to adjust the friction to suit your needs - whether you are using a light eyepiece or a heavier camera with an adapter. The load capacity reaches 1 kg, so the focuser handles even more demanding photographic equipment without any issues.
Once you find the correct focus position, you can immediately lock it with the locking screw. This is ideal for astrophotography, where any movement after focusing can ruin the shot.
Compatibility and installation

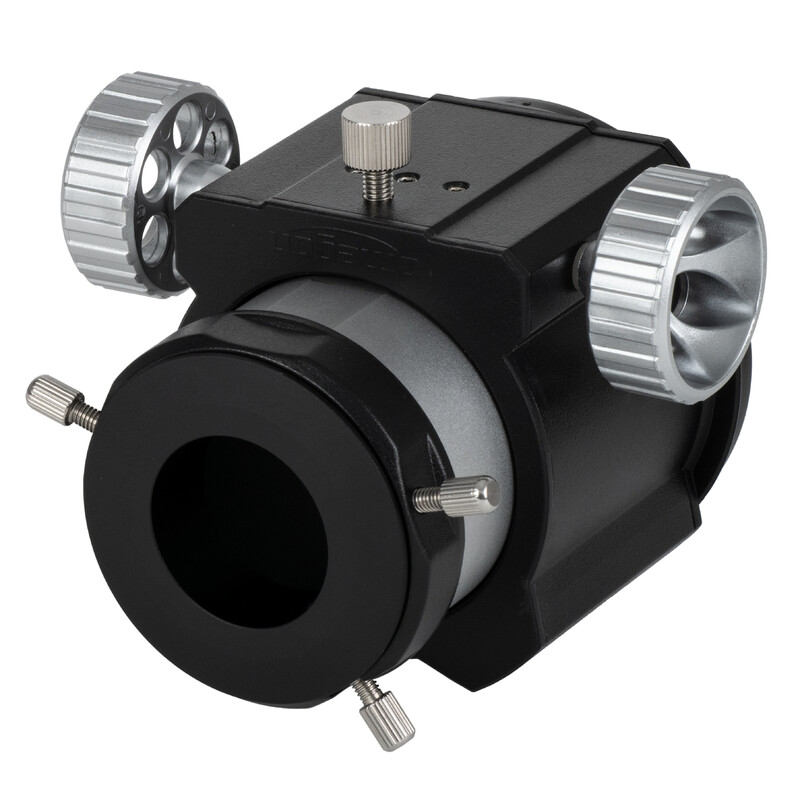

The package includes a 2″ to 1.25″ reduction ring with a filter thread, making the focuser compatible with a wide range of eyepieces and accessories in both of the most common barrel sizes. The 78 mm mounting diameter corresponds to standard Newtonian tubes, so installation is straightforward and requires no special modifications.
Key specifications
| Parameter |
Value |
| Focuser type |
Crayford |
| Barrel diameter |
2″ (with 1.25″ reduction ring included) |
| Mounting diameter |
78 mm |
| Load capacity |
1 kg |
| Bearings |
Ball bearings |
| Locking screw |
Yes |
| Adjustable friction |
Yes |
| Compatible telescopes |
Newtonian reflectors |
A worthwhile upgrade for your Newtonian
Upgrading your Newtonian to a Crayford focuser is one of the most effective and affordable investments you can make for your telescope. You will feel the difference from the very first look through the eyepiece - focusing will be more precise, more comfortable and more reliable under any conditions.
