Delta Optical Genetic Pro Trino Microscope 40x-1000x + Battery
Overview

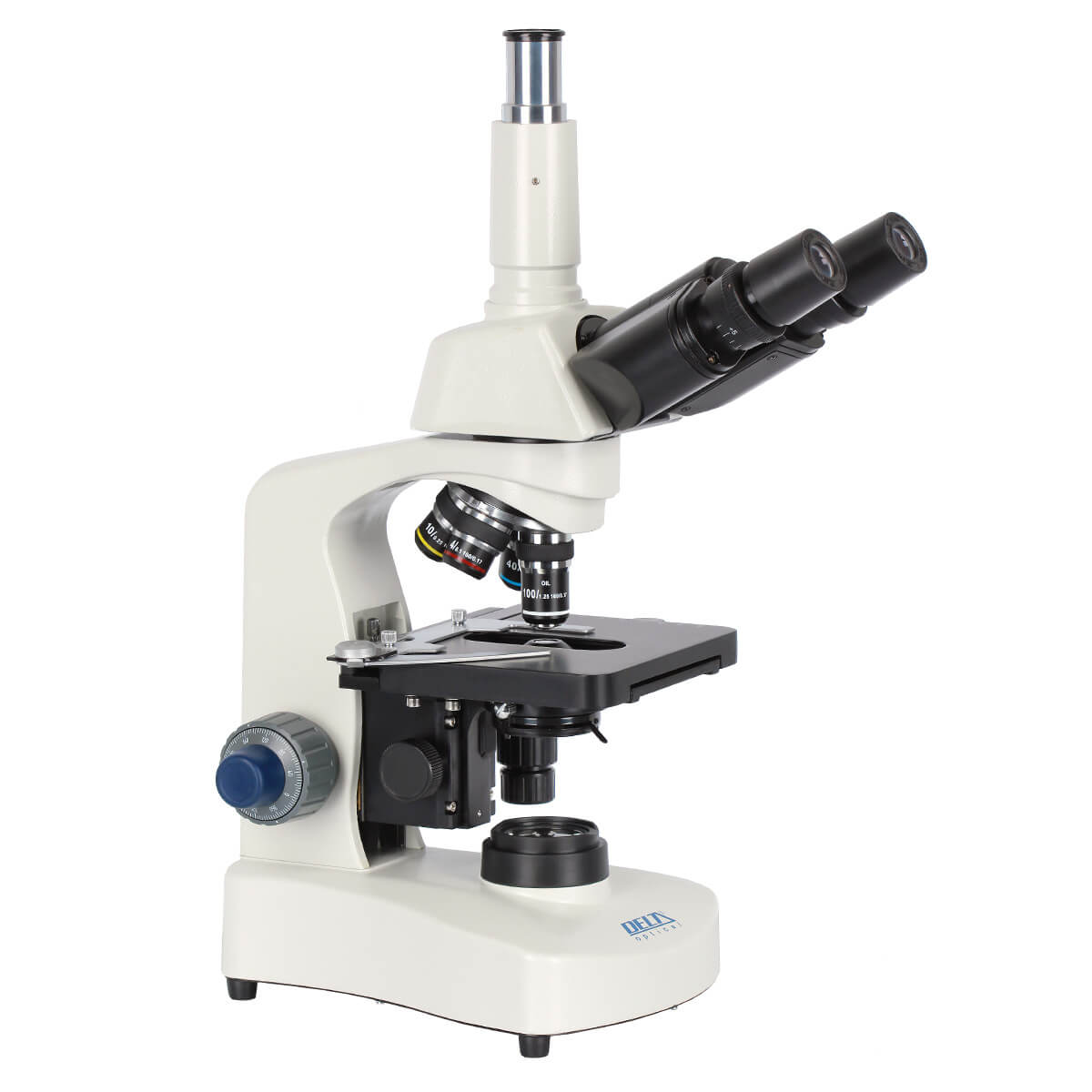

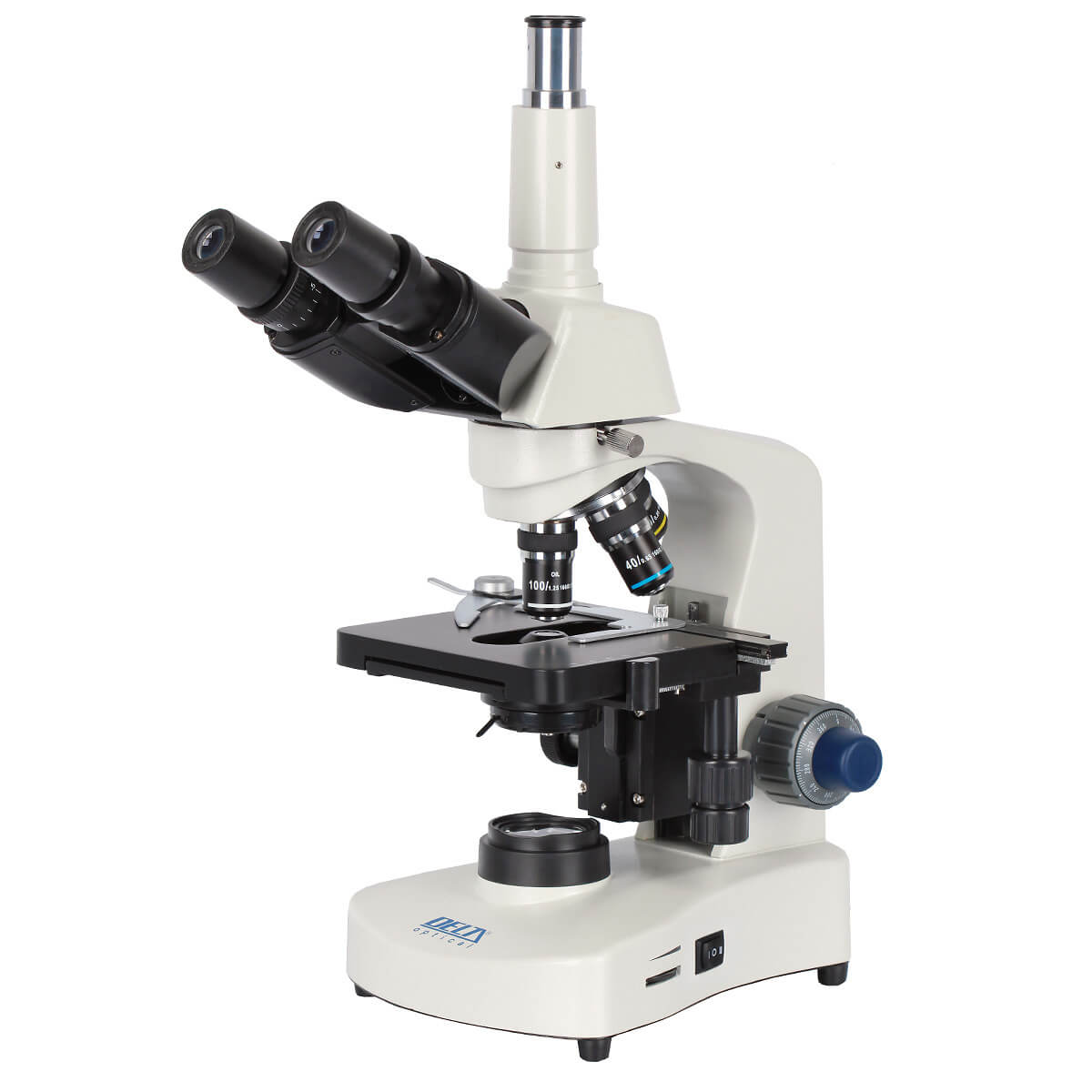

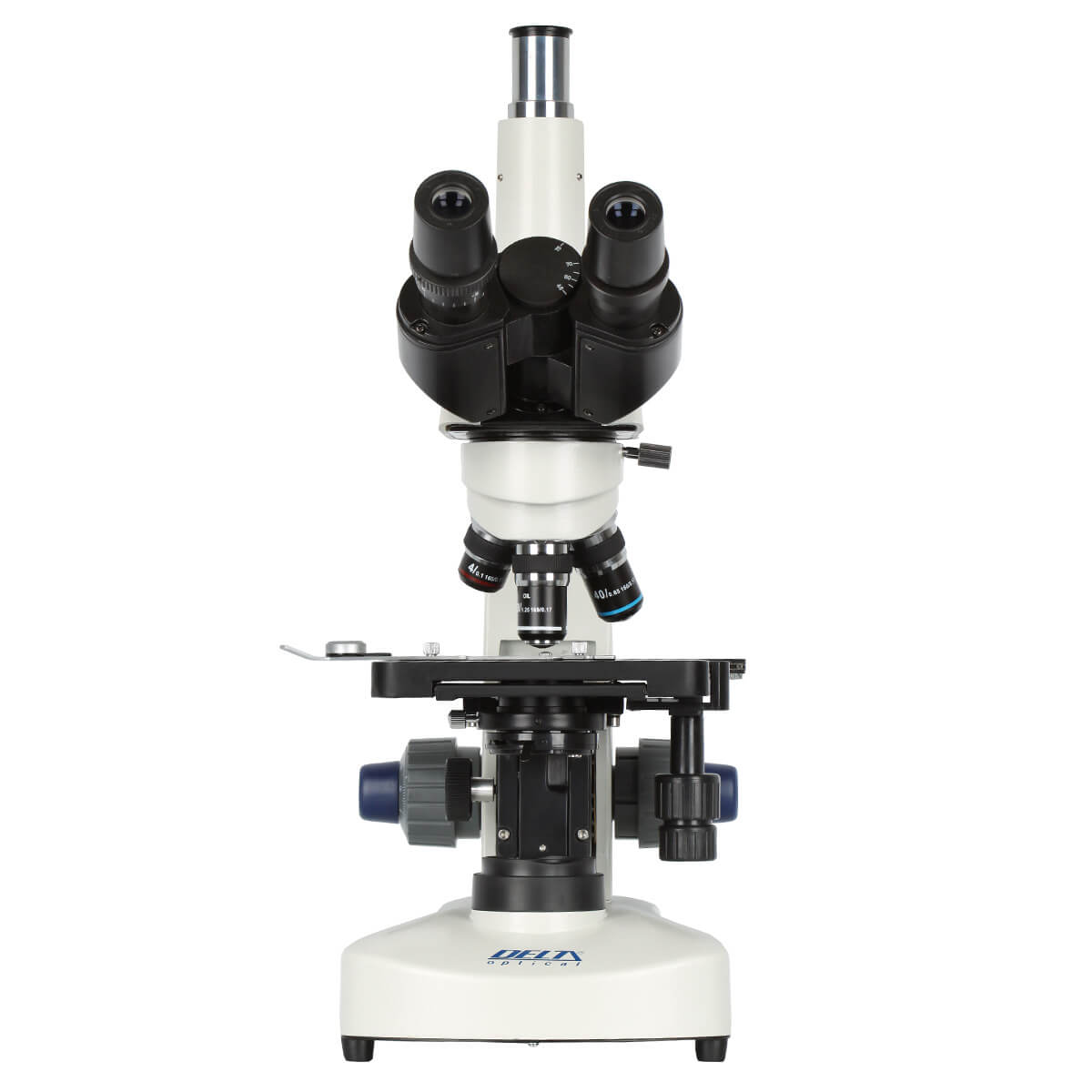

The Delta Optical Genetic Pro Trino is a professional trinocular biological microscope designed for demanding users in scientific, educational, and medical fields. It combines a solid all-metal body, high-quality achromatic optics, and modern LED illumination with an ergonomic trinocular head. Thanks to its built-in rechargeable battery, the microscope is also suitable for fieldwork or locations without access to a power outlet. The Trino model additionally features a third straight camera port, enabling easy photography and video documentation of specimens.
This microscope is a popular choice among physicians, veterinarians, sanitary laboratory staff, and university researchers. It is also widely used in secondary school biology education and student laboratories. With a rich set of accessories and the option to expand with darkfield, phase contrast, or polarization techniques, the Delta Optical Genetic Pro Trino is an investment built to last through many years of intensive use. Microscopes from the Genetic Pro series are even awarded as prizes to winners of the central rounds of the Biology Olympiad, sponsored by Delta Optical.
Optics and Magnification

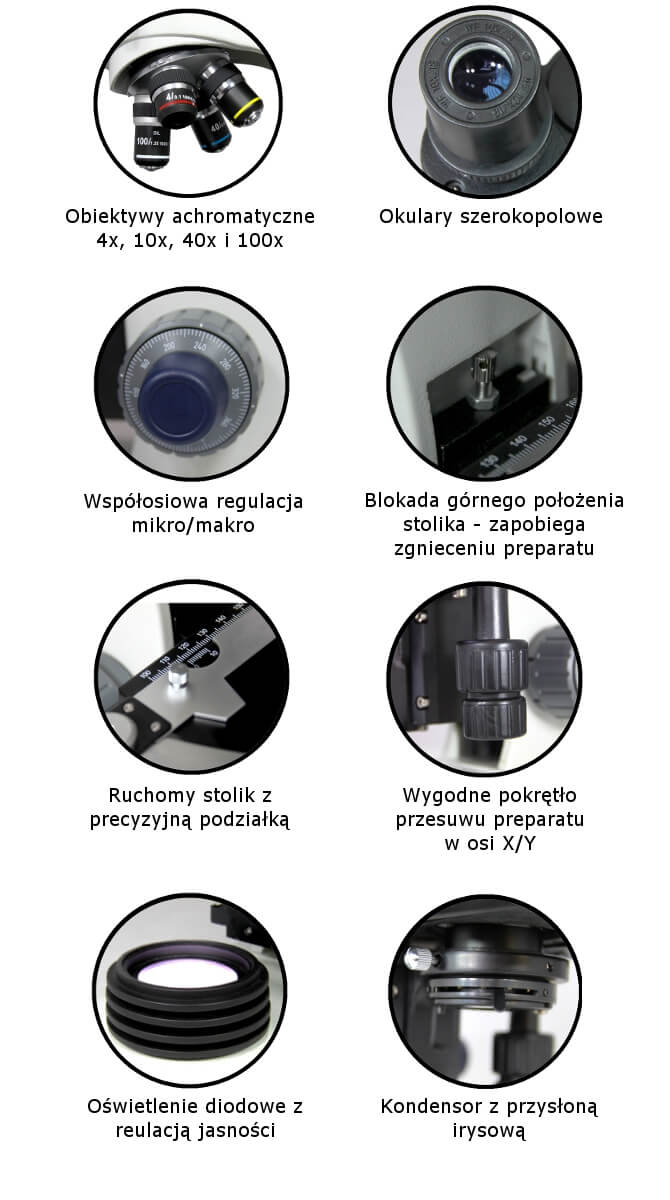

The microscope is equipped with four achromatic objectives with magnifications of 4x, 10x, 40x, and 100x (immersion; immersion oil is included). Combined with the supplied wide-field eyepieces WF 10x/18 mm, the total magnification range is 40x, 100x, 400x, and 1000x. Achromatic correction ensures sharp and accurate imaging free of chromatic aberrations across the entire field of view. Diopter adjustment on the left eyepiece tube covers a range of +/-5D, allowing comfortable adaptation for users with various visual impairments. The interpupillary distance is adjustable from 48 to 75 mm, making the microscope suitable for a wide range of users.
Trinocular Head and Camera Output

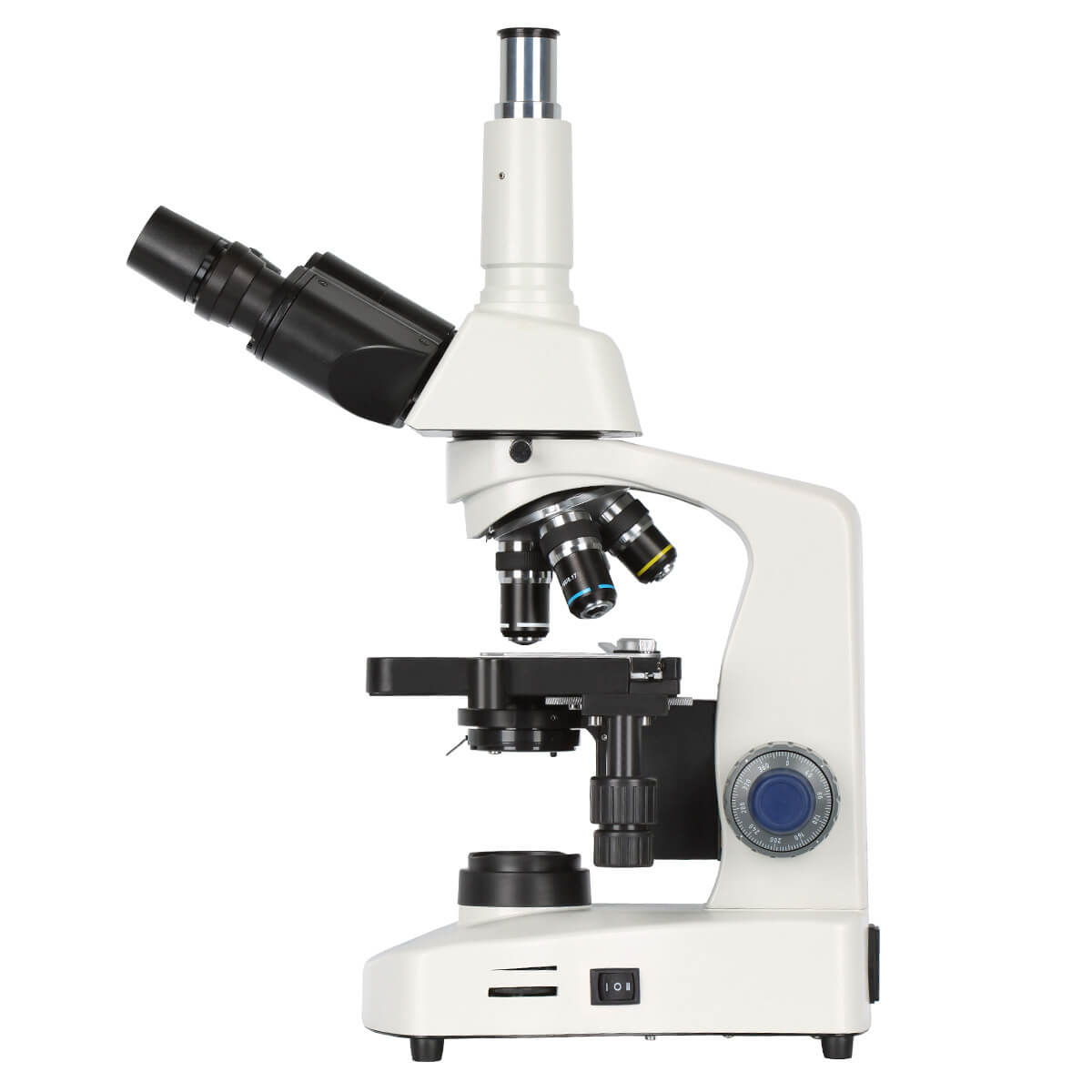

The trinocular head rotates 360° and the eyepieces are inclined at 30°, ensuring ergonomic and comfortable observation even during extended working sessions. The third straight port with a diameter of 23.2 mm is designed for connecting a microscopic camera, and the light-splitting ratio in the head is set at 50:50 between the eyepieces and the camera port. The Delta Optical Genetic Pro Trino with camera output allows simultaneous visual observation and image recording - invaluable during teaching sessions, presentations, or scientific documentation. With a wide range of compatible cameras and photographic adapters from Delta Optical, users can capture high-resolution images and videos and process them with specialized software.
Illumination and Condenser
Transmitted illumination is provided by a white LED with continuously adjustable intensity, delivering uniform and stable light without thermal stress to the specimen. Light is focused on the observed specimen using an Abbe condenser with a numerical aperture of N.A. 1.25, which ensures optimal contrast and resolution even at the highest magnification. The microscope is powered by a 220V AC mains adapter included in the package, and also features a built-in rechargeable battery for cordless operation - ideal for field teaching or mobile laboratories.
Mechanical Stage and Focusing
The robust mechanical stage measures 142 x 132 mm and is equipped with a cross-slide mechanical stage with a vernier scale, allowing precise specimen movement over a range of 75 x 40 mm. The stage accommodates up to two slides simultaneously. Coaxial coarse and fine focusing (dual-sided) ensures both fast and precise focus; the minimum increment of fine focus is 4 µm. The entire microscope body is all-metal, stable, and durable, built for daily intensive use.
Expandability and Accessories
The Delta Optical Genetic Pro series can be extended with a variety of accessories for advanced observation techniques. Available add-ons include darkfield, phase contrast, and polarization equipment, which significantly expand the microscope's capabilities and open the door to professional research applications. A wide selection of microscopic cameras and software solutions enables digital documentation, analysis, and archiving of specimens. This makes the Genetic Pro Trino a future-proof choice as the demands of your work grow over time.
Specifications
| Parameter |
Value |
| Total magnification range |
40x - 1000x |
| Objectives |
4x, 10x, 40x, 100x (oil immersion) - achromatic |
| Eyepieces |
WF 10x / 18 mm wide-field |
| Head type |
Trinocular, 360° rotatable, 30° inclined |
| Camera port diameter |
23.2 mm |
| Light split ratio |
50:50 (eyepieces : camera port) |
| Diopter adjustment |
+/-5D (left eyepiece tube) |
| Interpupillary distance |
48-75 mm |
| Illumination |
White LED, continuously adjustable intensity |
| Condenser |
Abbe, N.A. 1.25 |
| Mechanical stage size |
142 x 132 mm |
| Stage travel range |
75 x 40 mm |
| Fine focus increment |
4 µm |
| Focusing system |
Coaxial coarse and fine, dual-sided |
| Power supply |
220V AC adapter (included) + built-in rechargeable battery |
| Body construction |
All-metal |
| Immersion oil |
Included |
Certifications and Recognition
The Delta Optical Genetic Pro microscope is recommended for school use by the Polish Ministry of Education (recommendation no. 2432/2009) and is listed in the catalogue of didactic aids for biology teaching in secondary schools and high schools. The review was prepared by Prof. Dr. Hab. Danuta Cichy (Institute for Educational Research) and Dr. Wiktor Dżygóra (Academy of Physical Education in Katowice). Microscopes from the Genetic Pro series are also awarded as prizes to winners of the Biology Olympiad (www.olimpbiol.uw.edu.pl), sponsored by Delta Optical. These recognitions confirm the exceptional quality-to-price ratio that places the Genetic Pro series among the best choices in its class.
About Delta Optical
Delta Optical is a renowned manufacturer and supplier of optical instruments with a long-standing tradition. The company places emphasis on precise craftsmanship, reliability, and accessibility of its products - from microscopes and binoculars to sports optics. The brand is popular among professionals in medicine, veterinary science, laboratory work, and education, while also winning the appreciation of enthusiasts who seek quality optics at a reasonable price. Delta Optical Genetic Pro microscopes are a clear example of this - solid construction, outstanding optics, and a wide range of accessories make them a tool that meets the requirements of both a beginning student and an experienced researcher. Delta Optical continuously expands its product range and invests in the development of new solutions to always offer its customers the best of modern optical technology.
Key Benefits at a Glance
- Professional trinocular head with 360° rotation and 30° eyepiece inclination for comfortable extended use
- High-quality achromatic optics providing sharp, color-accurate imaging at all magnifications
- Camera port (23.2 mm) for easy connection of a microscopic camera with simultaneous visual observation
- Built-in rechargeable battery for cordless field use
- LED illumination with adjustable intensity and Abbe condenser N.A. 1.25
- All-metal body built for intensive daily laboratory use
- Expandable with darkfield, phase contrast, polarization accessories and digital cameras
- Recommended by the Polish Ministry of Education - proven in science and education
- Immersion oil and mains adapter included
