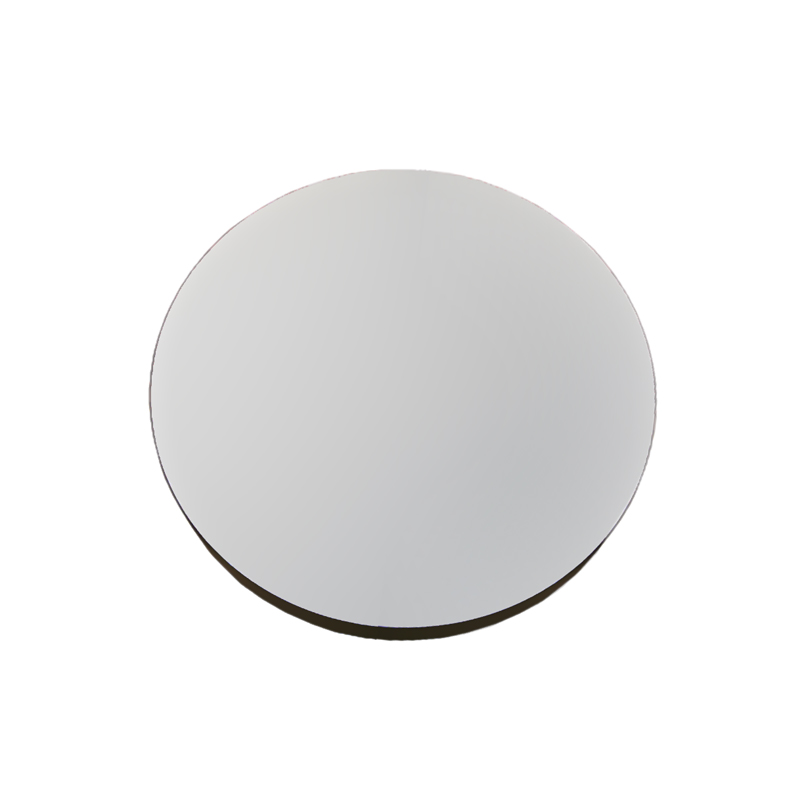

Sky-Watcher primary mirror 200/1200
Every Newtonian reflector stands or falls with its primary mirror. It is the mirror that gathers light from the universe, focuses it at the focal point, and ultimately determines how sharp, contrasty and detailed the image will be - whether you are looking through an eyepiece or capturing it with a camera sensor. The Sky-Watcher primary mirror with a diameter of 200 mm and a focal length of 1200 mm (f/6) is a precision-ground optical component designed as a replacement part or upgrade for Newtonian reflectors of the corresponding configuration from the Sky-Watcher range.
Optical specifications
| Parameter |
Value |
| Mirror diameter |
200 mm (8″) |
| Focal length |
1200 mm |
| Focal ratio |
f/6 |
| Mirror shape |
Parabolic |
| Coating |
High-reflectivity aluminium with protective overcoat |
| Intended use |
Replacement part / upgrade for Sky-Watcher Newtonian reflectors |
Why the 200 mm f/6 format works
A 200 mm aperture provides a light-collecting area large enough to reveal relatively faint deep-sky objects - nebulae, galaxies, and globular clusters. The f/6 focal ratio is a comfortable compromise: it is not as demanding as f/4-f/5, where coma and astigmatism become immediately apparent with average eyepieces, but it also does not extend the tube to the unwieldy lengths associated with f/8 and above.
The result is a 200 mm f/6 mirror equally suited to visual observation of planets and double stars and to wide-field astrophotography of extended deep-sky objects. The glass substrate is worked to a high surface accuracy and coated with a high-reflectivity aluminium layer with a protective overcoat for long-term durability.
When to replace the primary mirror
A primary mirror can deteriorate over the years - most often through improper cleaning, mechanical impact, or degradation of the surface coating due to moisture and contamination. If you notice any of the following, mirror replacement is the most effective solution:
- Reduced contrast that persists even after careful collimation
- Blurred star images despite accurate alignment
- Visible scratches or flaking of the reflective coating
This mirror is also an excellent choice for amateur telescope makers (ATM) looking for quality optics for a 200/1200 Newtonian reflector without the need to grind their own glass.
Installation and collimation
Replacing the primary mirror requires basic practical skill and a working knowledge of Newtonian collimation. After the physical swap, precise collimation of the entire optical system is essential - ideally using a collimation eyepiece or a laser collimator. The parabolic mirror shape is designed to deliver sharp, high-contrast images across the full field of view once correctly collimated, free from the coma that is typical of spherical mirrors at this aperture.
Why it is worth investing in a quality primary mirror
Investing in a quality primary mirror extends the service life of your telescope and restores its original optical performance - or even takes it to a new level. Whether you are replacing a damaged mirror or building a telescope from scratch, this component forms the optical heart of the entire instrument.
