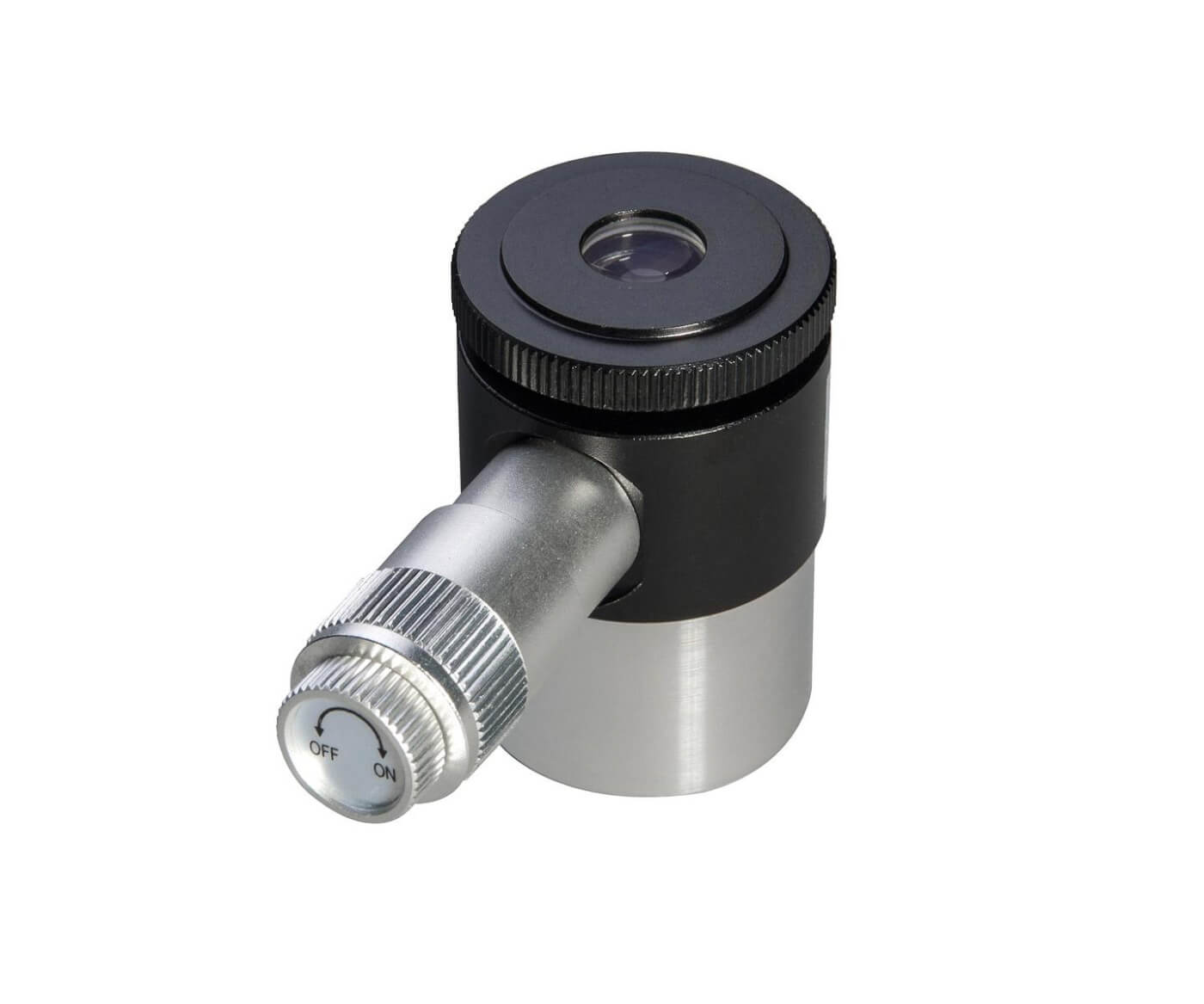

TS Optics Crosshair 12,5mm 50° 1.25″ Illuminated Reticle Eyepiece

TS Optics Crosshair 12.5mm 50° 1.25″ Illuminated Reticle Eyepiece

Precise Guiding in Every Condition

The TS Optics Crosshair illuminated reticle eyepiece is built on a proven four-element Plössl design with a 12.5mm focal length. The optical construction delivers excellent sharpness across the entire field of view and comfortable, clear views at the eyepiece. The standard 1.25″ barrel fits the vast majority of telescopes on the market. It is an affordable yet reliable tool for anyone who needs a precise instrument for guiding or calibration.

Illuminated Double Crosshair

At the heart of this eyepiece is a double crosshair with fully adjustable illumination. You can dial the brightness of the crosshair to match the brightness of your guide star - no more washing out a faint star or losing the reticle against a bright background. The double crosshair lets you centre a guide star precisely and keep it exactly in position throughout your session.

If your telescope uses a GoTo mount, this eyepiece also works as a star-alignment tool. Placing calibration stars accurately at the centre of the field improves the pointing accuracy of the entire mount system.

Built for Astrophotography and Visual Guiding

A guiding eyepiece with an illuminated reticle is an essential accessory for astrophotography and for any visual work that requires precise object tracking. The steplessly adjustable illumination keeps the crosshair clearly visible under a wide range of conditions - from a semi-dark suburban sky to a fully dark rural site. The optical system is designed to minimise aberrations and deliver a clean, high-contrast image.

How to Align the Crosshair to Your Mount Axes

For the most accurate guiding, align one axis of the crosshair parallel to the right ascension axis and the other parallel to the declination axis. Here is how to do it:

1. Use the mount hand controller to drive a star slowly along the right ascension axis.
2. Rotate the eyepiece in the focuser barrel while watching the star move.
3. Stop rotating when the star travels exactly parallel to one of the crosshair lines.
4. Lock the eyepiece in place at that angle.

This simple one-time calibration lets you see instantly whether any drift during guiding is in right ascension or in declination. Corrections become faster and more precise, and the result is smoother, sharper astrophotography frames.

About TS Optics

TS Optics (Teleskop-Service) is a German company with a long tradition in astronomical optics and accessories. Astronomers around the world trust the brand for its reliable quality, wide product range, and competitive prices. TS Optics eyepieces are designed with practical observers in mind - from beginners taking their first steps in astronomy to experienced astrophotographers. Every product goes through careful quality control to meet the high expectations of demanding users.

Technical Specifications
