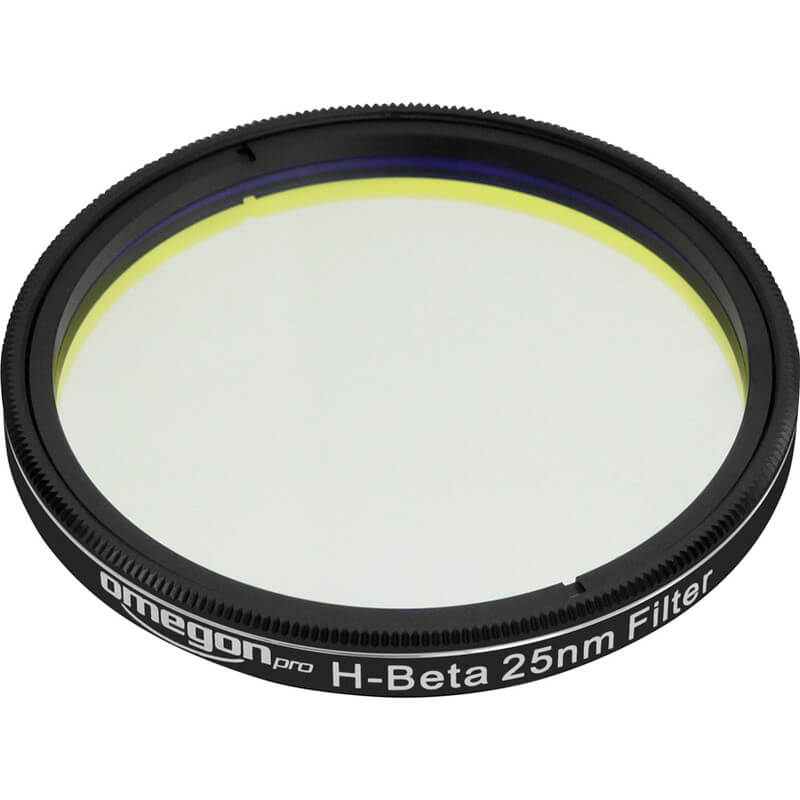

Omegon Pro 2″ H-Beta Filter
See What Others Cannot - The Power of H-Beta Filtration
Some objects in the night sky fascinate astronomers around the world and their observation becomes a true astronomical experience. One of the most famous is the Horsehead Nebula in the constellation Orion - an object well known from stunning astrophotographs, but visually extremely challenging. The Omegon Pro H-Beta 2″ filter was designed precisely for such observations, making it possible to see this iconic object directly through the eyepiece. This filter is intended for experienced observers who want to get the most from their telescope and explore deeper into the world of emission nebulae.
How the H-Beta Filter Works
The Omegon Pro H-Beta filter operates on the principle of narrowband light transmission. It passes only radiation in the region of the hydrogen emission line H-Beta at a wavelength of 486 nm, with a passband width of 25 nm. This means that light pollution, airglow, and other unwanted wavelengths are effectively suppressed, while light emitted by ionized hydrogen in emission nebulae passes through unobstructed. The result is a significantly higher contrast between the observed object and the dark sky background - a key requirement for successful visual observation of these otherwise very faint objects.
Construction and Optical Quality
The filter is made in a threaded design for the standard 2″ size and can be easily screwed into an eyepiece or into the telescope's focuser. The optical glass of the filter is coated with high-quality multi-layer vacuum coatings that ensure sharp transition edges of the passband and minimal reflection of unwanted light. Thanks to the carefully machined mounting ring, there are no unwanted reflections or mechanical vibrations during use. The robust construction is built to withstand years of intensive use in the field.
Best Objects for the H-Beta Filter
The Omegon Pro H-Beta filter is the ideal choice for observing the Horsehead Nebula (Barnard 33), which would remain completely invisible without this filter even in the largest amateur telescopes. Other suitable objects include:
- California Nebula (NGC 1499) in the constellation Perseus
- Cocoon Nebula (IC 5146) in the constellation Cygnus
- IC 434 - the bright emission nebula framing the Horsehead
- Various other H-Beta emitting diffuse nebulae
All of these objects radiate predominantly in the H-Beta line and their visibility improves dramatically when using this filter. A combination with a telescope of at least 8 to 10″ aperture and a dark sky far from light pollution is recommended - the better the conditions, the more impressive the result.
Recommended Observing Conditions
To get the best results from the Omegon Pro H-Beta filter, the following conditions are recommended:
- Telescope aperture of at least 8″ (200 mm), ideally 10″ or more
- Truly dark sky with a Bortle class of 4 or lower
- Good atmospheric transparency and stable seeing
- Low-power, wide-field eyepiece to maximize exit pupil
- Dark-adapted eyes - allow at least 20-30 minutes of dark adaptation
Technical Specifications
| Parameter |
Value |
| Filter type |
Narrowband H-Beta |
| Thread size |
2″ (standard eyepiece thread) |
| Center wavelength |
486 nm |
| Passband (FWHM) |
25 nm |
| Coating |
Multi-layer vacuum deposition |
| Application |
Visual observation and astrophotography |
| Primary targets |
Emission nebulae (Horsehead, California, Cocoon) |
| Recommended aperture |
8″ (200 mm) and larger |
Why Choose Omegon Pro
Omegon Pro is a brand dedicated to astronomers who place emphasis on quality, precision, and reliability of their equipment. Omegon Pro products are designed with the needs of experienced observers and astrophotographers in mind - people who do not want to make compromises. Omegon Pro filters are characterized by carefully controlled optical parameters, high-quality vacuum coatings, and a durable construction that withstands years of intensive use. The extensive range of Omegon Pro accessories and filters covers the needs of both visual observers and astrophotographers working under a wide variety of sky conditions. The Omegon brand is well established in the astronomical community and enjoys the trust of thousands of astronomers across Europe and around the world.
An Investment That Opens New Horizons
The Omegon Pro H-Beta filter offers astrophysically accurate performance at an accessible price. It is an investment that opens new possibilities for visual observation - with the H-Beta filter you will see nebulae that are completely invisible without it, giving you unforgettable experiences under the night sky. Every astronomer who has once seen the silhouette of the Horsehead directly through the eyepiece understands why this filter is considered one of the most valuable accessories for visual observers.
