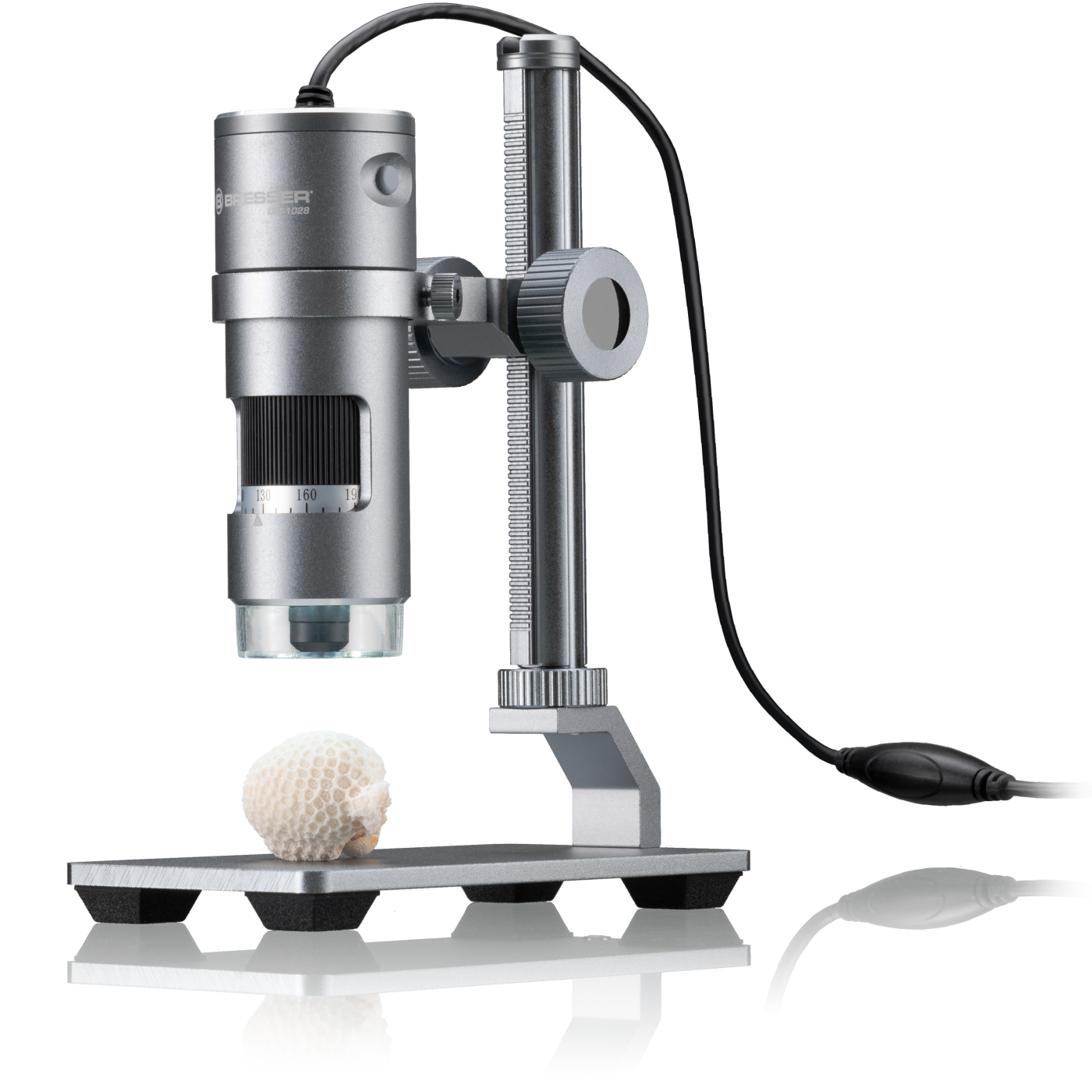

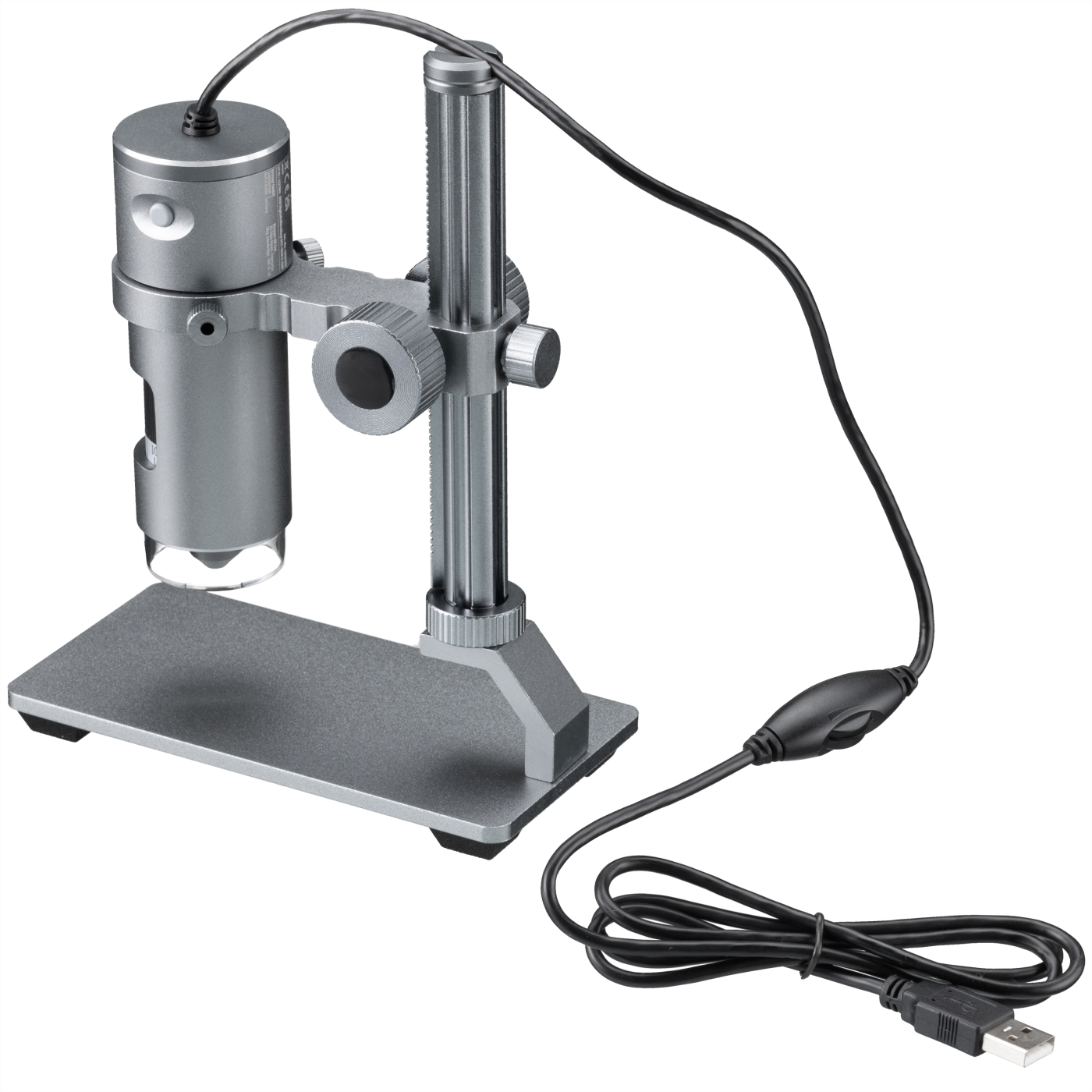

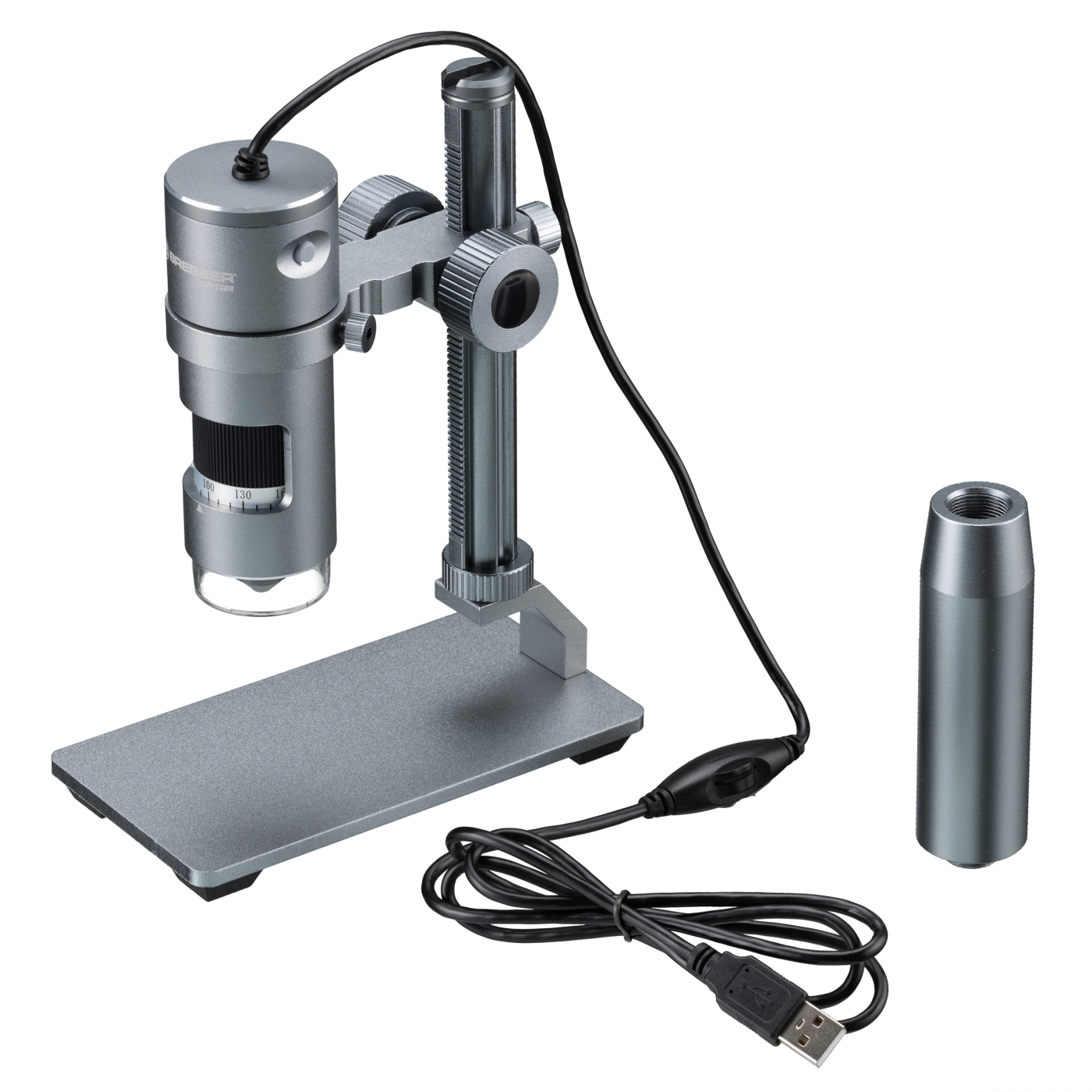

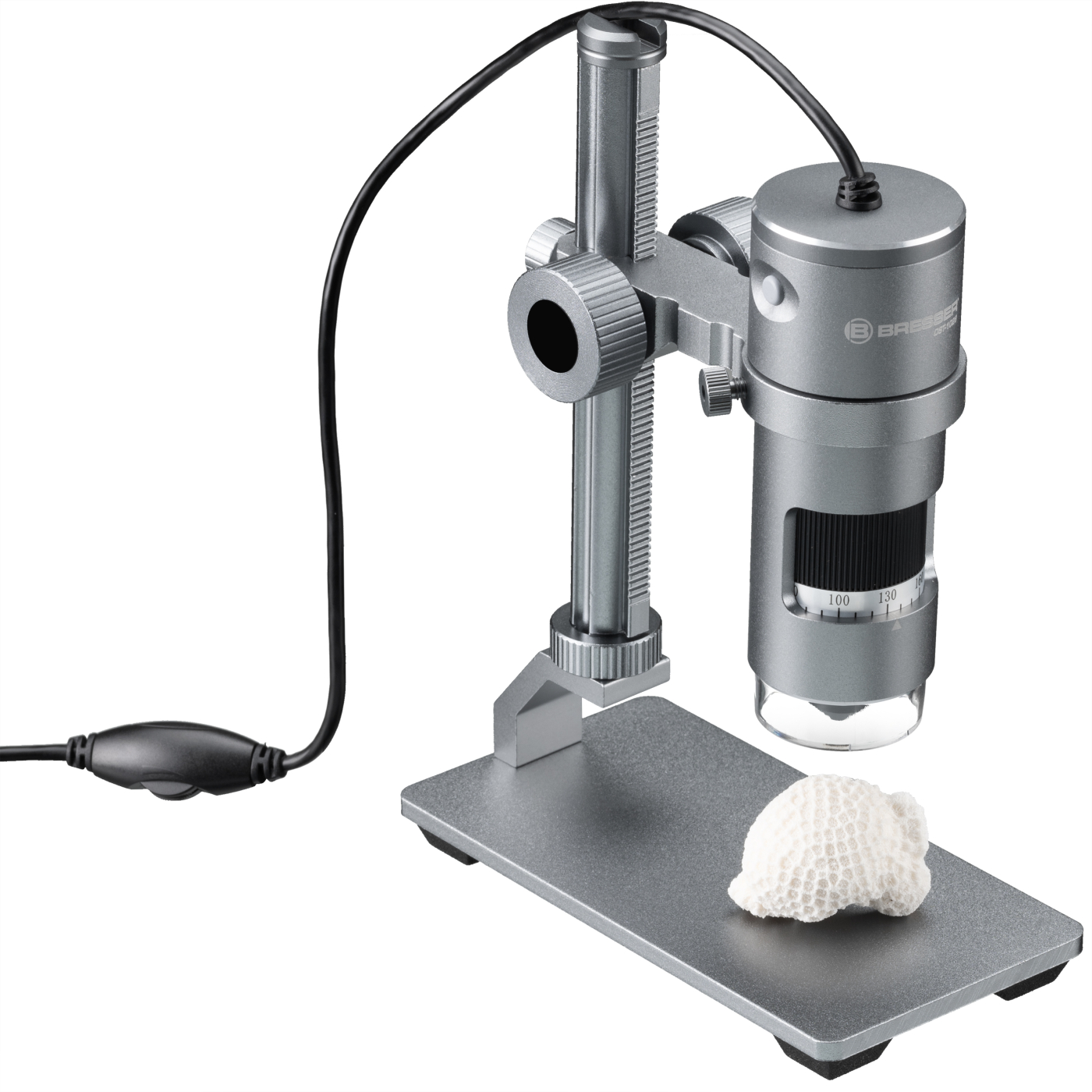

Bresser DST-1028 5MP USB digital microscope - 10x to 280x magnification
Looking for a reliable tool for detailed examination of samples, electronics, plants or jewellery? The Bresser DST-1028 digital microscope with 5MP resolution and a magnification range of 10x to 280x is an excellent choice for both enthusiastic amateurs and professionals in industry, education or scientific research. A robust metal body, quality optics and direct USB connection - all in one compact device that displays everything directly on your computer screen.
Optical system and magnification
At the heart of the microscope is a high-quality optical system with smooth continuous zoom covering a range from 10x to 280x. This flexibility allows you to adapt the magnification to a specific task - from a wide overview of a larger object to detailed analysis of surface microstructure. The fields of view are as follows:
| Magnification |
Field of view |
| 10x |
42 x 32 mm |
| 100x |
4.2 x 3.2 mm |
| 280x |
1.6 x 1.2 mm |
The working distance at the lowest magnification reaches a comfortable 110 mm, which provides sufficient space for handling a specimen or tool directly under the objective - practical for example when preparing samples or doing fine work with electronics.
Illumination
Lighting plays a key role in microscopy and the Bresser DST-1028 addresses this elegantly. Ring incident lighting consists of eight LED diodes distributed evenly around the objective, so specimens are illuminated from all sides without disruptive shadows. Brightness can be smoothly adjusted using a dimmer integrated directly into the USB cable - no need to search for buttons on the microscope body. The lighting is classified as class 1, meaning it is safe for eyes. The entire microscope including the LEDs is powered exclusively via USB (5V), so no external adapter is required.
Image sensor and software

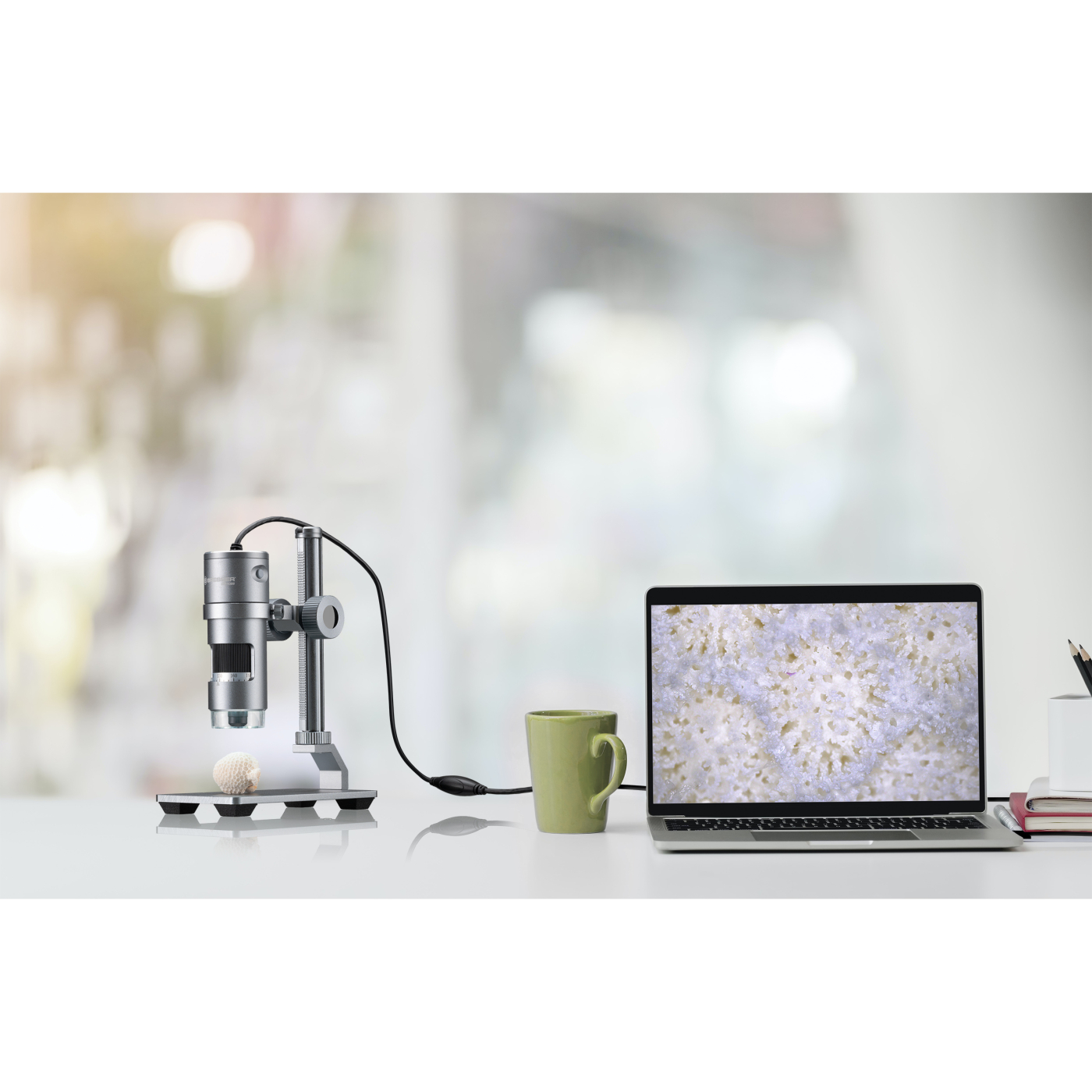

The CMOS image sensor with a resolution of 2592 x 1944 pixels (5.0 MP) delivers a sharp and detailed image even at higher magnifications. The microscope connects easily to a computer via USB and the included software (available for download) enables not only live viewing and image saving, but also measurement functions - excellent for documentation and sample analysis in a professional environment.
The software is compatible with Windows 8.1, 10 and 11. The USB cable length is 1.2 m, which provides sufficient freedom of movement during work.
Build quality and dimensions

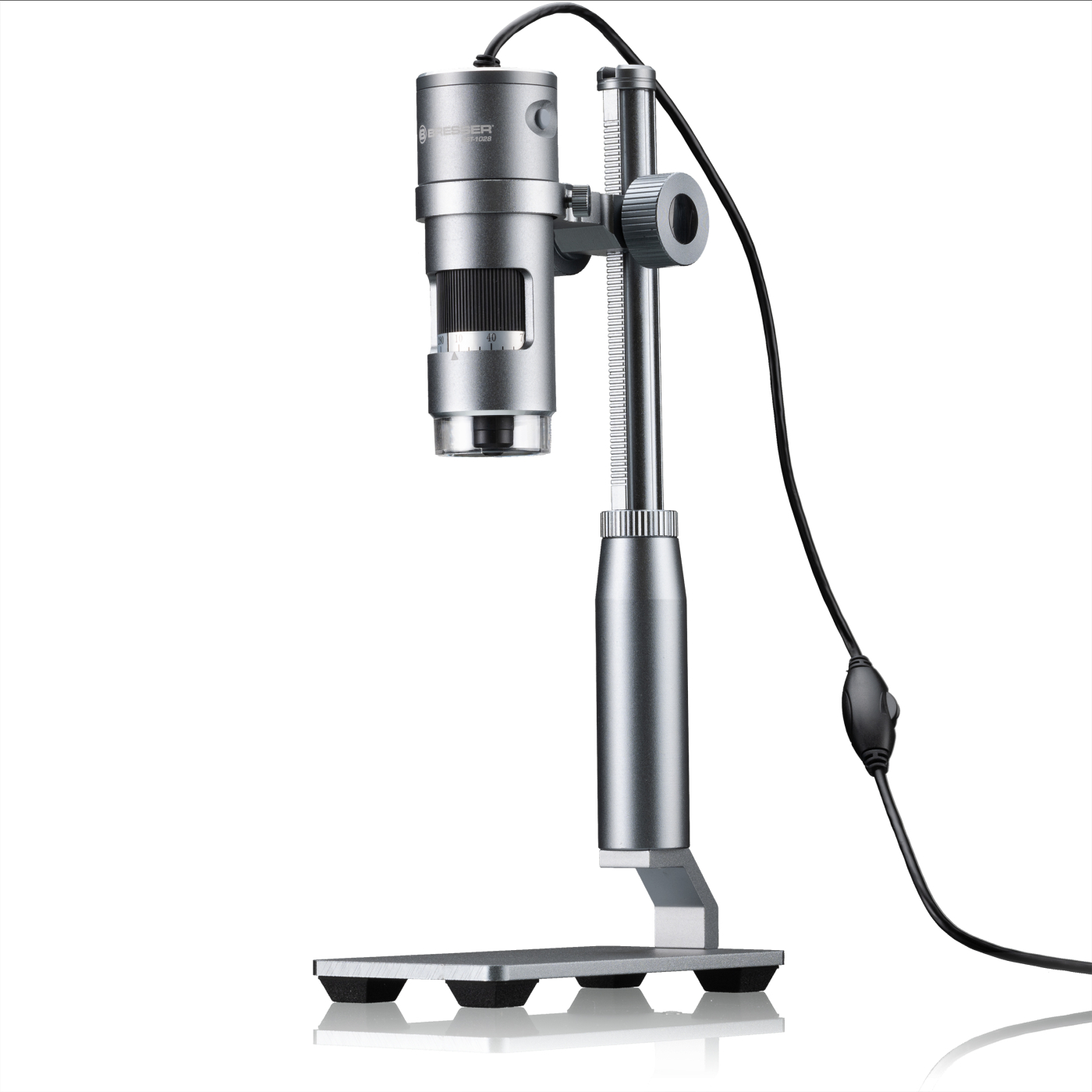

Both the microscope body and the stand are made of metal, ensuring stability and long service life. The metal stand is height-adjustable, so the working distance can be easily adapted to low flat objects (such as printed documents or circuit boards) as well as taller specimens up to approximately 100 mm.
| Parameter |
Value |
| Dimensions |
148 x 77 x 200 mm |
| Weight (incl. accessories) |
700 g |
| USB cable length |
1.2 m |
| Power supply |
USB 5V |
| Image resolution |
2592 x 1944 px (5 MP) |
| Magnification range |
10x - 280x |
| Working distance (10x) |
110 mm |
| Number of LEDs |
8 |
| LED safety class |
Class 1 |
| Compatible OS |
Windows 8.1, 10, 11 |
Applications
The Bresser DST-1028 finds use across a wide range of fields:
- Industry and quality control - surface inspection, welds and micro-components
- Forensic workplaces - examining evidence or verifying the authenticity of documents and objects
- Educational institutions - botany, entomology and materials science lessons
- Electronics enthusiasts - comfortable working distance for PCB inspection and soldering work
- Jewellery and numismatics - detailed examination of coins, gems and precious metals
About the Bresser brand
Bresser is a German brand with a long tradition in optics and precision instruments, which has built a strong reputation thanks to careful product design and the availability of spare parts and software. The DST series microscopes are designed to work reliably both on a school desk and in industrial environments. Direct Windows support without the need to install special drivers, solid metal construction and well-thought-out details such as the integrated dimmer on the cable all demonstrate that the product was designed by real users with practical needs in mind. Investing in the Bresser DST-1028 is an investment in a tool that will serve you for years without unnecessary compromises.
