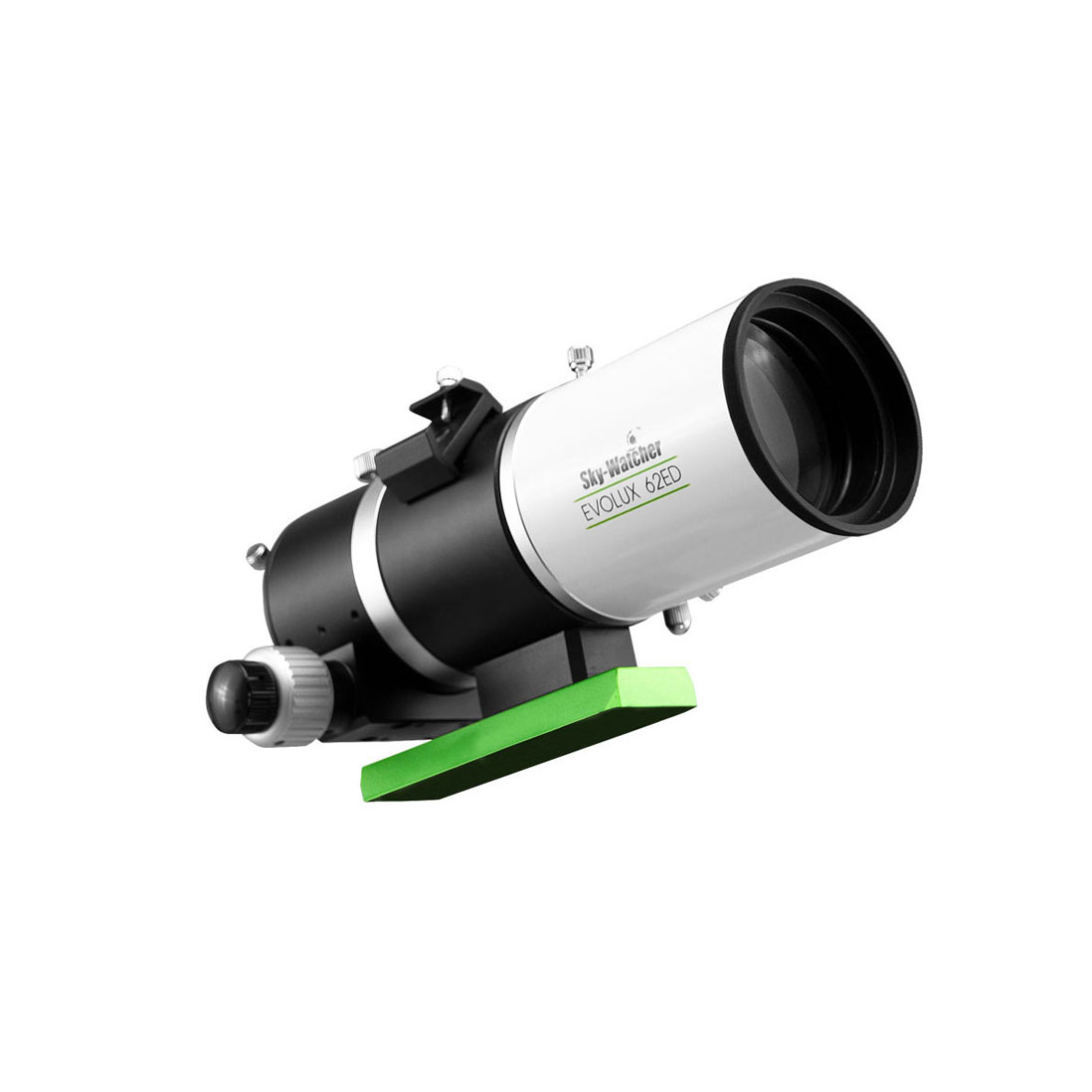

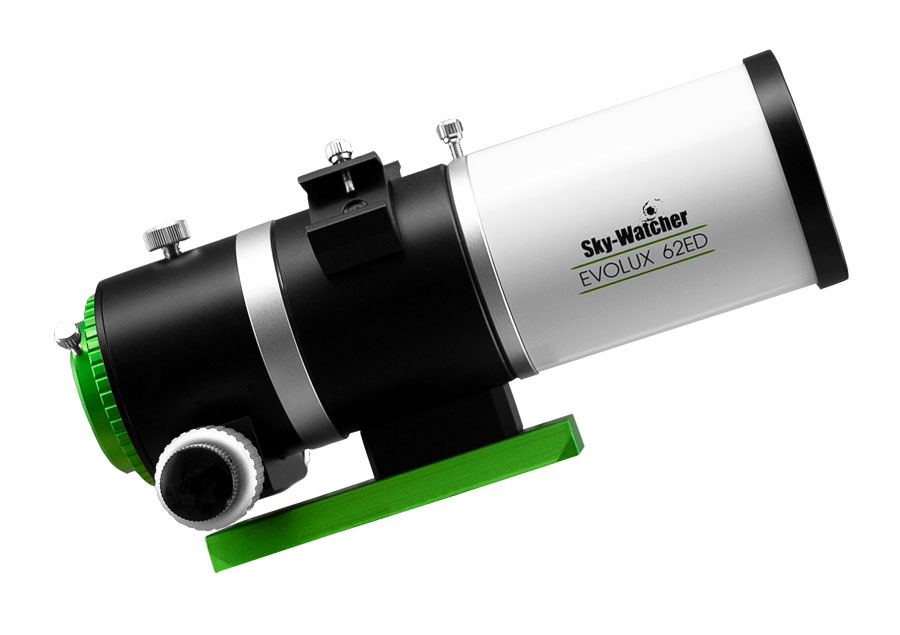

Sky-Watcher Evolux 62/400 ED f/6.5 OTA Telescope
Looking for a telescope that fits in a backpack but still performs in serious astrophotography? The Sky-Watcher Evolux 62ED is exactly that. This ultra-portable refractor features a 62mm aperture and a 400mm focal length at f/6.5 - a great combination for wide-field imaging and enjoyable visual observation of deep-sky objects. Whether you are heading out to a dark sky site or simply want quality optics always within reach, the Evolux 62ED will impress you with its versatility.
Redesigned optics from the ground up
The Evolux range is not just a rebranding exercise. Sky-Watcher used a new type of low-dispersion ED glass that is fundamentally different from what you find in the Evostar or Esprit ranges. Because of this, the entire optical system was redesigned from scratch. The updated two-element lens with new ED glass reduces chromatic aberration to a practically negligible level. Stars are pinpoint, contrast is high and colours are accurate. You will notice this especially when imaging bright objects such as planetary nebulae or star clusters, where cheaper refractors fall noticeably short.
Practical design for astrophotographers
The clamshell mounting ring features two attachment points, so you can mount a finderscope and a guide camera at the same time - a practical detail that experienced astrophotographers will appreciate. The tube also includes an integrated retractable dew shield, which improves portability and reduces the risk of dew forming on the lens during night-time sessions.
The 61mm (2.4″) focuser with micro-focusing delivers smooth, precise focus control - essential for sharp images during long exposures. For astrophotography, the optional redesigned 0.90x reducer/flattener is strongly recommended. It shortens the focal length to 360mm (f/5.8) and flattens the field of view right into the corners of the image. The result is pinpoint stars across a full-frame or APS-C sensor, with no coma or field curvature.
Who is the Evolux 62ED for?
The Sky-Watcher Evolux 62ED is an ideal choice for astrophotographers who need a portable, lightweight and optically capable instrument. It works equally well as a travel telescope for experienced astronomers and as a first serious refractor for enthusiasts moving up from achromatic designs to ED optics. At just 2.5kg, and supplied with an aluminium carry case, it is a natural companion for dark sky expeditions or weekend trips combining travel and astronomy.
Compatible with a wide range of mounts
The standard Vixen-style dovetail bar ensures compatibility with a wide range of mounts. You can attach the telescope to most mid-range and advanced mounts available on the market without any adapters. Overall, this is a well thought-out instrument that makes no compromises where it matters most - in the optics and the mechanics.
Key specifications
| Parameter |
Value |
| Optical design |
ED refractor (two-element ED lens) |
| Aperture |
62mm |
| Focal length |
400mm |
| Focal ratio |
f/6.5 |
| Focal length with reducer/flattener (0.90x) |
360mm (f/5.8) |
| Focuser diameter |
61mm (2.4″) |
| Focuser type |
Rack-and-pinion with micro-focusing |
| Dew shield |
Integrated, retractable |
| Mounting interface |
Vixen-style dovetail |
| Weight |
2.5kg |
| Included accessories |
Aluminium carry case |
Main features at a glance
- 62mm aperture ED refractor with 400mm focal length at f/6.5
- New low-dispersion ED glass - minimal chromatic aberration and high colour accuracy
- Clamshell ring with two attachment points for finderscope and guide camera
- 61mm (2.4″) focuser with micro-focusing for precise focus control
- Integrated retractable dew shield
- Compatible with optional 0.90x reducer/flattener (focal length 360mm, f/5.8)
- Weighs just 2.5kg - supplied with an aluminium carry case
- Standard Vixen-style dovetail - compatible with most mounts
- Suitable for both visual observation and astrophotography
Specifications
Type of telescope:
ED & Apochromats
Optical scheme:
Apochromat Doublet
Focal length:
400 mm
Aperture:
62 mm (2.44″)
Aperture ratio:
6.5
Resolving capacity:
2.23"
Limit value:
10.8 magnitude
Light gathering capacity:
78x
Product range:
Evolux
Max. useful magnification:
124x
Connection type:
2″
Mounting:
No mount
Recommended for:
Advanced, Experienced
Application area:
Astrophotography, Deep Sky observation, Planets observation
Package contents of "Telescope Sky-Watcher Evolux 62/400 ED 1:10 OTA":
✅ Telescope 62/300 ED
✅ Vixen rail
✅ Carrying case
Typical magnifications
The recommended magnification is highlighted in yellow.
D = telescope aperture in millimeters
