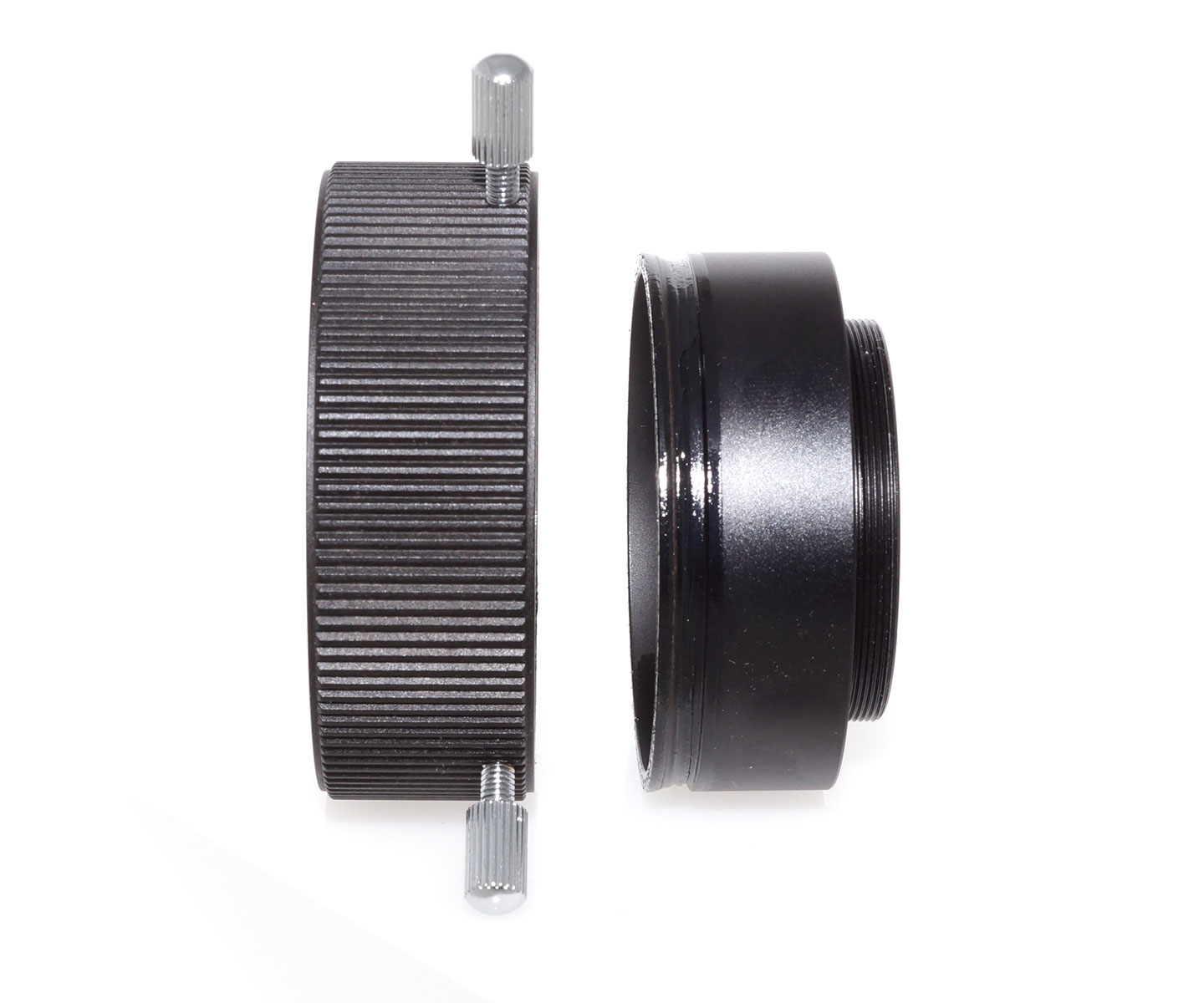

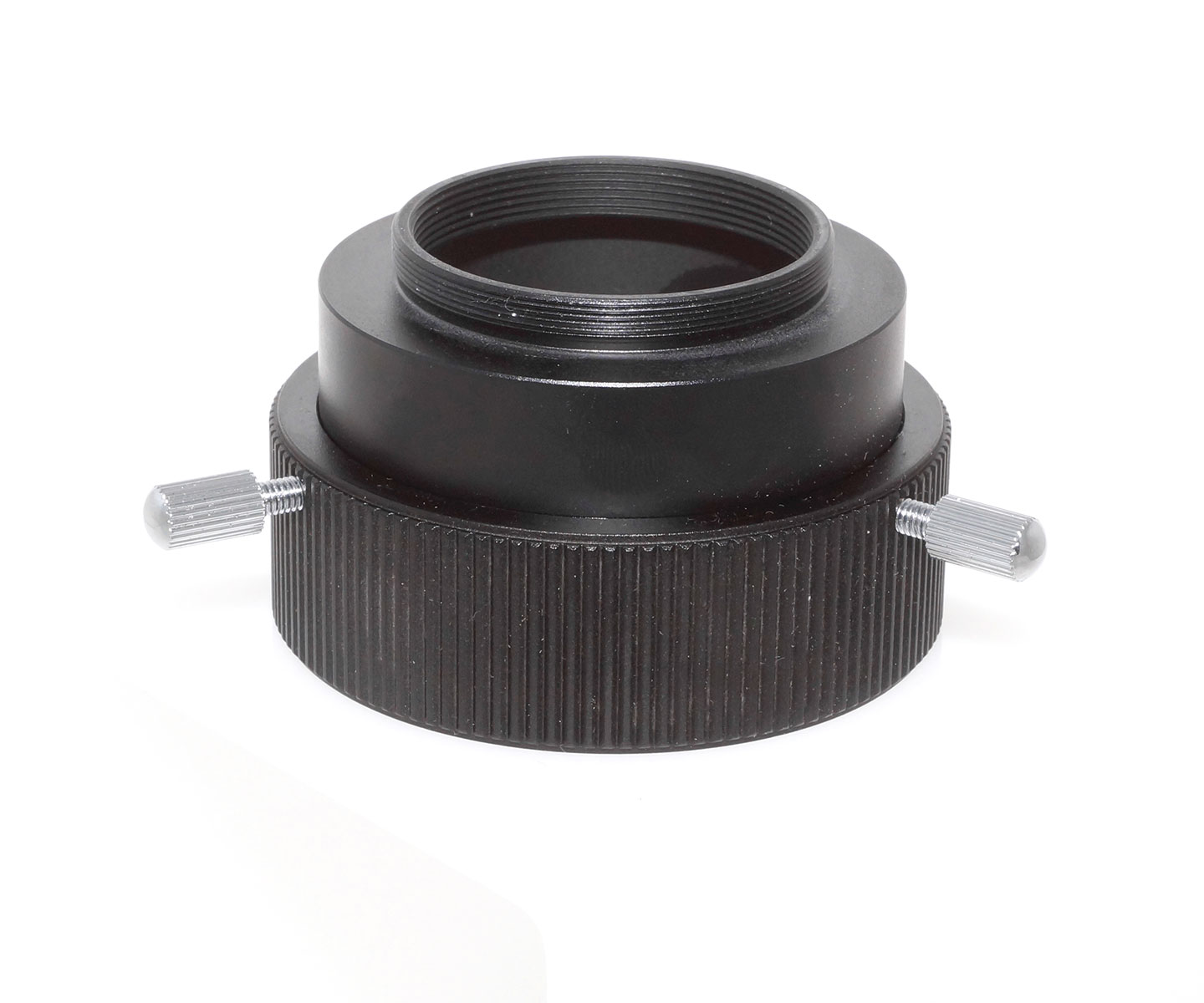

TS Optics 360° Rotation Adapter M68/M48
Every detail matters when you are composing an astrophotography shot - and the orientation of your camera relative to the field of view is one detail you cannot afford to overlook. This rotation adapter from TS Optics solves exactly that problem. It allows smooth, full 360-degree camera rotation without loosening the entire imaging train. The precisely machined thread prevents any unwanted axial shift during rotation, so your focus stays locked. The result is fast, accurate framing in the field - no fumbling in the dark.
Thread connections and optical length
On the telescope side, the adapter has an M68x1 female thread. This provides a firm, centred connection to a matching focuser output or reducer. On the camera side, it offers an M48x0.75 male thread - the standard connection used throughout the astrophotography world.
The optical length of the adapter is 40.2 mm. You must include this value when calculating the total back focus distance for your imaging train. The combination of M68 and M48 threads covers a wide range of mid-range and high-end telescope configurations with both APS-C and full-frame cameras.
Who is this adapter for?
The TS Optics M68/M48 rotator is a compact and reliable accessory for anyone who wants full control over their astrophotography framing. It suits regular observers at a fixed location and mobile photographers who need to respond quickly to conditions in the field. The precise build and standardised threads mean the adapter fits into most existing imaging trains without any additional spacers.
Key features
- Full 360-degree smooth rotation
- No axial shift during rotation - focus stays locked
- M68x1 female thread on the telescope side
- M48x0.75 male thread on the camera side
- Optical length: 40.2 mm
- Compatible with APS-C and full-frame cameras
- Fits most mid-range and high-end telescope setups
- No additional spacers required in most configurations
Technical specifications
| Parameter |
Value |
| Rotation range |
360° |
| Thread - telescope side |
M68x1 female |
| Thread - camera side |
M48x0.75 male |
| Optical length |
40.2 mm |
| Compatible camera formats |
APS-C, full-frame |
| Brand |
TS Optics |
Why back focus distance matters
Back focus distance is the gap between the last optical element of your telescope or reducer and the sensor of your camera. Every adapter, spacer, and filter in your imaging train adds to this distance. If the total does not match the required value for your optical system, the image will not be sharp across the full frame. Always add the 40.2 mm optical length of this adapter to your back focus calculation before assembling your train.
Compatibility with imaging trains
The M68 thread is common on mid-range and high-end refractors, reflectors, and field flatteners. The M48 thread is one of the most widely used camera connection standards in astrophotography. This combination means the adapter works directly with a large number of telescopes and cameras without needing extra adapters. If you are unsure whether this adapter fits your setup, check the output thread of your focuser or reducer and the input thread of your camera adapter or T-ring.
Tip for mobile observers
If you shoot from different locations, the 360-degree rotator saves time when you need to reframe quickly. You do not need to disassemble the imaging train or readjust focus after rotating. Set your composition, lock the rotator, and you are ready to image.
