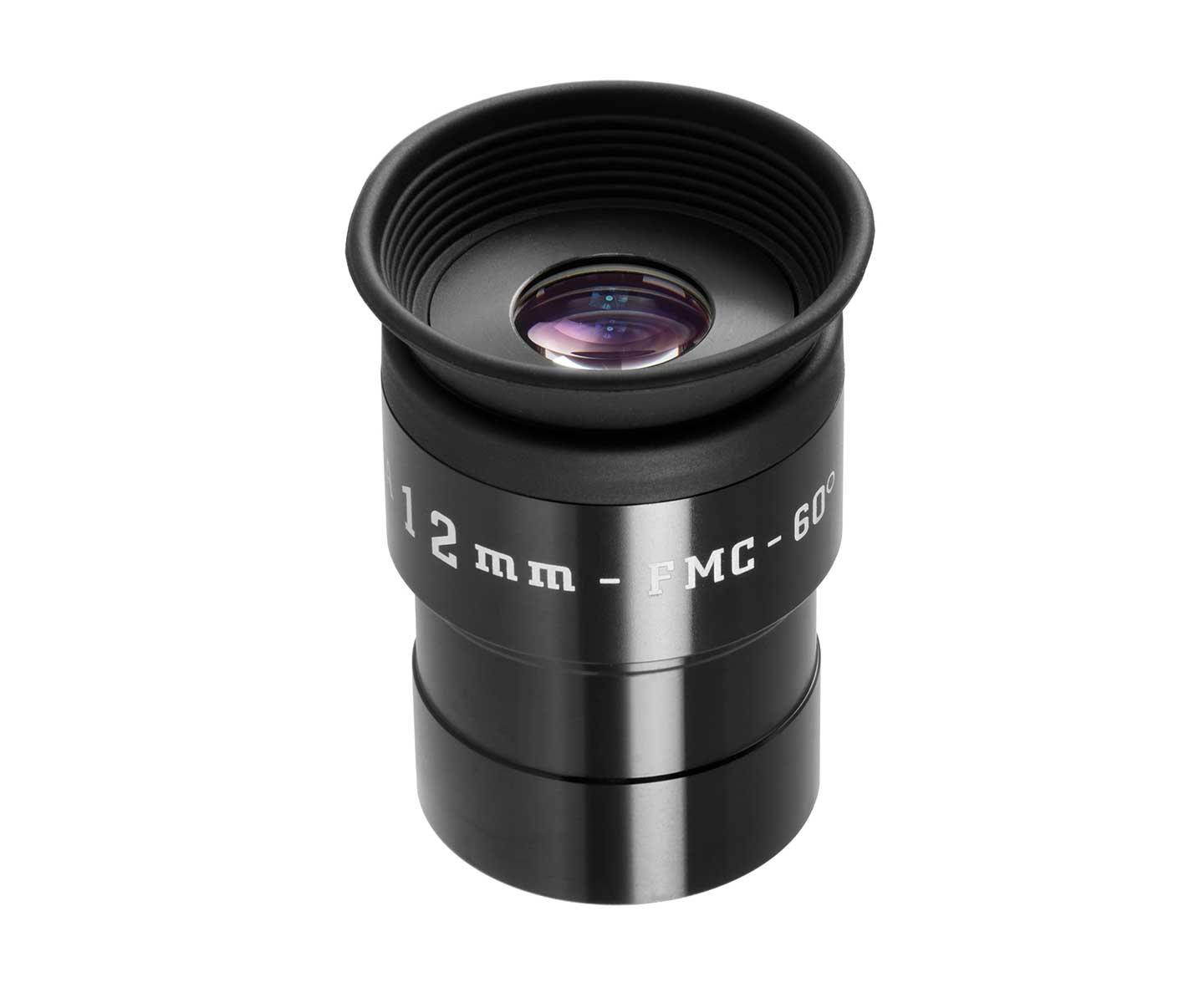

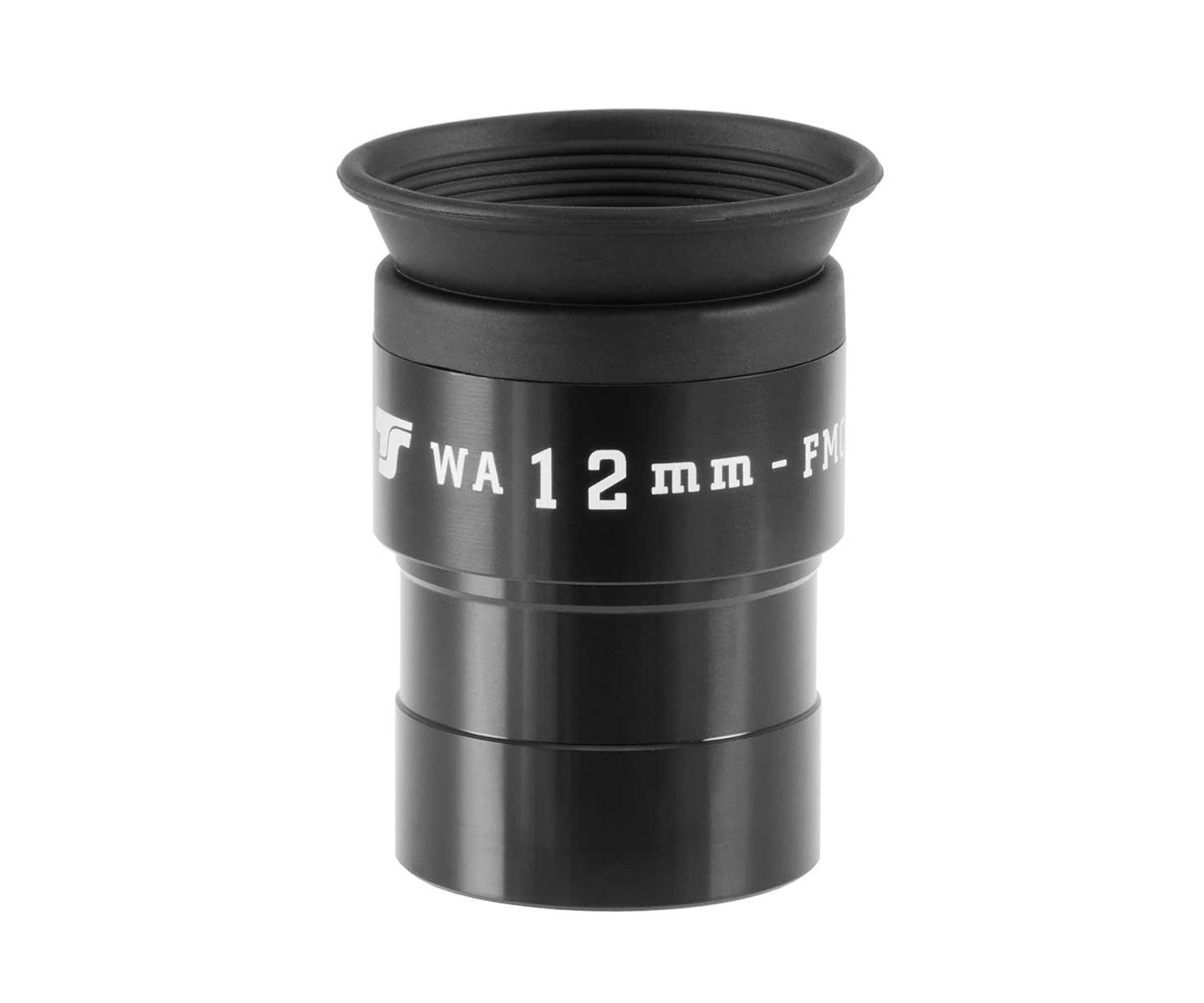

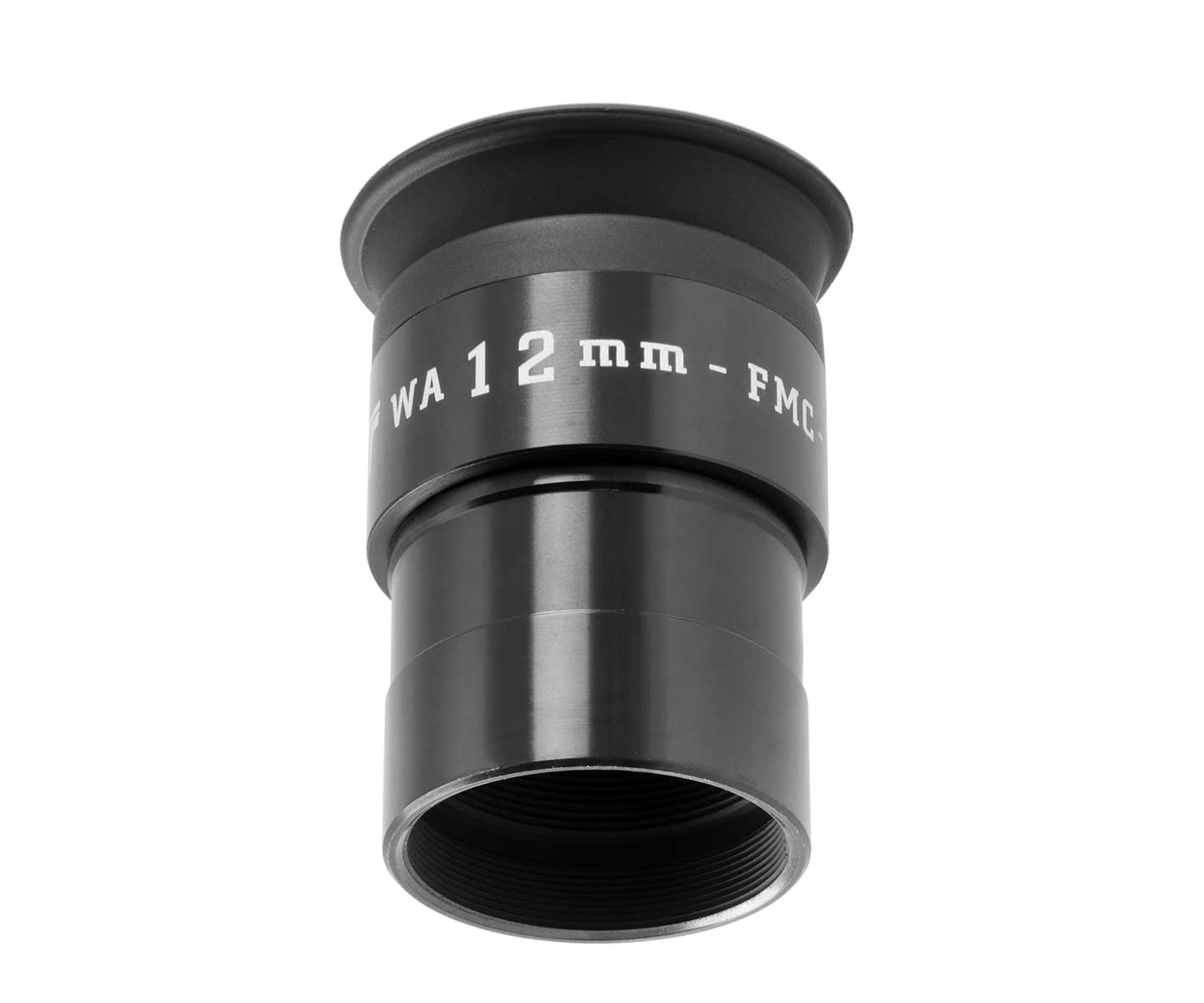

TS Optics WA 12mm 60° 1.25″ Eyepiece
The TS Optics TSWA12 wide-angle eyepiece with a 60° field of view and 12mm focal length covers the full range of visual astronomy - from surface details on the Moon and planets to compact nebulae, star clusters and double star splitting. It delivers a noticeably wider view than a classic Plössl or orthoscopic eyepiece, with no compromise in contrast or edge sharpness.
No built-in Barlow lens - full flexibility
Many wide-angle eyepieces include a built-in Barlow lens, which limits how you can use them with other accessories. The TSWA12 is designed without one. You can pair it freely with any Barlow lens to increase magnification without any optical compromise.
Optimised optics for brighter, sharper views
The WA series uses an optimised lens arrangement that increases image brightness and contrast. Edge distortion is kept to a minimum, so stars near the edge of the field look natural and well-defined. The eyepiece has a non-critical focus position, which means it works reliably with virtually any telescope. The fold-down eyecup makes it comfortable to use both with and without glasses.
Key features
- 60° apparent field of view - noticeably wider than a standard Plössl
- 12mm focal length - suitable for planetary and deep-sky observation
- 1.25″ barrel - fits the majority of telescopes
- No built-in Barlow lens - fully compatible with external Barlow lenses
- Optimised lens arrangement for high contrast and edge sharpness
- Non-critical focus position - works with virtually any telescope
- Fold-down eyecup - comfortable for observers with or without glasses
Technical specifications
| Parameter |
Value |
| Focal length |
12mm |
| Apparent field of view |
60° |
| Barrel diameter |
1.25″ |
| Built-in Barlow lens |
No |
| Eyecup |
Fold-down |
| Compatible with glasses |
Yes |
What can you observe with this eyepiece?
The 12mm focal length and wide 60° field make the TSWA12 a versatile choice. Use it to explore the full disc of the Moon, the cloud bands of Jupiter, the rings of Saturn, and open star clusters such as the Pleiades. It also performs well on compact nebulae and double stars.
Who is this eyepiece for?
The TSWA12 suits beginners who want more than a basic Plössl offers, as well as experienced observers looking for a reliable wide-angle eyepiece at an accessible price. Its non-critical focus position and universal 1.25″ barrel mean you can use it straight away with virtually any telescope you already own.
