Telescope TS Optics Ritchey-Chretien Pro RC 203/1624 OTA - Only tube with accessories, without mounting, without tripod

TS Optics Ritchey-Chretien Pro RC 203/1624 OTA Telescope

The Ritchey-Chretien design sits at the heart of most large professional observatory telescopes in the world - and for good reason. Two hyperbolic mirrors work together to produce sharp, coma-free images across the entire field. Until recently, RC telescopes were priced for institutions only. TS Optics changed that. This 203mm optical tube brings the same proven principle to amateur astronomers who are serious about astrophotography. The result is an instrument that matches what you read about in specialist literature - in a format that fits in your car and onto a mount.

Cover a 30mm sensor without a corrector

This Ritchey-Chretien astrograph has a 203mm aperture and a 1624mm focal length (f/8), and it covers camera sensors up to 30mm in diameter with no corrector required. That is a practical advantage you will notice from the very first session - pick up your camera and shoot, with no extra optical elements in the way. For larger sensors, including full-frame format, TS Optics offers ready-made corrector solutions designed to work directly with this tube.

Optics built for precision

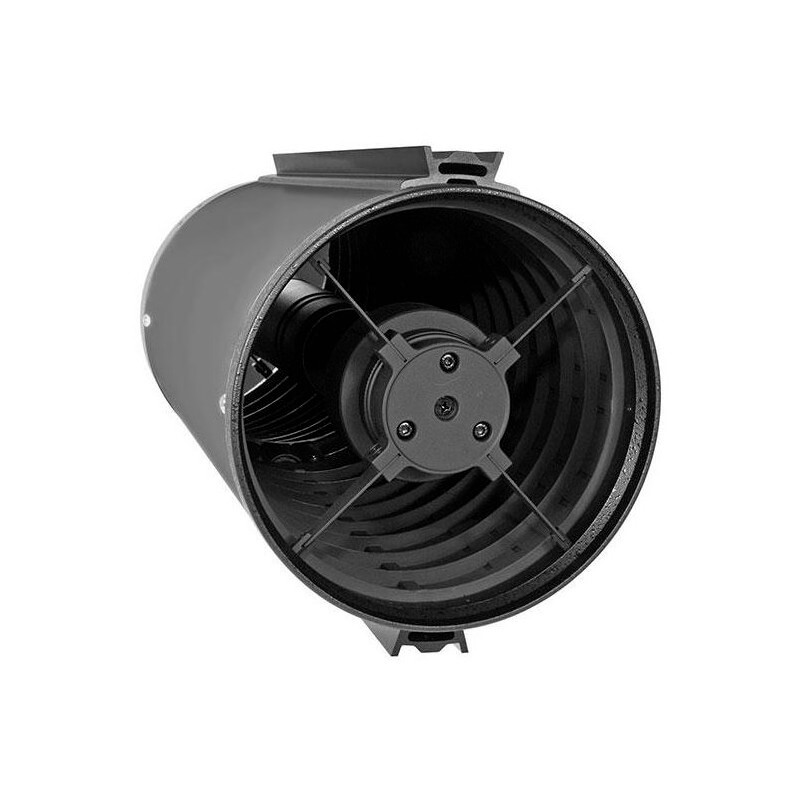

Both mirrors are made from quartz and coated to 99% reflectivity. Surface accuracy reaches 1/12 wave, which in practice means pinpoint stars across the whole image field. Internal baffles suppress stray light and raise contrast - a detail you will clearly see in your nebula images. Secondary mirror obstruction is just 18%, so image brightness stays high even when photographing faint objects down to a limiting magnitude of 13.3.

Lightweight and fast to cool down

The aluminium tube is 580mm long and 230mm in diameter. Its open-truss design cuts cool-down time significantly before an observing session. Anyone who has waited an hour for a closed tube to reach thermal equilibrium will appreciate this straight away. At just 7.5kg, the tube pairs comfortably with mid-size mounts such as the EQ-5 class or similar equatorial mounts with adequate load capacity. A Vixen-style dovetail bar is included for quick and secure attachment to your mount.

2″ monorail focuser with 1:10 fine adjustment

The 2″ monorail focuser includes a 1:10 fine-focus ratio, allowing precise focusing without introducing vibration into the optical axis - essential when imaging with a planetary camera or a DSLR. It accepts accessories in both 2″ and 1.25″ formats, so you can use the full range of standard eyepieces and adapters. The generous back-focus travel also ensures compatibility with correctors, reducers, and binocular viewers, meaning the tube grows with your accessory collection.

Visual observing - better than a Schmidt-Cassegrain

Although the RC 203/1624 is designed primarily for imaging, visual observing of star clusters and planetary detail delivers noticeably better results than a comparable Schmidt-Cassegrain. Maximum magnification of 406x combined with a resolution of 0.57 arc seconds opens up surface detail on Mars, the Cassini Division in Saturn's rings, and the fine structure of globular clusters. The wide, corrected field of view also lets you observe larger objects comfortably, free from coma at the edges.

Technical specifications

What is in the box

• TS Optics RC 203/1624 optical tube assembly
• 2″ monorail focuser with 1:10 fine-focus ratio
• Vixen-style dovetail bar

Who is this telescope for

The TS Optics RC 203/1624 suits astrophotographers who want observatory-grade optics without observatory-grade cost. It works equally well with mirrorless cameras, DSLRs, and dedicated astronomy cameras. If you are moving on from a beginner setup and want a serious imaging instrument that will not limit your results, this is a natural next step.
