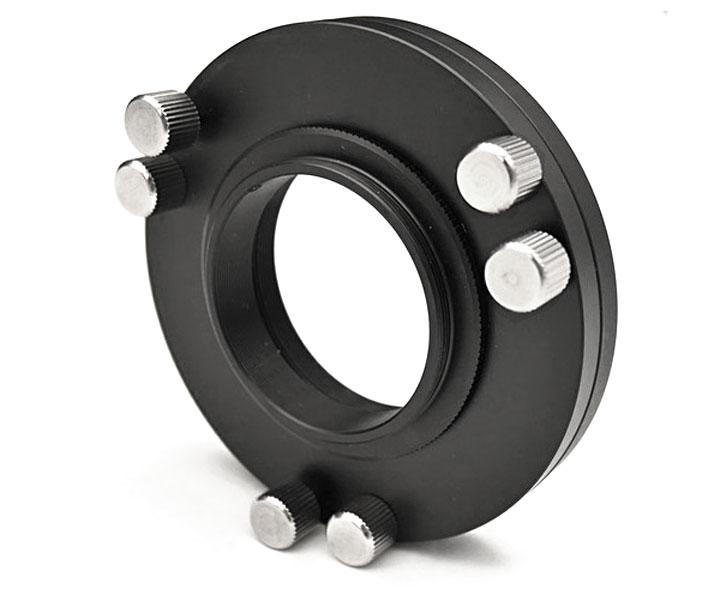

TS Optics M48 Tilter - M48x0.75 tilt compensator
You focus as carefully as you can - and yet the stars in two corners of the image are not point-like. Instead, they appear stretched or distorted. Most astrophotographers know this problem. The causes can vary: a slightly tilted camera sensor (even a fraction of a millimetre is enough), poorly secured accessories, a tilted focuser, or the focal plane of the telescope itself - which is particularly common with Newtonian reflectors. The result is usually a compromise focus, where you try to find a position that looks acceptable across most of the field, or you crop the image afterwards. Neither is a real solution.
The TS Optics M48 Tilter tilt compensator lets you align your camera sensor precisely with the focal plane of your telescope - regardless of where the tilt originates. The device fits into the optical train between the telescope and the camera. Using knurled screws, you can adjust the sensor position smoothly in the field - no tools needed, quickly, and with no risk of losing small parts. It is important to keep the entire optical train in its normal orientation throughout the adjustment process, so that the final alignment is accurate and repeatable. Once correctly set up, stars are point-like across the entire image field, from the centre all the way to the corners.
The M48x0.75 thread on both sides ensures compatibility with a wide range of astrophotography accessories. This thread is now standard on many correctors, reducers and camera adapters. The M48 tilter for astrophotography has a diameter of 88 mm and a height of only 11 mm without an adapter - or 13 mm with the included M48 male-to-male adapter - so it adds very little length to your optical train. The compact design is especially useful when you have limited focuser travel or need to maintain a precise back focus distance for your corrector.
Who benefits from a tilt compensator?
Correcting the camera focal plane is particularly valuable with Newtonian telescopes, where focal plane tilt is often a built-in compromise. However, it also helps with refractors and Cassegrain-type telescopes, where the source of the problem may be imprecisely secured accessories or the sensor itself. The result of a correctly performed alignment is evenly sharp stars across the entire image - no cropping needed, no compromise on focus. The knurled screws allow fine, controlled adjustment even when wearing gloves on cold nights under the open sky.
Key features
- Corrects camera sensor tilt relative to the telescope focal plane
- M48x0.75 thread on both sides - compatible with correctors, reducers and camera adapters
- Diameter: 88 mm
- Height: 11 mm without adapter, 13 mm with the included M48 male-to-male adapter
- Knurled adjustment screws - no tools required, usable with gloves
- Smooth and controlled adjustment directly in the field
- Minimal addition to optical train length
- Suitable for Newtonian reflectors, refractors and Cassegrain-type telescopes
Technical specifications
| Parameter |
Value |
| Thread |
M48x0.75 (both sides) |
| Diameter |
88 mm |
| Height without adapter |
11 mm |
| Height with M48 adapter |
13 mm |
| Adjustment |
Knurled screws, tool-free |
| Included accessories |
M48 male-to-male adapter |
| Compatible telescope types |
Newtonian, refractor, Cassegrain |
Why choose the TS Optics M48 Tilter?
Distorted stars in the corners of your images are frustrating - and they waste your imaging time. The TS Optics M48 Tilter gives you a direct, precise solution. It is compact, easy to use in the field, and compatible with the standard M48 accessories most astrophotographers already own. If you want sharp stars in every corner of your image without cropping and without compromise, this tilt compensator belongs in your optical train.
