Rotation Adapter TS Optics 360° M54x0.75

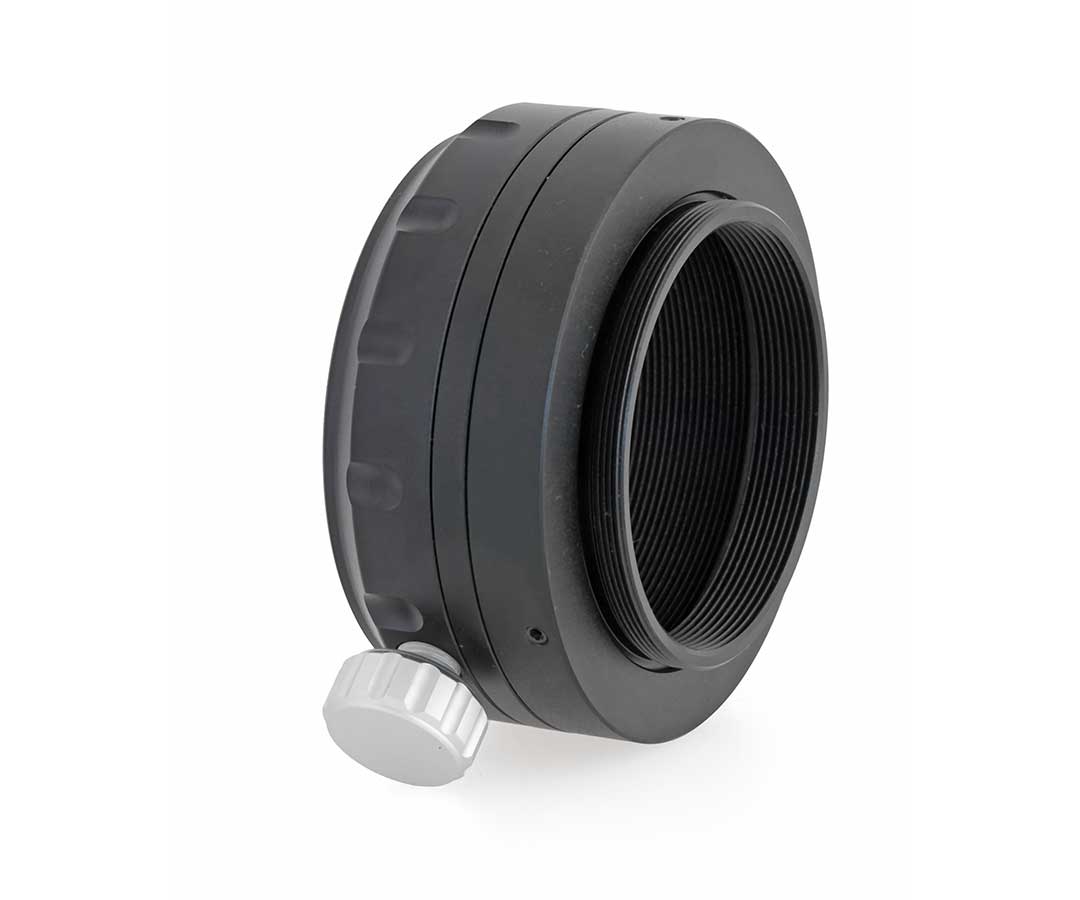

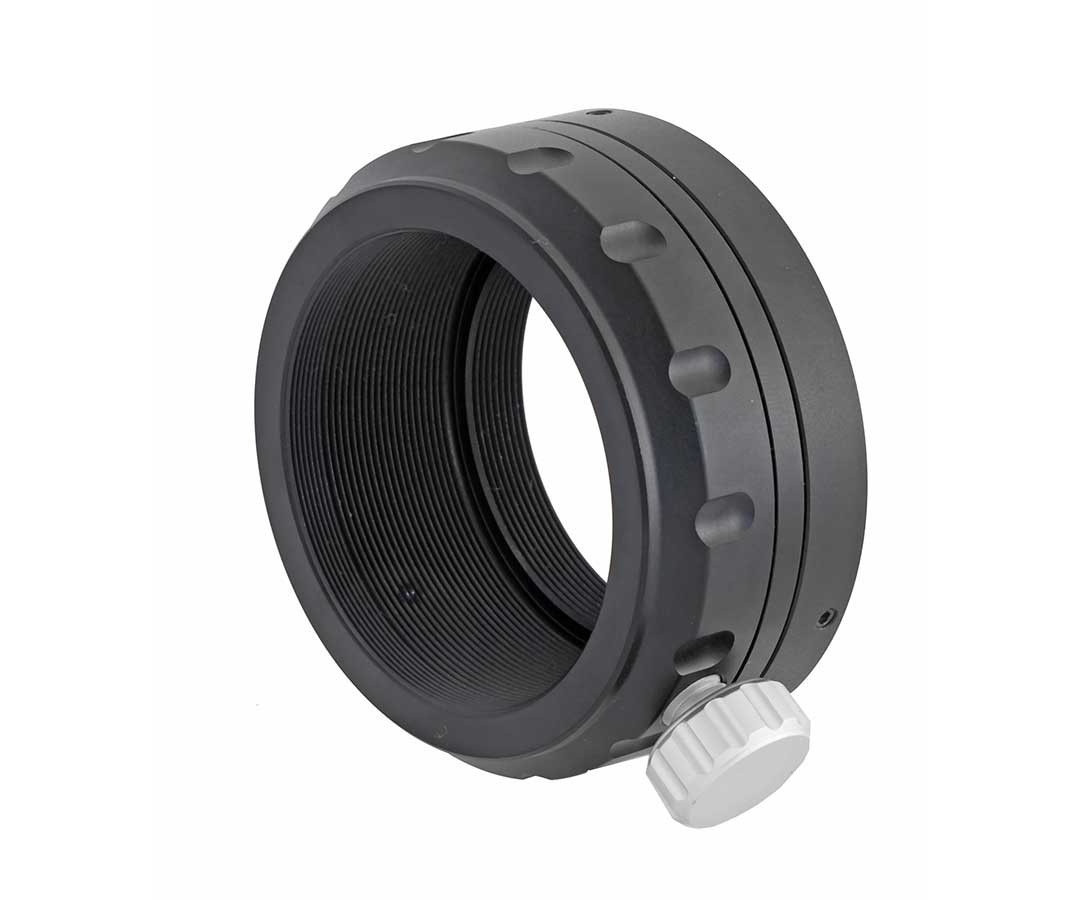

TS Optics 360° Rotation Adapter M54x0.75

Getting the right camera angle sounds simple - until you are actually out under the night sky. The Milky Way's galactic plane, an elongated nebula, or the Andromeda Galaxy all have a natural orientation. If your camera sits at the wrong angle, you either have to reposition the entire mount or accept a compromised framing. The TS Optics rotation adapter with M54x0.75 thread solves this problem precisely and reliably. A full 360° of rotation lets you set any camera angle relative to the eyepiece or reducer - without touching anything else in your imaging chain. Once you find the right angle, a locking screw holds it firmly in place.

Secure lock for long exposures

A firm hold is not always guaranteed during long exposures - but here it is. The locking screw keeps the set position throughout an entire night session, even when you are using an autoguider. Any unwanted movement in the optical chain can ruin an entire image sequence, and this adapter removes that risk. The thread connections are machined to a high standard of precision. The thread engagement on the telescope side is 5 mm, providing a solid, play-free connection. The adapter fits any focuser or extension ring with an M54x0.75 thread, so it works across a wide range of optical systems and telescope brands.

No vignetting - even with full-frame sensors

The 49.1 mm clear inner diameter is large enough to prevent vignetting with most modern astrophotography cameras, including those with a full-frame sensor. This is a practical detail that is easy to overlook when choosing a rotation adapter. A narrow point in the optical chain will darken the corners of your images and degrade otherwise good data. The optical length of the adapter is 30.2 mm - you must include this value when calculating the total back focus distance of your imaging setup. If you do not account for it, you may find that focus shifts unexpectedly or that you cannot reach focus at all without further adjustments.

When camera orientation is part of the workflow

This 360° rotation adapter for the M54x0.75 thread is most valuable to those who treat image framing as a deliberate choice rather than an afterthought. Imaging elongated targets such as M31 or the Milky Way band, building mosaic panoramas from multiple fields, or avoiding a meridian flip - these are the situations where a rotation adapter becomes a regular part of the workflow. It is a small component in an overall imaging setup, but components like this often decide whether a night session ends with a set of usable images or with frustration at unrealised potential.

Technical specifications
