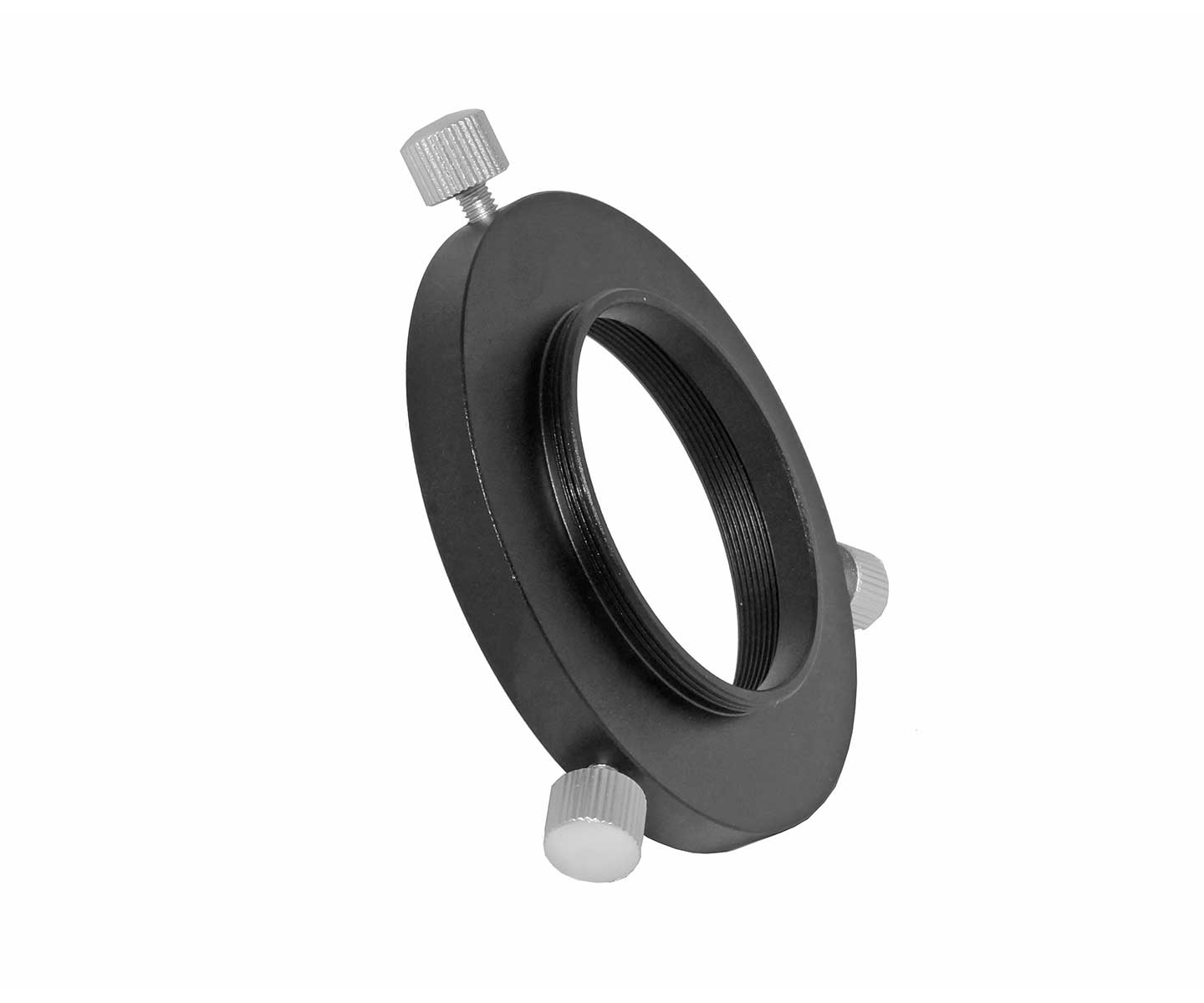

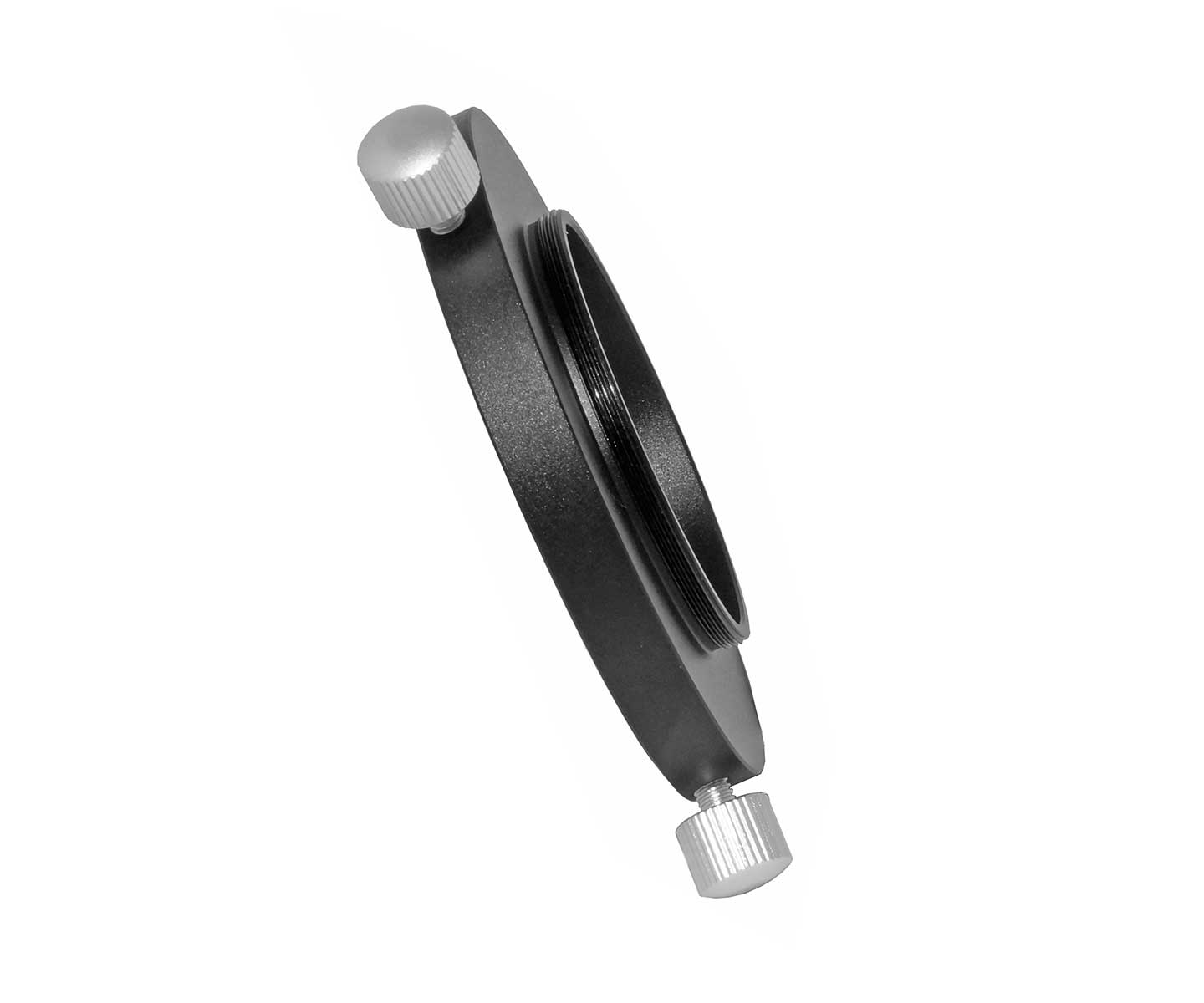

TS Optics TSM48ROT 360° Rotating Quick-Release Adapter M48x0.75
Night sessions demand reliable, fast equipment. Time moves quickly, fingers get cold, and any trouble connecting your camera is time wasted. The TSM48ROT adapter from TS Optics was designed exactly for these situations. This rotating adapter with a quick-release mechanism for M48x0.75 thread combines two essential functions in a single compact unit - with just 8 mm of optical path length. The knurled M4 locking screws let you work safely even in thick gloves, so a cold night is no longer something to worry about.
How it works

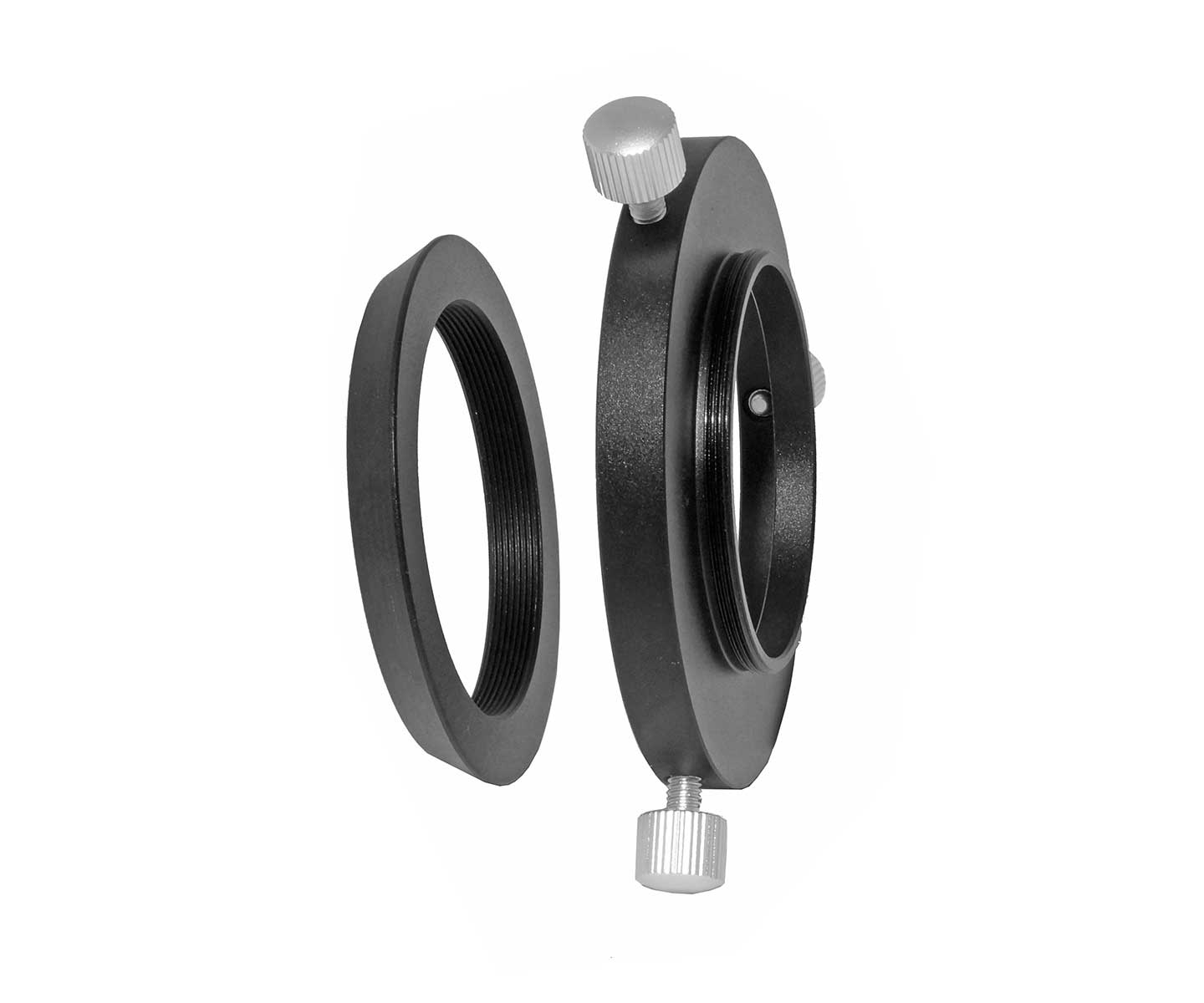

The adapter has two parts. The inner, conically tapered section connects to the telescope. Its shape self-centres automatically as you tighten it - no fine adjustments needed. The outer part holds the camera adapter in place using three screws and keeps the camera securely attached. This design guarantees excellent centring in all conditions. The inner adapter ring stays precisely centred regardless of how firmly you tighten it. Generously thick walls and sufficiently long threads mean the adapter handles even heavier accessories without any issues.
Quick-release - attach and remove in seconds
Every astrophotographer knows the moment: you leave the telescope with the camera still attached just to avoid unscrewing it. With the TSM48ROT, you loosen three screws and the camera separates in a second. This is ideal when you need to clean the sensor or switch cameras mid-session. Cables stay clear and cannot tangle, because the rotation design does not allow the adapter to unscrew completely. Reattaching the camera is equally fast and perfectly repeatable.

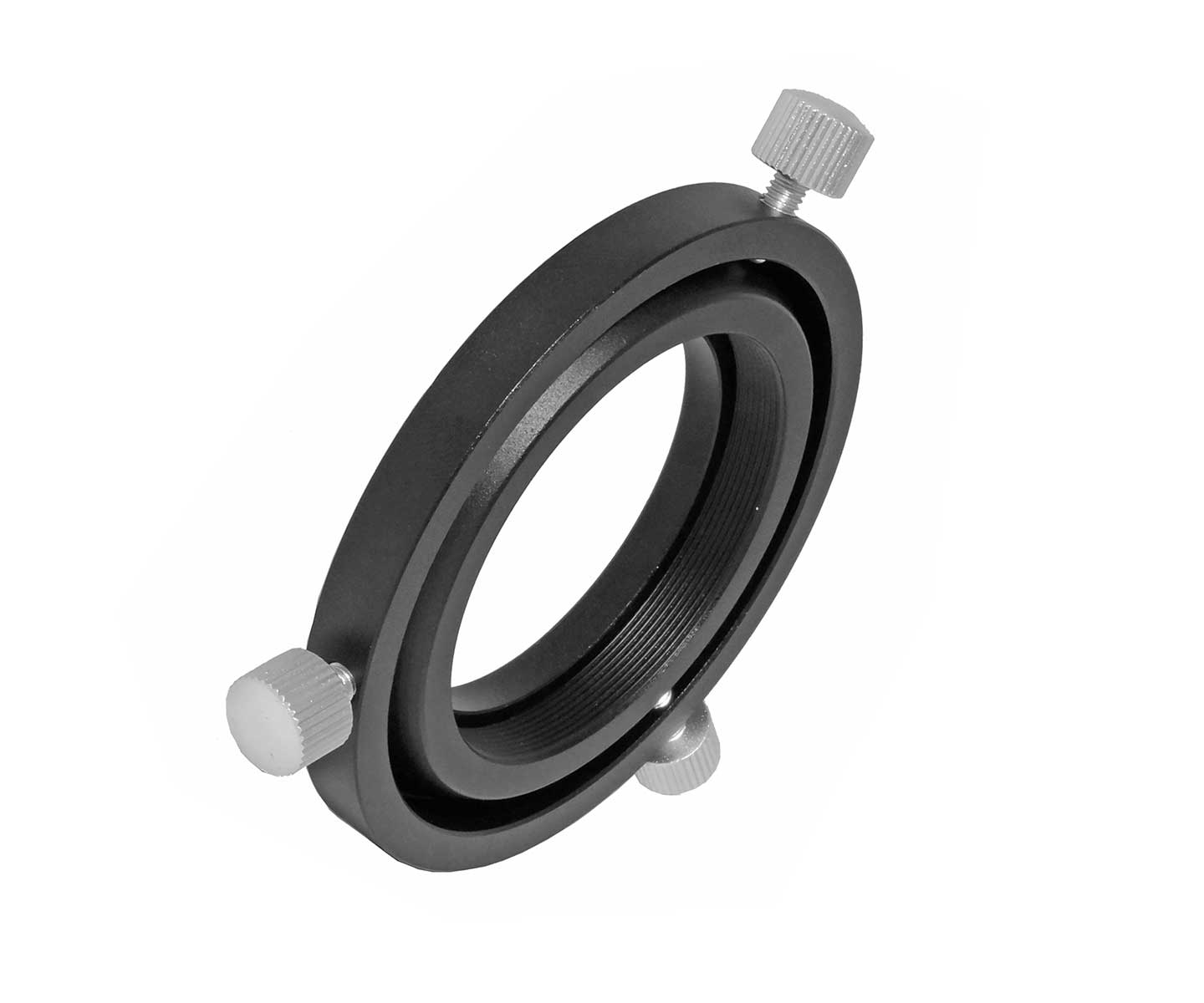

Full 360° rotation
Smooth 360° rotation lets you orient the camera sensor to match your target without adjusting the whole optical train. This is especially useful when working with an off-axis guider. Insert the TSM48ROT adapter before the guider and you can rotate the entire assembly freely - greatly expanding the area you can search for a suitable guide star. This is a practical advantage in light-polluted areas or locations where fewer bright guide stars are available.
Dust protection when the camera is removed
When you detach the camera and one side of the adapter is left exposed, we recommend protecting it from dust. Simply take the matching counterpart from a second TSM48ROT adapter and fit a suitable protective cap - available as an accessory. This straightforward solution keeps dust out of the thread and the optical path, and saves time when you next attach the camera.
Key features
- Thread: M48x0.75
- Optical path length: 8 mm
- 360° continuous rotation
- Quick-release with three M4 knurled screws
- Self-centring inner taper - no adjustment required
- Compatible with heavy camera accessories
- Works comfortably in thick gloves
- Compatible with off-axis guiders
- Dust protection caps available separately
Technical specifications
| Parameter |
Value |
| Thread |
M48x0.75 |
| Optical path length |
8 mm |
| Rotation |
360° |
| Locking screws |
3x M4 knurled |
| Centring method |
Self-centring inner taper |
| Manufacturer |
TS Optics (Teleskop Service) |
| Model |
TSM48ROT |
Who is this adapter for?
The TSM48ROT suits astrophotographers who connect a camera to their telescope regularly and want to save time at the start and end of each session. It is equally well suited to observers who use an off-axis guider and need to rotate the assembly to find a usable guide star. The combination of quick-release and free rotation makes this one of the most practical adapters available for M48 connections.
